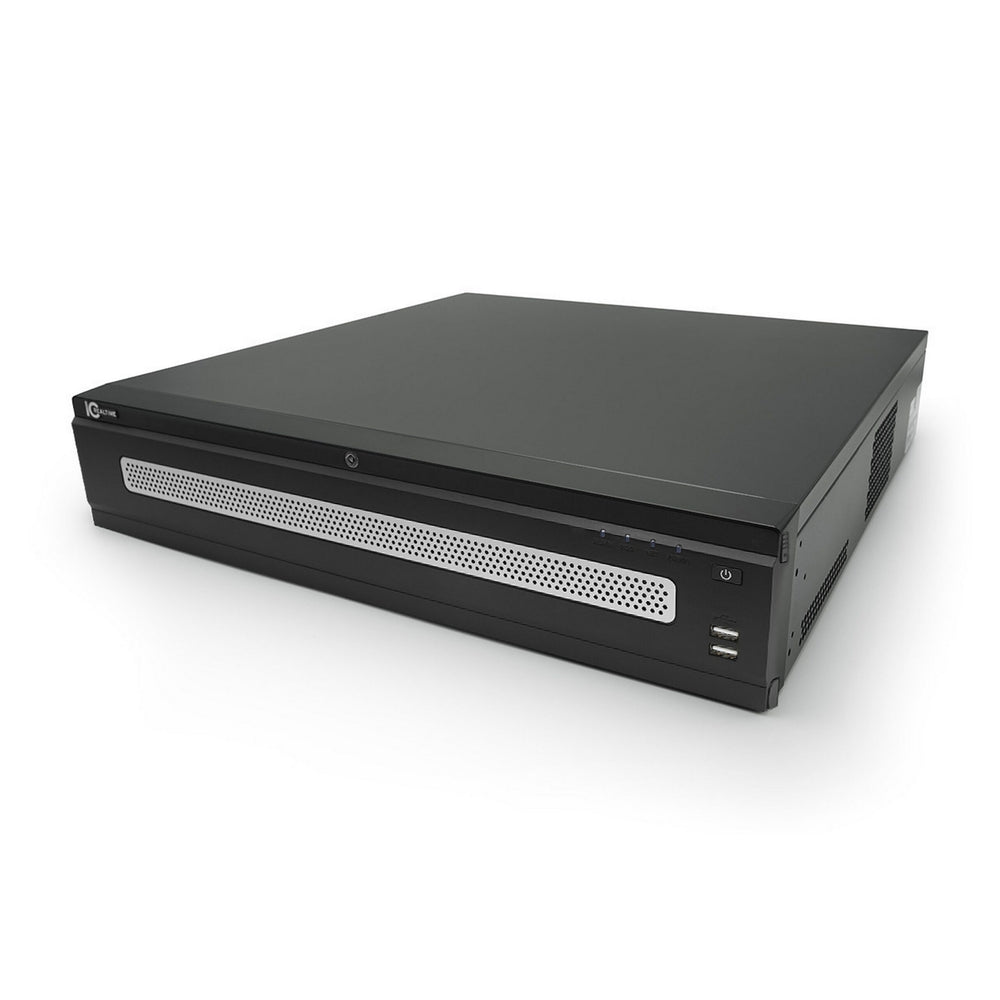

IC Realtime NVR-EL64-2U12MP1 64 Channel 2U 4K Network Video Recorder, 70TB HDD

When your system demands extensive video storage access with the necessary video processing overhead and substantial hard drive capacity, the IC Realtime NVR-EL64-2U12MP1 is the ultimate solution. Made in South Korea, this top-tier 64-channel network video recorder features a robust 2U chassis capable of housing up to 8 SATA III hard drives. With 384Mbs of throughput and a state-of-the-art ICR O/S 4.0, this NVR is perfect for large-scale operations like greenhouses, warehouses, or centralized video vaults for fast food and retail locations.

The NVR-EL64 is among the largest NVRs provided by IC Realtime, second only to the 128-channel NVR-EL128-4U12MP1. It replaces the older NVR-6064K model and introduces significant improvements, including a redesigned graphical user interface and an upgraded cybersecurity dashboard. The NVR-EL64 is tailored for installations featuring numerous camera locations, supporting up to 80TB of onboard storage. It also offers customized throughput allocations up to 20Mps per channel, making it suitable for 4K cameras up to 12MP, and features built-in de-warping for 360-degree cameras. The hot-swappable, front-access hard drive array simplifies maintenance and enhances system reliability through RAID support and hot standby capabilities.

Enhancing its utility further are dual HDMI ports, a VGA port for direct interface, FlexSmartAI intelligent features, and extensive compatibility with third-party devices thanks to OnVIF 2.4 support. Its AI-enhanced detection systems and Intelligent Video System (IVS) capabilities provide IMD, perimeter protection, face detection, and more advanced functionalities. The 10-year limited warranty underscores IC Realtime’s commitment to quality and long-term reliability, making the NVR-EL64 the ideal choice for serious digital video security needs.

Key Features

• 64 Channels | Up To 12MP | 384Mbps Bandwidth
• 70TB HDD | RAID 0/1/5/6/10 Support
• ICR OS 4.0 | 2 Gigabit RJ-45 | AI + IVS Support
• 4 USB | Alarm 16/8 | 2 HDMI + 1 VGA
• OnVIF 2.4 | 2U | Rack Mountable
• Made in South Korea and Conforms to The Trade Agreements Act (TAA)

Specifications

• Main Processor: Intel Multi-core Processor
• Operating System: ICR OS 4.0 (Embedded LINUX)
• Display Interface: 2 HDMI (Different Source), 1 VGA
• Display Resolution: HDMI1/HDMI2: 3840 x 2160@25/30 fps, 1920 x 1080, 1280 x 1024, 1280 x 720; VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Fisheye Dewarp: Supported
• Display Split: 1st Screen: 1/4/8/9/16/25/36/64; 2nd Screen: 1/4/8/9/16
• Display Out Max Decode: 4 channels @ 4K, channels @1080p (30 fps)
• IVS: (Supported by camera) Tripwire and Intrusion, Missing and Abandoned object
• Perimeter Protection: Tripwire & intrusion; Recognition of human and vehicle (24 Channels)
• Intelligent Motion Detection: Human/Vehicle Recognition (32 channels)
• Face Detection/Recognition, Heat Map, and People Counting (24 channels)
• Video Metadata (12 Channels): ANPR: License Plate Recognition (8 channels)
• 3D Analysis (BETA): (32 channels)
• Supported Camera Types: IP
• IP Camera Input: 64 Channel
• Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection: Motion Detection, MD Zones: 396 (22 x 18), Video Loss, and Tampering
• Playback: Supports 1/4/9/16 split view
• Search Mode: Time/Date, Alarm, MD, and Exact Search (accurate to second)
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode: USB Device/Network/eSATA Device
• Streaming Capability: 2
• Audio Compression: MP2/G726/G729/G722/G723/G711A/G711U/PCM
• Two-way Talk: Supported
• Record Compression: Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/MJPEG
• Record Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, etc.
• Record Rate: 384Mbps
• Record Mode: Manual, Schedule (General, MD (Motion Detection), Alarm, MD & Alarm, Intelligent)
• Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, post-record: 10 ~ 300 sec
• Internal HDD: 8 SATA III Ports, up to 10 TB capacity for each HDD
• HDD Mode: Group; Raid 0/1/5/6/10
• eSATA: 1 eSATA Port (Please contact technical engineer to confirm the compatible device)
• Ethernet: 2 RJ-45 Ports (10/100/1000Mbps)
• Protocol: HTTP, HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Supports IC Realtime and ONVIF devices) P2P
• Compatibility: ONVIF (profile T/S/G), CGI, SDK. Works with ONVIF compliant IP cameras.
• Max. User Access: 128 Users
• Web Viewer: IE, Chrome, Firefox, Edge, Safari
• Management Software: Smart ICRSS, DSS
• Smart Phone: iPhone, iPad, Android
• RS232: 1 Port, for PC Communication and Keyboard
• RS485: 1 Port, for PTZ Control
• USB: 4 USB Ports (2 USB 2.0, 2 USB 3.0)
• Power Supply: AC100V ~ 240V, 50 ~ 60 Hz
• Power Consumption: <20W (Without HDD)
• Operating Conditions: +14 Degrees F ~ +131 Degrees F (-10 Degrees C ~ +55 Degrees C), 86 ~ 106kpa
• Storage Conditions: -4 Degrees F ~ +158 Degrees F (20 Degrees C ~ +70 Degrees C)
• Installation: Rack-mounted
• Dimensions: 2U, 17.3” x 17.8” x 3.7” (40mm x 451.08mm x 94.85mm)

Package Contents

• IC Realtime NVR-EL64-2U12MP1 Network Video Recorder
• 70TB HDD
• 2U Rack Mounting ears
