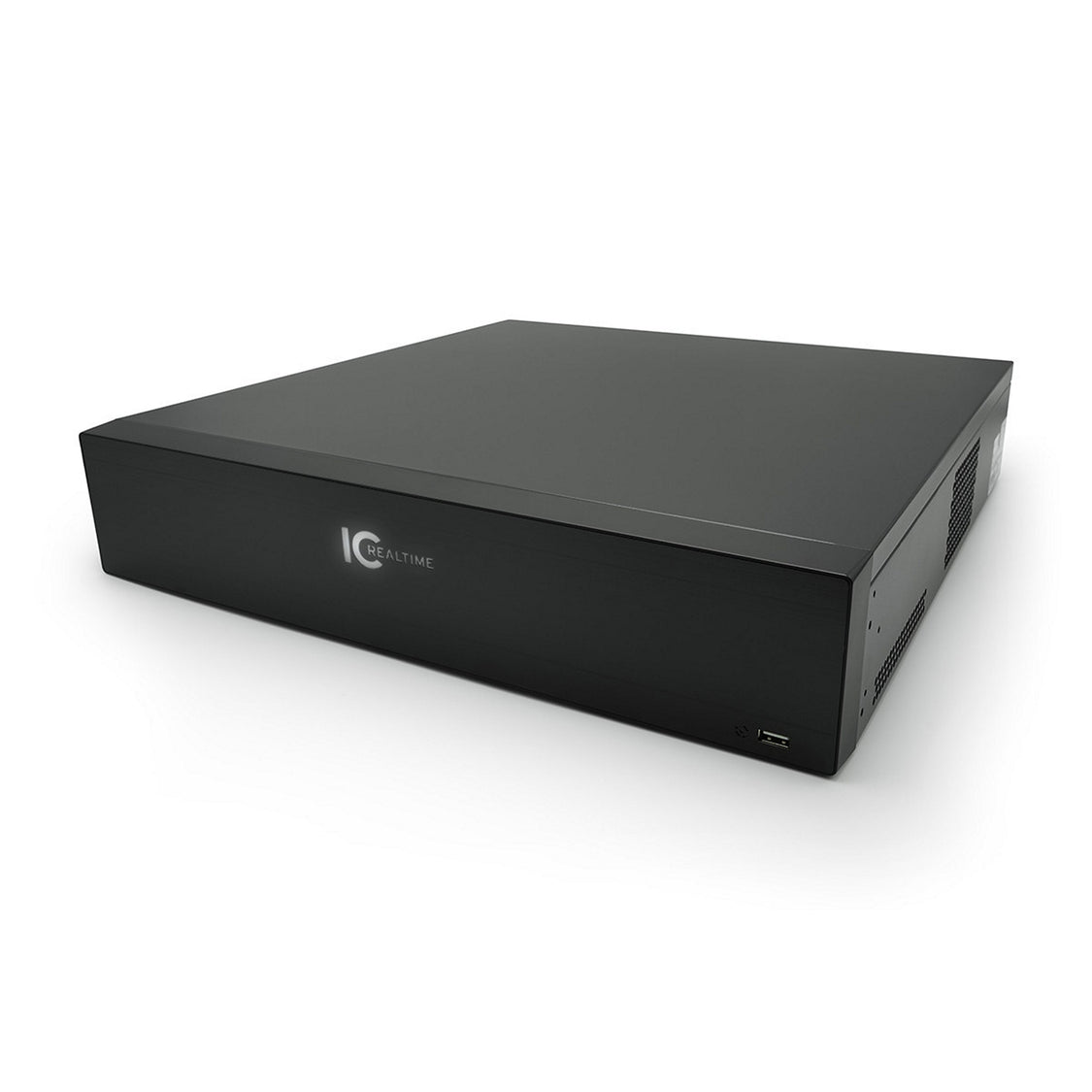

IC Realtime NVR-EL64-2U32MP1 64-Channel Rack-Mount Network Video Recorder

IC Realtime NVR-EL64-2U32MP1 64-Channel Rack-Mount Network Video Recorder

For large camera systems with up to 64 cameras, there is only one 2U “network appliance” NVR that comes with both room for up to 128TB of hot-swappable hard drives and an industry-leading 10-year Limited Warranty - IC Realtime’s new TAA-certified South Korean-made NVR-EL64-2U32MP1NVR. This newest edition packs more than a gigabit of throughput, comes factory equipped with our most advanced AI-enhanced iMD and Perimeter Protection, handles cameras up to 32MP, and now boasts both facial & plate recognition and the ability to record AI camera metadata streams for cross-channel “select & search” capability.

DETECTION INTELLIGENCE & FACIAL RECOGNITION
NVR-EL64-2U32MP1 is part of the next generation of AI-assisted iMD recorders that not only record flawless video & audio digital records, NVR-EL64 can take full advantage of camera-based IMD (Intelligent Motion Detection) tripwires with Perimeter Protection for human and vehicle detection and business intelligence such as heat mapping, face detection & people counting. Cameras don’t have detection capabilities? No worries - NVR-EL64’s built-in AI can add perimeter protection or iMD on cams that don't have them. The NVR’s huge processing power also enables Facial Recognition & License Plate Recognition capabilities - both based on ultra-secure NVR-internal databases, so you’re always in control.

HOT-SWAPPABLE 8 PORT “HARD DRIVE GARAGE”
This NVRs 2U chassis with 8 front-accessible & hot-swappable SATA III hard drive bays, each of which can handle up to 16TB - gives NVR-EL64-2U32MP1 room for up to a whopping 128TB onboard. Configurable for RAID 0/1/5/6/1 and with N+M cluster backup unit support, this NVR’s TAA Compliant multicore embedded processor & massive throughput of 512 to 1,024 Mbs makes it the ideal size for grow houses, large warehouses, or as the central video vault for local or remote camera feeds from multiple buildings, fast food, or retail locations that need “fail safe” local storage.

ONVIF 2.4 CAMERA SUPPORT & VMS COMPATIBILITY
Even if not all your cameras are IC Realtime, our OnVif 2.4 compatibility ensures wide-ranging compatibility with the EL64. And the unit’s ICR 4.0 O/S is HTML5 compatible, allowing the NVR to be viewed by common browsers like Firefox and Chrome in addition to our new IC View+ app and our SmartICRSS V2 - both freely downloadable. Designed to be compatible with numerous third-party devices and work with Video Management Systems, the open architecture of NVR-EL64-2U32MP1 endows it with interoperability for integration situations and works with multiple IP-enabled solutions. If your clients have as many as 64 remote POE switch-based cameras from IC Realtime - or the ONVIF cameras of brands like Sony, Canon, Pelco, Axis, Arecont, or Samsung - and are ready for an AI-powered leap into the future, step them up to the industry’s most advanced AI-enhanced detection & metadata capabilities that comes with IC Realtime’s unparalleled long-term reliability backed by a 10 Year Limited Warranty, look no further than our latest South Korean-made, TAA Compliant NVR-EL64-2U32MP1.

DESIGNED FOR FLEXIBILITY & CYBERSECURITY
The NVR-EL64-2U32MP1 features our latest ICR O/S 4.0 operating system with a built-in Cyberscurity dashboard and a redesigned Graphical User Interface. While built to handle a large number of cameras, every channel on the EL64 is customizable & capable of custom throughput allocations. This real-world professional-level flexibility makes it capable of supporting cameras up to 32MP and a customizable range of mixed-resolutions & FPS settings to meet large camera system allocation requirements. As one of our newest & most advanced network appliance NVRs, the EL64 also boasts built-in de-warping capability for 360° cameras like our IPEL-F12F or IPEL-F50F.

MASSIVE CHANNEL CAPACITY & CONNECTIONS IN A 2U RACK SPACE
All these features add up to the best solution if you need to support more than 32 video channels and need a single, high capacity 4k/8K capable NVR that only takes up 2 rack spaces but with 4 HDMI ports + 2 VGA ports for direct monitor connections at the recorder. EL64 shares the EL32’s Linux OS & huge multicore processing and thruput capabilities but with double the camera channels and dual 1000Mbs network ports that assign your network POE switch camera inputs to net port #2 to keep net port #1’s bandwidth available for remote NVR access. NVR-EL64-2U32MP1’s backplane also boasts an RS485 port for legacy PTZ control and even an RS232 port for external PC comm & keyboards, the aforementioned eSATA port, RCA audio in/out for a 2-way talk system, and 16 in / 8 out alarm ports for easy integration. And like all professional-grade EL-Series NVRs, 2U rack ears are included in the box.

FUTUREPROOF YOUR DIGITAL RECORDS SYSTEM
NVR-EL64-2U32MP1’s deep learning Artificial Intelligence capabilities fulfill the cross-platform promise of IC Realtime’s FlexSmartAi technology. It leverages not only its internal cutting-edge AI & storage capabilities but every available camera-based iMD (Intelligent Motion Detection) and perimeter protection skill - and even adds Ai detection skills to cameras built without them! It works today with our current intelligent cameras and is ready for the metadata streams of our new iMD 2.0 AI cameras.

If you have clients that run a huge multi-camera facility and their digital records needs require the ultimate in dependability, server-grade processing power, massive local storage, future-proof AI-based detection, and internal database facial & license plate identification skills, they need to rack up IC Realtime’s new NVR-EL64-2U32MP1.

Key Features

• 64 Channels | Up To 32MP |1024Mbps Throughput
• 8 HDDs | 128TB Max (Starting At 8TB HDD) | RAID 0,1,5,6,10
• ICR OS 4.0 | 2 Gigabit RJ-45 | AI+ IVS Support
• 4 USB | Alarm 16/8 | 4 HDMI +2 VGA
• ONVIF 2.4 Conformant | 2U | Rack Mountable
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Technical Specifications

System
Main Processor
Multi-core embedded processor
Operating System
Embedded LINUX, ICR 4.0
Display
Display Interface
2x VGA, 4x HDMI video output
Display Resolution
HDMI: Up to 4K
VGA: Up to 1080p
Simultaneous mode
max. resolution of VGA1 and VGA2: 1080p, max. resolution of HDMI1 and HDMI2: 4K max. resolution of HDMI3: 8K
max. resolution of HDMI4: 1080p
Mixed mode
Simultaneous video source output for VGA1 & HDMI1
Simultaneous video source output for VGA2 & HDMI2
max. resolution of VGA1 and VGA2: 1080p,
max. resolution of HDMI1, HDMI2 and HDMI3: 4K
max. resolution of HDMI4: 1080p
Display Split
Main screen: 1/4/8/9/16/25/36/64
Sub screen: 1/4/8/9/16/25/36
HDMI Decoding
2-channel 32 MP@30 fps; 2-channel 24 MP@30 fps; 4-channel 16 MP@30 fps; 8-channel 8 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps; 72-channel 720P@30 fps
Intelligence
IVS
Tripwire & intrusion- 10 IVS rules for each channel, 50 objects max: 24 channels (AI by Recorder) or 64 channels (AI by Camera)
Advanced Intelligent Functions
Perimeter Protection. Tripwire & intrusion; Recognition of human and vehicle: 24 channels, 10 IVS rules for each channel (AI by Recorder) or 64 channels (AI by Camera)
Intelligent Motion Detect (iMD): 32 channels (AI by Recorder) or 64 channels (AI by Camera)
Face Detection: 4 channels, up to 12 face images/s each channel (AI by Recorder) or 64 channels (AI by Camera)
Face Recognition:1. 20-channel FD (by camera) + FR (by recorder), image stream: 20 face images/s
2. 4-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Video Metadata: 8 channels (by recorder) or 32 channels (AI by Camera)
Vehicle License Plate Comparison: 32 channels (AI by Camera)
Video
Supported Camera Types
IP
IP Camera Input
64
Trigger Events
Motion detection; video tampering; video loss; scene
changing, PIR alarm, IPC external alarm
Playback
Up to 16 channels
Playback Function
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off
Backup Mode
Portable hard drive, eSATA disk, burner, USB device and network
Audio
Two-way Talk
Supported
Recording
Record Compression
Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Record Resolution
32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1
Record Mode
Manual; alarm; motion detection; scheduled
Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, post-record: 10 ~ 300 sec
Incoming Bandwidth
1024 Mbps (AI by Camera), 512 Mbps (AI by NVR/ Object Search)
Throughput
AI by Camera: 1024 Mbps incoming, 1024 Mbps recording and 800 Mbps outgoing
AI by NVR/ Object Search: 512 Mbps incoming, 512 Mbps recording and 400 Mbps outgoing
Storage
Internal HDD
8 SATA III Ports, up to 16 TB capacity for each HDD
eSATA
1 eSATA
Network
Ethernet
2 RJ-45 Ports (10/100/1000Mbps)
Protocol
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search
(Supports IC Realtime IP cameras, DVR, NVS, etc.); Multicast; P2P; Auto Registration, ISCSI
Compatibility
ONVIF (Profile S/profile T/Profile G); CGI; SDK
Web Viewer
Chrome, IE 9 or later, Edge, Safari, Firefox
Smart Phone
Android, iOS, iPhone
Interface
USB
4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)
Electrical
Power Supply
100-240 VAC, 50/60 Hz
Power Consumption
≤ 18 W (without HDD)
Environmental
Operating Conditions
14 Degrees F to +131 Degrees F (-10 Degrees C to +55 Degrees C)
Operating Humidity
10%-93% (RH)
Construction
Installation
Rack mountable
Dimensions
17.48” x 17.98” x 3.74” (570.0 mm x 570.0 mm x 226.0 mm)
