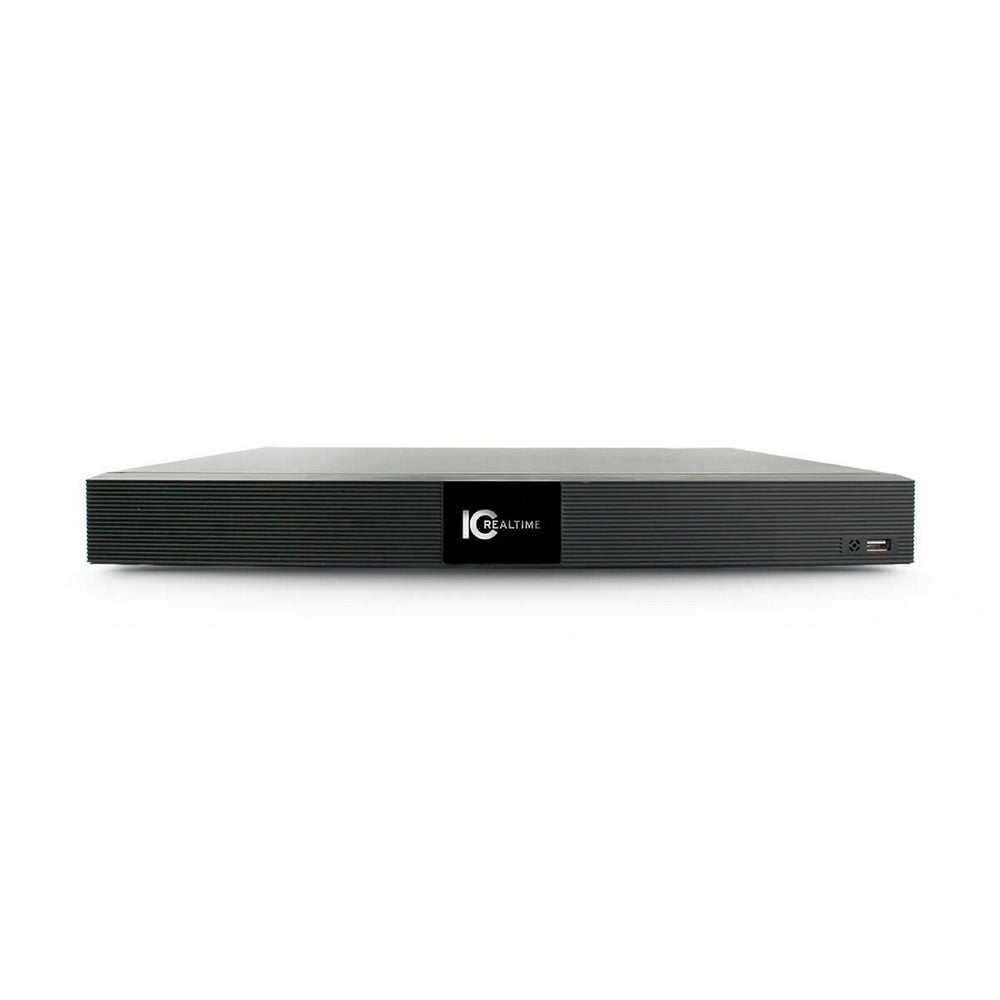

IC Realtime NVR-FX08POE-1U16MP1 8-Channel Rackmount Network Video Recorder with Integrated 8 Port PoE Switch

Enhance your security setup with the IC Realtime NVR-FX08POE-1U16MP1, an elite Network Video Recorder designed to deliver exceptional performance and top-tier features for superior surveillance management. This advanced NVR features 8 Power over Ethernet (PoE) ports, enabling seamless IP camera connectivity and power over a single network cable. Supporting video resolutions up to 16MP, this NVR ensures crystal-clear video recording, making it suitable for both home and business security environments.

The NVR-FX08POE-1U16MP1 is engineered for intelligent video surveillance, combining innovative analytics like tripwire and intrusion detection, face recognition, and vehicle license plate comparison. These intelligent functions enhance proactive security measures, providing you with peace of mind. Flexible playback and storage options solidify this NVR's status as a high-performance and versatile choice for any surveillance requirement.

Key Features

• 8 PoE ports to simplify IP camera setup and power supply
• Supports up to 16MP video resolution for crisp, high-definition recordings
• Intelligent features including tripwire and intrusion detection, face recognition
• Playback support for up to 8 channels with multiple playback options
• Supports up to 16TB internal HDD capacity per drive for flexible storage
• Compatible with various network protocols and ONVIF standards

Specifications

• System: Multi-core embedded processor
• Operating System: Embedded LINUX, ICR 4.0
• Display Interface: 1 HDMI, 1 VGA
• Display Resolution: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Display Split: 1st Screen: 1/4/8/9/16; 2nd Screen: 1/4/8/9/16
• Display Out Max Decode: Configurable simultaneous/heterogeneous video output for VGA and HDMI
• IVS: Tripwire & intrusion
• Advanced Intelligent Functions: Perimeter Protection, Tripwire & intrusion; Human and vehicle recognition: 2 channels, 10 IVS rules per channel (AI by Recorder) or 8 channels (AI by Camera)
• Intelligent Motion Detect (iMD): 4 channels (AI by Recorder) or 8 channels (AI by Camera)
• Face Detection: 1 channel, up to 12 face images/s per channel (AI by Recorder) or 8 channels (AI by Camera)
• Face Recognition: 8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s; 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s or 8 channels (AI by Camera)
• Vehicle License Plate Comparison: 4 channels (AI by Camera)
• LPR Database Management: Create up to 20,000 plate numbers; Blocklist and allowlist creation
• Supported Camera Types: IP
• IP Camera Input: 8
• Trigger Events: Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
• Playback: Up to 8 channels
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
• Backup Mode: USB Device/Network/eSATA Device
• Compression: G.711a, G.711u, PCM, G726
• Two-way Talk: Supported
• Record Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Record Resolution: 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF
• Incoming Bandwidth: AI disabled: 256 Mbps incoming, 256 Mbps recording, and 256 Mbps outgoing; AI enabled: 180 Mbps incoming, 180 Mbps recording, and 180 Mbps outgoing
• Throughput: 256 Mbps
• Internal HDD: 2 SATA III Ports, Up to 16 TB capacity per HDD
• HDD Mode: Redundancy
• Ethernet: 1x (10/100/1000 Mbps Ethernet port, RJ-45)
• Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SNMP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, PPPoE, FTP, DDNS, Alarm Server, IP Search (Supports IC Realtime IP cameras, DVR, NVS, etc.), Multicast, P2P, Auto Registration
• Compatibility: ONVIF 22.06 (Profile T; Profile S; Profile G), CGI, SDK
• Web Viewer: Chrome, IE 9 or later, Edge, Safari, Firefox
• Management Software: IC Now
• Smart Phone: Android, iOS, iPhone
• PoE: 8 ports, 10/100 Mbps, IEEE 802.3 af/at; Bridge Mode Supported
• USB: 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
• Power Supply: 100–240 VAC, 47-63 Hz
• Power Consumption: Total output of NVR is <10 W (without HDD), Total output power of PoE is 130W, and the maximum output power of a single port is 25.5W
• Total PoE Budget: Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
• Operating Conditions: 14 °F to +131 °F (–10 °C to +55 °C)
• Operating Humidity: 10%–93% (RH)
• Installation: Rack mount
• Dimensions: 14.76" × 12.96" × 2.09" (375 mm × 329.3 mm × 53.0 mm)

Package Contents

• NVR-FX08POE-1U16MP1 Network Video Recorder
• Power Cable
• User Manual
• Mounting Hardware
