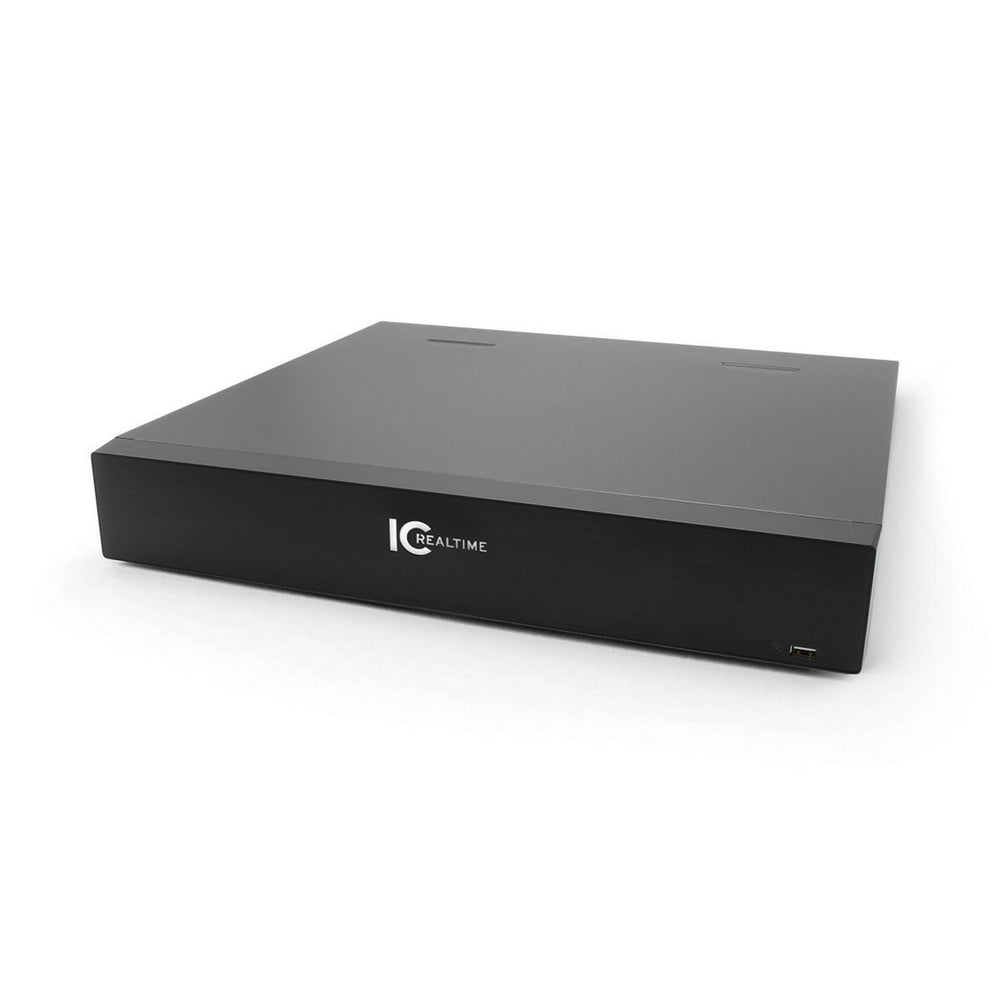

IC Realtime NVR-FX24POE-15U4K1 24 Channel 1.5U Rack-Mountable Network Video Recorder with 8TB Hard Drive

IC Realtime NVR-FX24POE-15U4K1 24 Channel 1.5U Rack-Mountable Network Video Recorder with 8TB Hard Drive

IC Realtime leaps directly into mid-21st century video technology with our new NVR-FX24POE-15U4K1 - the largest capacity 24 Channel 4K Power Over Internet Network Video Recorder (POE NVR) we have ever made. This recorder packs a built-in 24 port POE switch on a compact chassis that uses only 1.5U rack space or 20” of shelf space. With its vast 40 TB hard drive storage, cutting-edge FlexSmartAI features, and IC Realtime's legendary South Korean-made dependability, this new TAA-compliant 4K NVR shatters expectations.

24 SECURITY CAMERA NVR + POE SWITCH
When installed in a 1.5U server rack space with its included rack ears, NVR-FX24POE looks like just any other rack-mounted power supply or network switch. But inside, It's a 24 channel, 4K NVR that runs like a video superhero with an utterly massive 320 Mbps of incoming bandwidth. The 24-port built-in POE switch saves rack space, wiring complexity, and the cost of an external POE switch. Housed in a space-efficient server format case with four internal SATA-III hard drive bays, NVR-FX24POE is more than just another network video recorder. It's a scaleable, intelligence agency-grade video security appliance.

WHAT AI IS MADE FOR
All of NVR-FX24POE's channels have access to FlexSmartAI, our built-in AI-assisted detection & analysis system. Integrators & operators working with FlexSmartAi security cameras can set up a customized mix of inputs with virtually any artificial intelligence & deep learning skill set your installation may require.

SMART NETWORK VIDEO APPLIANCE
NVR-FX24POE's sleek black front plate belies the hardware & software sophistication inside. Whatever challenging surveillance duties you assign to this 24 channel POE NVR, it has the intelligence and “power tools” to handle them. Need 360 Degrees camera de-warping? Already built-in. Want AI metadata-powered searches? It does that too. Dual HDMI ports? Check. And to make video playback easier, all video data points can be identified, tracked & marked with metadata tags for massive time saving during video review.

ONE 1.5 U RACKSPACE, 24 POE SECURITY CAMERAS - DONE.
Since NVR-FX24POE is rack-mountable, It's perfect for high-density surveillance camera environments with dedicated equipment closets & rack systems like education facilities, high-volume retail, production lines, and cannabis grow houses & processing facilities. For commercial settings, NVR-FX24POE delivers the high-grade business intelligence capabilities that make it ideal for fulfillment warehouses and industrial production locations.

COST EFFICIENCY FOR BUSY AREAS
South Korean-made, TAA compliant NVR-FX24POE is our most cost & space-efficient 24 port POE NVR. Ideal for efficient coverage of high human and vehicle traffic sIt's like banks and casinos, NVR-FX24POE's compact design & government-friendly TAA certification also make it ideal for high-intensity overwatch areas like customs warehouses, airports, and law enforcement facilities.

24 PLUG & PLAY CAMERAS + ADDED SECURITY
NVR-FX24POE virtually defines the term “easy installation” for up to 24 channels of direct connect IP/POE video security. These channel-dense units make installing up to 24 cameras “Plug & Play” easy. The massive 320Mbs throughput lets you “future-proof” your installation and build out your system to whatever number of cameras & mix of capabilities your installation requires. And since these cameras are directly plugged into NVR-FX24POE's built-in POE switch, camera traffic is isolated from the network and cameras are “air gapped” for added network security.

Key Features

• 24 Channels | Up To 12MP | 320 Mbps Bandwidth
• 4 HDDs | Up To 10TB/HDD
• ICR OS 4.0 |Built-In 24 Port PoE | AI + IVS Support
• 4 USB | Alarm 16/6 |2 HDMI + VGA
• ONVIF 2.4 | 1.5U | Rack-Mountable
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Technical Specifications

System
Main Processor
Industrial-grade embedded processor
Operating System
Embedded LINUX
Display
Display Interface
2 HDMI, 1 VGA
Display Resolution
HDMI1: 3840 x 2160; 1920 x 1080; 1280 x 1024; 1280 x 720
VGA1: 1920 x 1080; 1280 x 1024; 1280 x 720
HDMI2/VGA2: 1920 x 1080
OSD
Camera title, Time, Camera lock, Motion detection, Recording
Fisheye Dewarp
1 channel
Display Split
1/4/8/9/16
HDMI Decoding
16-ch@1080P / 4-ch@8MP
Display Out Max Decode
HDMI 1+ VGA 1 are mirrored, HDMI 1/VGA 1 + HDMI 2 are independent
Intelligence
IVS
People Counting, Heat Map, Tripwire and Intrusion, Missing, and Abandon object (by camera)
Advanced Intelligent Functions
24ch Intelligent Motion Detect (iMD) supported (by camera)
20ch Perimeter Protection (by camera)
14ch Face Recognition (by camera)
16ch Metadata (by camera)
4ch ANPR (by camera)
1ch Fisheye Dewarp Support
Video
Supported Camera Types
IP
IP Camera Input
24 Channel
Trigger Events
Recording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss and Tampering
Playback
1/4/9/16
Search Mode
Time /Date, MD and Exact Search (accurate to second), Smart search
Playback Function
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off
Backup Mode
USB Device/Network
Bit Rate
16Kbps ~ 20Mbps Per Channel
Audio
Compression
G.711A/G.711U/PCM/G726
Two-way Talk
1 Channel Input, 1 Channel Output, RCA
Recording
Record Compression
Smart H.265+; Smart H.264+; H.265; H.264; MJPEG
Record Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more
Record Mode
Manual; schedule (general; MD; alarm; MD & alarm; AI intelligent)
Record Interval
1 ~ 120 min (default: 60 min), Pre-record:1 ~ 30 sec, post-record: 10 ~ 300 sec
Storage
Internal HDD
4 SATA III Ports, up to 10 TB capacity for each HDD
eSATA
1 port
Network
Ethernet
1 RJ-45 Port (10/100/1000Mbps)
Protocol
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, FTP, P2P
Compatibility
ONVIF (profile T/S/G); CGI; SDK
Max. User Access
128 Users
Web Viewer
Chrome, IE9 or above, Firefox
Management Software
Smart ICRSS, DSS
Smart Phone
iPhone, iPad, Android
PoE
24 ports (IEEE802.3at/af)
Interface
RS232
1 channel, for debug and pass-through serial data
RS485
1 channel, used to control PTZ, supports multiple protocols
USB
3 ports (1 USB2.0, 2 USB3.0)
Electrical
Power Supply
100V-240V AC, 50 Hz-60 Hz
Power Consumption
< 20W (without HDD)
Total POE Budget
220W
Environmental
Operating Conditions
+14 Degrees F to +131 Degrees F (-10 Degrees C to +55 Degrees C)
Construction
Installation
Desktop or Rack mountable
Dimensions
17.3” x 15.5” x 1.7” (439mm x 393mm x 43mm)
