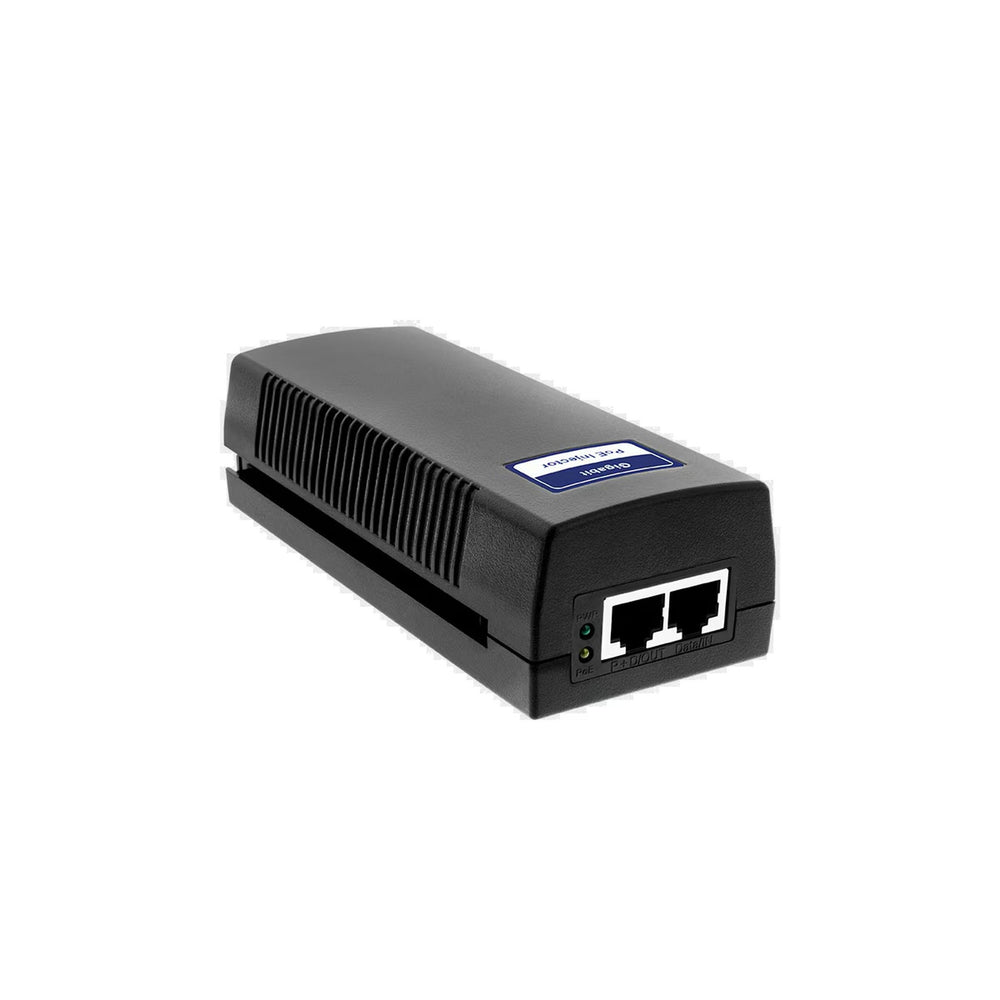

IC Realtime PoE Injector for PoE+ Cameras

IC Realtime PoE Injector For PoE Plus Cameras

The IC Realtime PoE Injector for PoE Plus Cameras is a high-performance, single-port PoE+ injector designed to deliver up to 30W of power to devices such as IP cameras, wireless access points, and VoIP phones. Its robust design ensures compatibility with non-PoE devices, enabling seamless integration into your network and reducing the need for additional power sources.

This injector complies with IEEE 802.3at/af standards, ensuring broad compatibility with various devices and applications. Its compact design and built-in power supply allow for flexible deployment options, including surface or wall mounting, making it a versatile choice for both professional and home networks.

Operating reliably within a temperature range of 14°F to 113°F (-10°C to 45°C), the IC Realtime PoE Injector provides consistent performance across diverse environments. System indicators, such as the AC power LED, enhance usability by providing real-time status updates for efficient network management.

Key Features

• Supplies up to 30W of power for high-power PoE devices.
• Supports 10/100/1000Mbps data transfer rates for reliable connectivity.
• Complies with IEEE 802.3at/af standards for maximum compatibility.
• Compact, durable design with built-in power supply for easy installation.
• Versatile mounting options for flexible deployment.

Technical Specifications

Model: IC Realtime PoE Injector For PoE Plus Cameras
No. of PoE Ports: 1
Pass Through Data Rates: 10/100/1000 Mbps
Connectors: RJ-45
Pin Assignment and Polarity: 1/2 (+), 3/6 (-)
Standards: IEEE 802.3at/af
User Port Power: 30 Watts Maximum
Output Power Voltage: 52 VDC Maximum
Input Power: AC Input Voltage 100 ~ 240 VAC
AC Input Requirements: 0.8A @ 100-240 VAC
AC Frequency: 50 to 60 Hz
Indicators: System Indicator: AC Power (Green)
Working Temperature: 14°F to 113°F (-10°C to 45°C)
Dimensions (W×D×H): 2.74″ x 1.6″ x 5.2″
Safety Approvals: EN 60950:2006

What's Included

• IC Realtime PoE Injector unit
• Standard grounded AC power cord
• User manual
