IC Realtime PS-DC32A16HD-4DK 16-Channel 32 Amp DC Power Supply

IC Realtime PS-DC32A16HD-4DK 16-Channel 12V DC Power Supply

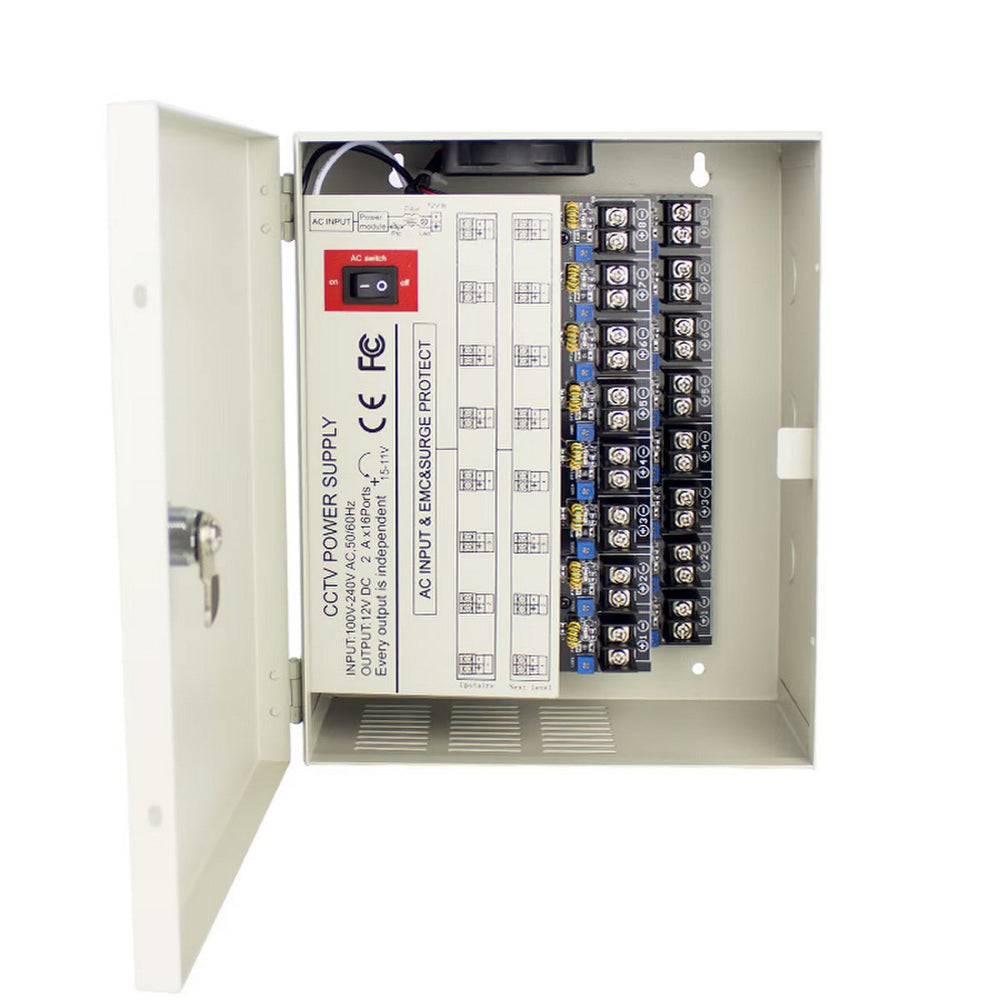

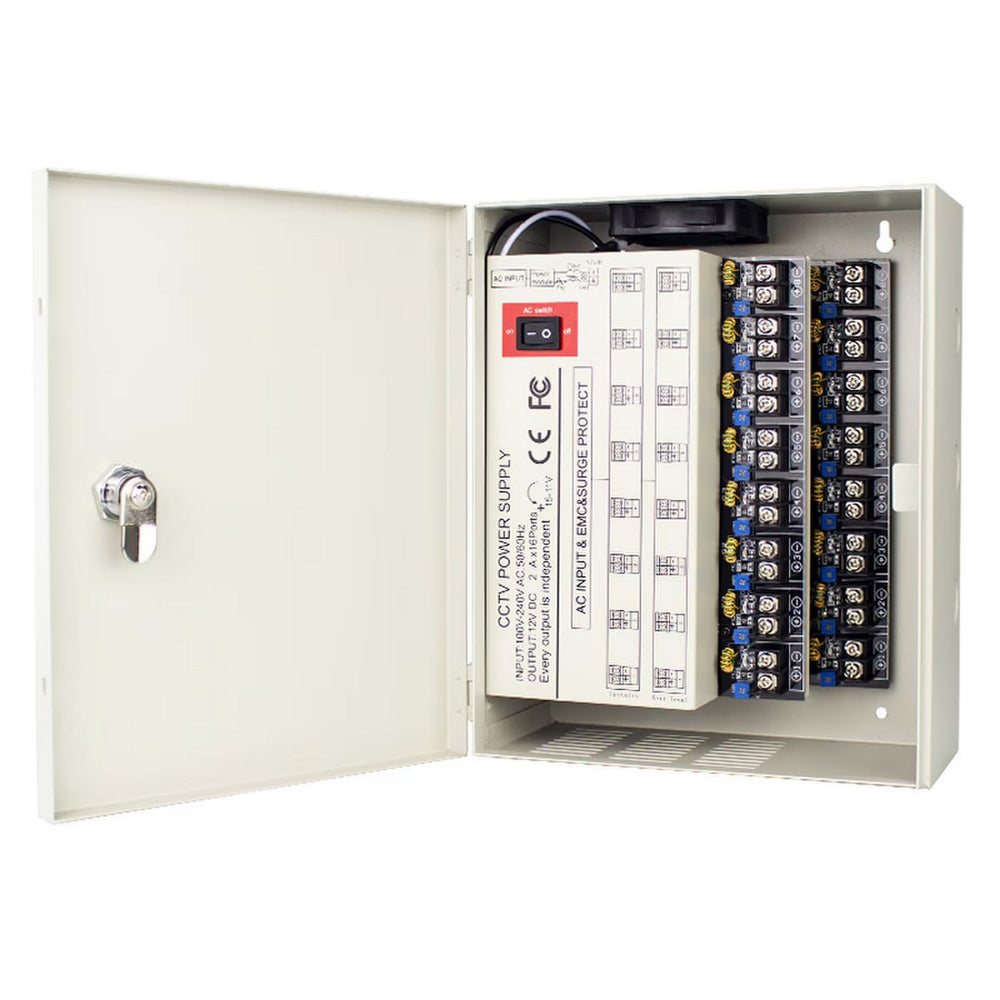

The IC Realtime PS-DC32A16HD-4DK is a robust 16-channel 12V DC power supply designed to deliver consistent and reliable power to your surveillance equipment. With the capacity to provide 2 amps per channel, it ensures that each connected device receives adequate power for optimal performance. This makes it an ideal choice for powering multiple cameras, access control systems, and other security devices.

Engineered with a universal AC input range of 110V-220V AC at 47-63Hz, this power supply offers flexibility and compatibility with various power sources. Each of its 16 channels features individually adjustable voltage outputs ranging from 11V to 15V, allowing for precise voltage regulation tailored to the specific requirements of your devices. This feature is particularly beneficial for compensating voltage drops over long cable runs, ensuring consistent power delivery across all connected equipment.

Safety and reliability are paramount in the design of the PS-DC32A16HD-4DK. It incorporates multiple protection mechanisms, including short circuit, over voltage, over current, and over temperature safeguards, to protect both the power supply and connected devices from potential damage. Each channel is equipped with a PTC fuse and an external LED indicator, providing immediate visual status updates and facilitating easy troubleshooting. The unit's high efficiency, exceeding 82%, coupled with a long service life of up to 10,000 hours, underscores its suitability for demanding surveillance applications.

Key Features

• 16-channel 12V DC power supply with 2 amps per channel
• Universal AC input range: 110V-220V AC, 47-63Hz
• Individually adjustable voltage outputs per channel (11V-15V)
• Regulated and filtered DC outputs for stable power delivery
• Comprehensive protection: short circuit, over voltage, over current, and over temperature
• PTC fuse and external LED indicator for each channel
• High efficiency (≥82%) and long service life (10,000 hours)
• Suitable for CCTV cameras, IP cameras, PTZ cameras, access control systems, and more

Technical Specifications

Model: PS-DC32A16HD-4DK
Input Voltage: AC 110-220V, 4A, 47-63Hz
Output: DC 12V, 32A (MAX)
Channels: 16
Efficiency: ≥82%
Fuse Type: PTC Fuse
Fuse Rating: 2A
Load Regulation: ±5%
Operating Temperature: 50-104°F (-10~40°C)
Color: White and Royal Blue
Run Life: 10,000 hours

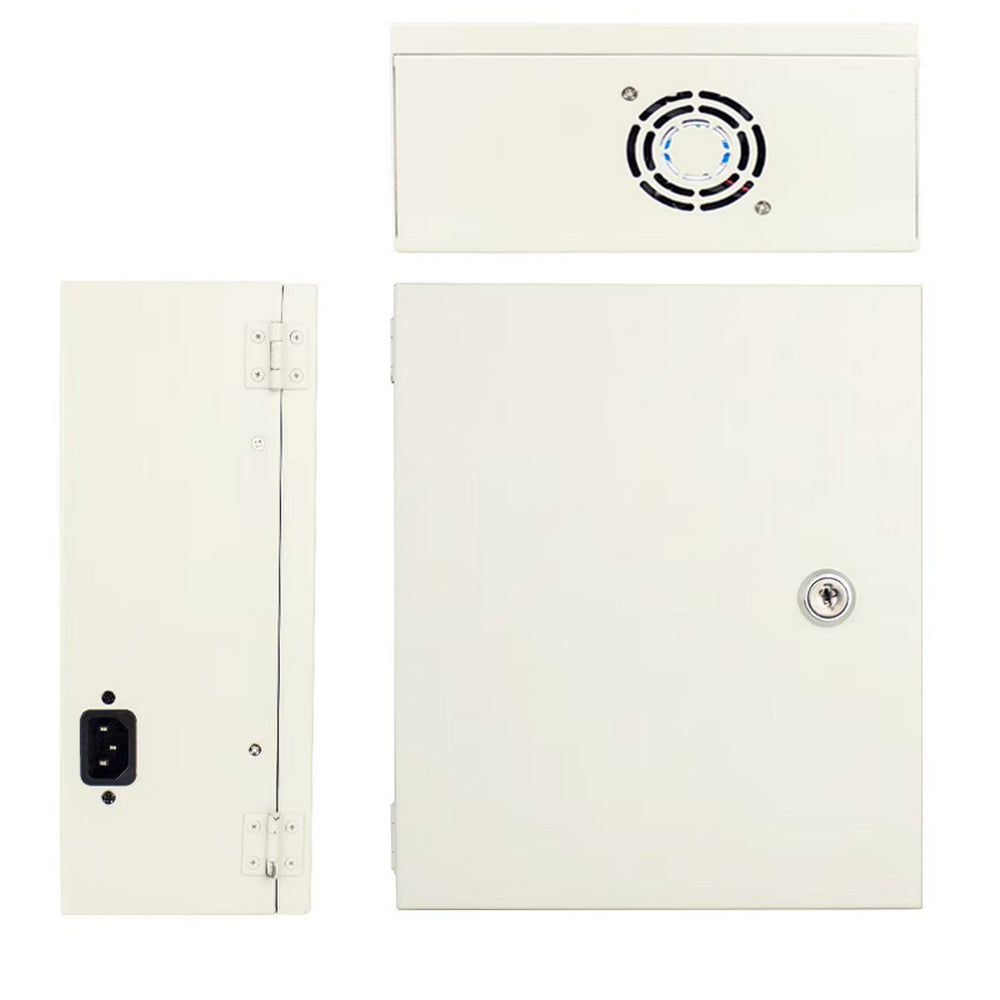

Dimensions: 8” x 9.8” x 3.0”
Weight: 4.4 lb

What's Included

• IC Realtime PS-DC32A16HD-4DK 16-Channel 12V DC Power Supply
• User Manual
• Mounting Hardware
