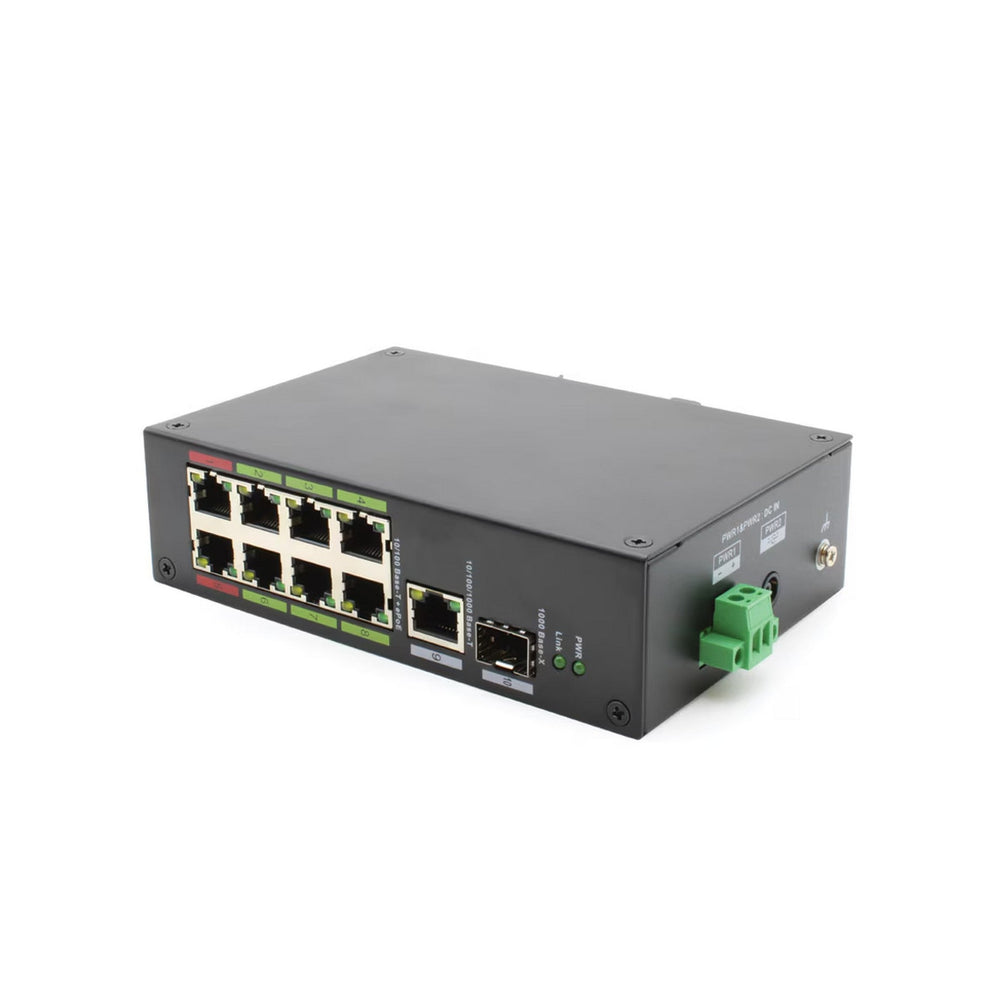

IC Realtime PWR-EPOE-8-V2 8 Port Full Gigabit ePoE Switch, 120W Max
The IC Realtime 8 Port Full Gigabit ePoE Switch 120W Max is a high-performance Power over Ethernet (PoE) switch designed for the sophisticated needs of modern networking and surveillance systems. Compact yet powerful, this switch provides seamless connectivity and efficient power distribution to a vast array of devices.
Featuring 8 Gigabit Ethernet ports, the PWR-EPOE-8-V2 ensures consistent data transfer speeds reaching up to 10/100/1000 Mbps. Furthermore, port 10 supports a 1000 Mbps SFP uplink, offering flexible options for network expansion. This switch is optimized for high-power devices with a total power budget of up to 120W, making it an ideal solution for demanding environments.
Engineered for versatility, the IC Realtime 8 Port Full Gigabit ePoE Switch supports various installation methods, including rack mount and DIN guide rail mount. It comes equipped with advanced features like IEEE802.3 PoE protocols and lightning protection, ensuring stable and secure network performance in diverse deployment scenarios.
Key Features

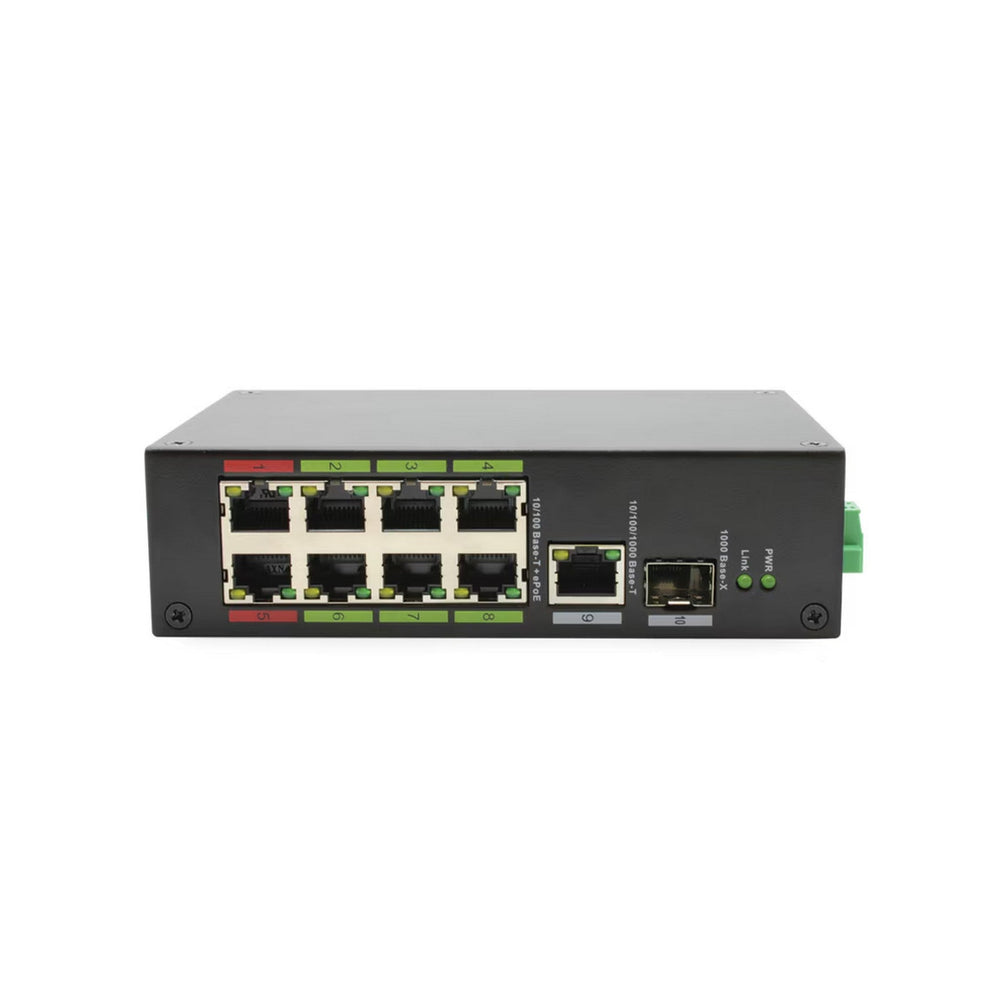

- 8 x RJ-45 10/100/1000 Mbps Ports
- 1 x SFP 1000 Mbps Port
- Optical Port Uplink Speed: 1 Gbps
- PoE Power Consumption:
- Port 1,5 ≤90 W
- Port 2,3,4,6,7,8 ≤30 W
- Total ≤120 W
- Communication Standard: IEEE802.3, IEEE802.3u, IEEE802.3ab/z, IEEE802.3X
- PoE Protocol: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
- PoE Pin Assignment: 1,2,4,5 (V+), 3,6,7,8 (V-)
Specifications
- Switching Capacity: 8.8Gbps
- Management Type: None
- Packet Forwarding Rate: 5.36 Mpps
- Packet Buffer Size: 2.75 Mbit
- Jumbo Frame: 9216 Byte
- MAC Table Size: 8K

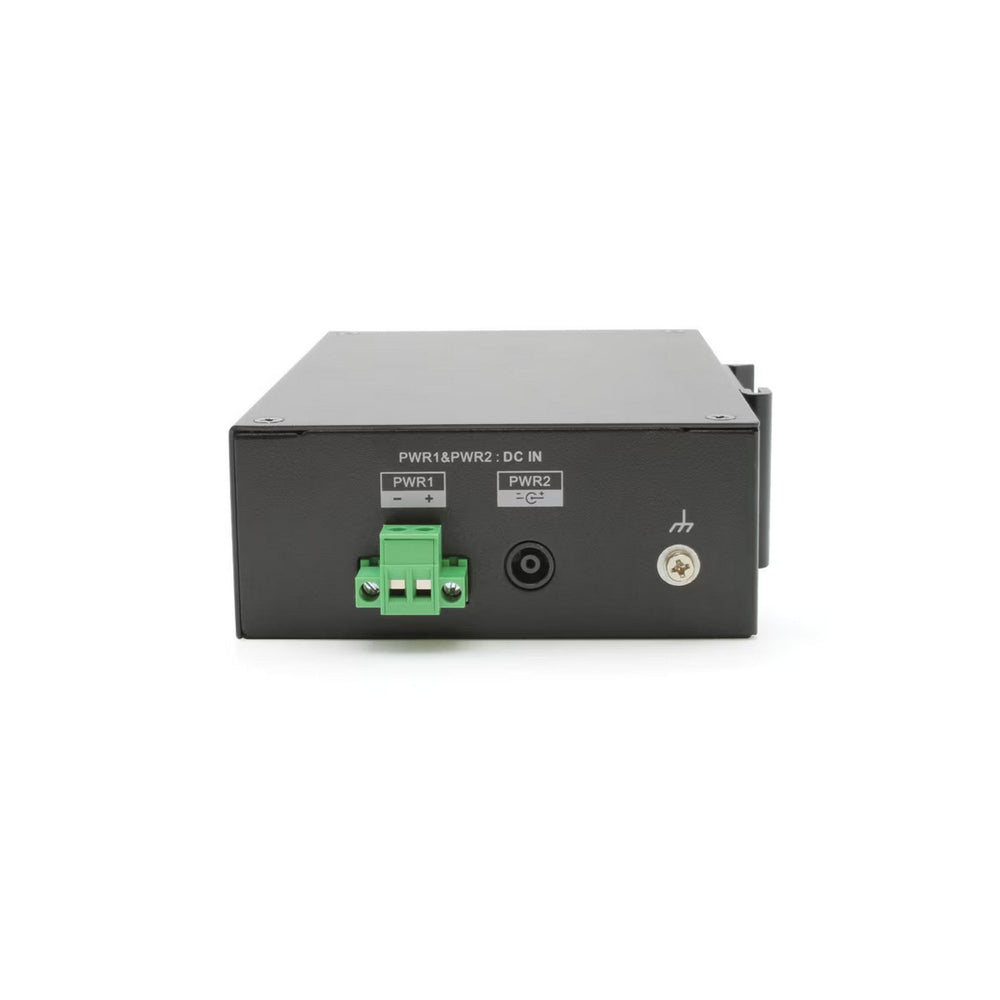

- Power: External power supply: 54 VDC, 2.22 A
- Lightning Protection: Common Mode 4KV / Differential Mode 2KV
- Working Temperature: ﹣30°C~65°C

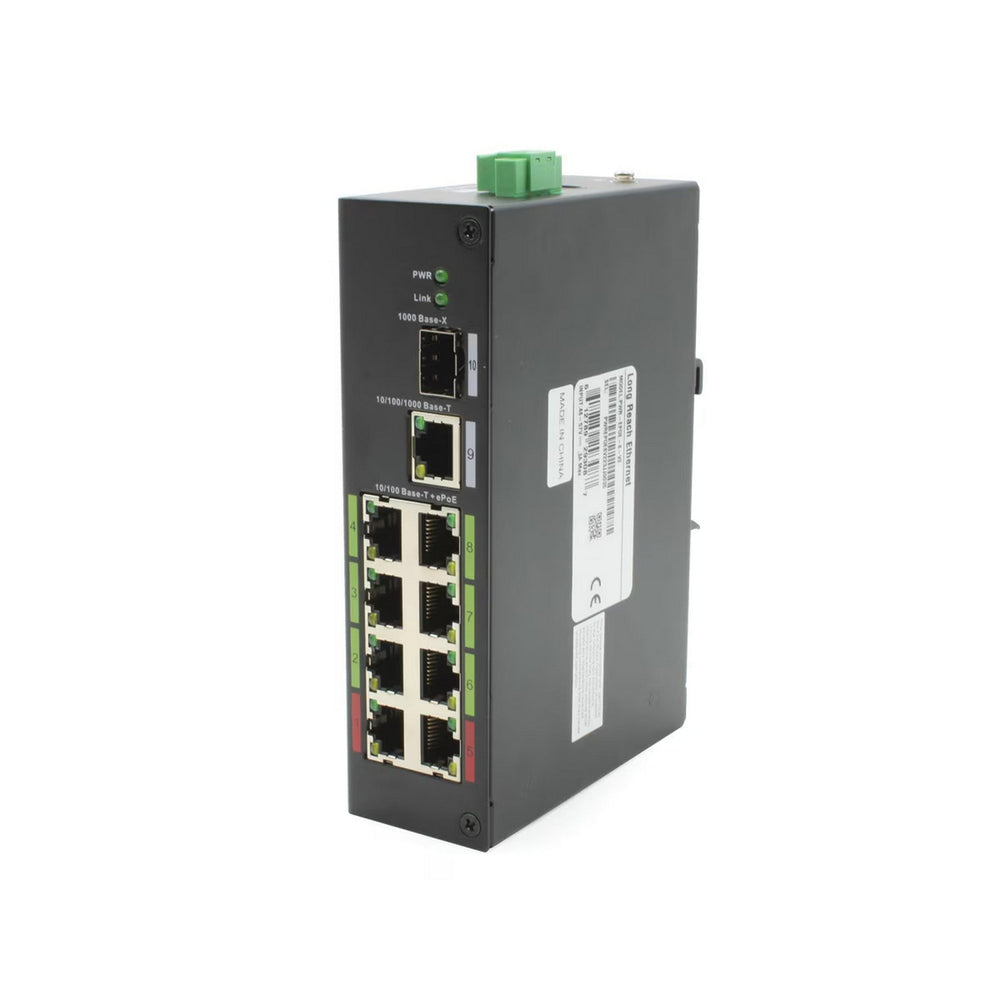

- Installation: Rack mount; DIN guide rail mount
- Weight: 1.32 lb (0.6 kg)
- Dimensions (L × W × H): 5.91 in × 3.94 in × 1.65 in (150 mm × 100 mm × 42 mm)
Package Contents
- IC Realtime PWR-EPOE-8-V2 Switch
- External Power Supply
- User Manual
