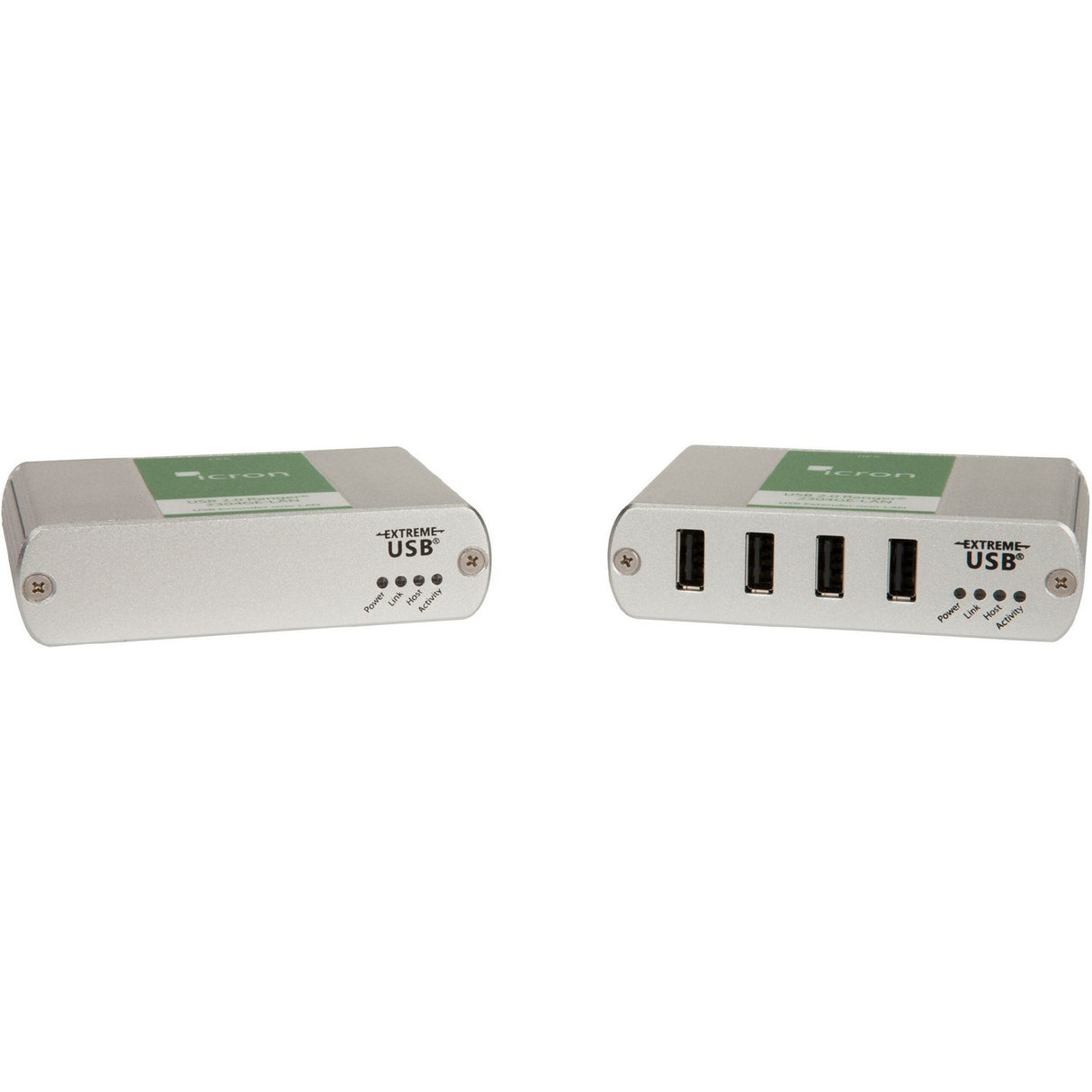

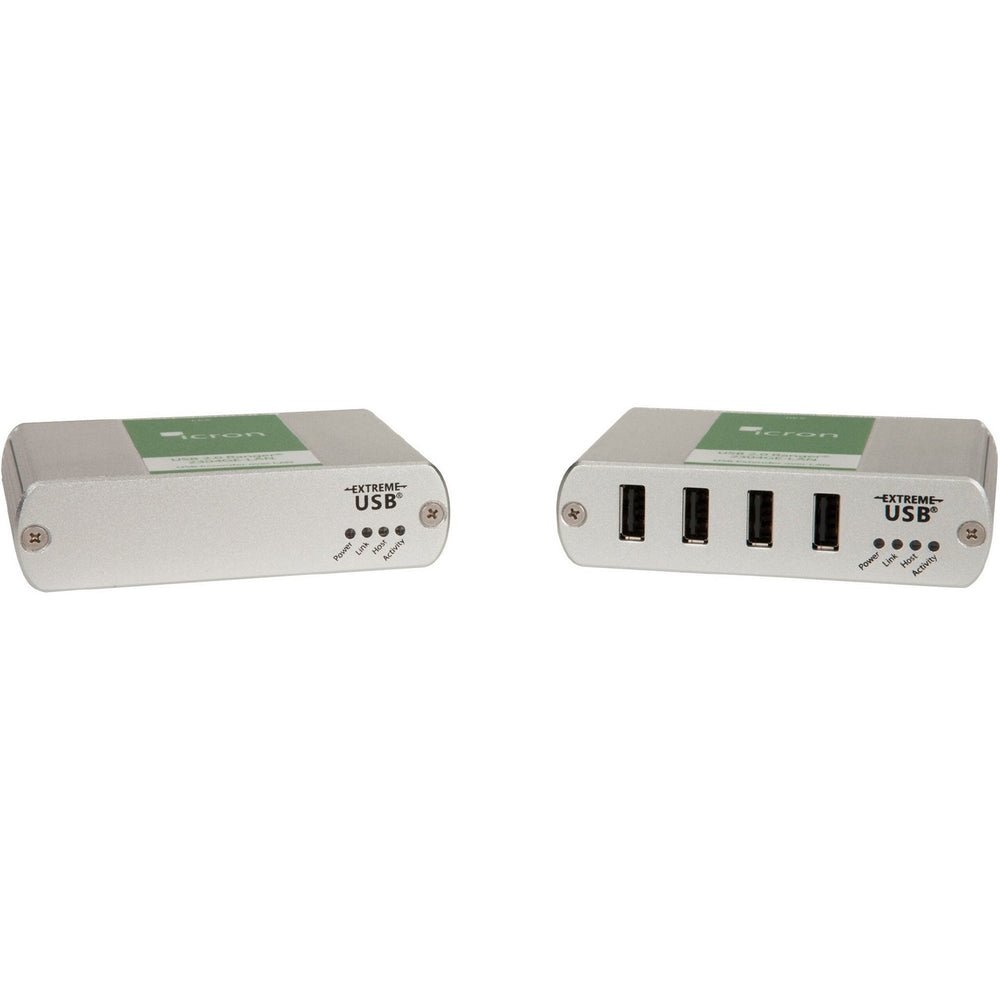

Icron 2304GE-LAN 4-Port USB 2.0 Ethernet LAN Extender System
Icron 2304GE-LAN 4-Port USB 2.0 Ethernet LAN Extender System
Free Shipping
Icron 2304GE-LAN 4-Port USB 2.0 Ethernet LAN Extender System
The Icron USB 2.0 Ranger 2304GE-LAN extends high-speed USB 2.0 connections up to 100m over a GigE Local Area Network (LAN) or directly connect over CAT 5e/6/7 cabling. This 4-port USB 2.0 LAN extender with ExtremeUSB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
The USB 2.0 Ranger 2304GE-LAN allows users to extend USB 2.0/1.1 connections over a GigE LAN or single CAT 5e/6/7 cable up to 100m in point-to-point fashion. Extending over LAN saves on installation time and provides IT visibility.
This 4-port USB 2.0 LAN extender supports data rates at up to 480 Mbps and is plug and play - no software drivers required - for all major operating systems: Windows, macOS, and Linux
Additionally, this ExtremeUSB based 4-port USB 2.0 LAN extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.
Key Features
- Extends USB through 1000Mbps LANs
- USB 2.0 throughput up to 480Mbps*
- Pre-paired networked configuration** for simple installation
- Supplies up to 600mA to each USB port concurrently
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows, macOS, Linux and Chrome OS
Technical Specifications
Range
Direct Connect
Up to 100m (330 ft) over solid core CAT 5e/6/7
Network Connect
Up to 100m (330 ft) between switches over solid core CAT 5e/6/7
USB Device Support
Network and Direct Connect
Up to 480Mbps*
Traffic Types
All USB 2.0 Traffic Types
Device Types
All USB 2.0 Device Types
Maximum Number
Up to 30 devices
Networking
Standards
1000BASE-T*
Data Traffic
Layer 2
LEX (Local Extender)
USB Connector
1x USB Type B Receptacle
Link Connector
1x RJ45
Dimensions
100 x 76 x 26mm (3.9 x 3.0 x 1.0”)
Enclosure Material
Silver Anodized Aluminum
REX (Remote Extender)
USB Connectors
4x USB Type A Receptacles
Link Connector
1x RJ45
Dimensions
100 x 76 x 26mm (3.9 x 3.0 x 1.0”)
Enclosure Material
Silver Anodized Aluminum
Available Current
Up to 600mA to each USB port concurrently
Power Supply
100-240V AC Input, 24V 1A DC Output
Environmental
Operating Temperature
0 Degrees C to 50 Degrees C (32 Degrees F to 122 Degrees F)
Storage Temperature
-20 Degrees C to 70 Degrees C (-4 Degrees F to 158 Degrees F)
Operating Humidity
20% to 80% relative humidity, non-condensing
Storage Humidity
10% to 90% relative humidity, non-condensing
Compliance
EMC
FCC (Class B), CE (Class B)
Environmental
RoHS2 (CE)
Item Includes
Local Extender (LEX)
Remote Extender (REX)
AC power adapter
2-meter USB cable
Quick Start Guide
International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
Warranty
2 Year Warranty
