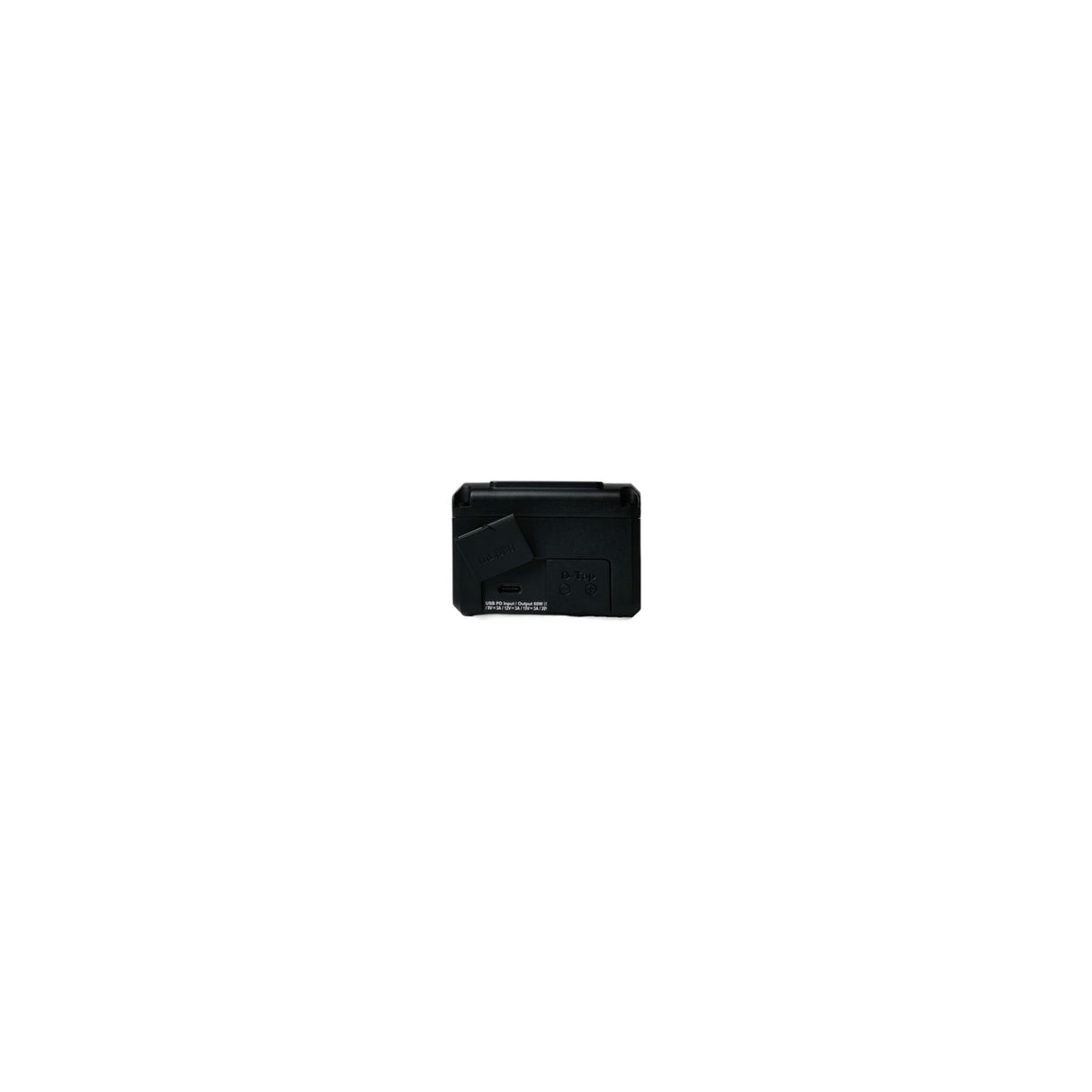

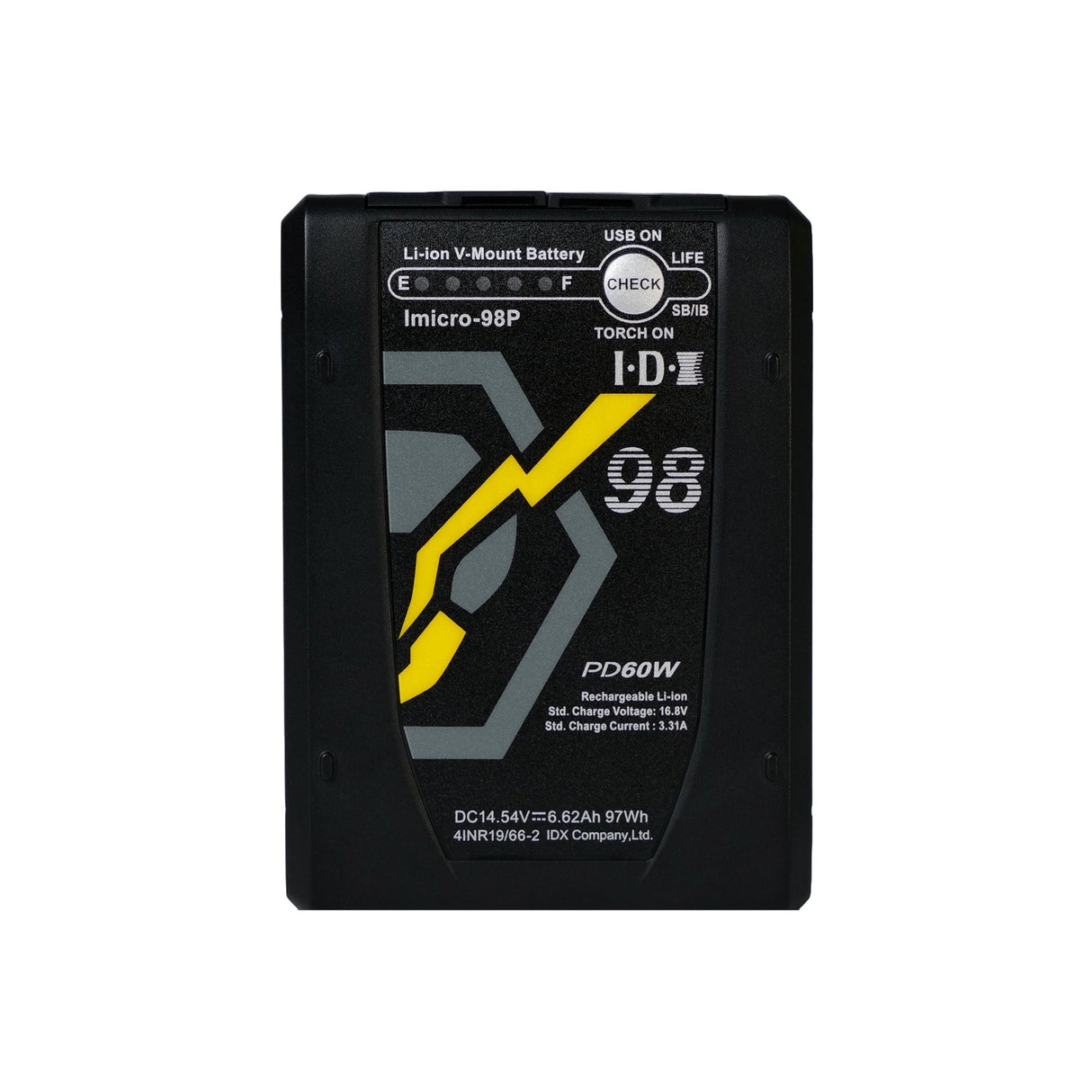

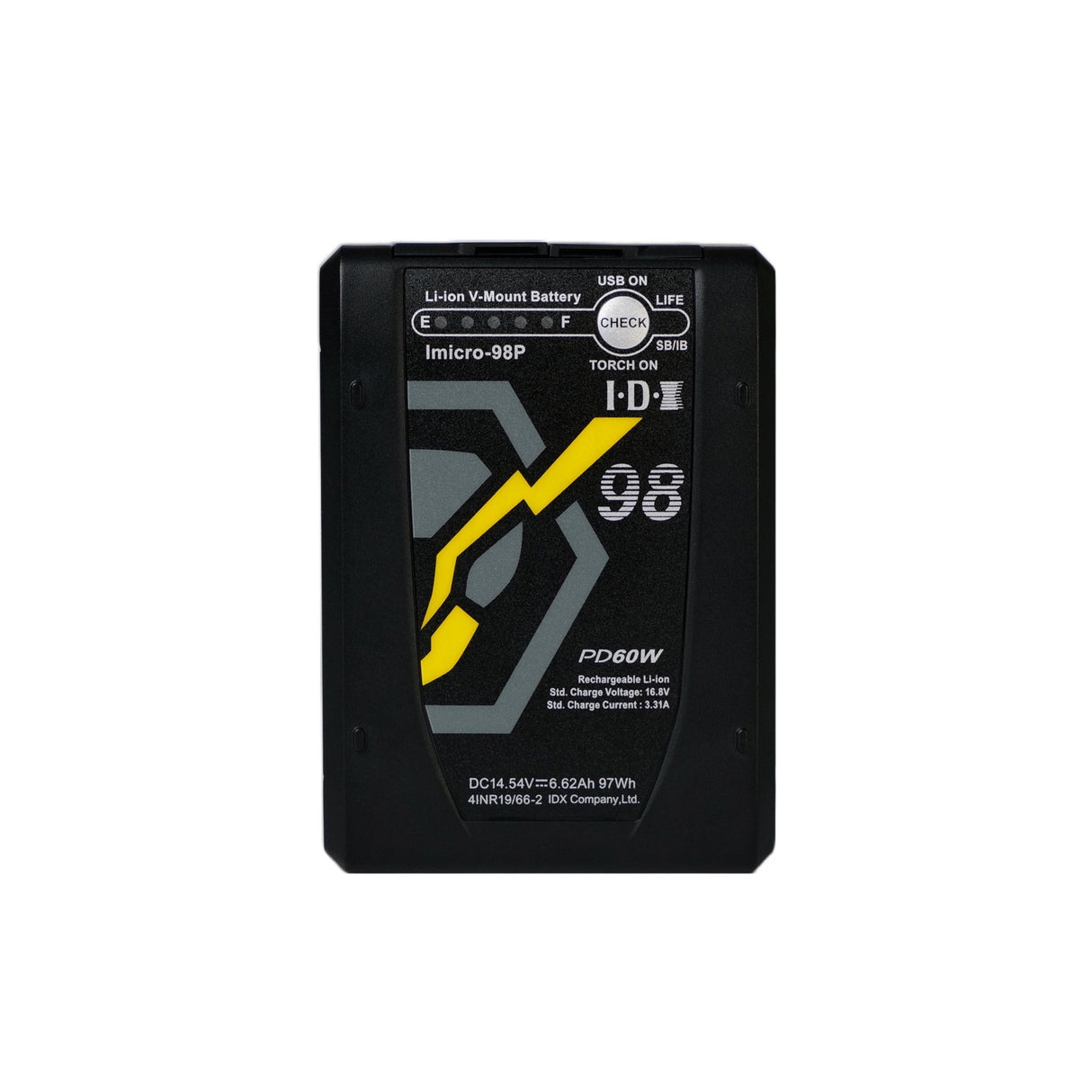

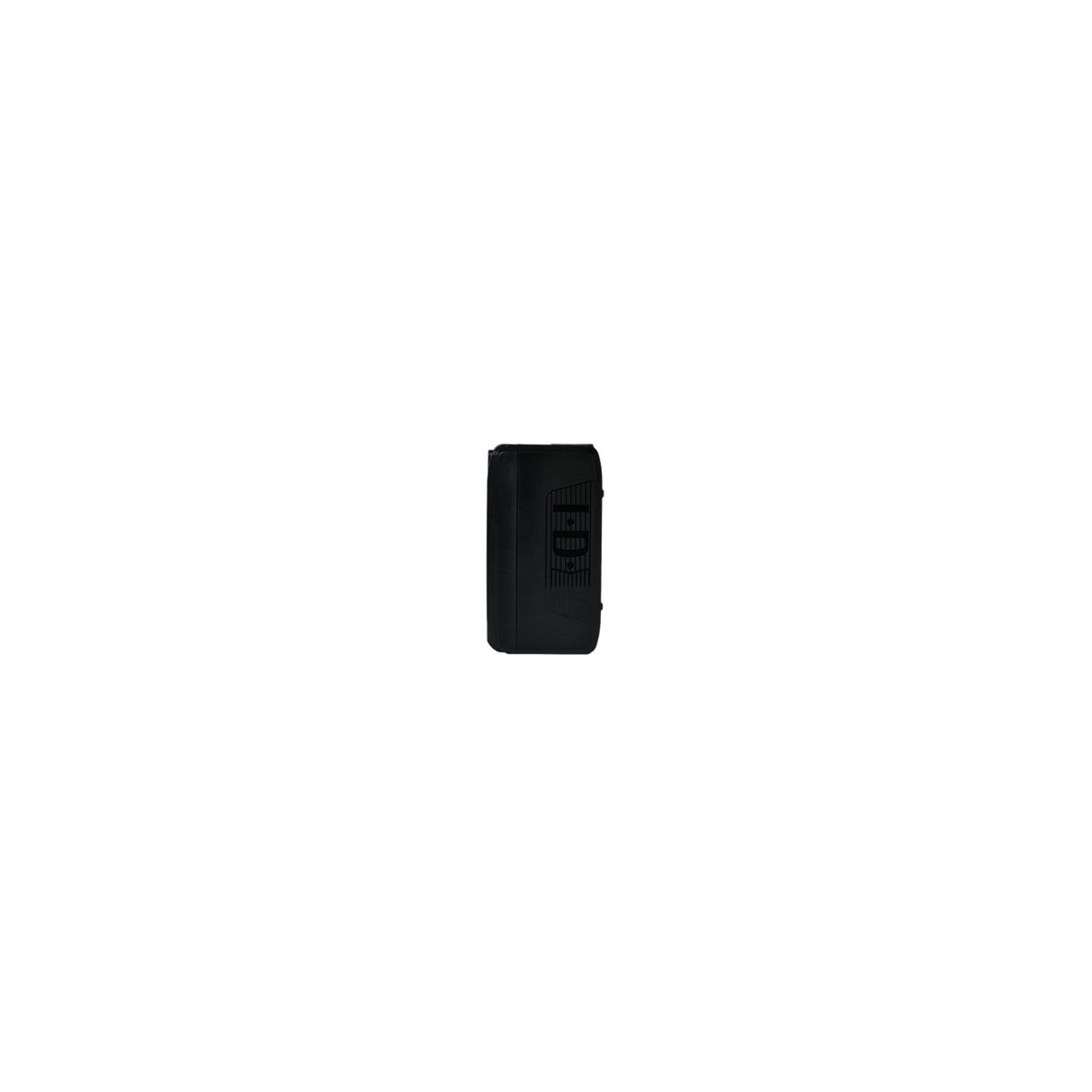

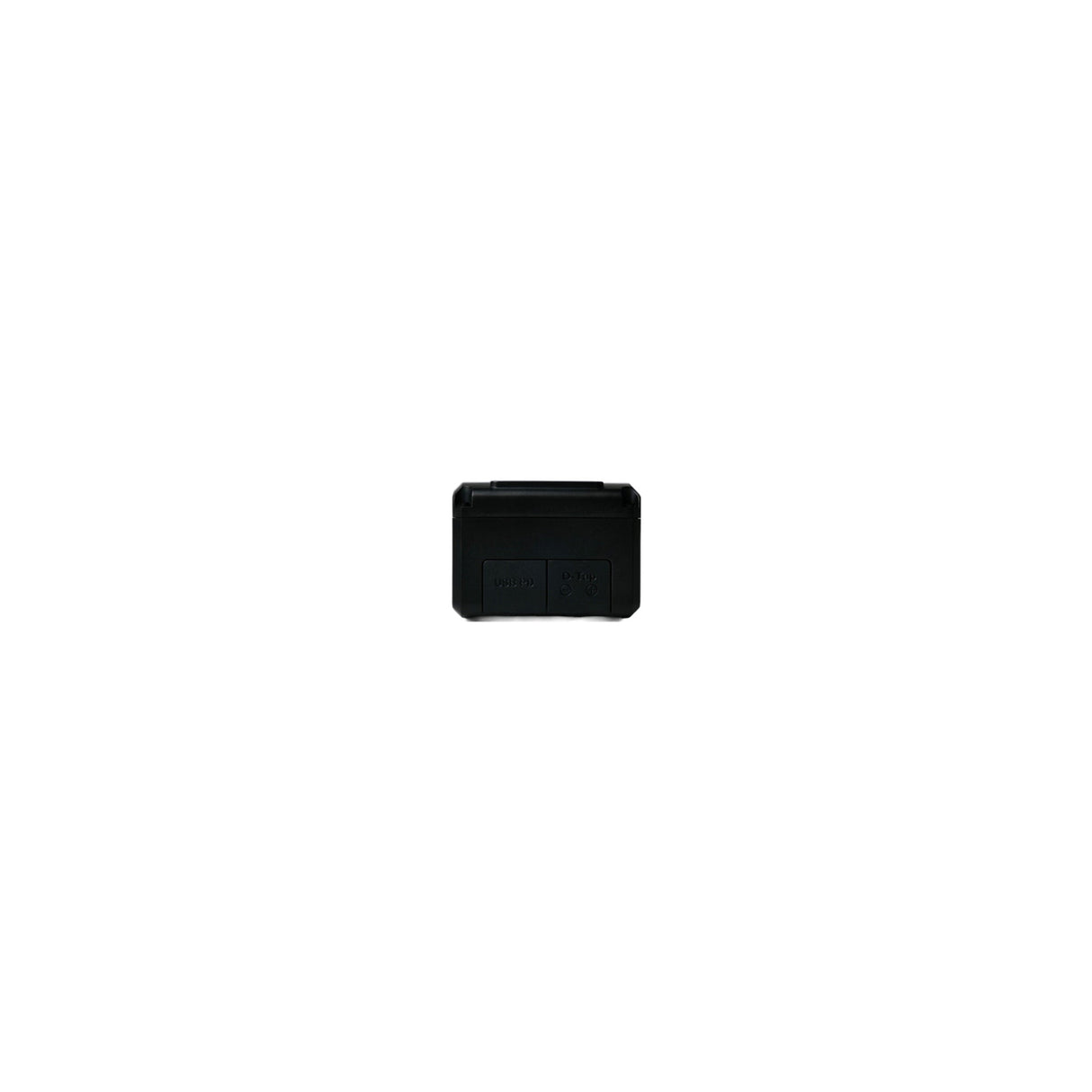

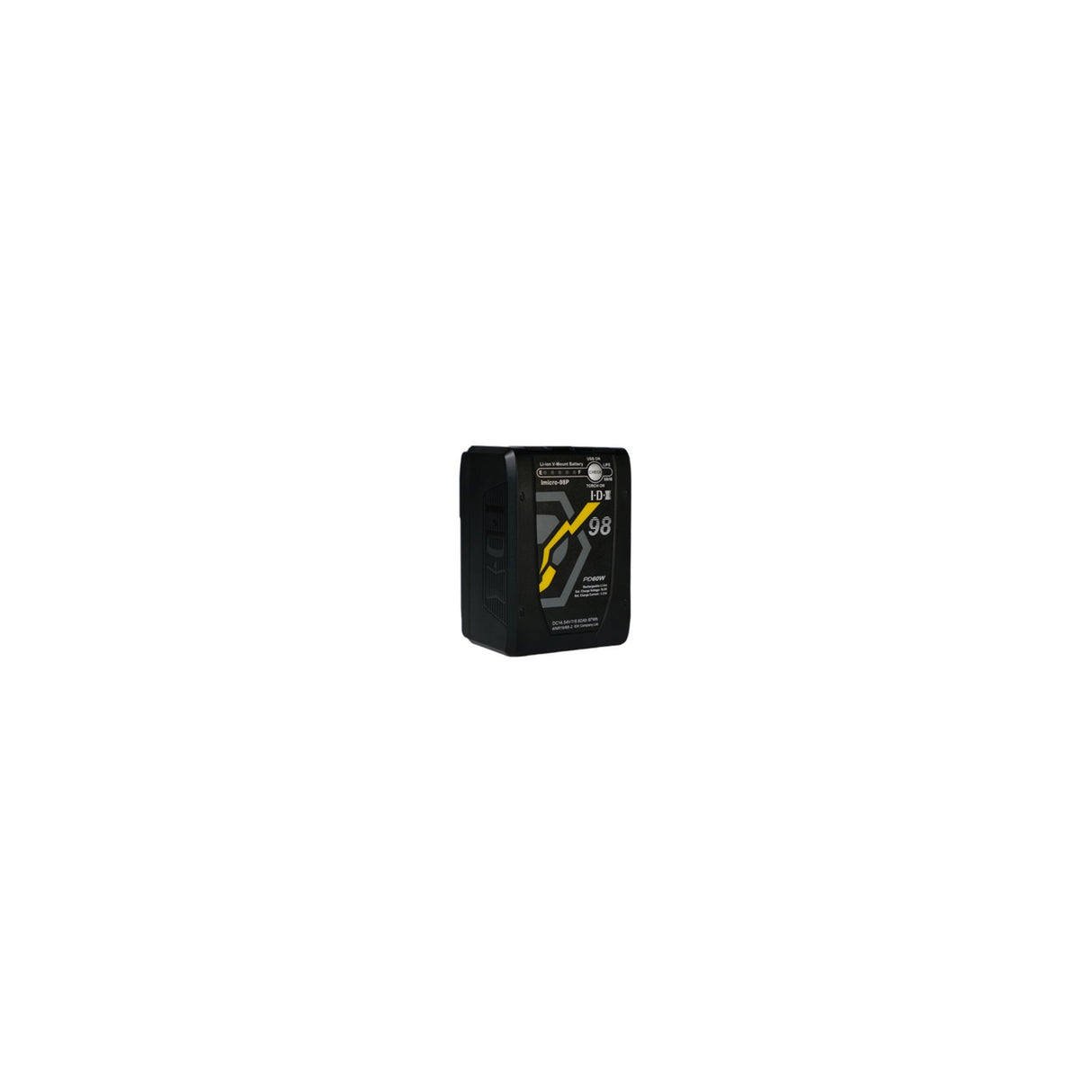

IDX IMICRO‑98P 97Wh Camera Battery with USB‑C PD and Dual D‑Tap, V-Mount

IDX IMICRO‑98P 97Wh Camera Battery with USB‑C PD and Dual D‑Tap, V-Mount

The IMICRO‑98P packs 97 Wh of energy into the world’s smallest V‑Mount battery of its capacity—perfectly meeting carry‑on limits for air travel. At just 2.87″ W × 3.94″ H × 2.17″ D and weighing 1.28 lbs, it’s designed for gimbals, compact rigs, and the RED V‑RAPTOR. This powerhouse features both USB‑C PD (60 W) and dual 100 W D‑Tap outputs, offering high-load versatility for cameras, monitors, lights, and more.

Equipped with advanced protections—including overcharge, over-discharge, over-current, and thermal safety—the IMICRO‑98P ensures reliable performance in challenging environments. Other built-in features include a V‑Torch LED for illumination and digital communication to display battery status in compatible camera viewfinders like ARRI and RED.

Key Features

• 97 Wh capacity – Compliant with airline carry‑on regulations
• USB‑C PD input/output – Up to 60 W charging and power delivery
• Dual 100 W D‑Tap outputs – Run multiple high-power accessories
• V‑Torch LED – Convenient light source in dark setups
• Digital display support – View battery info in ARRI/RED viewfinders
• Comprehensive battery protection – Over-charge, discharge, current, thermal

Technical Specifications

• Capacity: 97 Wh (14.5 V / 6.6 Ah)
• Nominal voltage: 14.5 V DC
• Max output voltage: 16.8 V DC
• Max discharge current: 13.1 A (≈14 A peak)‡
• D‑Tap outputs: Two @ 100 W each (unregulated)
• USB‑C PD input/output: 60 W
• End cut-off voltage: 11 V
• Operating temperature: Charge: 32–104 °F; Discharge: −4–113 °F; Storage: −4–122 °F
• Dimensions: 2.87″ W × 3.94″ H × 2.17″ D
• Weight: 1.28 lbs
• Built-in protections: Over-charge, over-discharge, over-current, thermal

Included in the Box

• IMICRO‑98P V‑Mount battery
• User manual and safety datasheet (SDS & UN test report)
