Ikan EI-PTZ-PEDESTAL Pneumatic Aluminum PTZ Pedestal with 100mm Flat Base

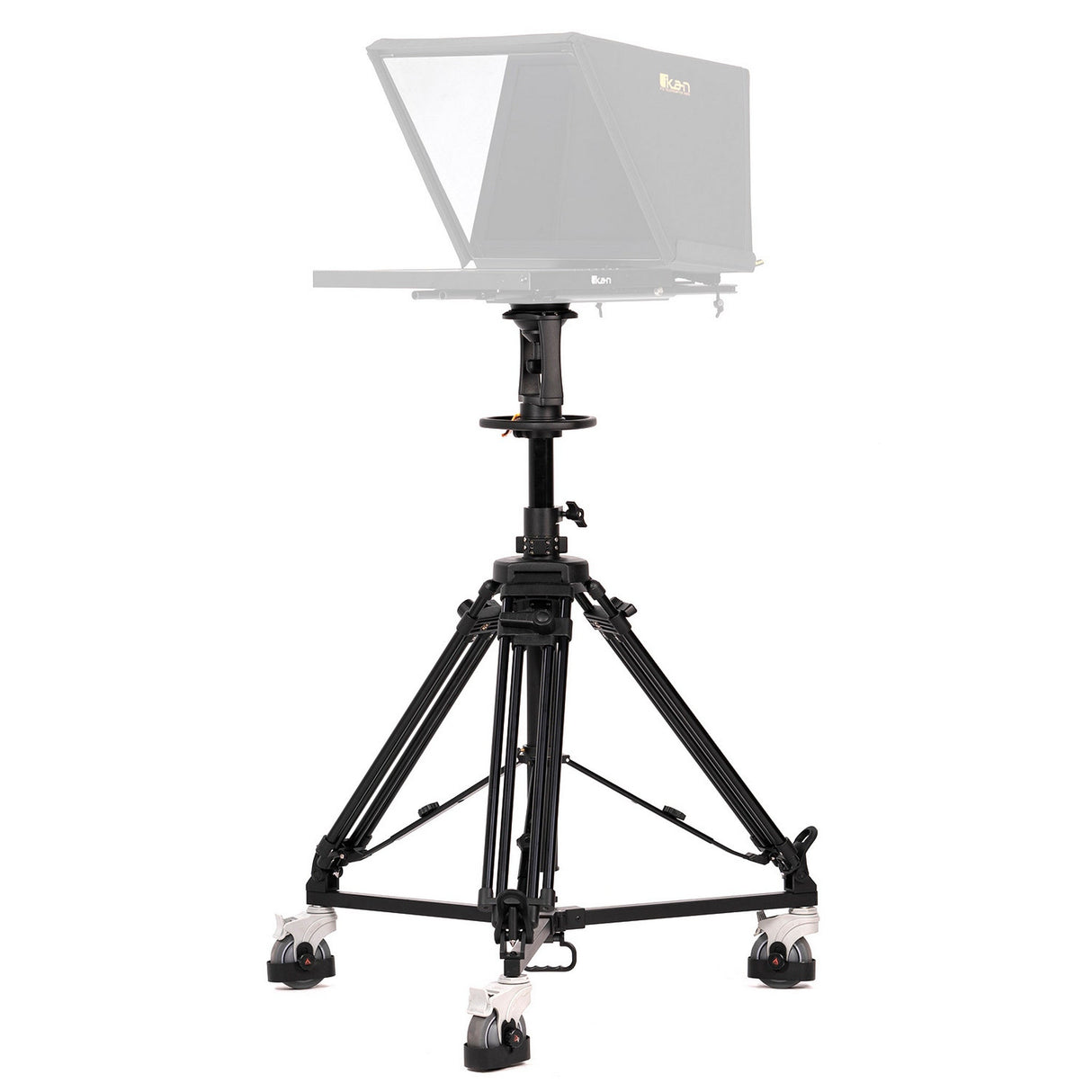

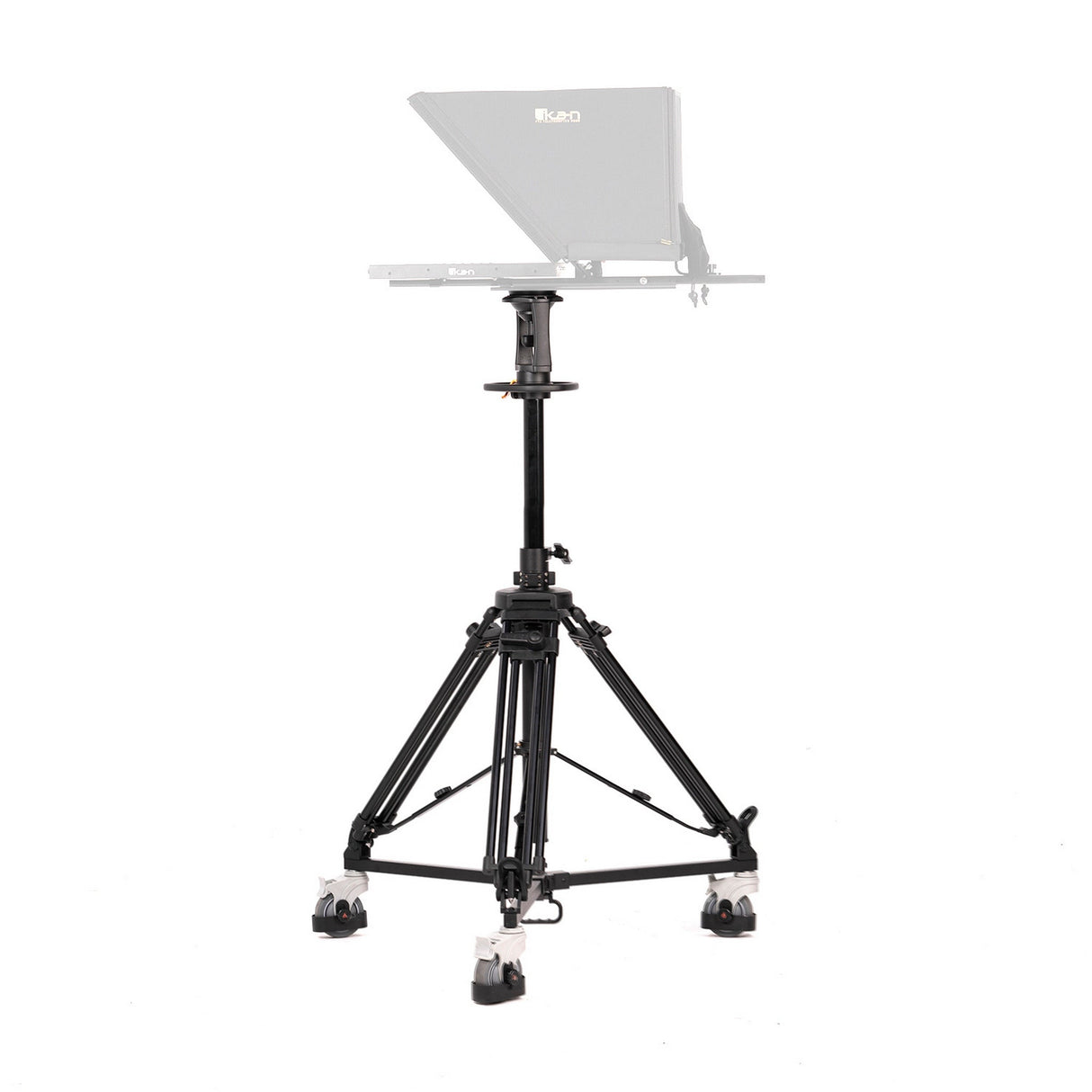

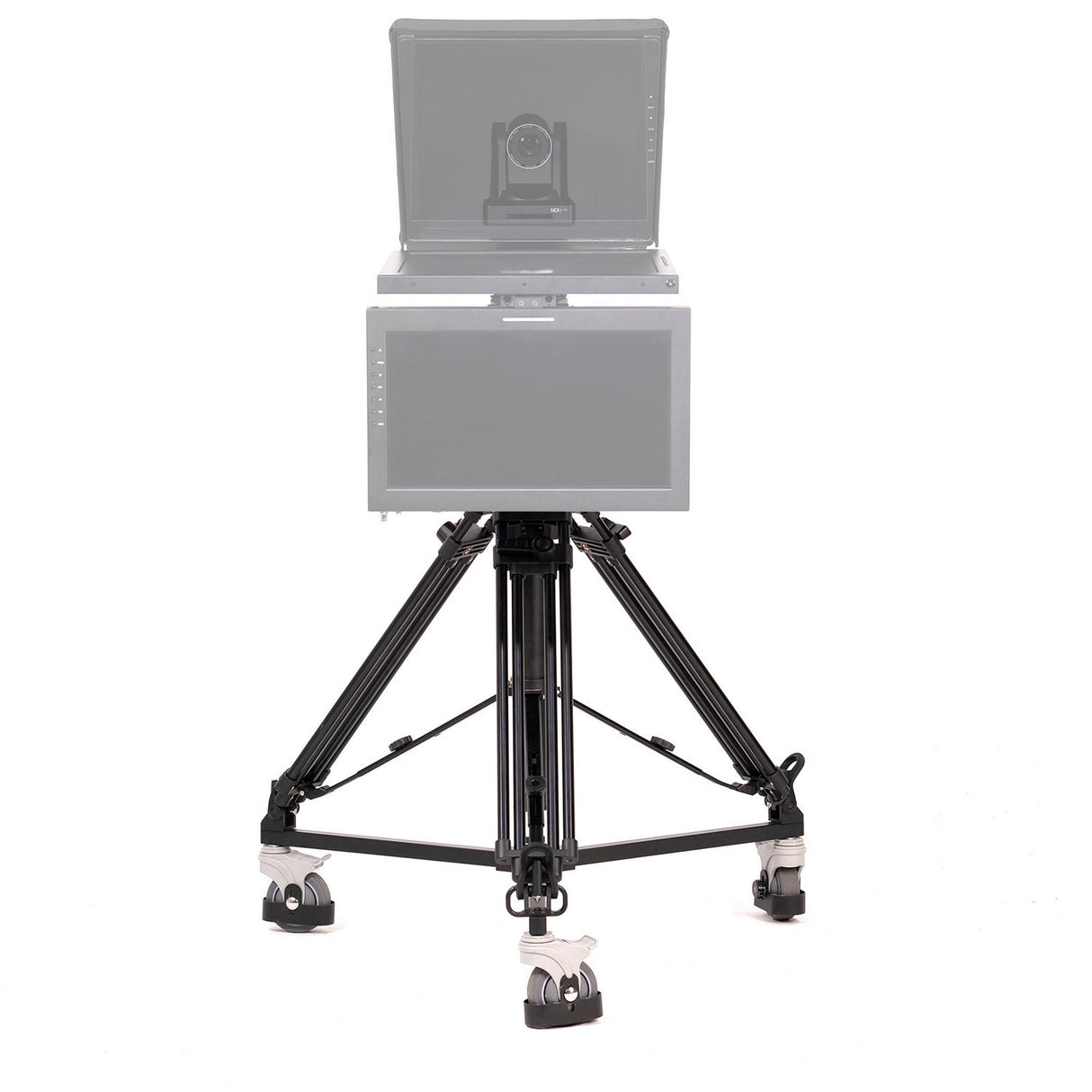

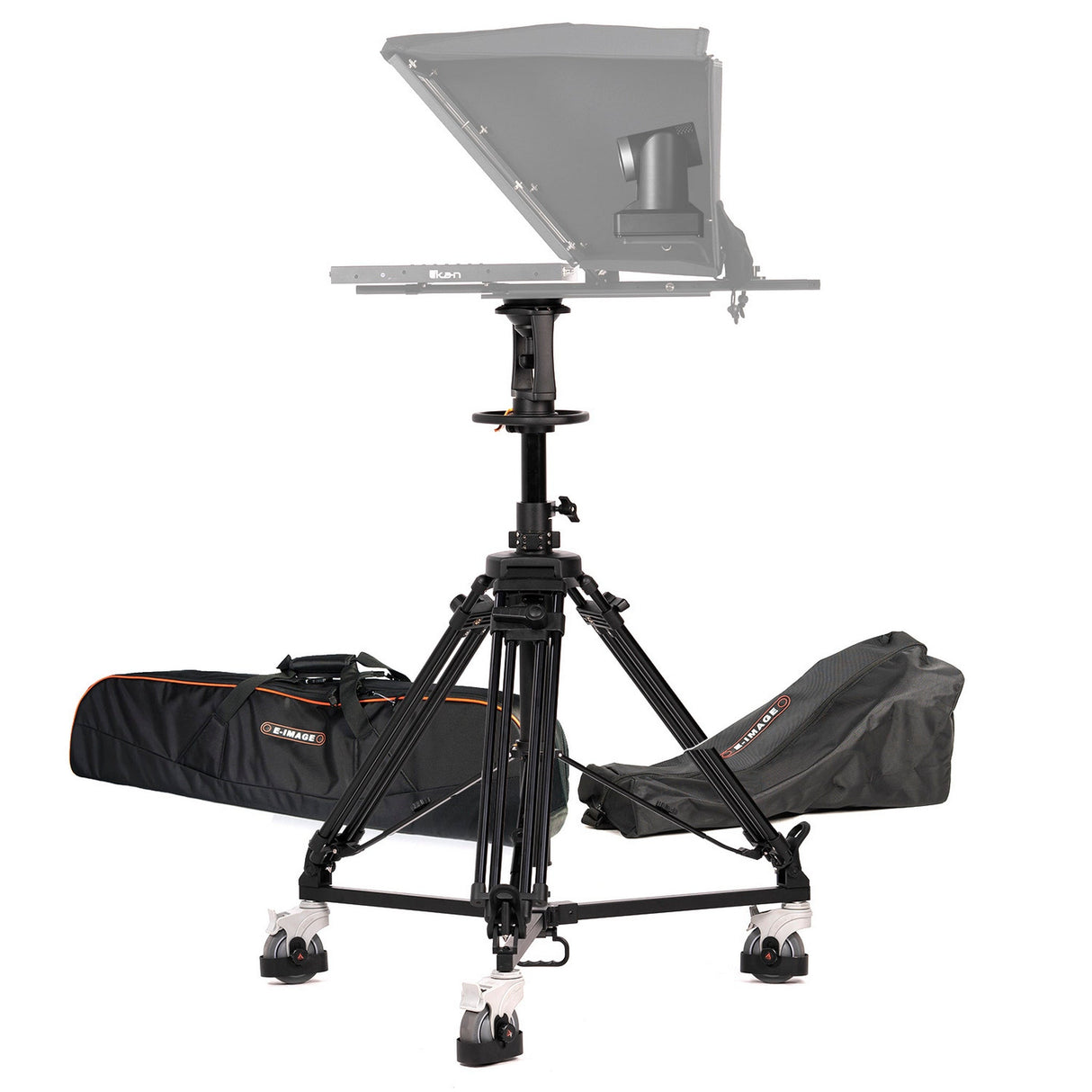

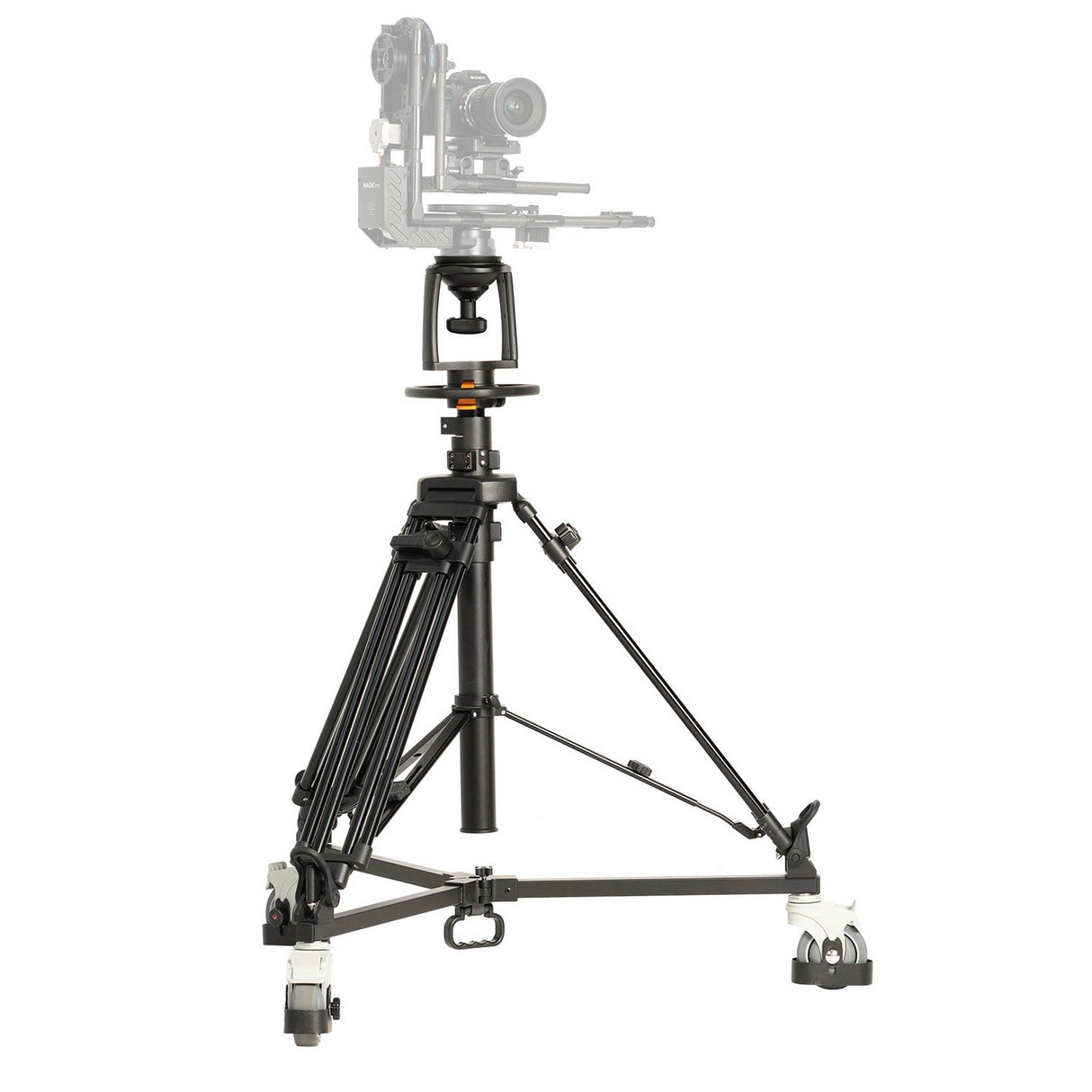

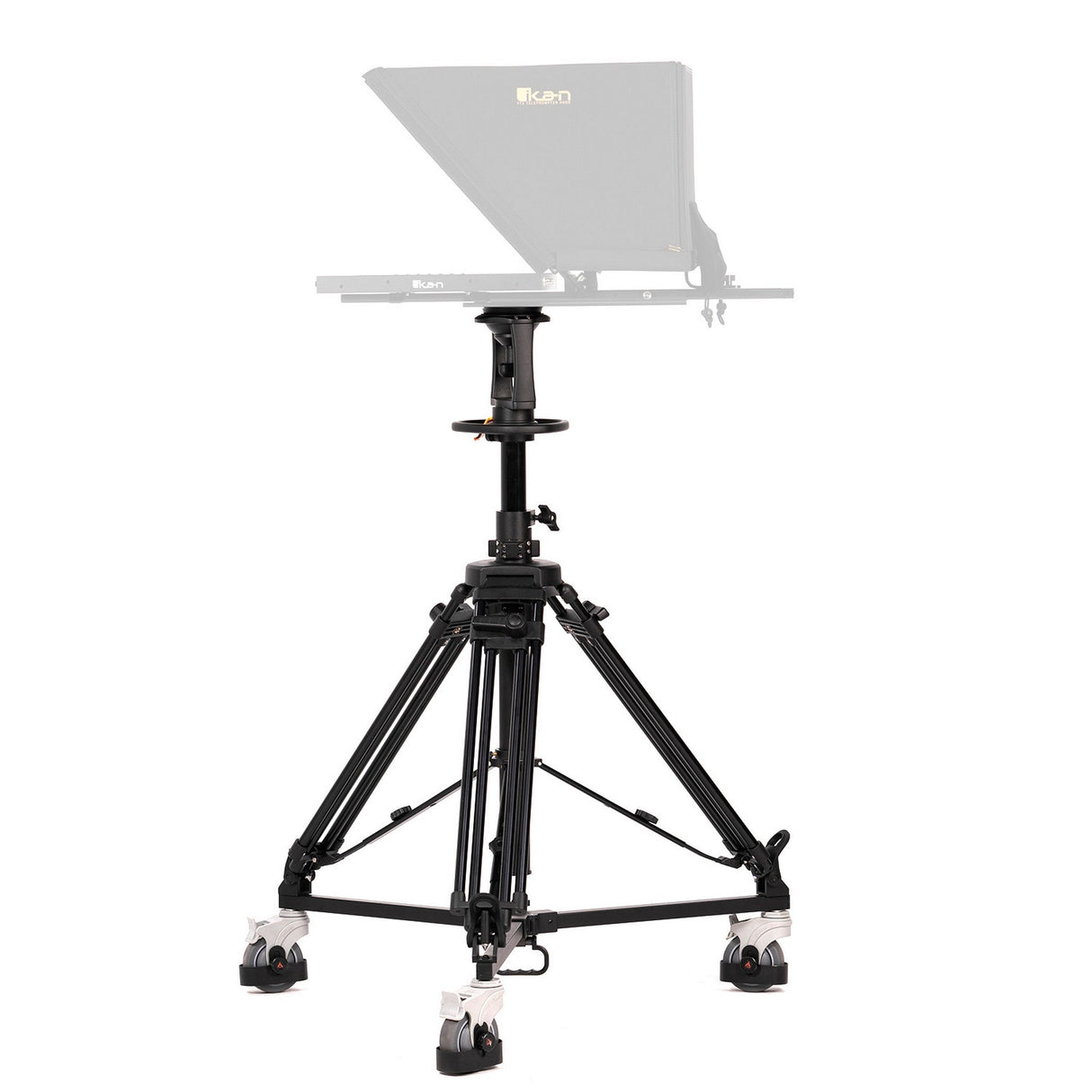

The Ikan EI-PTZ-PEDESTAL Pneumatic Aluminum PTZ Pedestal is built to move PTZ cameras smoothly around a studio or production set. This pedestal system is designed for PTZ teleprompters or robotic PTZ heads and supports payloads up to 44 lbs. It combines a pneumatic pedestal, a 100mm flat base, and a dolly for a complete mobile support solution.

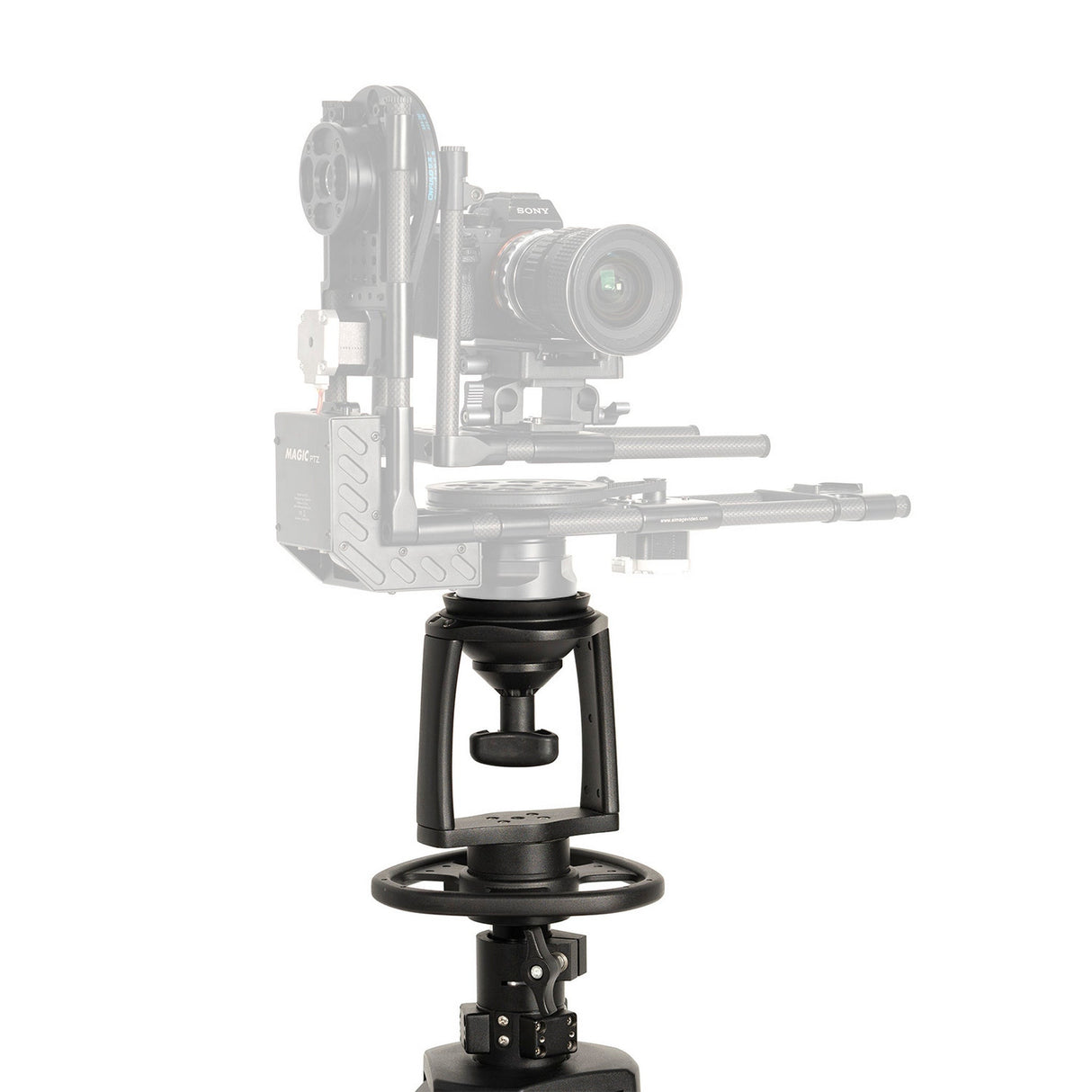

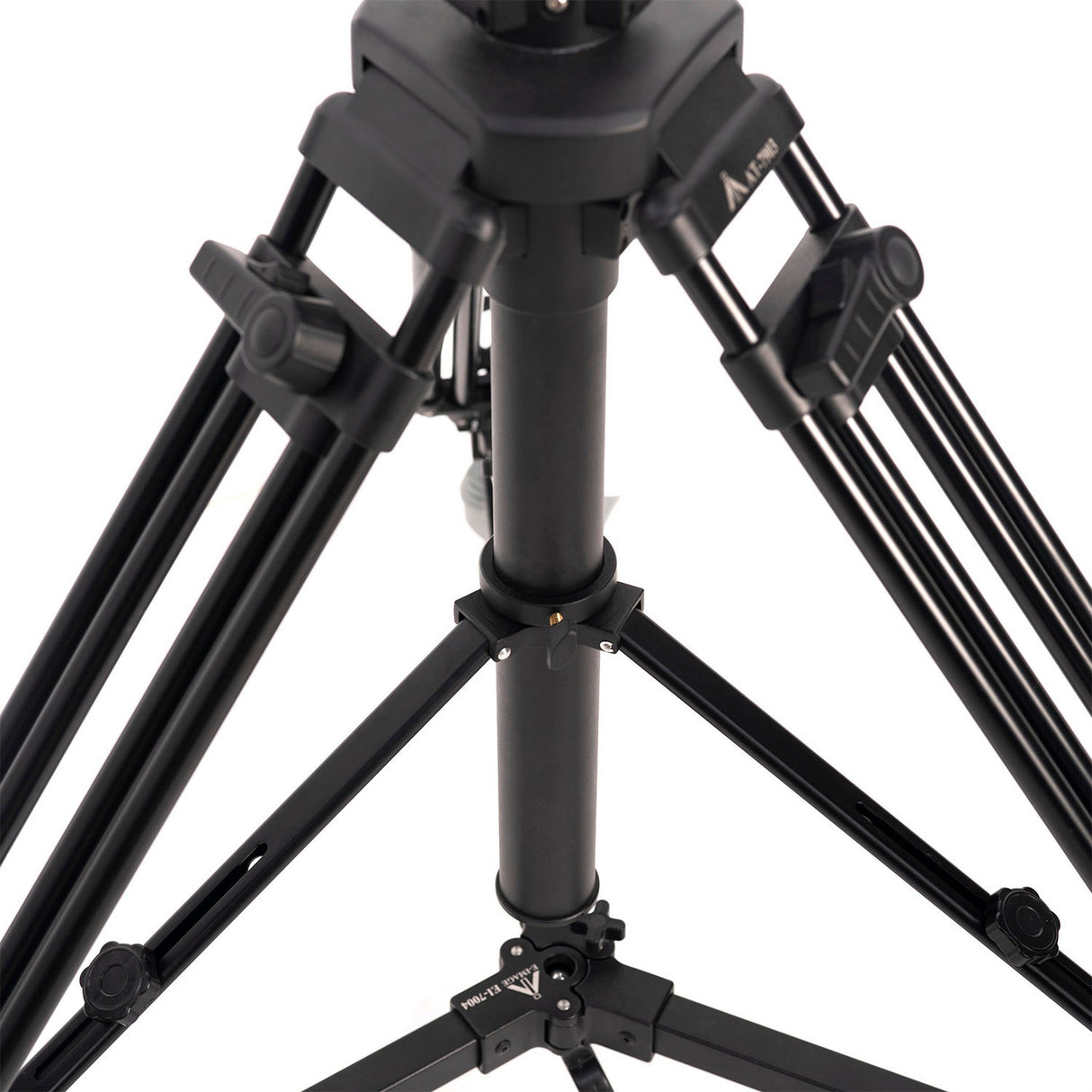

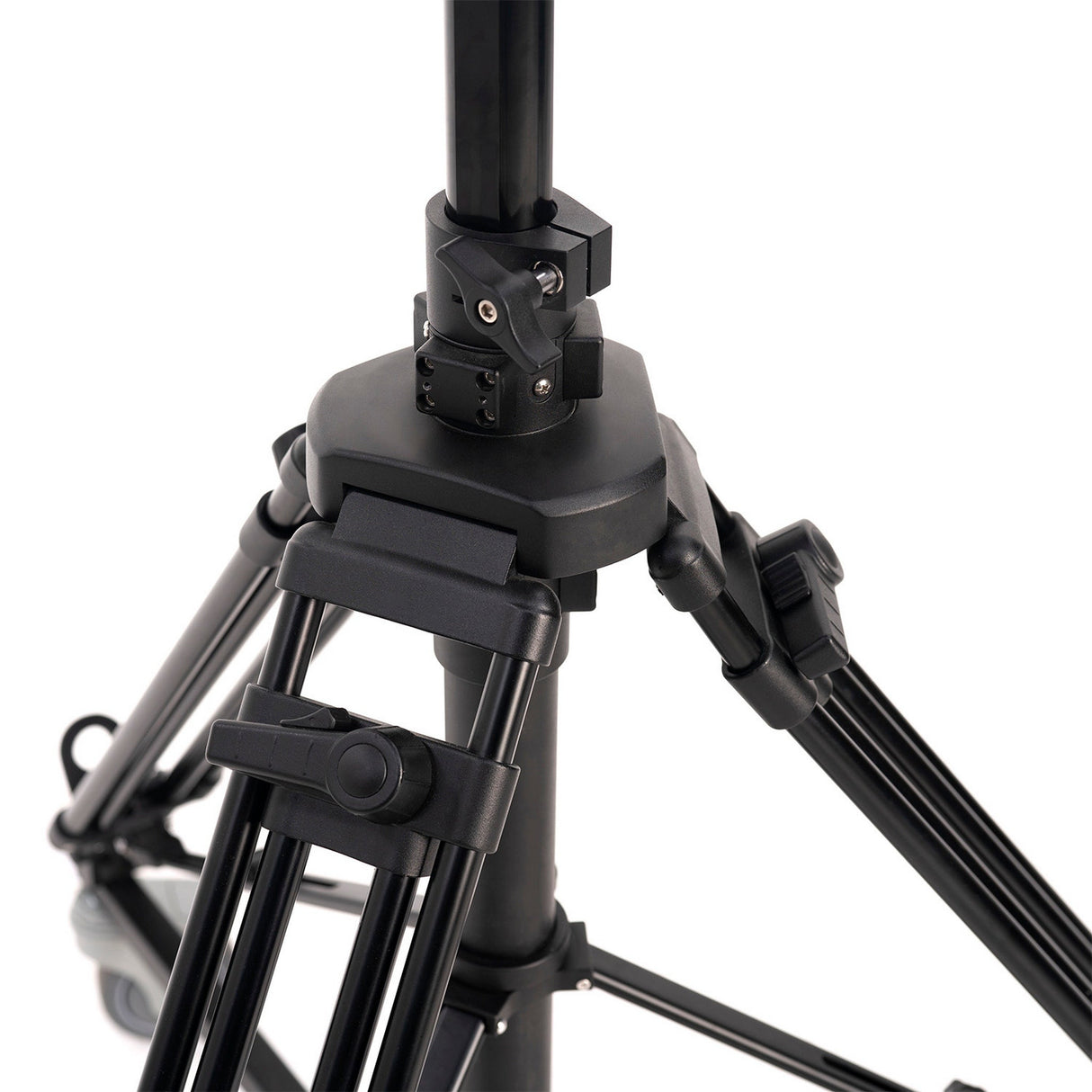

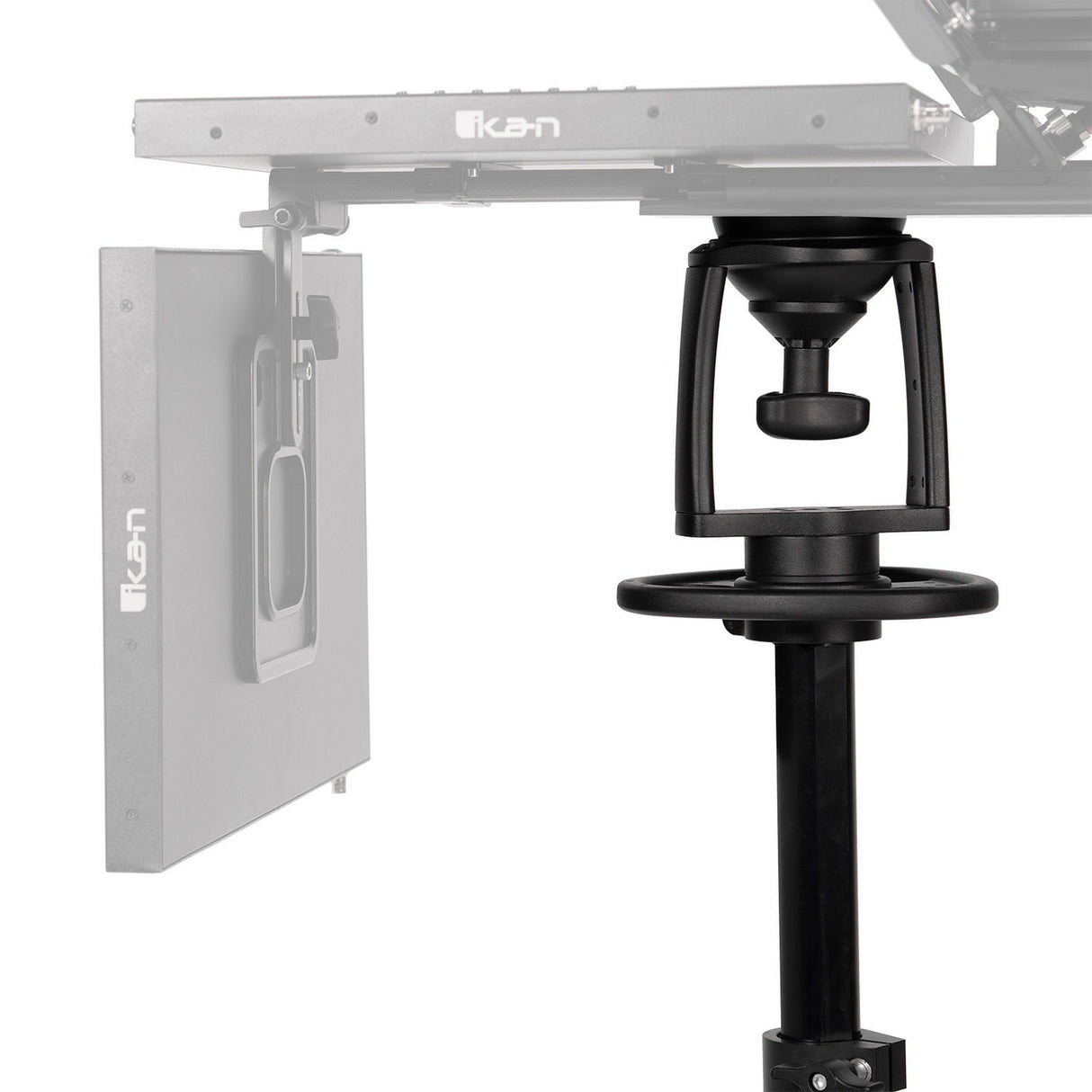

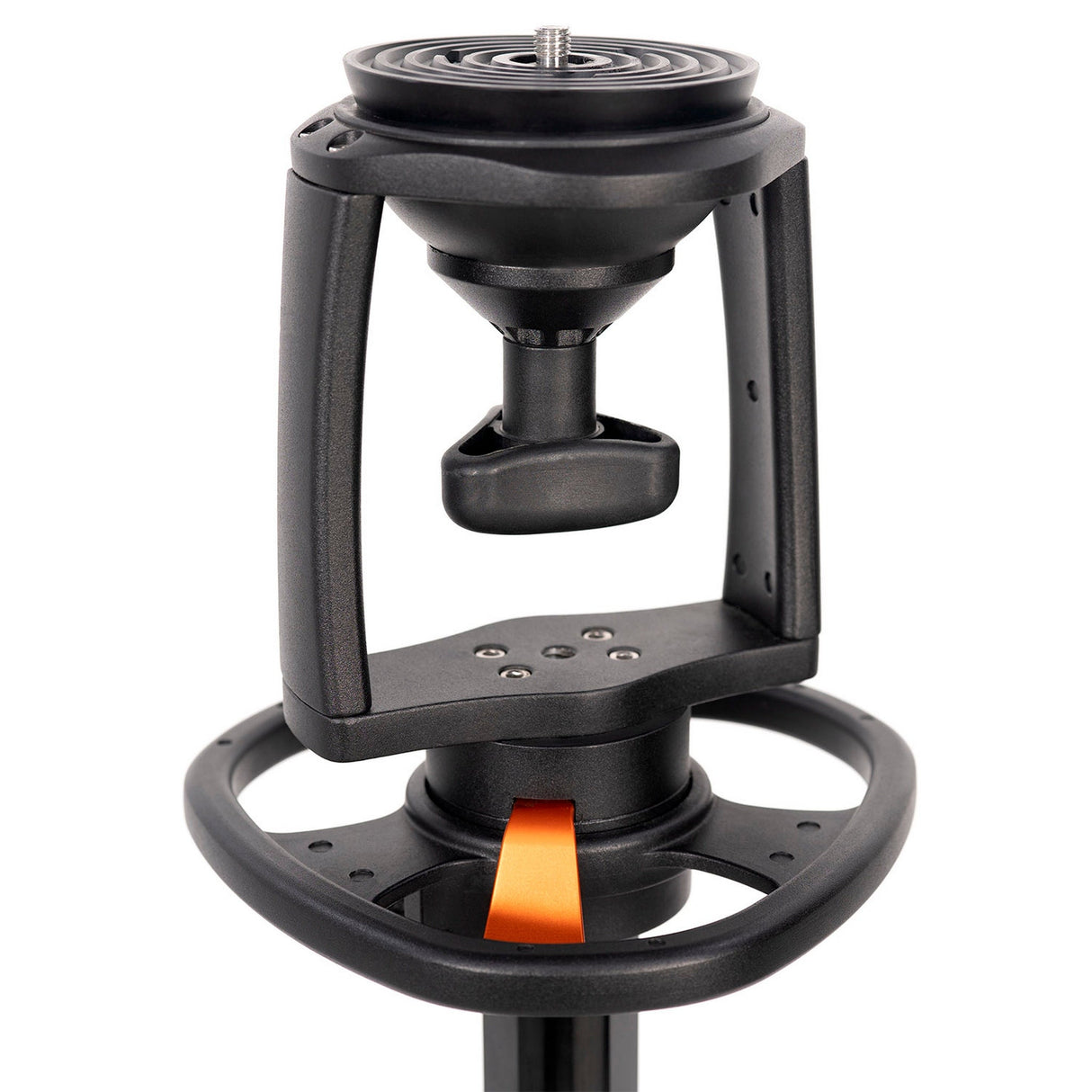

The pneumatic column uses an easy adjust lever to provide an on shot stroke for live height changes during production. The included 100mm flat base is designed for mounting PTZ teleprompter systems or robotic PTZ heads and includes a 3/8 inch 16 mounting screw. The system also includes an adjustable mid level spreader to add stability to the center column.

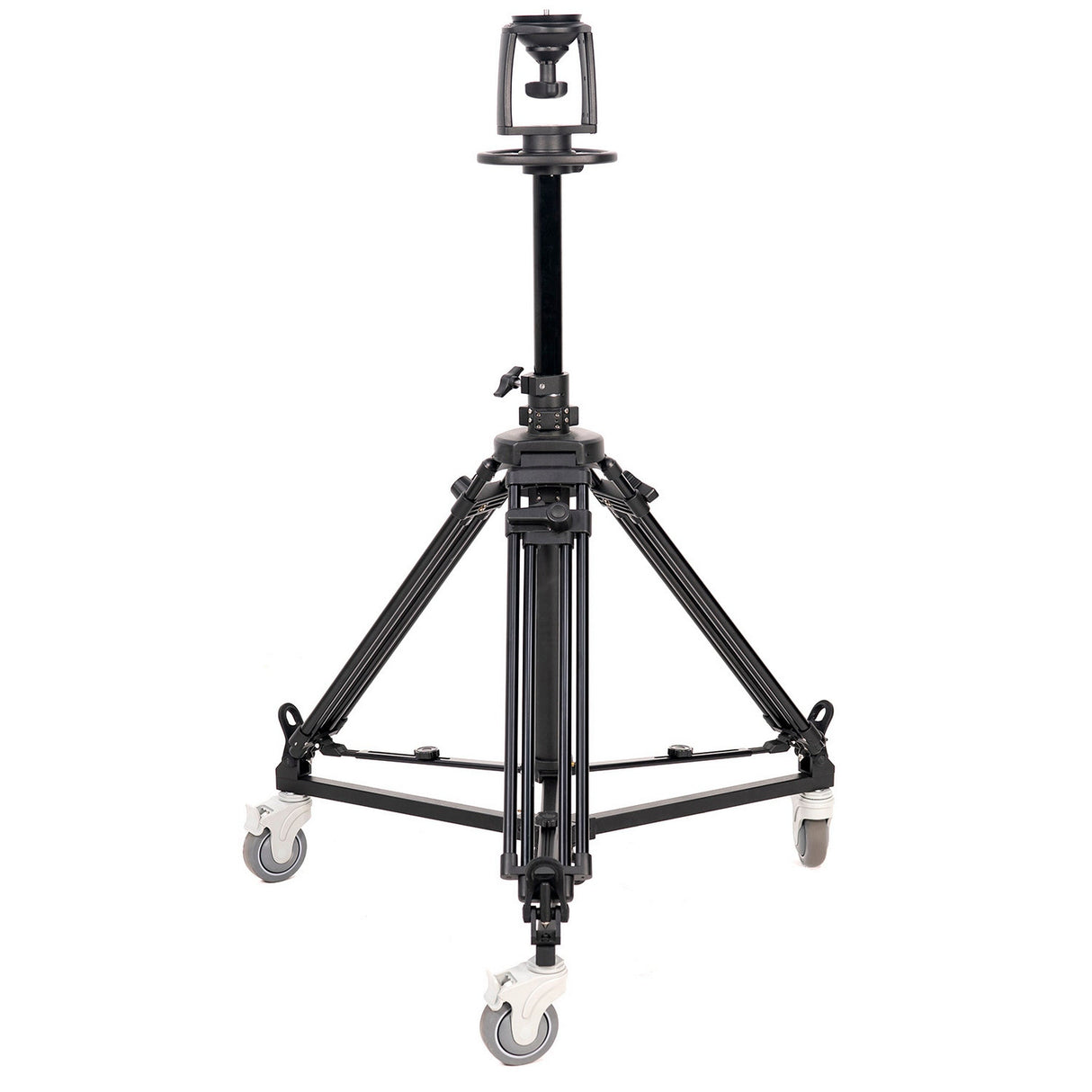

For fast repositioning, the included EI-7004B dolly features locking rubber wheels and height adjustable cable guards. The dolly is designed to fold for transport and is paired with dedicated carrying bags for the pedestal and dolly components. This pedestal kit is ideal for studio and broadcast workflows that require mobility, stability, and controlled height adjustment.
Key Features
- Payload Capacity: Pneumatic pedestal supports up to 44 lbs
- On Shot Adjustment: Pneumatic column with on shot stroke and easy adjust lever

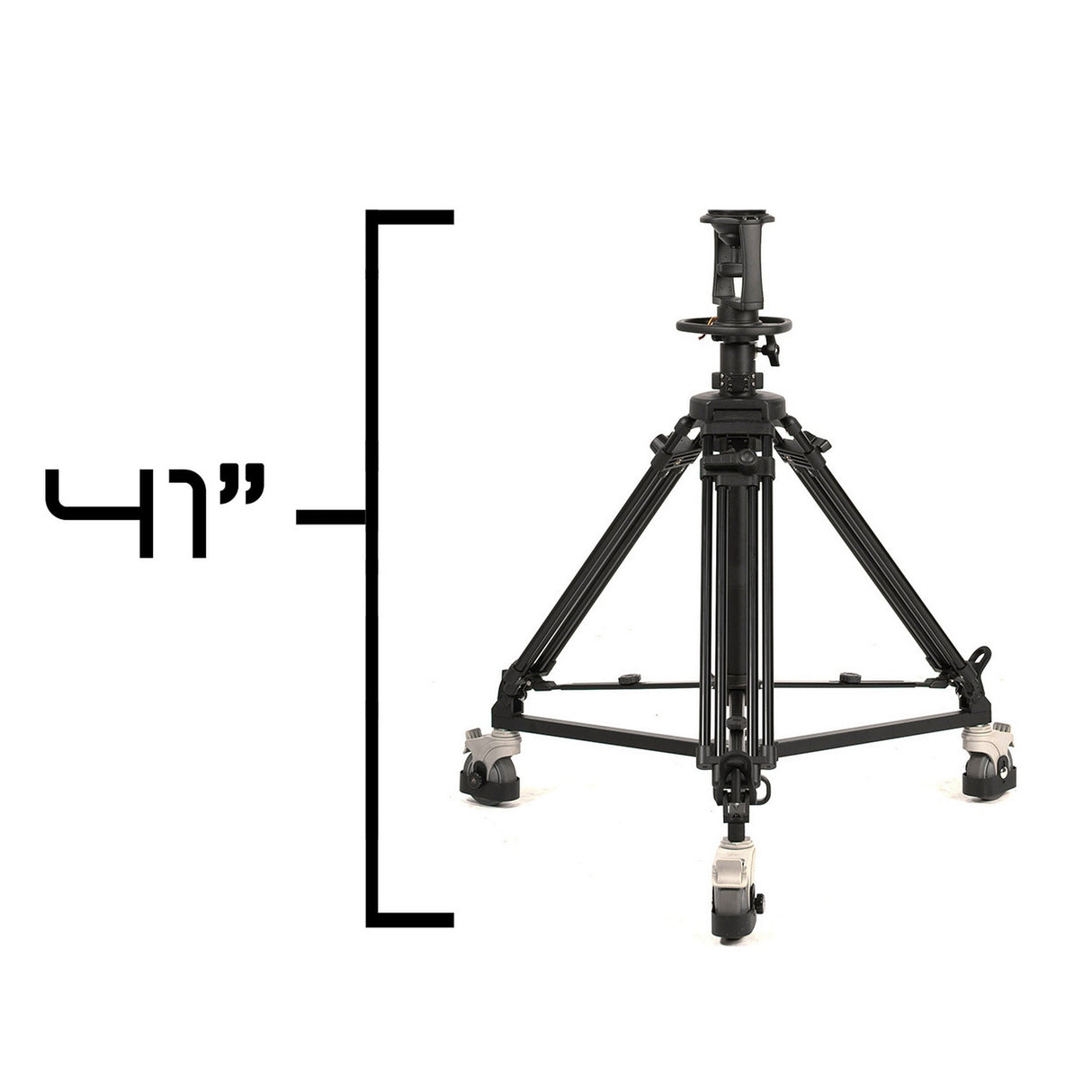

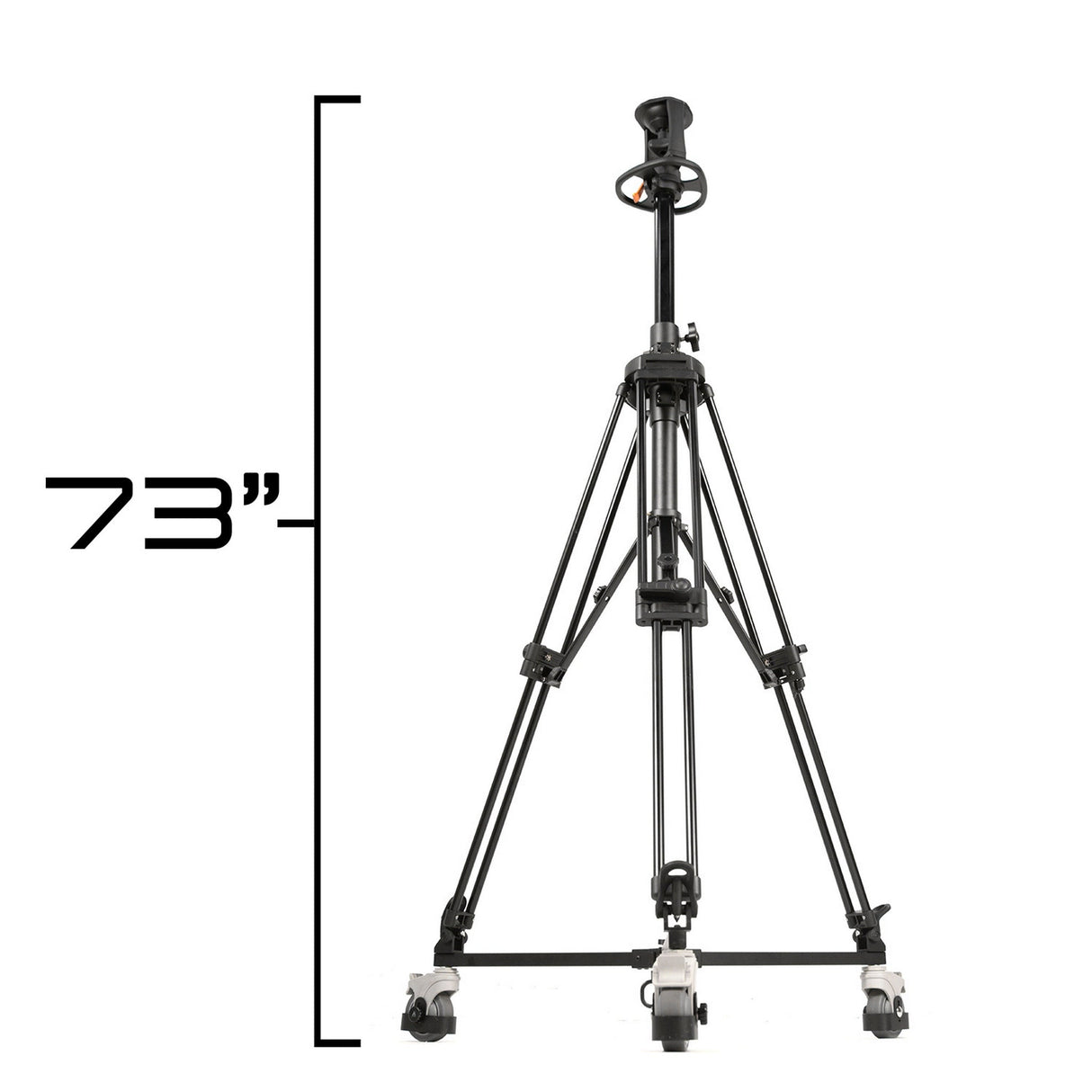

- Height Range: Adjustable from 41 inches to 73 inches

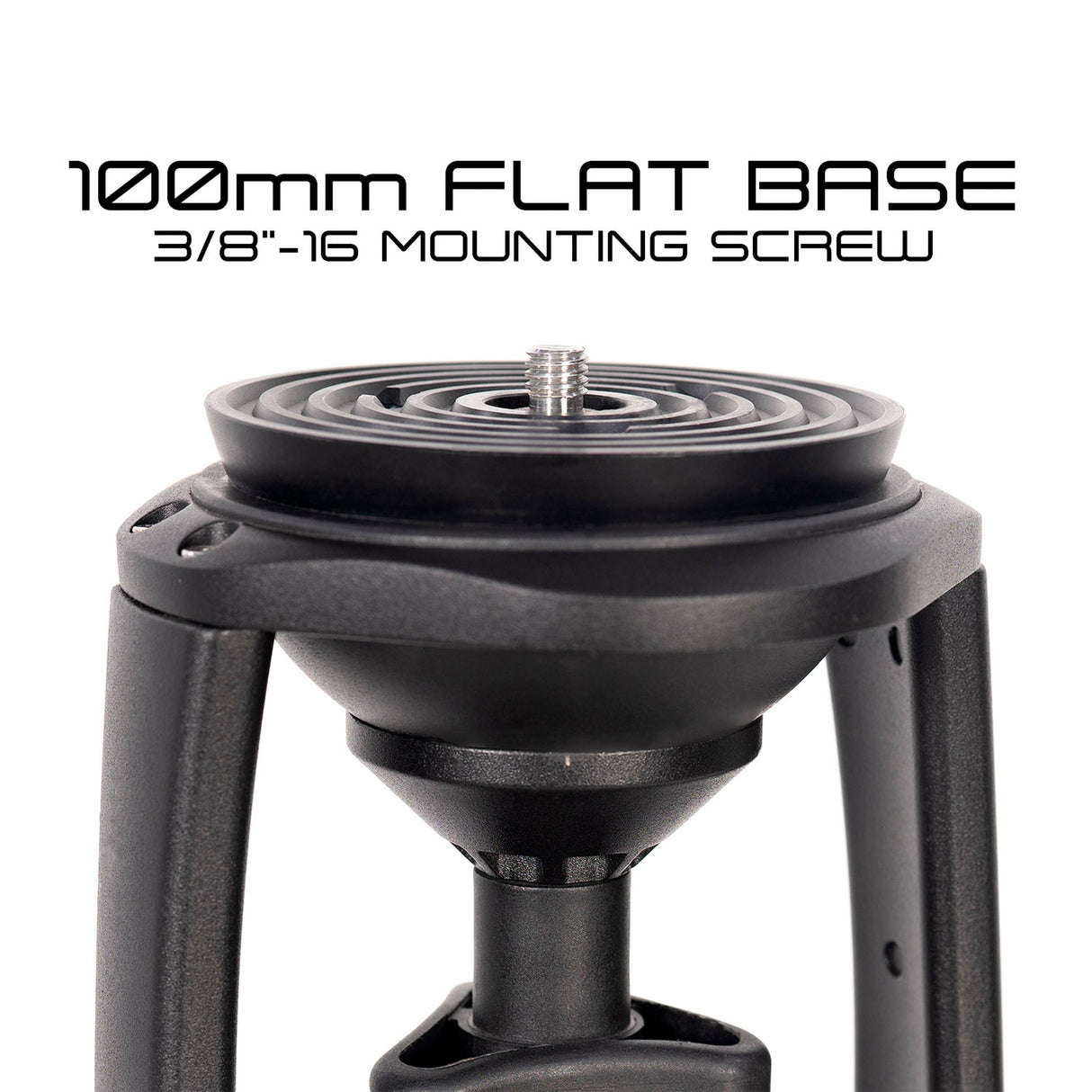

- Mounting Base: 100mm flat base with 3/8 inch 16 mounting screw
- Mobile Support: Includes EI-7004B dolly with locking wheels and cable guards
Technical Specifications
- Brand: Ikan
- Model: EI-PTZ-PEDESTAL
- UPC Code: 847983033720
- System Payload Capacity: 44 lbs
- System Height Range: 41 inches to 73 inches
- Pedestal Bowl Size: 100mm
- Pedestal Build Material: Aluminum
- Pedestal Net Weight: 34.8 lbs

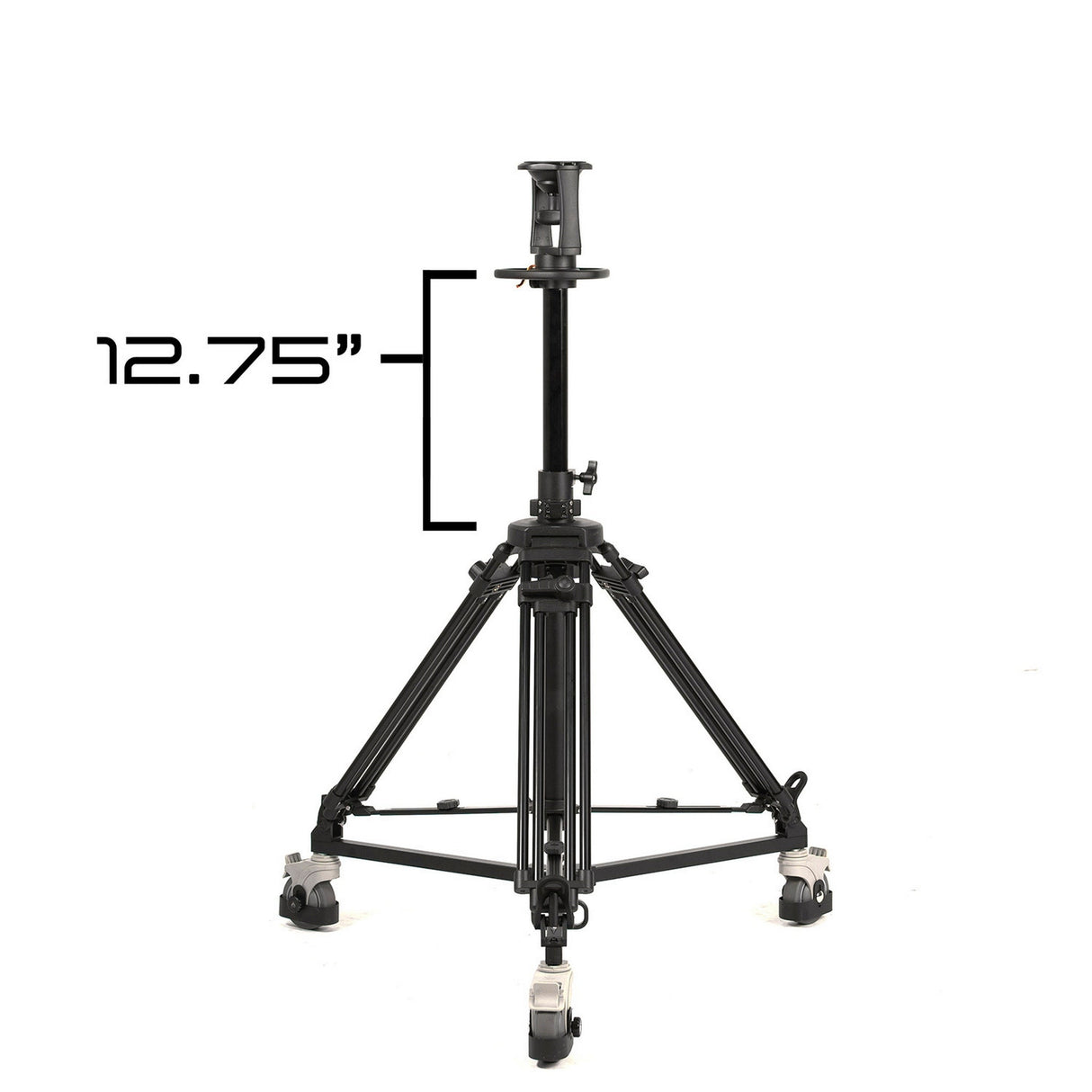

- Pedestal On Shot Stroke: 12.6 inches

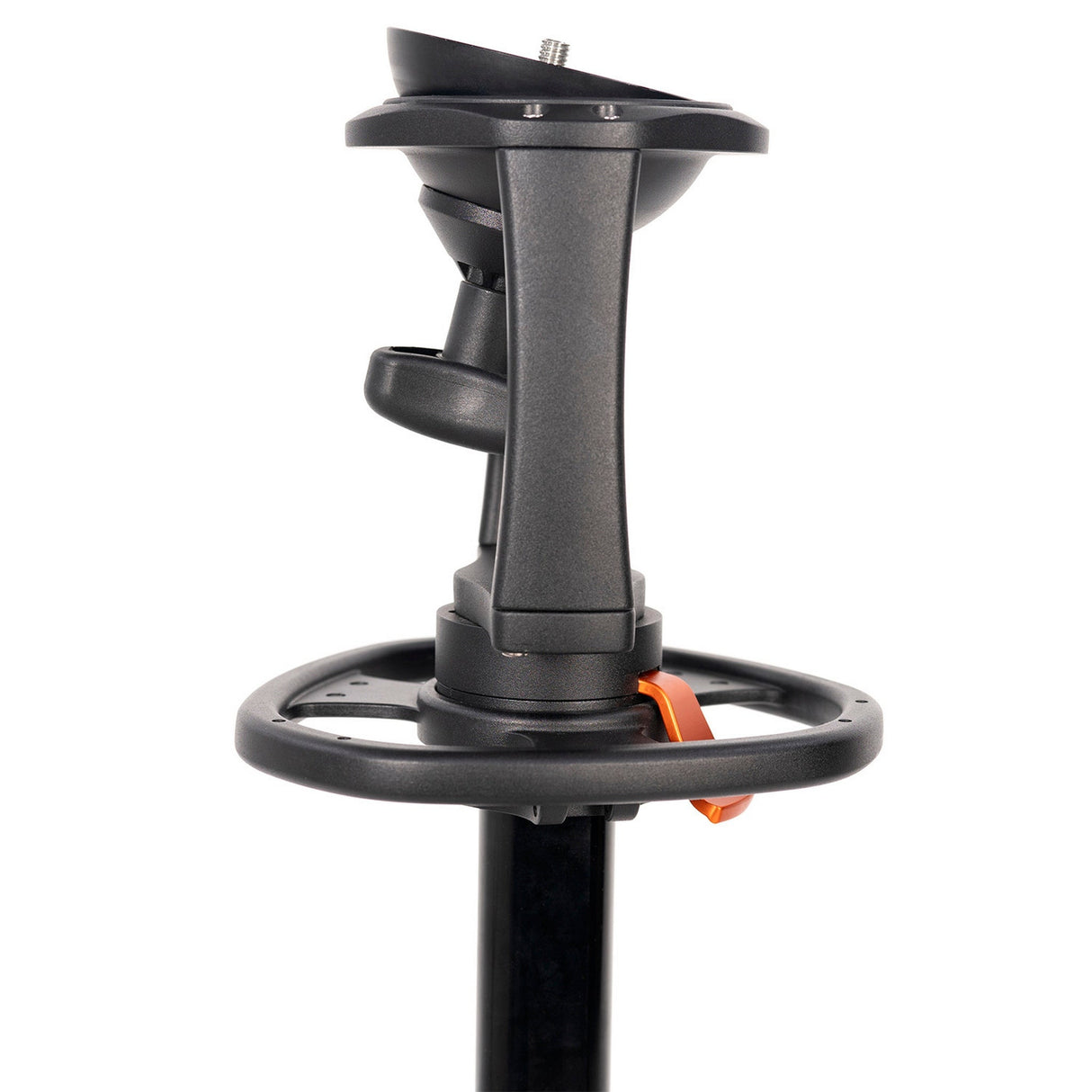

- Steering Ring Diameter: 7.67 inches
- Dolly Payload: 132.3 lbs
- Dolly Net Weight: 15 lbs

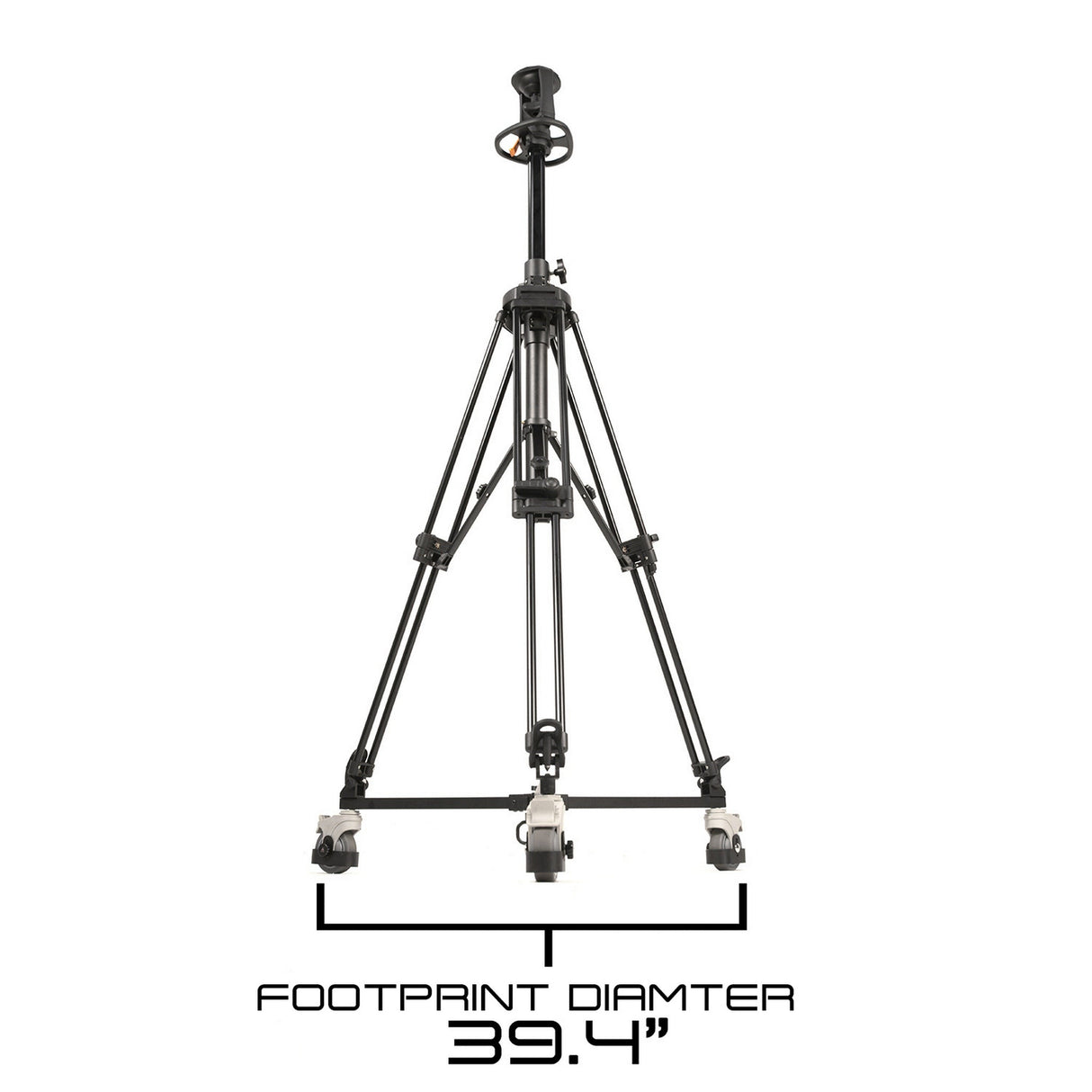

- Dolly Footprint Diameter: 39.4 inches
- Dolly Height: 6.7 inches
- Lockable Wheels: Yes
What’s in the Box
- x1 AT7903 pedestal
- x1 EI-7004B dolly with cable guards
- x1 T30 tripod carrying bag
- x1 100BF flat base
- x1 DB-01 dolly carrying bag
