Ikan Lyra LBX5-PoE 45W Bi-Color LED 3-Light Kit - Black

Ikan Lyra LBX5-PoE 45W Bi-Color LED 3-Light Kit

The Ikan Lyra LBX5-PoE 45W Bi-Color LED 3-Light Kit combines three half-by-one soft LED panels with a 380W unmanaged Ultra60 PoE++ switch and Light Deck software. Available in black or white, the kit delivers 2700K-6500K tunable output, CRI 98/TLCI 99 color accuracy, and networked lighting control.

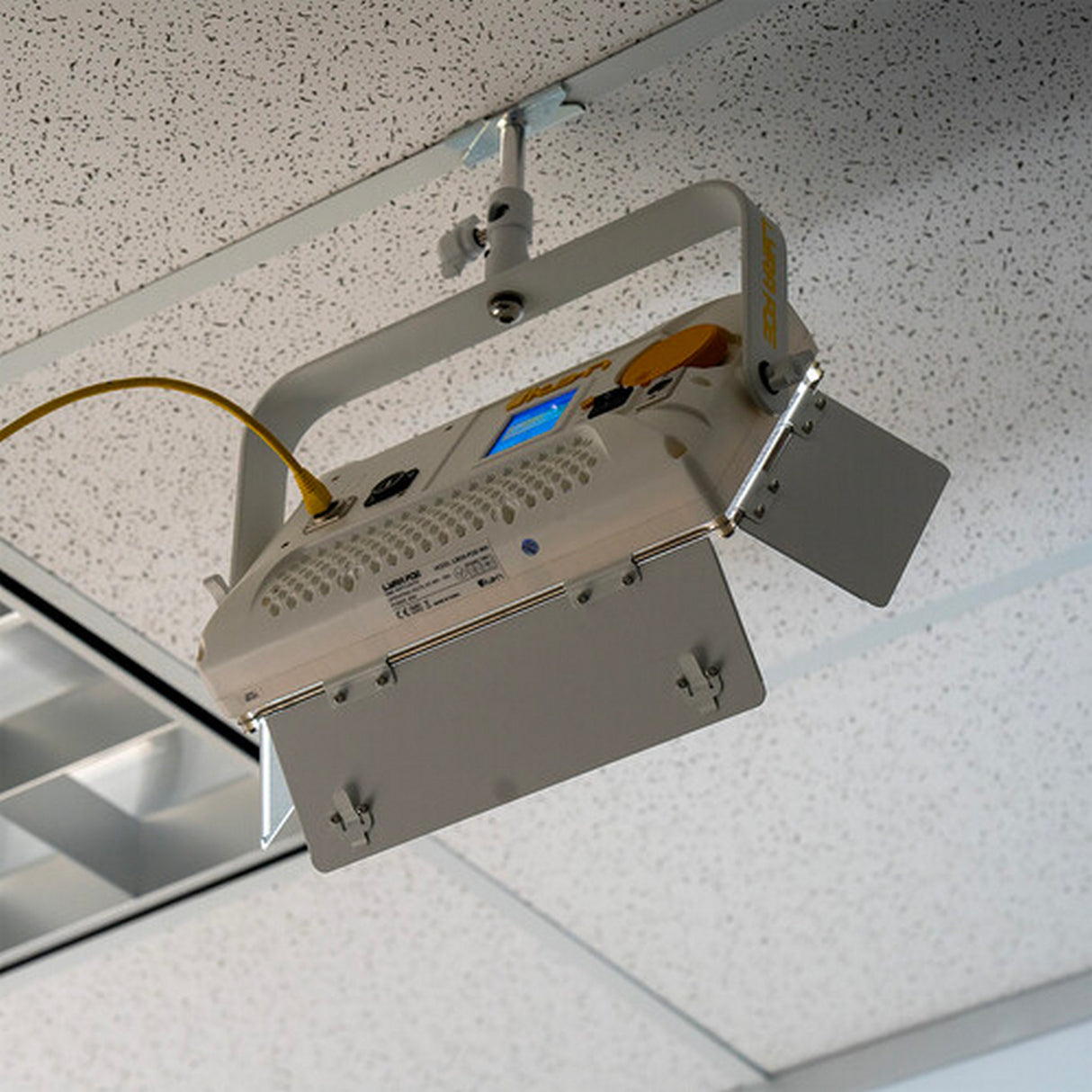

Designed for broadcast studios, corporate video rooms, podcast sets, classrooms, and permanent production spaces, each panel receives PoE++ power and network control through Cat6 Ethernet. Art-Net and sACN support integrate the fixtures into DMX-over-IP workflows, while Q-SYS compatibility provides centralized intensity and color-temperature control for networked AV installations.

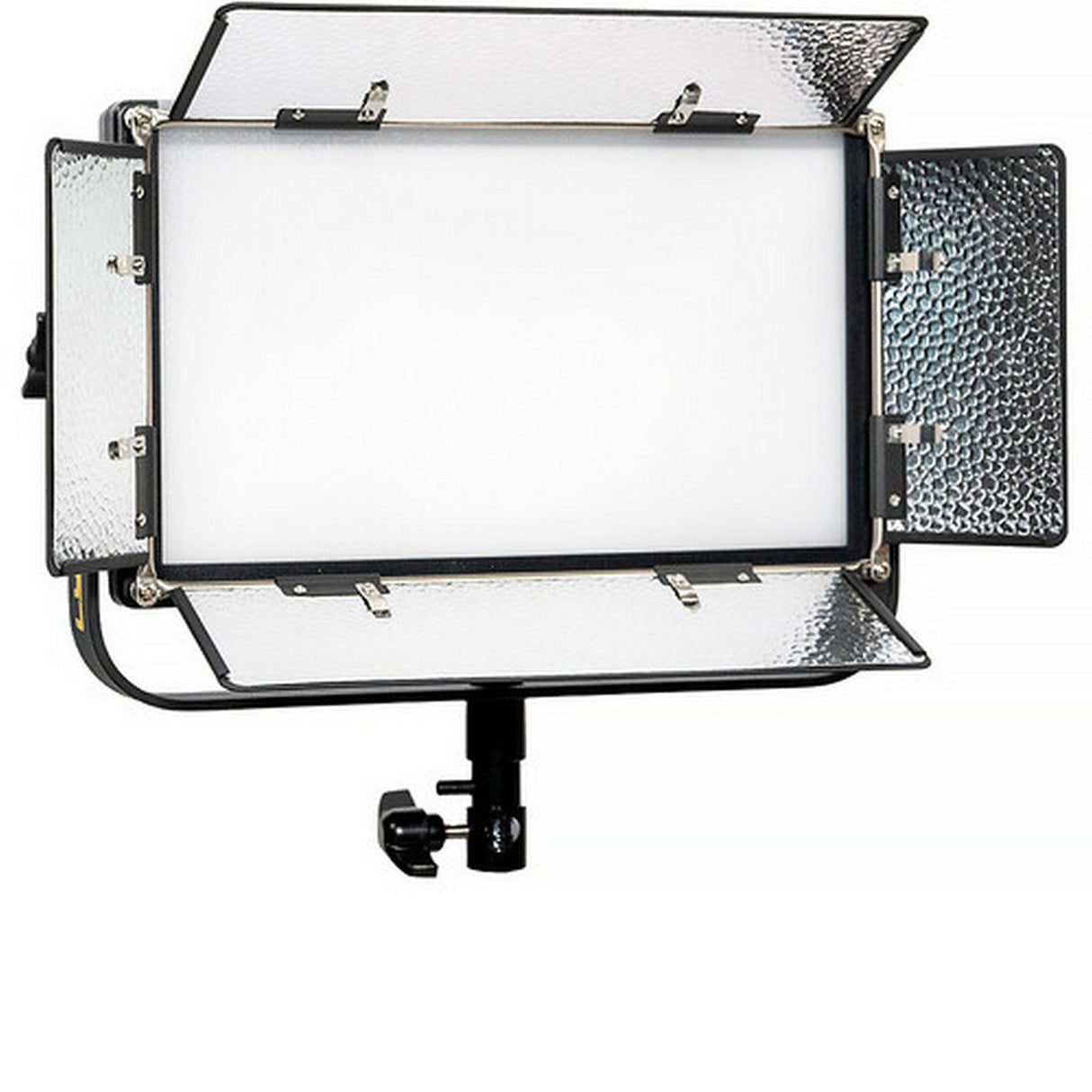

Each 45W COB LED fixture uses a 1/2-stop soft diffusion panel and 110-degree beam angle for broad illumination with clean shadow transitions. Passive cooling eliminates fan noise, and 0-100% dimming adjusts in 1% increments. The yoke and baby 5/8-inch/junior 1-1/8-inch combo pin support common studio mounting hardware.

Key Features

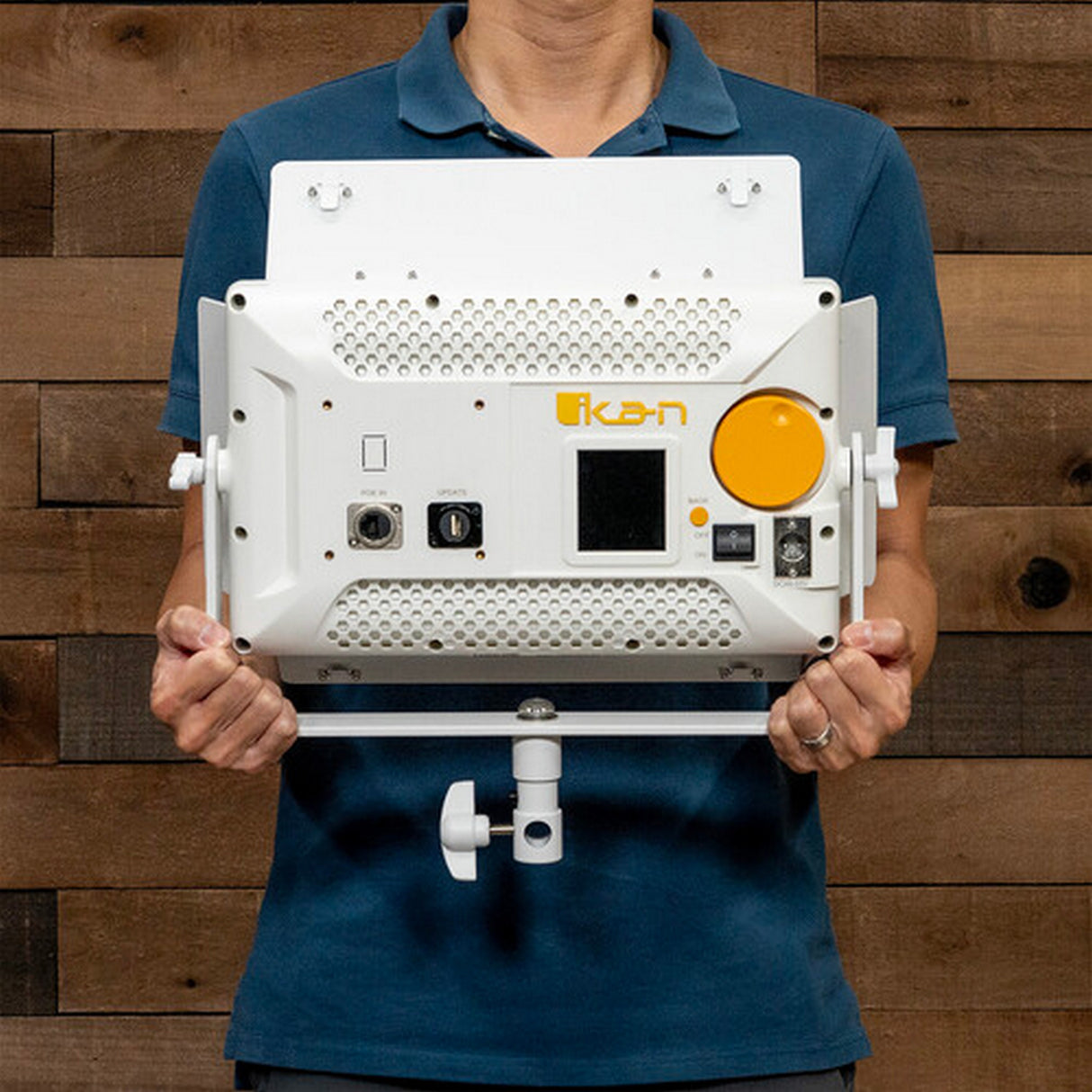

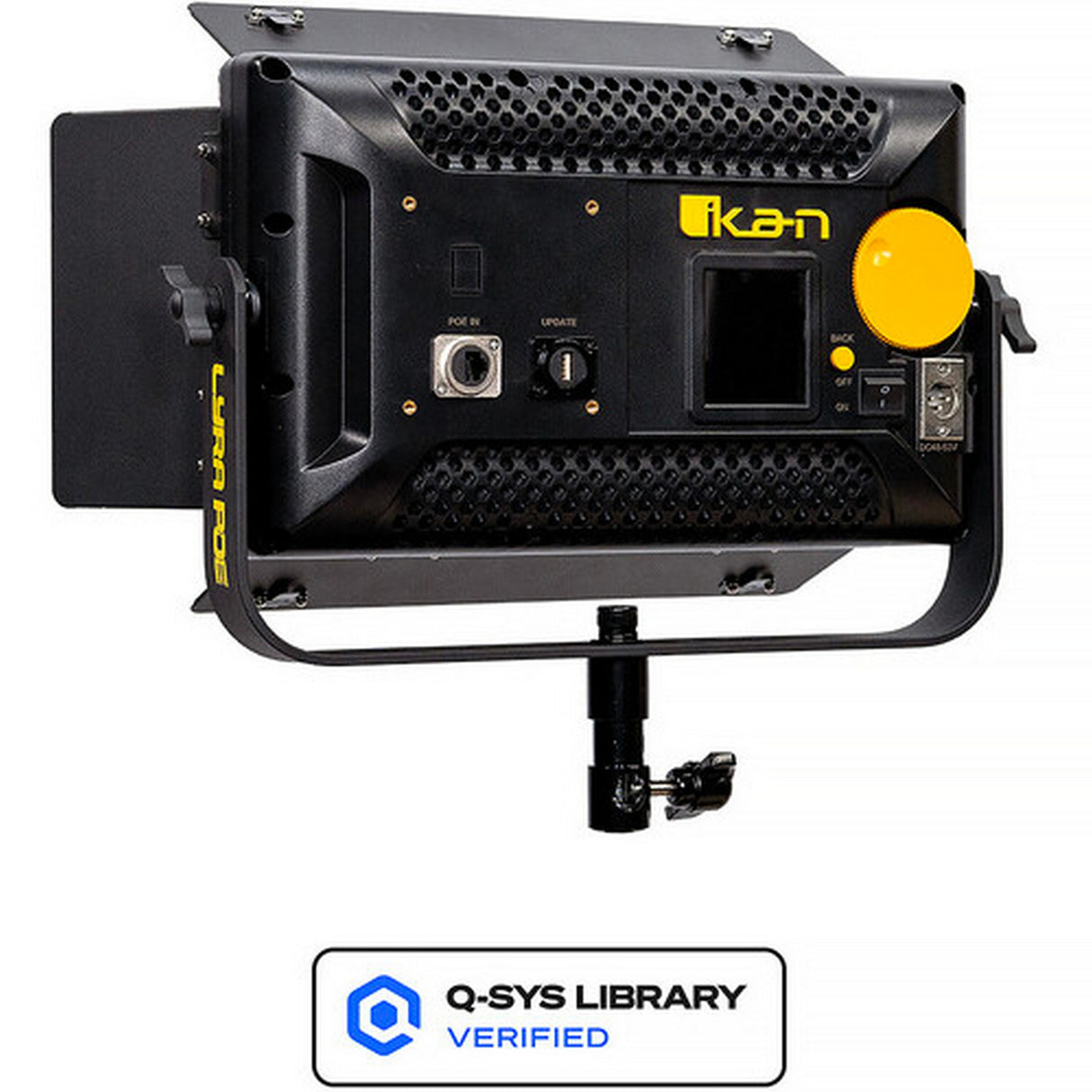

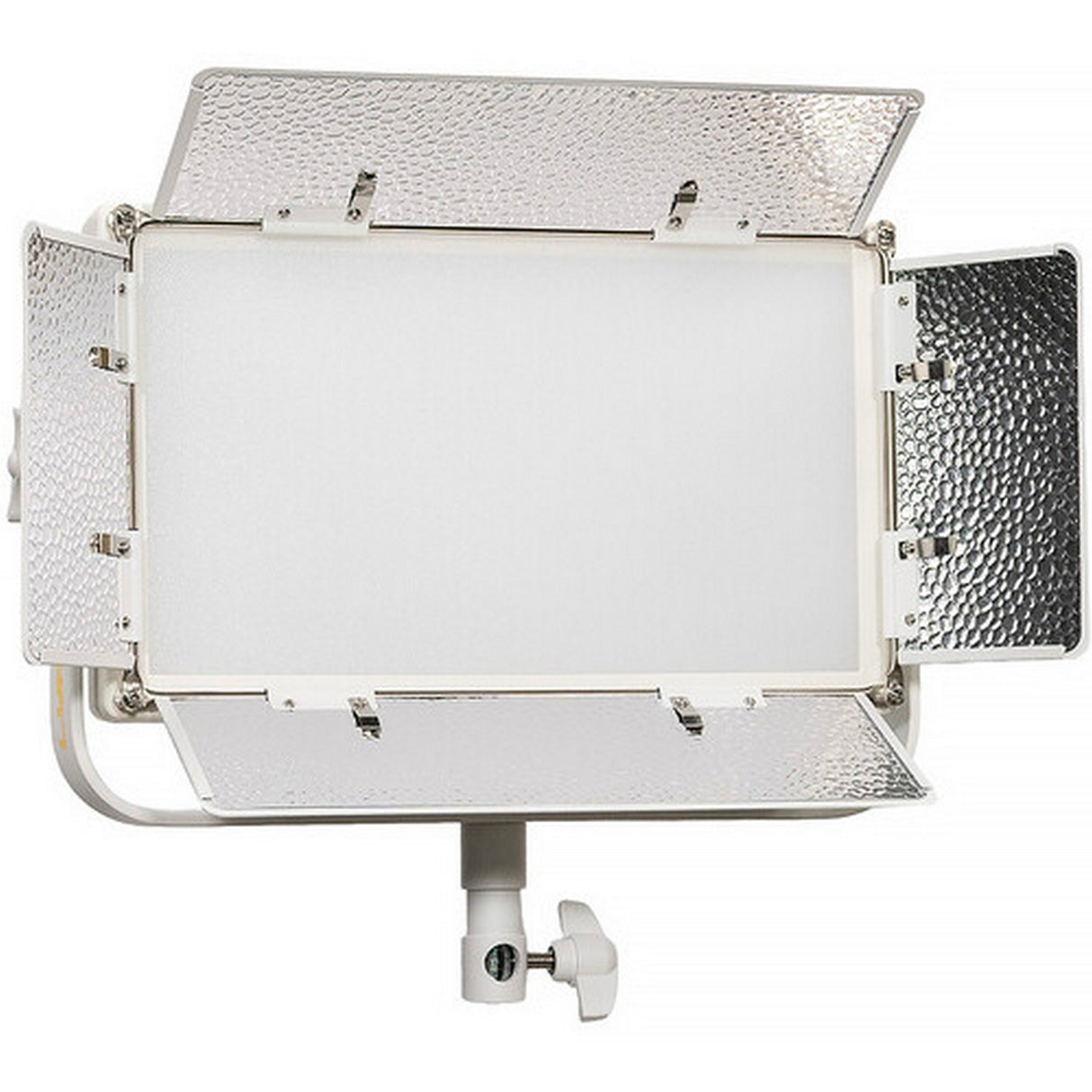

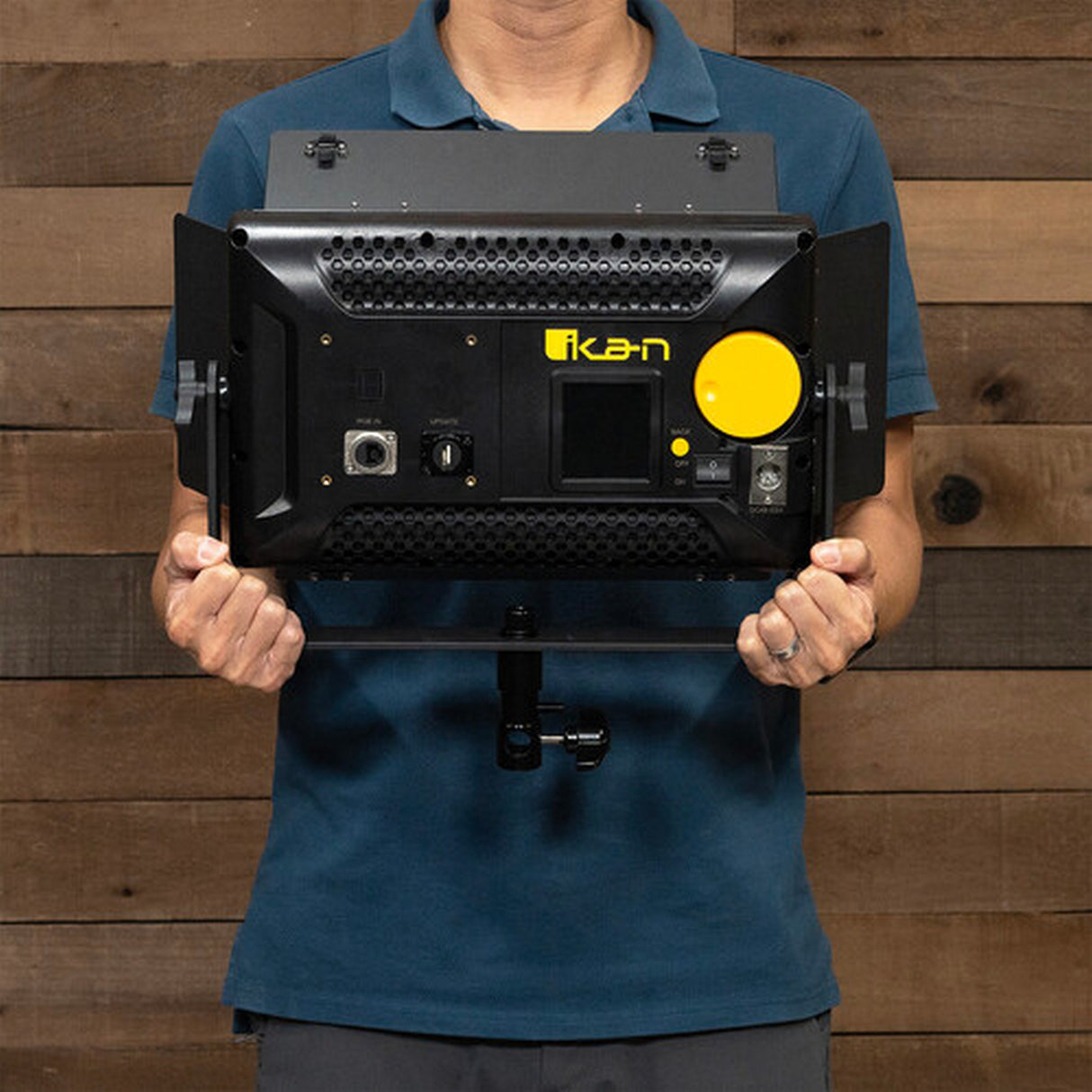

• Black or White Kit Options: Choose LBX5-POE-3L-1SU in black or LBX5-POE-WH-3L-1SU in white.
• Three 45W Bi-Color Panels: Provides three compact half-by-one fixtures with adjustable 2700K-6500K output.
• PoE++ Power and Control: IEEE 802.3bt Type 3 support carries power and network communication through Cat6 cabling.
• Art-Net and sACN: Integrates each fixture into standard DMX-over-IP lighting control environments.
• CRI 98 and TLCI 99: Supports accurate color reproduction for broadcast, video, streaming, and studio applications.
• Q-SYS Integration: Compatible with the Q-SYS Designer plugin for networked brightness and color-temperature control.
• Silent Passive Cooling: Fanless operation avoids mechanical noise during dialogue, interviews, and live production.
• Complete Network Bundle: Includes a 380W unmanaged Ultra60 PoE++ switch and Light Deck lighting-control software.

Technical Specifications

• Black Kit Model: LBX5-POE-3L-1SU
• White Kit Model: LBX5-POE-WH-3L-1SU
• Fixture Quantity: 3
• Fixture Type: Bi-color soft LED panel
• LED Type: COB
• Power Consumption: 45 W maximum per fixture
• Operating Voltage: 48 VDC
• PoE Standard: IEEE 802.3bt Type 3 PoE++
• PoE Ports Required: 1 per fixture
• Recommended Network Cable: Cat6 RJ45, 24 AWG or better
• Included Network Switch: Unmanaged Ultra60 PoE++ 802.3bt switch with 380 W power budget
• Color Temperature: 2700K-6500K
• Color Mode: Bi-color
• CRI: 98
• TLCI: 99
• Beam Angle: 110 degrees
• Illumination Area: 12 x 6 inches per fixture
• Diffusion: 1/2-stop soft diffusion panel
• Lens: Interchangeable

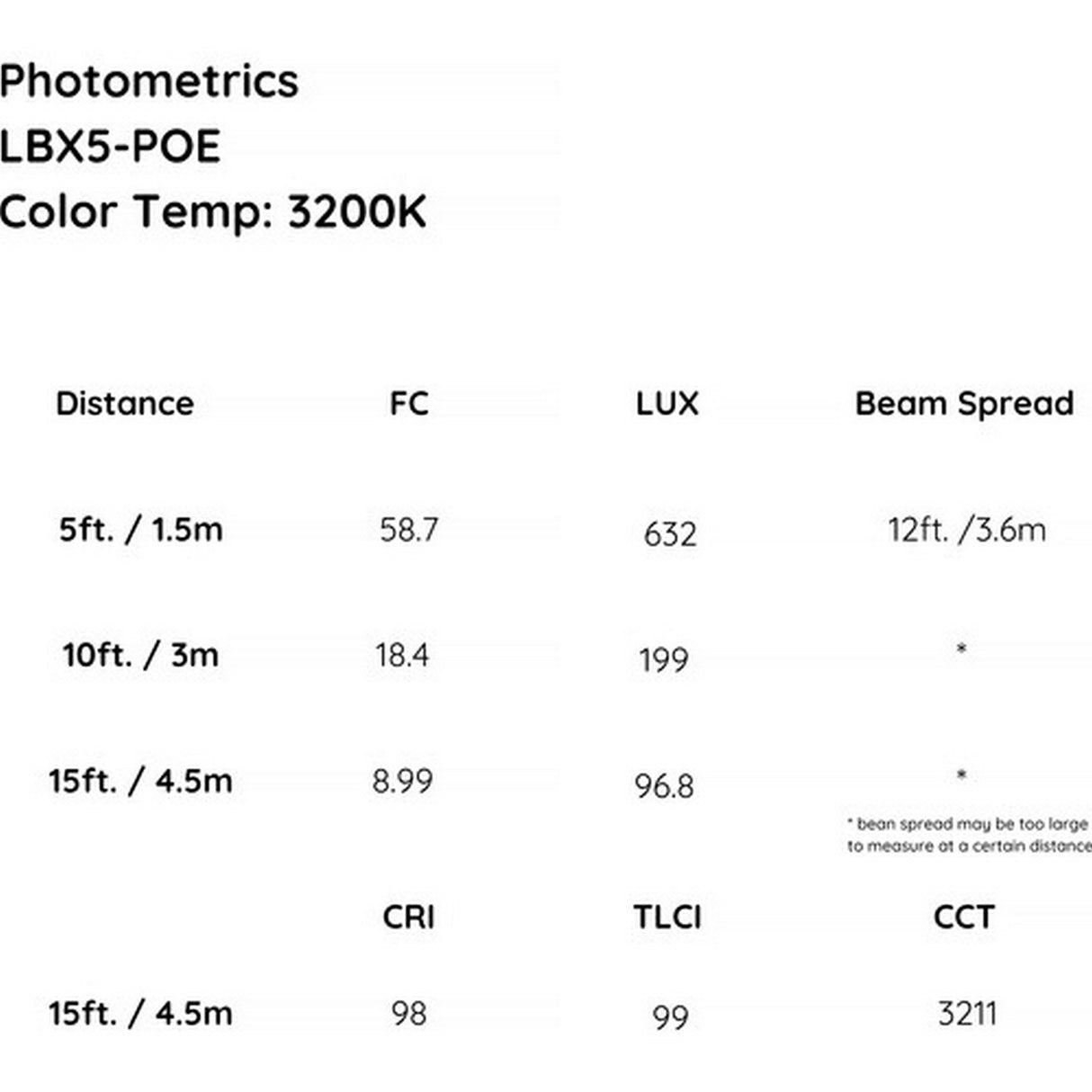

• Photometric Output at 3200K: 632 lux at 5 feet
• Photometric Output at 4400K: 696 lux at 5 feet
• Photometric Output at 5600K: 692 lux at 5 feet
• Dimming Range: 0-100% in 1% increments
• DMX-over-IP: Art-Net and sACN via RJ45
• Q-SYS: Compatible with Q-SYS Designer plugin
• Q-SYS Control Capacity: Up to 256 lights per universe
• Web Interface: Supports configuration of IP, DMX address, universe, Art-Net, and sACN settings
• Input/Output Ports: RJ45 and USB Type-A
• Display: LCD
• Cooling: Passive fanless cooling
• LED Lifetime: 70,000 hours
• Power-Loss Behavior: Last-scene hold
• Optional Power Supply Specification: 110-220 VAC input, 48 VDC at 3.12 A output; not included
• Construction: Resin plastic and metal
• Mounting: Yoke with standard stage-clamp support
• Stand Mount: Baby 5/8-inch and junior 1-1/8-inch combo pin
• Fixture Dimensions: 14 x 7 x 3 inches
• Fixture Weight: 4 lb
• Operating Temperature: 10 to 110 degrees Fahrenheit
• Included Software: Light Deck DMX lighting controller
• Patent: 12,477,643

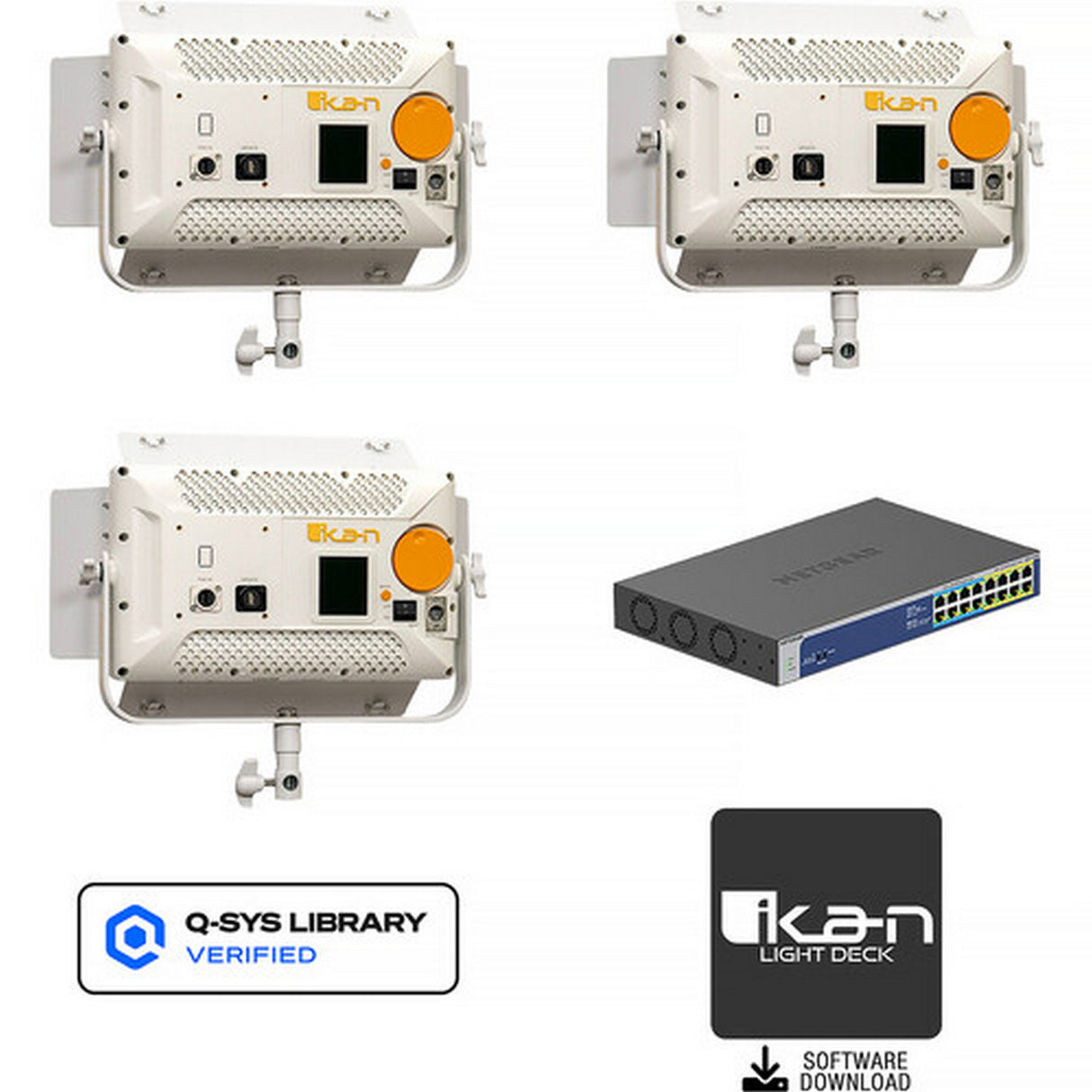

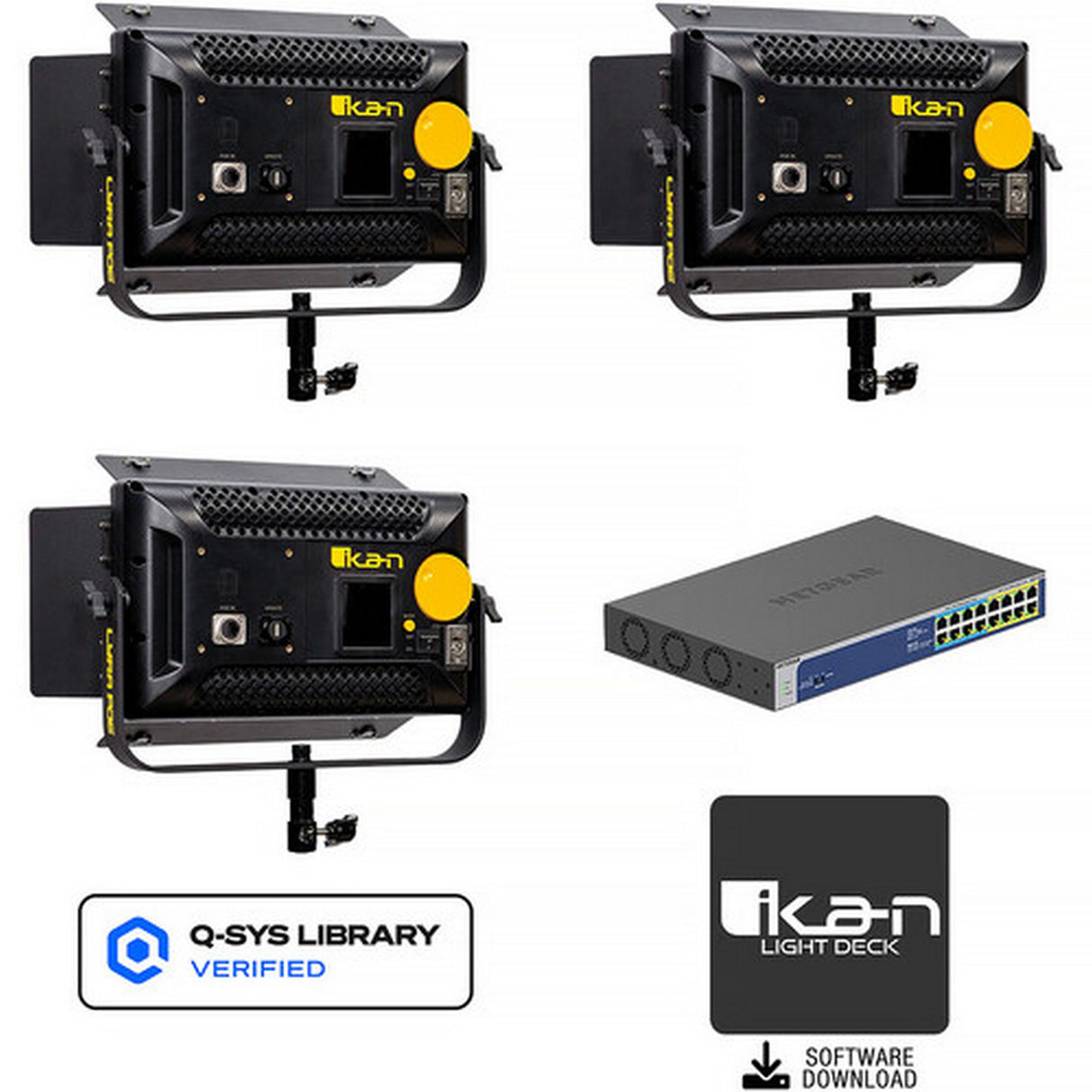

What's In the Box

• 3 x LBX5-POE fixtures in selected black or white finish
• 3 x installed yokes
• 3 x combo pins
• 3 x safety wires
• 1 x 380W unmanaged Ultra60 PoE++ 802.3bt switch
• 1 x Light Deck software
