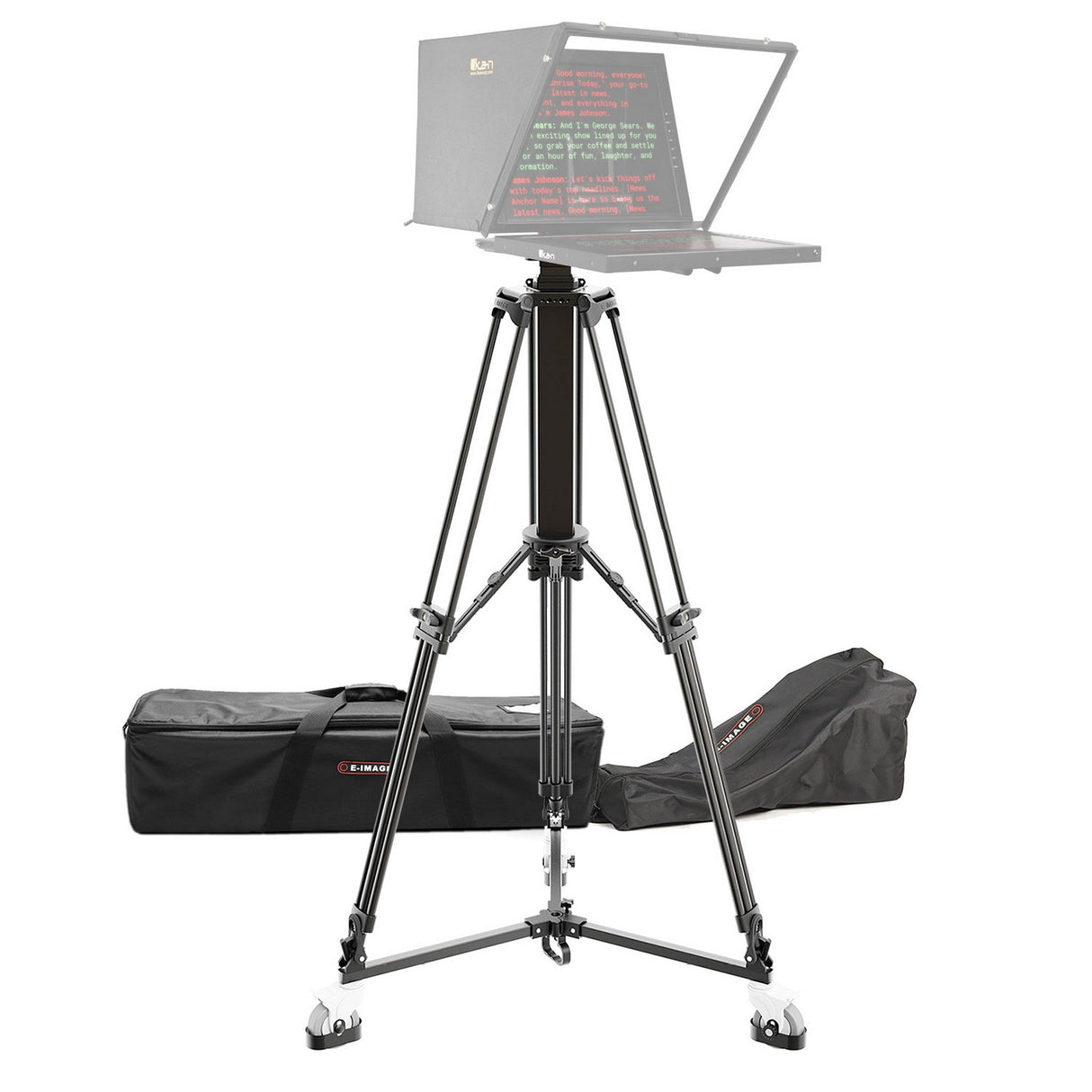

Ikan Motorized Pedestal for PTZ Cameras and Teleprompters

Motorized Pedestal for PTZ Cameras and Teleprompters

Engineered for professional-grade PTZ cameras and teleprompters, the Motorized Pedestal from Ikan offers seamless, precise control for broadcast and production environments. With its robust design, this motorized tripod provides the stability and smooth motion required for high-quality video productions. The pedestal is built with a high payload capacity, a smooth raising and lowering speed, and a user-friendly control system, ensuring you have full control over your camera setup in even the most demanding settings.

The motorized pedestal features a versatile height range from just over 39 inches to nearly 110 inches, accommodating various production requirements. It is designed for easy transport, with a compact design when collapsed. Additionally, it comes with a set of essential accessories, including a quick-release plate for quick setup and breakdown, a dolly for smooth movement, and an easy-to-use wired remote controller. Whether you're filming in the studio or on location, this motorized pedestal ensures stability and precision every time.

The Ikan Motorized Pedestal is built with durability in mind. The pedestal's tripod legs are constructed from high-quality aluminum, while the wheels of the dolly are made from rubber, providing smooth and quiet operation on different surfaces. Its lockable wheels ensure stability when needed, while the dolly's substantial payload capacity allows it to handle heavy-duty camera equipment. With all these features, this pedestal is perfect for professional productions looking to achieve flawless camera movements and smooth transitions.

Key Features

• Max Payload of 66 lbs. (30 kg) for heavy-duty camera equipment
• Height Range from 39.2" to 109.8" (99.5 cm to 279 cm) for versatile use
• Stroke length of 25.6" (65 cm) for adjustable positioning
• Raising/Lowering speed of 40 mm/s for smooth, controlled movements
• Quick release plate with 1/4" and 3/8" screw sizes for easy camera attachment
• Bubble level and P13 column interface for precise setup
• Includes a full set of accessories, including a dolly, power supply, and remote controller
• Lockable wheels for stable operation during filming
• Built-in temperature resistance with a range of -50°F to 104°F (-45°C to 40°C)

Technical Specifications

Model: M-PTZ-PEDESTAL

Max. Payload: 66 lbs. | 30 kg

Net Weight: 40.5 lbs. | 18.4 kg

Height Range: 39.2" - 109.8" | 99.5 cm - 279 cm

Transport Length: 36.2" | 92 cm

Stroke: 25.6" | 65 cm

Raising / Lowering Speed: 40 mm/s

Leg Stages/Sections: 2/3

Temperature Range: -50°F - 104°F | -45°C - 40°C

Camera Plate Screw Size: 1/4" and 3/8"

Bubble Level: Yes

Column Interface: P13 (QR adapter with plate)

Column Section: 3

Column Size: 70 x 70 mm

Controller Cable: 78.7" | 2 m

Motor Cable: 98.4" | 2.5 m

Motor Cable Extension: 98.4" | 2.5 m

Dolly Specifications

Net Weight: 15 lbs. | 6.8 kg

Footprint Diameter: 39.4" | 100 cm

Cable Guard Diameter: 4.92" | 12 cm

Height: 6.7" | 17 cm

Radius: 19.7" | 50 cm

Wheel Width: 3.9" | 100 mm

Lockable Wheels: Yes

Build Material: Legs: Aluminum | Wheels: Rubber | Screws: Steel

Payload: 132.3 lbs. | 60 kg

Shipping Information

Shipping Weight: 59 lbs.

Shipping Dimensions: Box 1: 43" x 14" x 13" | Box 2: 23" x 9.8" x 9"

What's Included

• 1 x Motorized Tripod & Center Column
• 1 x Quick Release Plate
• 1 x EI-7004B Dolly
• 1 x SC-4 Tripod Carrying Bag
• 1 x Dolly Carrying Bag
• 1 x Power Supply Unit
• 1 x Power Supply Cable (3-Meter)
• 1 x Motor Cable (2.5-Meter)
• 1 x Motor Extension Cable (2.5-Meter)
• 1 x Wired Remote Controller (2-Meter)
• 1 x User Guide
