Ikan PT419-PTZ-MPEDESTAL 19-Inch PTZ Teleprompter Motorized Pedestal Kit

Ikan PT419-PTZ-MPEDESTAL 19" PTZ Teleprompter Motorized Pedestal Kit

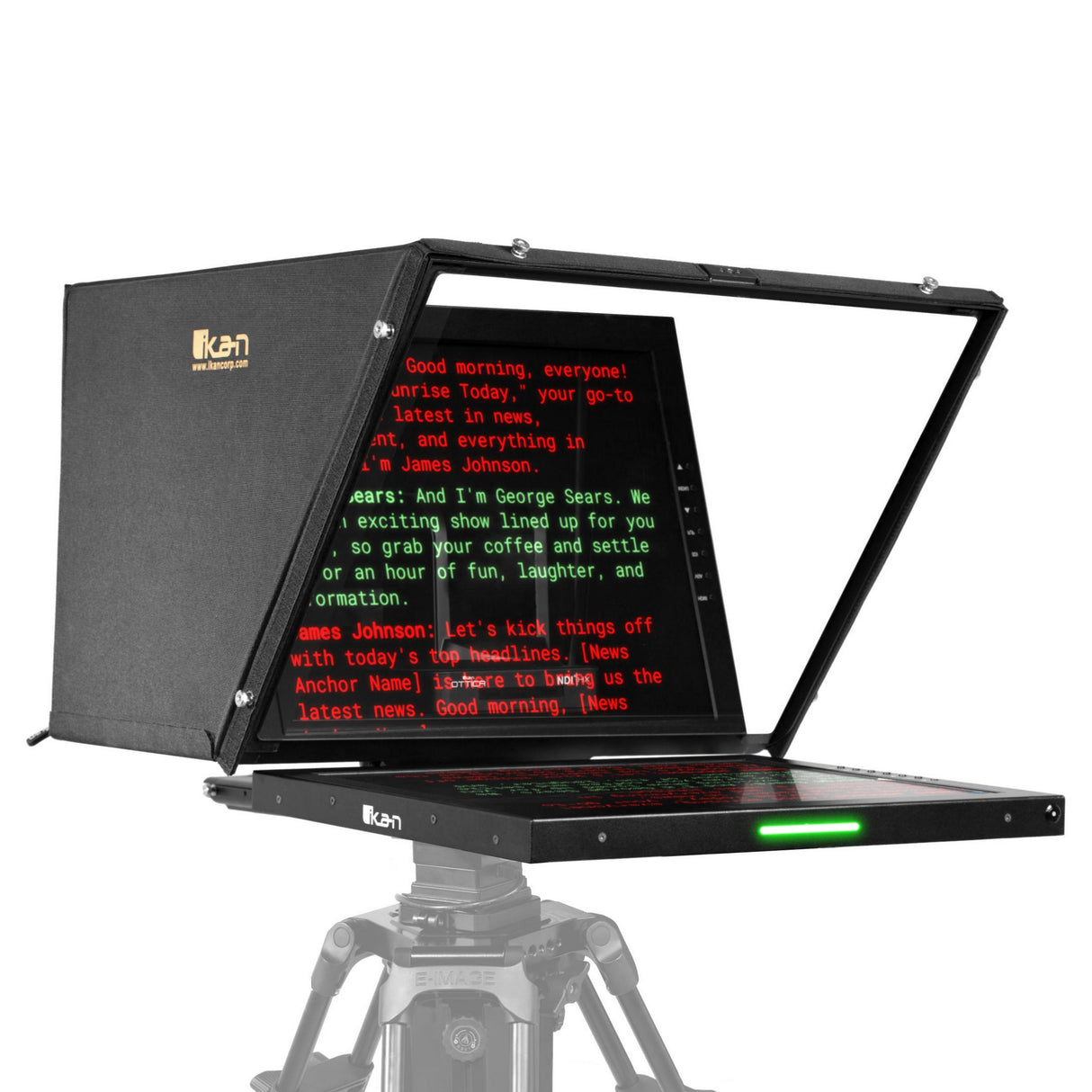

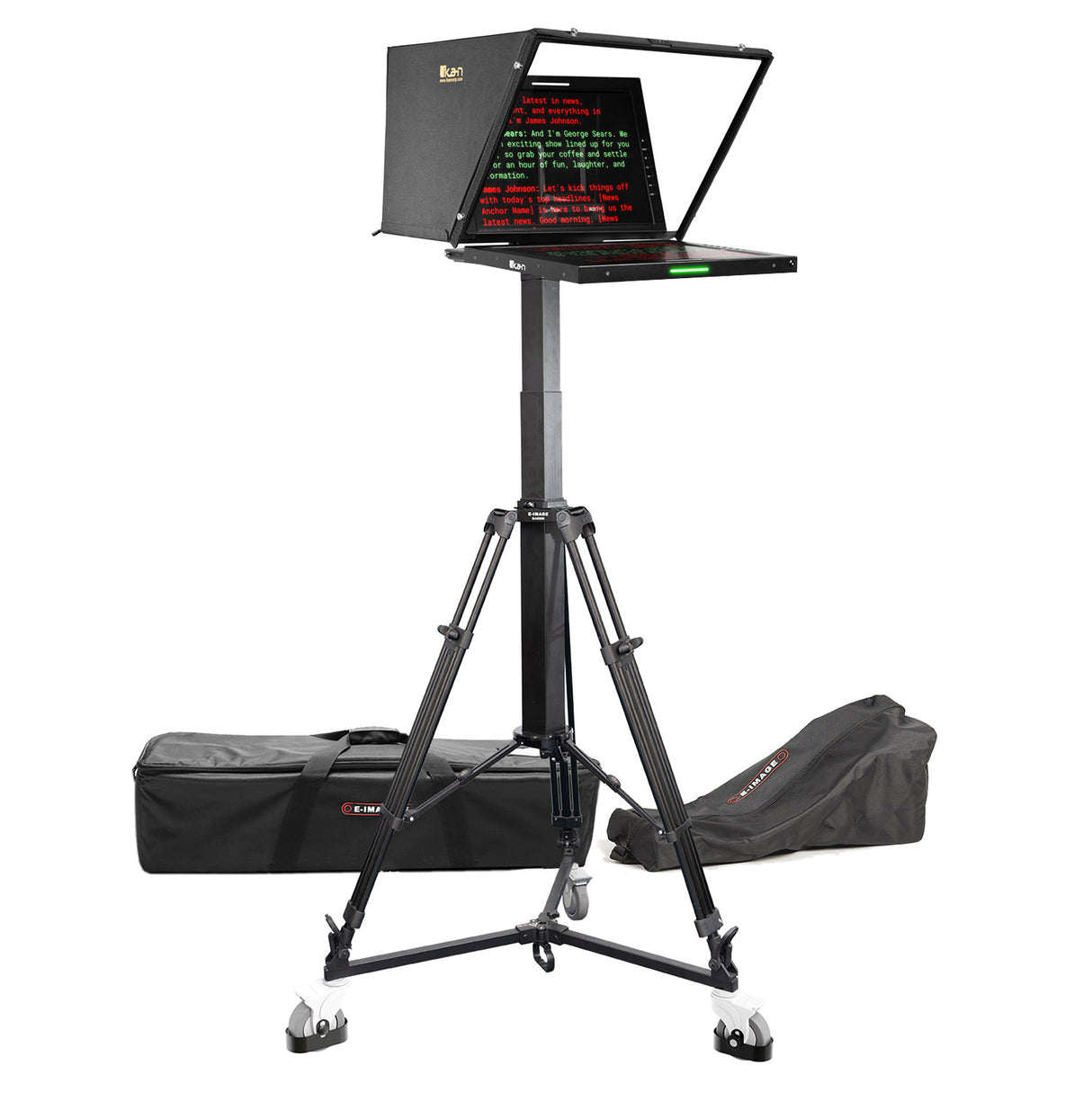

The Ikan PT419-PTZ-MPEDESTAL 19" PTZ Teleprompter Motorized Pedestal Kit combines a 19-inch high-bright PTZ teleprompter, motorized elevation pedestal, and wheeled dolly in one studio-ready system. The assembled solution leaves up to 38.2 lb of payload capacity for a compatible PTZ camera and related equipment.

Built for broadcast studios, corporate AV, live events, and virtual production, the system pairs a 1000-nit prompting monitor with a fully enclosed PTZ hood that permits camera pan, tilt, and zoom movement behind the glass. A 65/35 beamsplitter provides a readable script reflection at distances up to 25 feet, while SDI, HDMI, VGA, and composite inputs support common production sources.

The M-PTZ-PEDESTAL provides motorized elevation with wired control, three programmable height presets, a 25.6-inch column stroke, and a working height range from 39.2 to 109.8 inches. Its included EI-7004B dolly adds lockable wheels and cable guards for studio repositioning. The teleprompter also includes red and green tally indication, horizontal and vertical image flip, and PrompterPro 4 software.

Key Features

• Complete PTZ Teleprompting System: Combines the PT419-PTZ teleprompter, M-PTZ-PEDESTAL motorized support system, and EI-7004B dolly.
• 38.2 lb Remaining Camera Payload: Supports camera configurations up to 38.2 lb after the complete 19-inch teleprompter is mounted.
• 1000-Nit 19-Inch Monitor: Provides high-bright script visibility with a maximum reading distance of 25 feet.

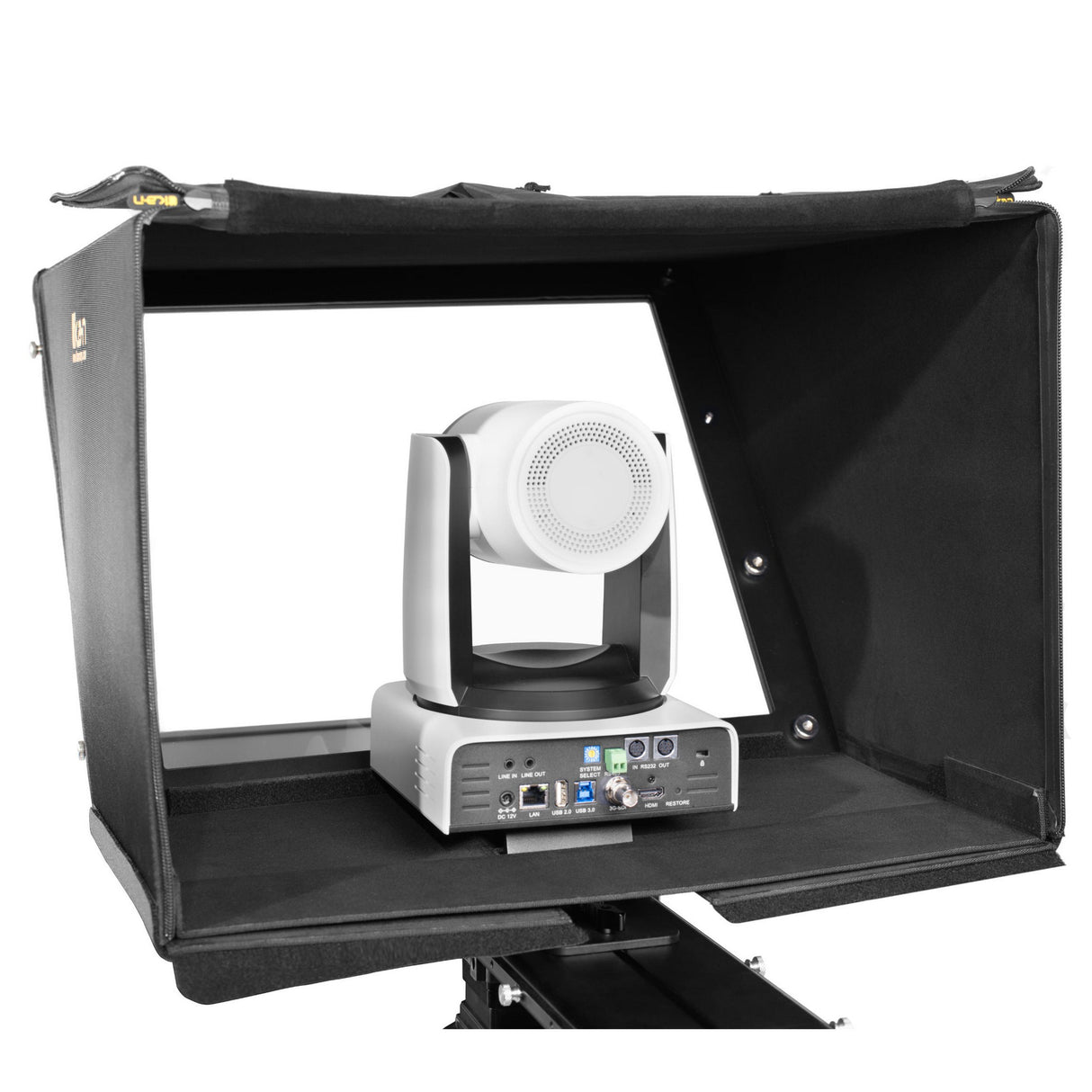

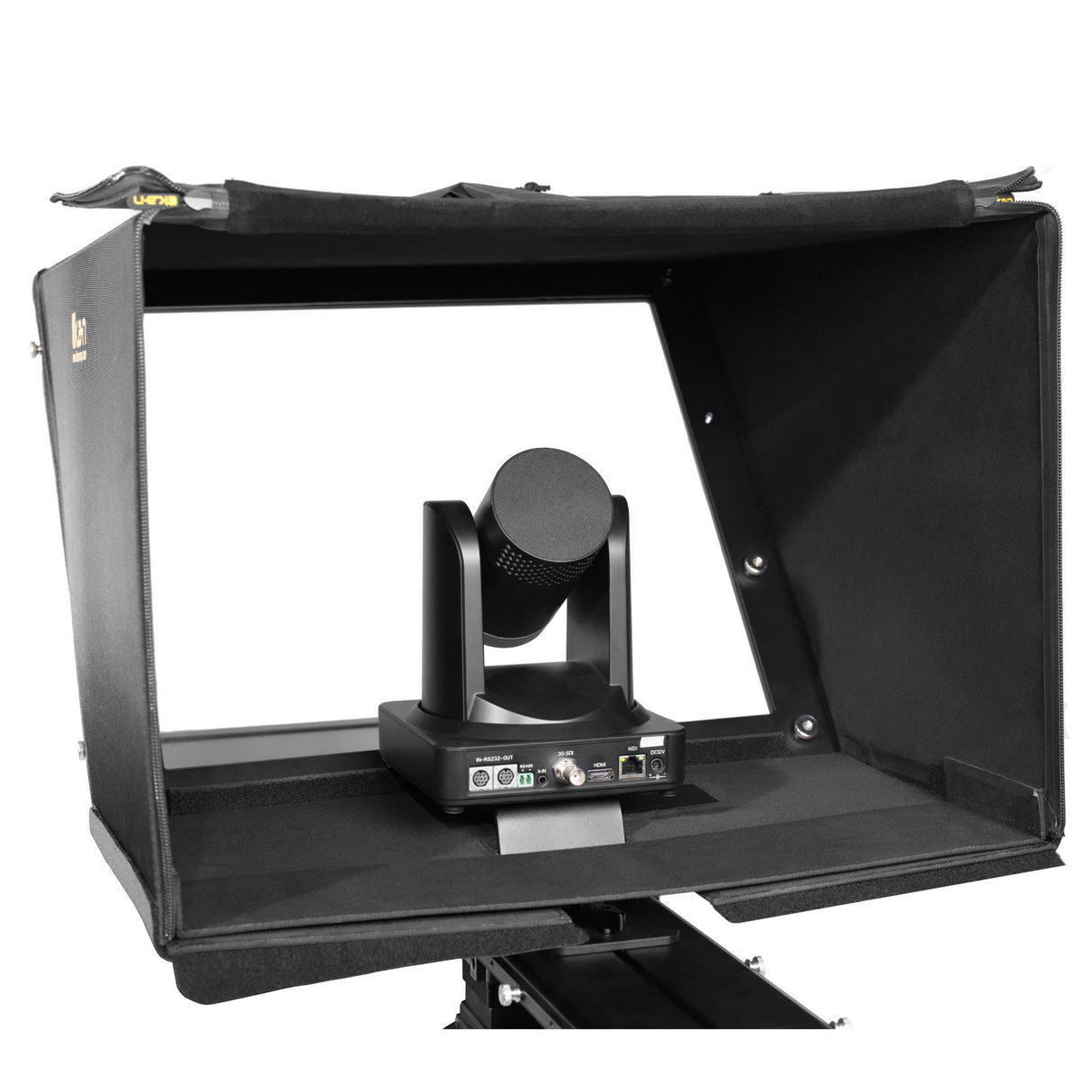

• PTZ-Compatible Enclosed Hood: Surrounds compatible PTZ cameras while allowing unrestricted pan, tilt, and zoom movement.
• Motorized Height Adjustment: Offers a 39.2 to 109.8-inch height range, wired remote control, and three programmable height presets.
• Professional Video Connectivity: Accepts SDI, HDMI, VGA, and composite video sources for flexible prompting workflows.

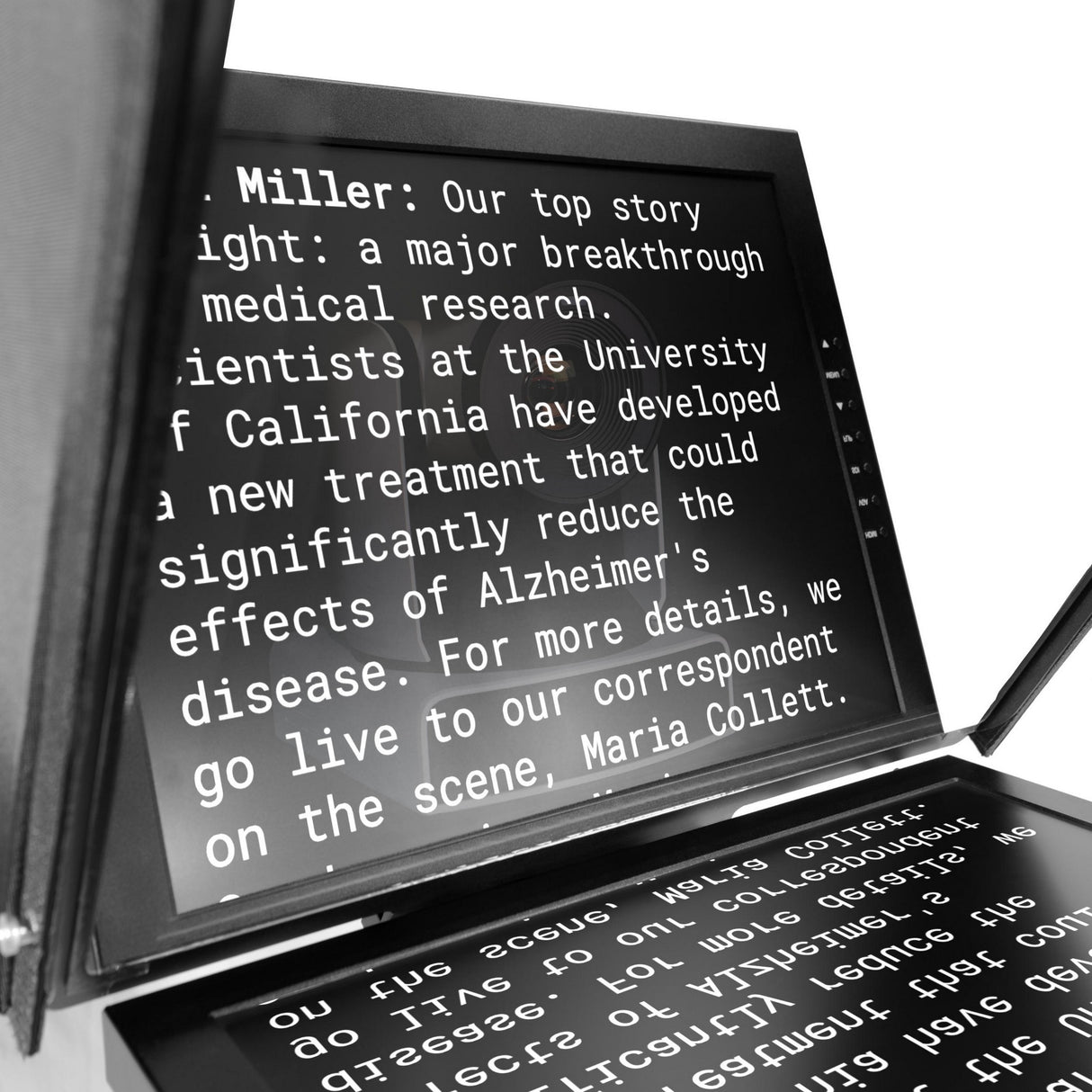

• 65/35 Glass Beamsplitter: Reflects prompting text toward the presenter while allowing the camera to record through the glass.
• Studio Dolly with Cable Guards: Adds lockable rubber wheels, a 132.3 lb dolly payload rating, and cable protection for mobile studio setups.

Technical Specifications

Turnkey System

• Model: PT419-PTZ-MPEDESTAL
• System Type: 19-inch 4:3 PTZ teleprompter, motorized pedestal, and dolly turnkey kit
• Remaining Camera Payload with Teleprompter Installed: Up to 38.2 lb
• Applications: Studio, live event, broadcast, corporate AV, and virtual production
• Shipping Weight: 101 lb
• Shipping Box 1 Dimensions: 42 x 14 x 13 inches
• Shipping Box 2 Dimensions: 23 x 10 x 9 inches
• Shipping Box 3 Dimensions: 26 x 26 x 17 inches

M-PTZ-PEDESTAL Motorized Pedestal

• Maximum Payload: 66 lb
• Net Weight: 40.5 lb
• Height Range: 39.2 to 109.8 inches
• Transport Length: 36.2 inches
• Motorized Stroke: 25.6 inches
• Raising/Lowering Speed: Approximately 1.6 inches per second
• Leg Stages/Sections: 2/3
• Temperature Range: -50 to 104 degrees Fahrenheit
• Camera Plate Screw Sizes: 1/4-inch and 3/8-inch
• Bubble Level: Yes

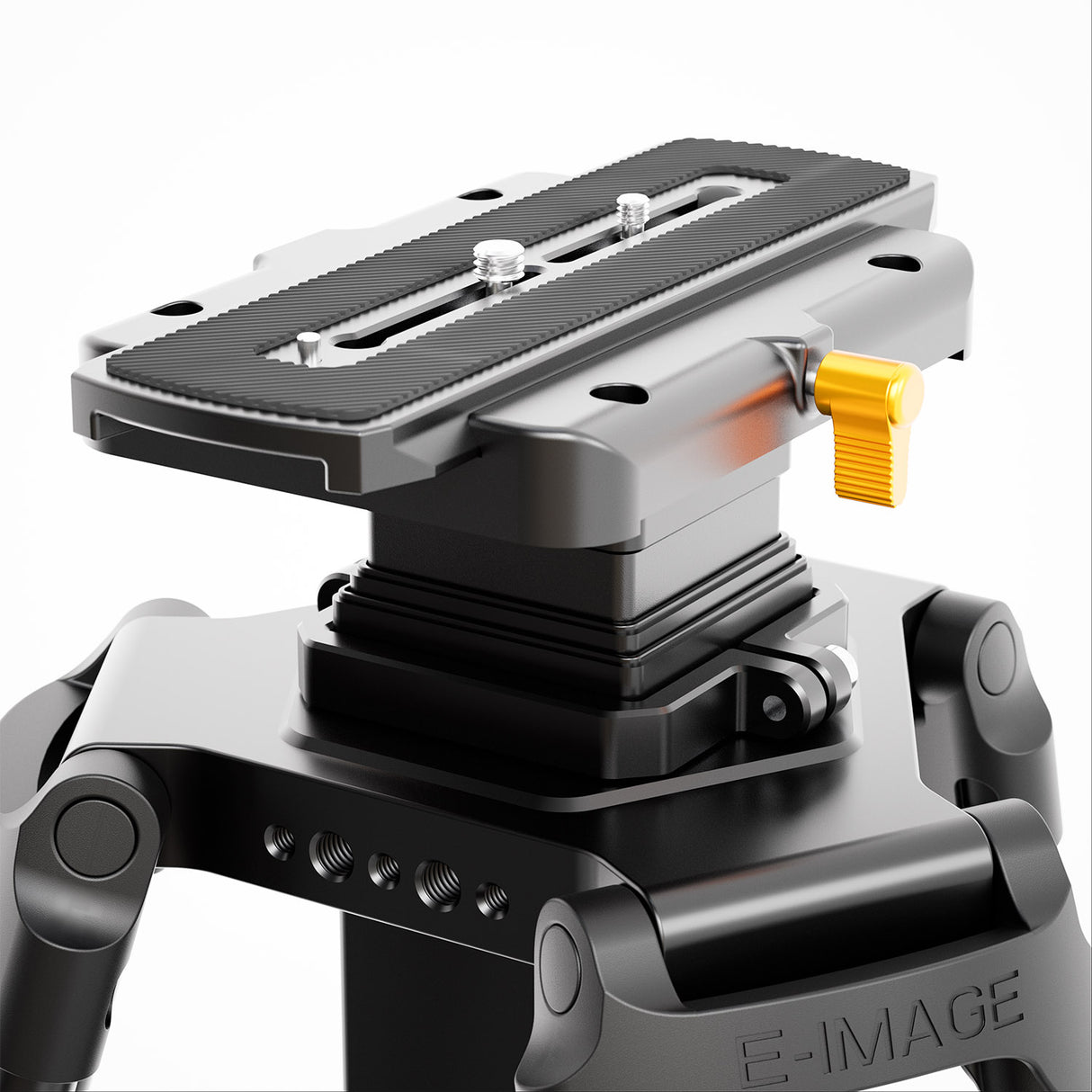

• Column Interface: P13 quick-release adapter with plate
• Column Sections: 3
• Column Size: Approximately 2.8 x 2.8 inches
• Controller Cable Length: 78.7 inches
• Motor Cable Length: 98.4 inches
• Motor Extension Cable Length: 98.4 inches
• Height Presets: 3 programmable positions
• Leg Adjustment: Mono-Lock mechanism

EI-7004B Dolly

• Net Weight: 15 lb
• Payload: 132.3 lb
• Footprint Diameter: 39.4 inches
• Radius: 19.7 inches
• Height: 6.7 inches
• Cable Guard Diameter: 4.9 inches
• Wheel Width: 3.9 inches
• Lockable Wheels: Yes
• Leg Material: Aluminum
• Wheel Material: Rubber
• Screw Material: Steel

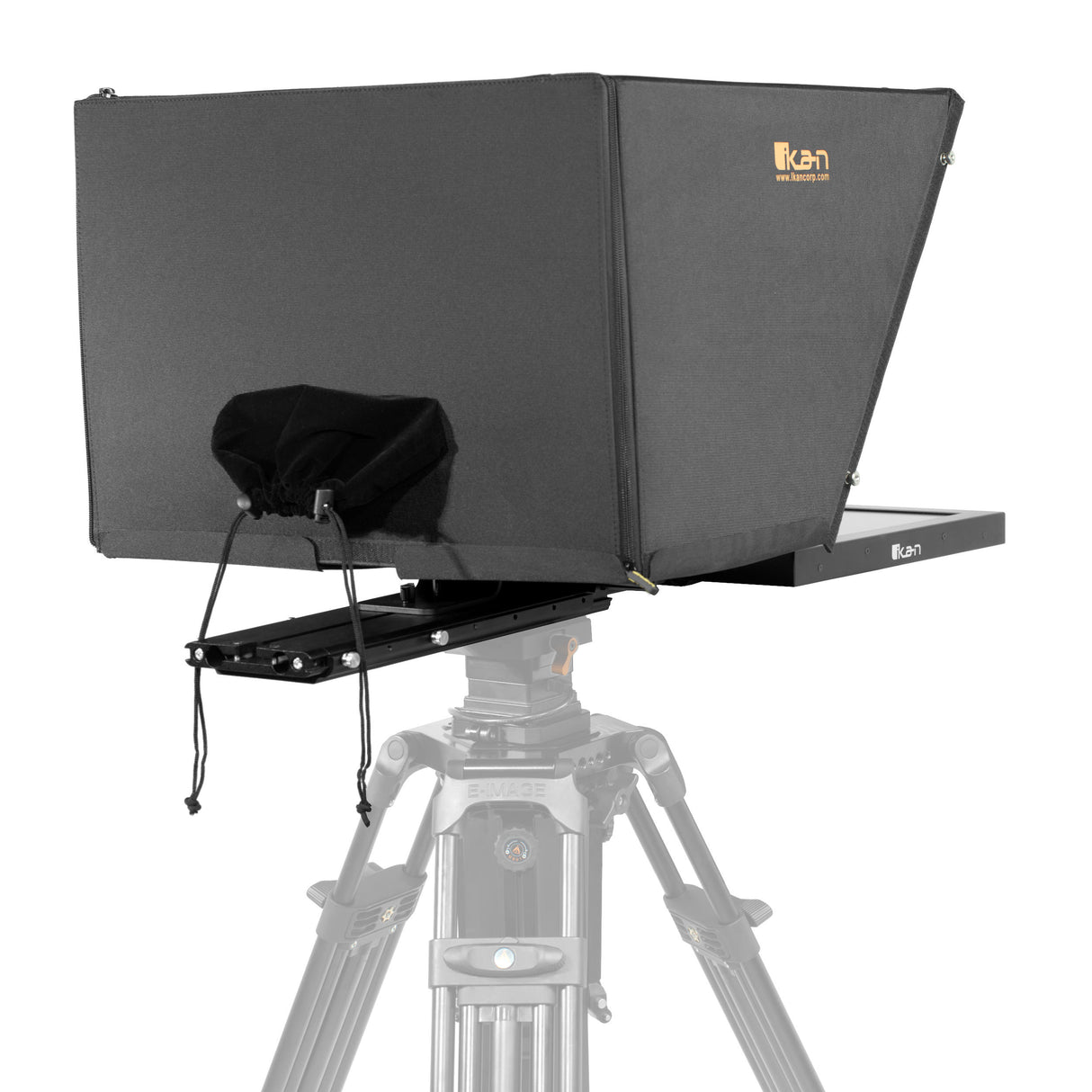

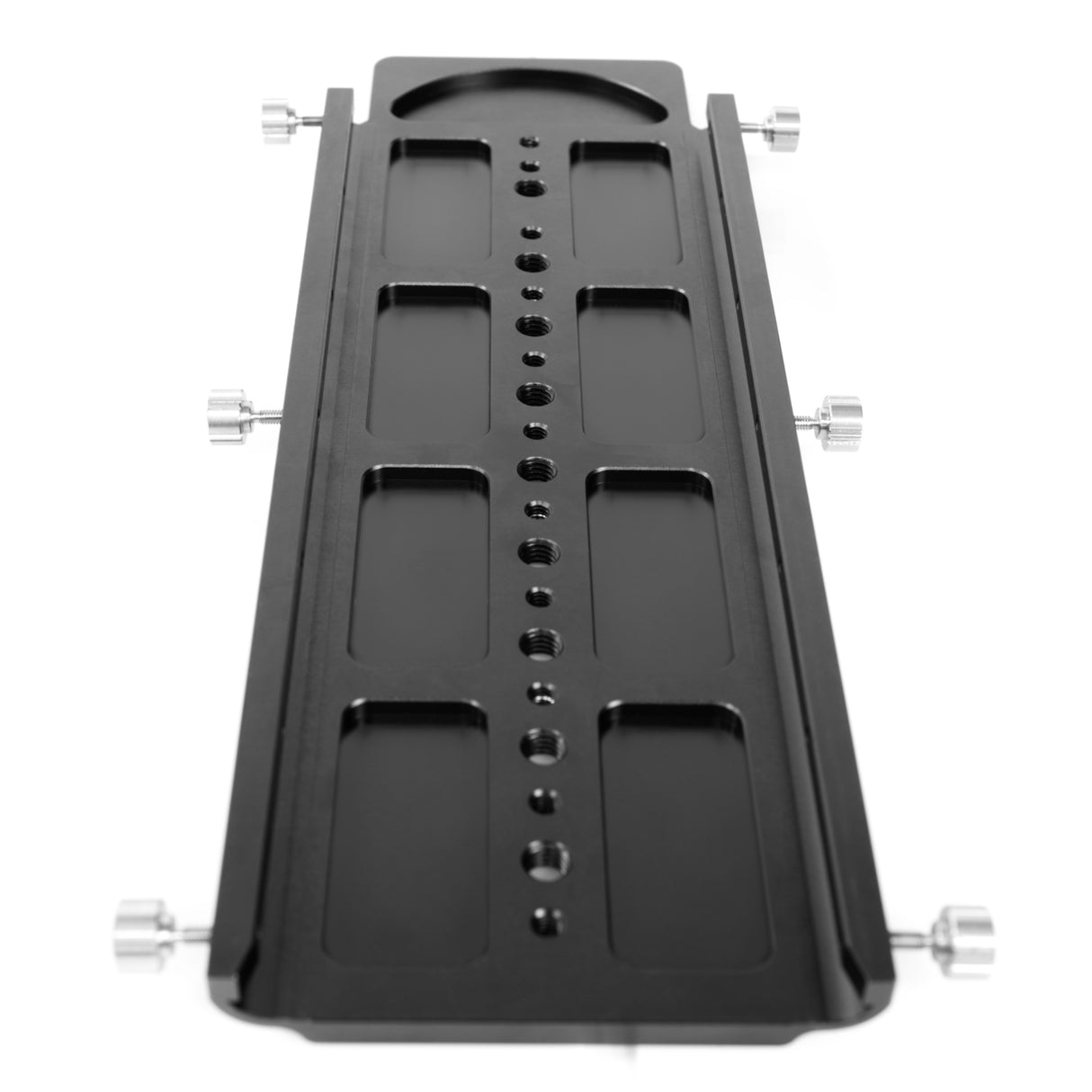

PT419-PTZ Teleprompter Base

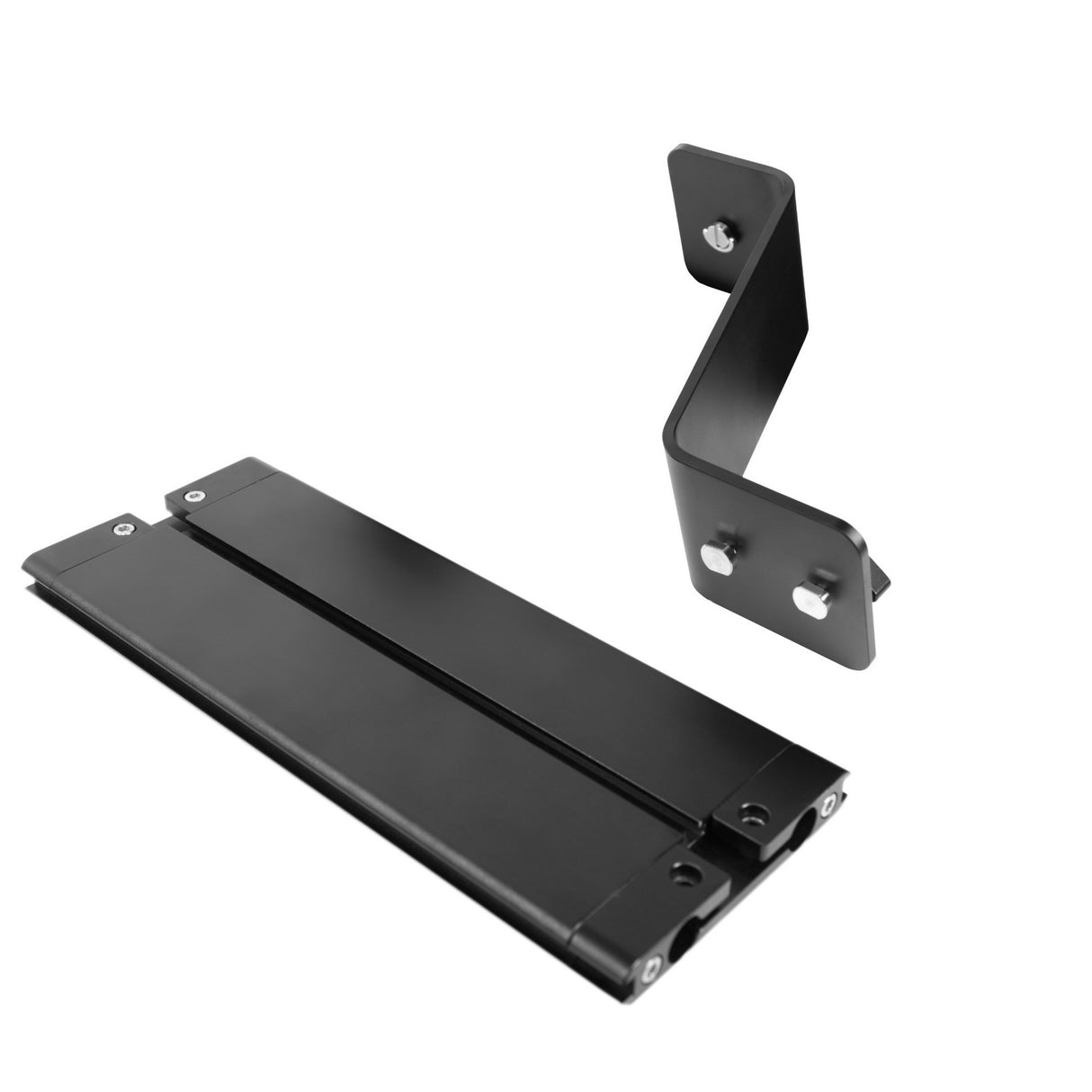

• Short Riser Plate Height: 2.1 inches
• Tall Riser Plate Height: 5.3 inches

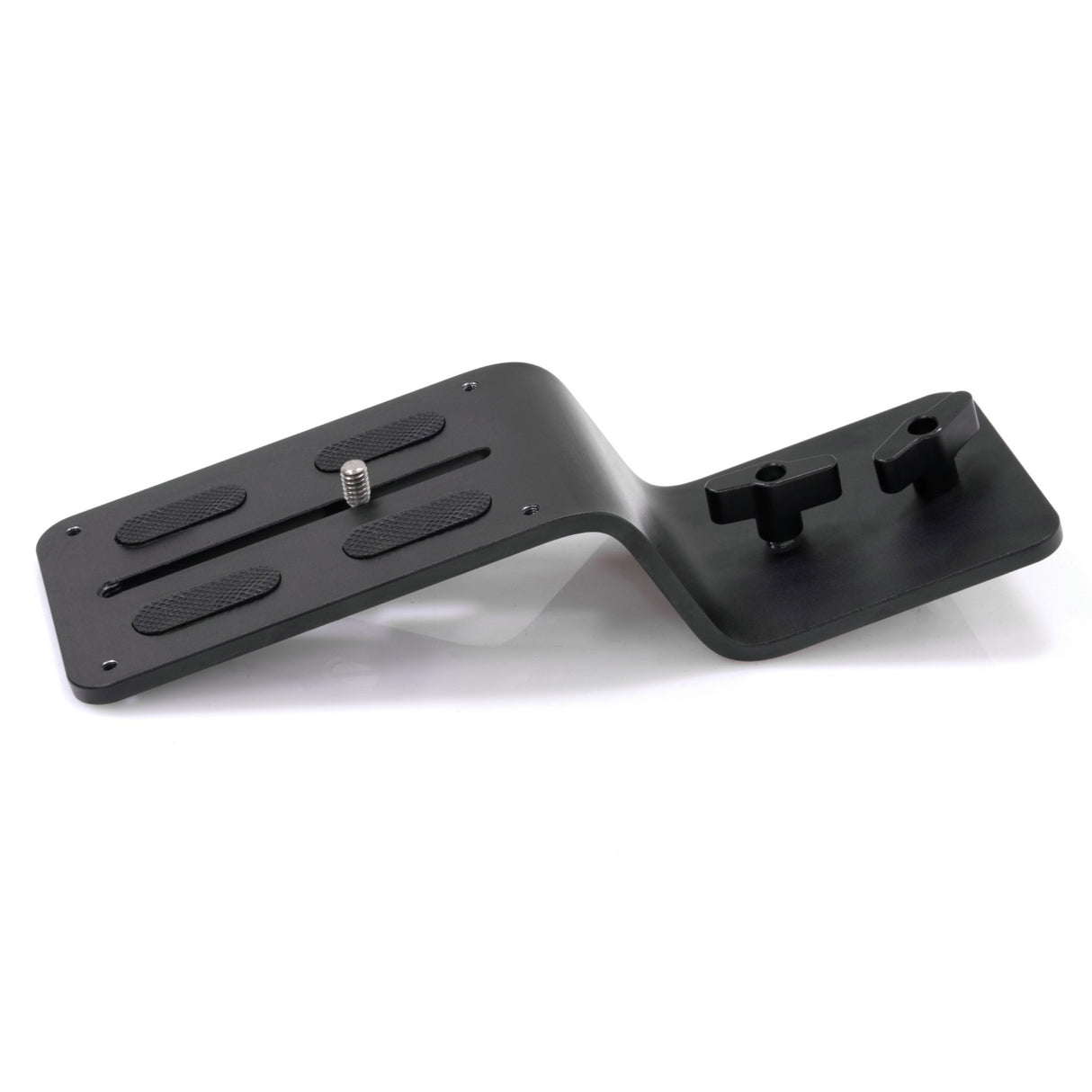

• DSLR Riser Plate Height: 6.3 inches
• Rod Diameter: Approximately 0.6 inch
• Rod Length: Approximately 15.7 inches
• Chassis Material: Anodized aluminum
• Rod Material: Carbon fiber
• Beamsplitter Ratio: 65/35
• Beamsplitter Shape: Rectangular
• Beamsplitter Material: Glass
• Tripod Mounts: 11 x 1/4-inch-20 female and 9 x 3/8-inch-16 female
• Teleprompter Base Weight: 16 lb
• Low Plate Weight: 1 lb
• High Plate Weight: 1.4 lb
• DSLR Plate Weight: 0.7 lb
• Teleprompter Height: 16.1 inches
• Country of Origin: Taiwan

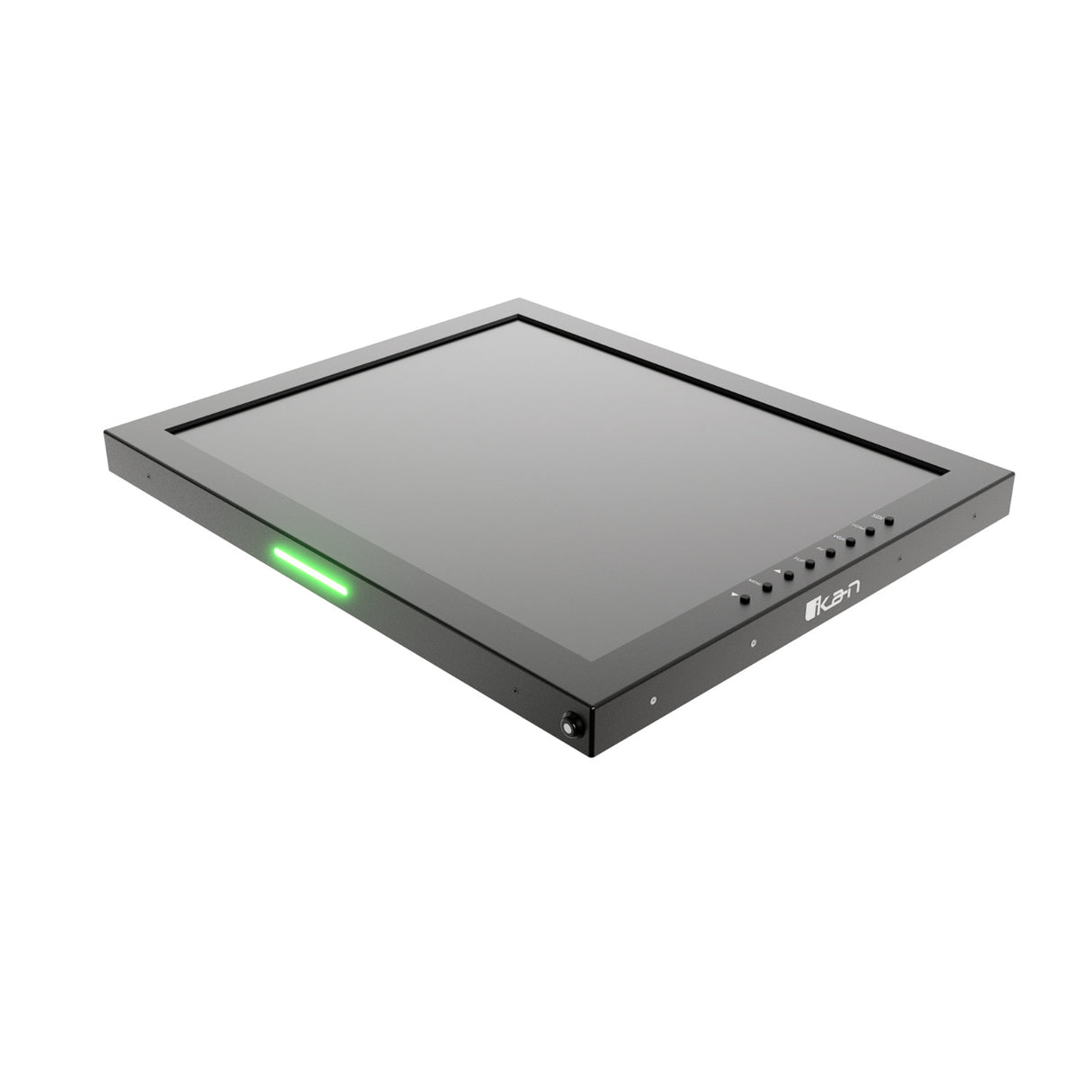

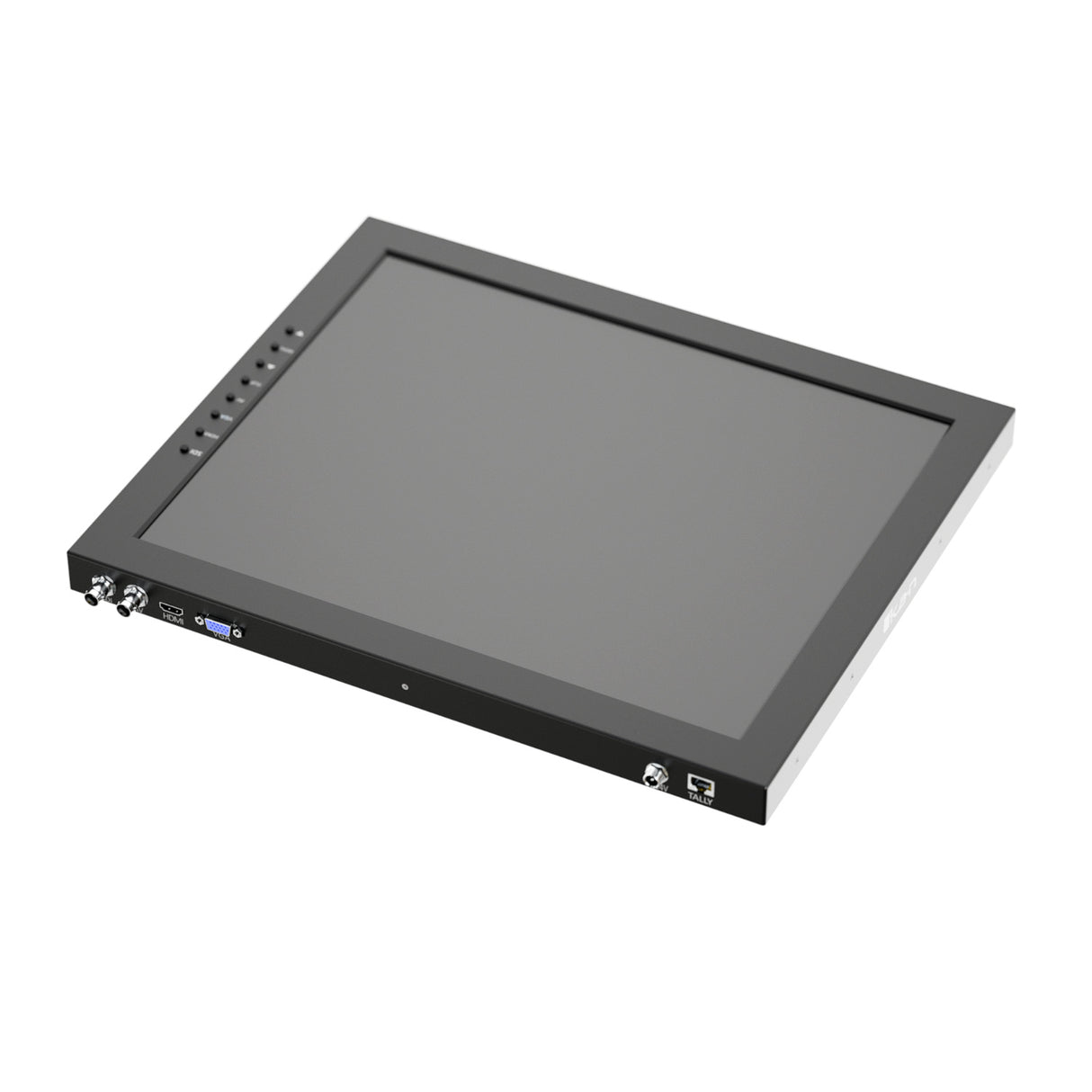

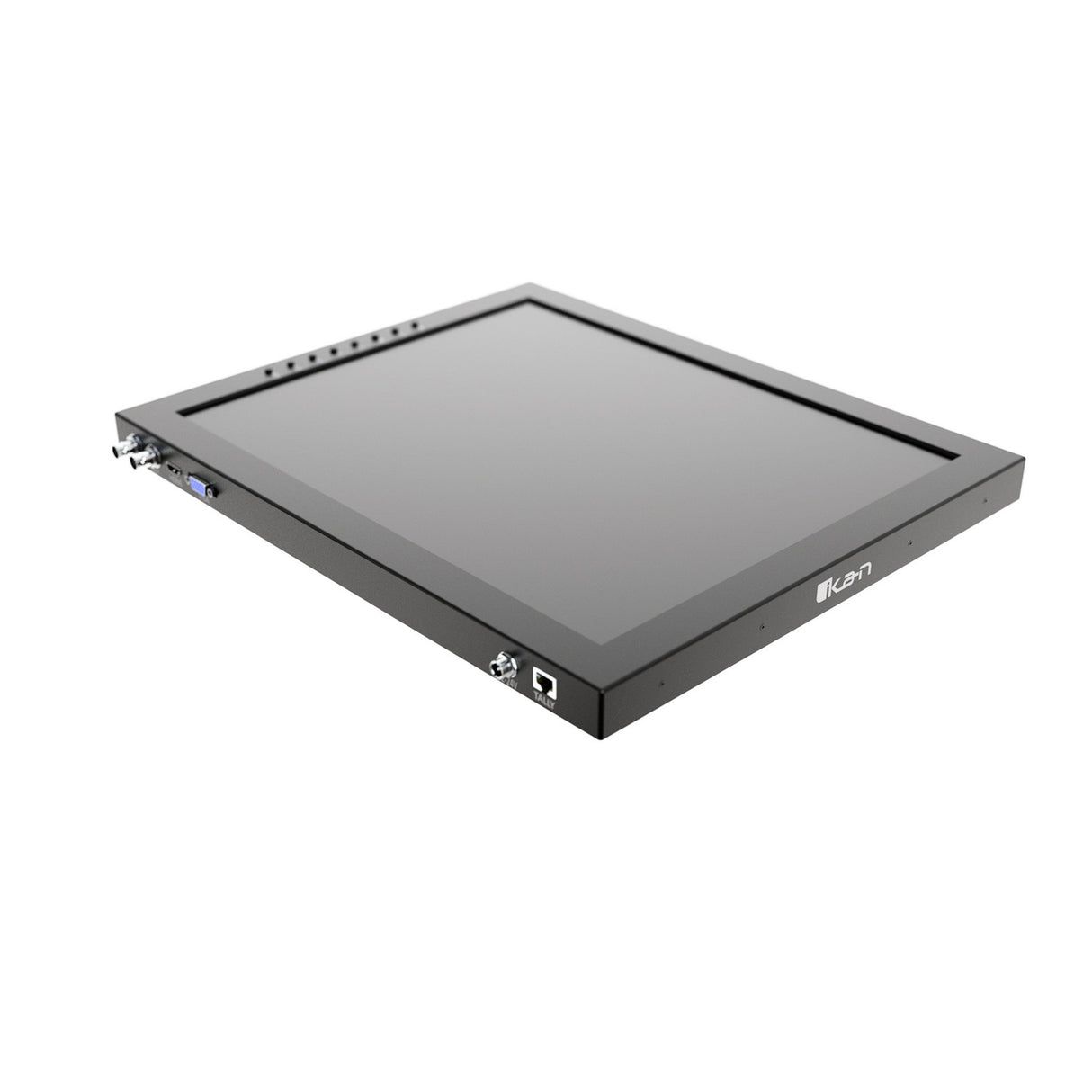

19-Inch SDI Teleprompter Monitor

• Screen Size: 19 inches diagonal
• Aspect Ratio: 4:3
• Native Resolution: 1280 x 1024
• Maximum Brightness: 1000 cd/m2
• Reading Range: Up to 25 feet

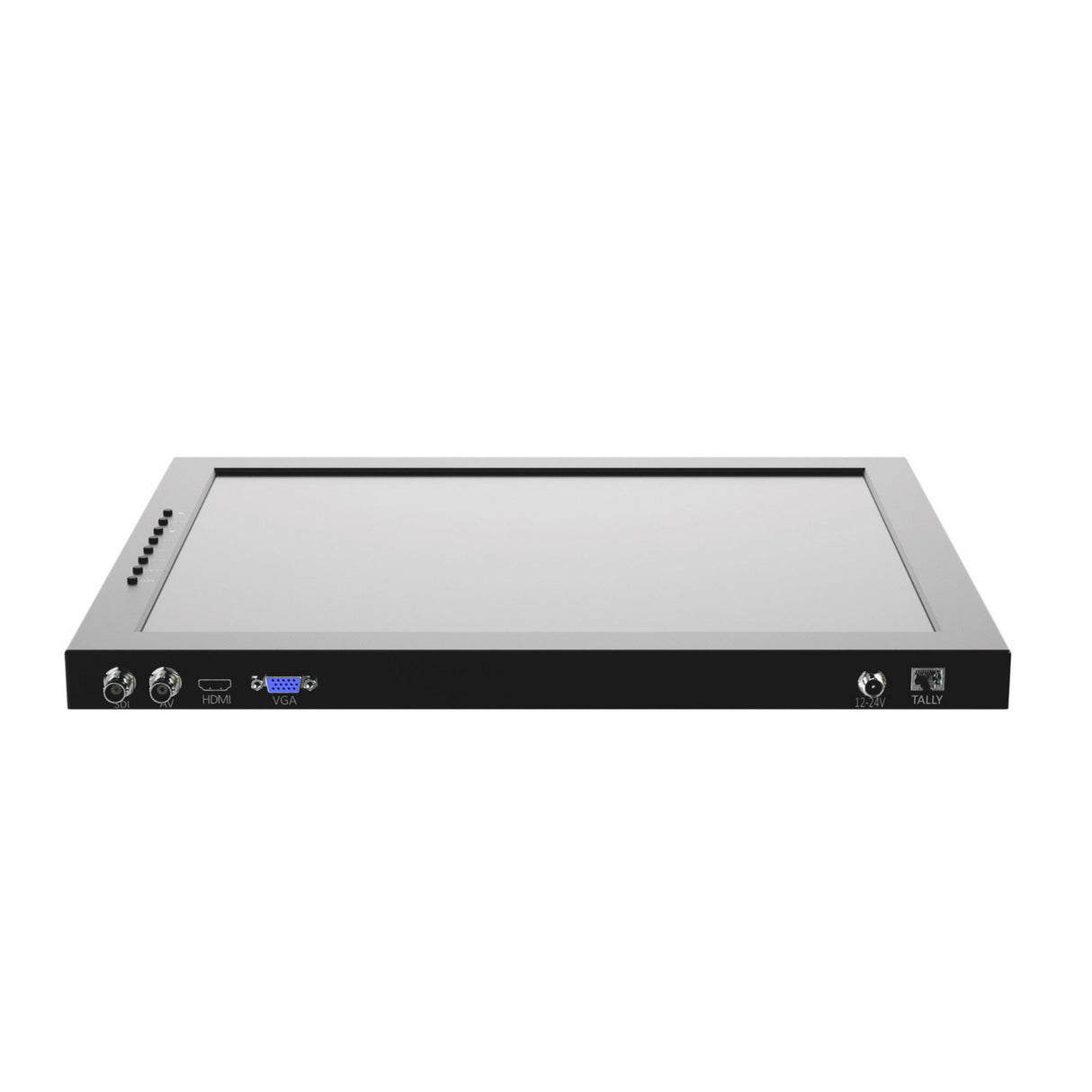

• Video Inputs: SDI, HDMI, VGA, composite

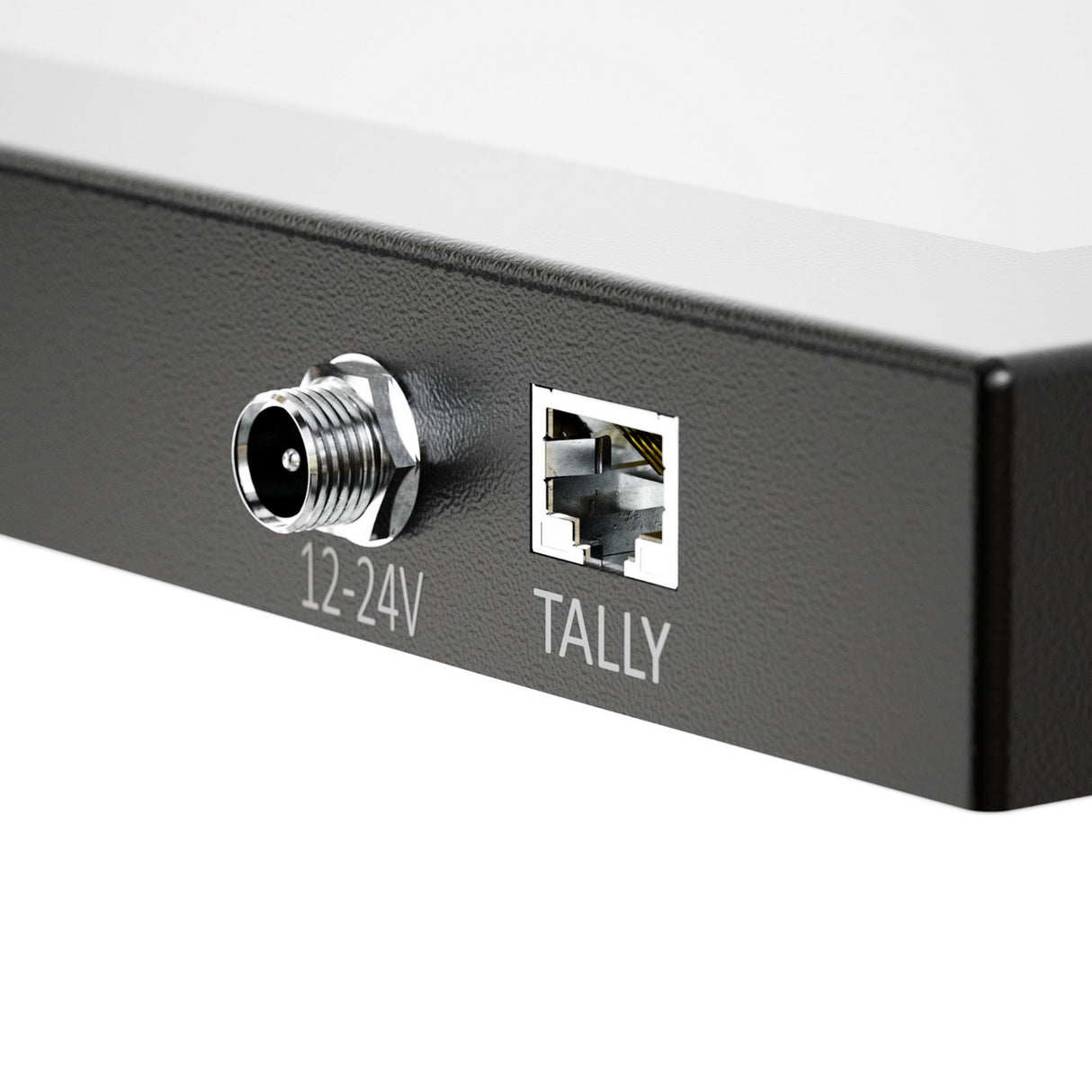

• Input Voltage: 12V DC, 4A
• Power Consumption: 30 W
• Viewing Angle: 160 degrees horizontal, 170 degrees vertical
• Monitor Weight: 6 lb
• Monitor Dimensions: 17 x 15 x 1 inches
• Mount: VESA 100 mm pattern
• Chassis Material: Aluminum

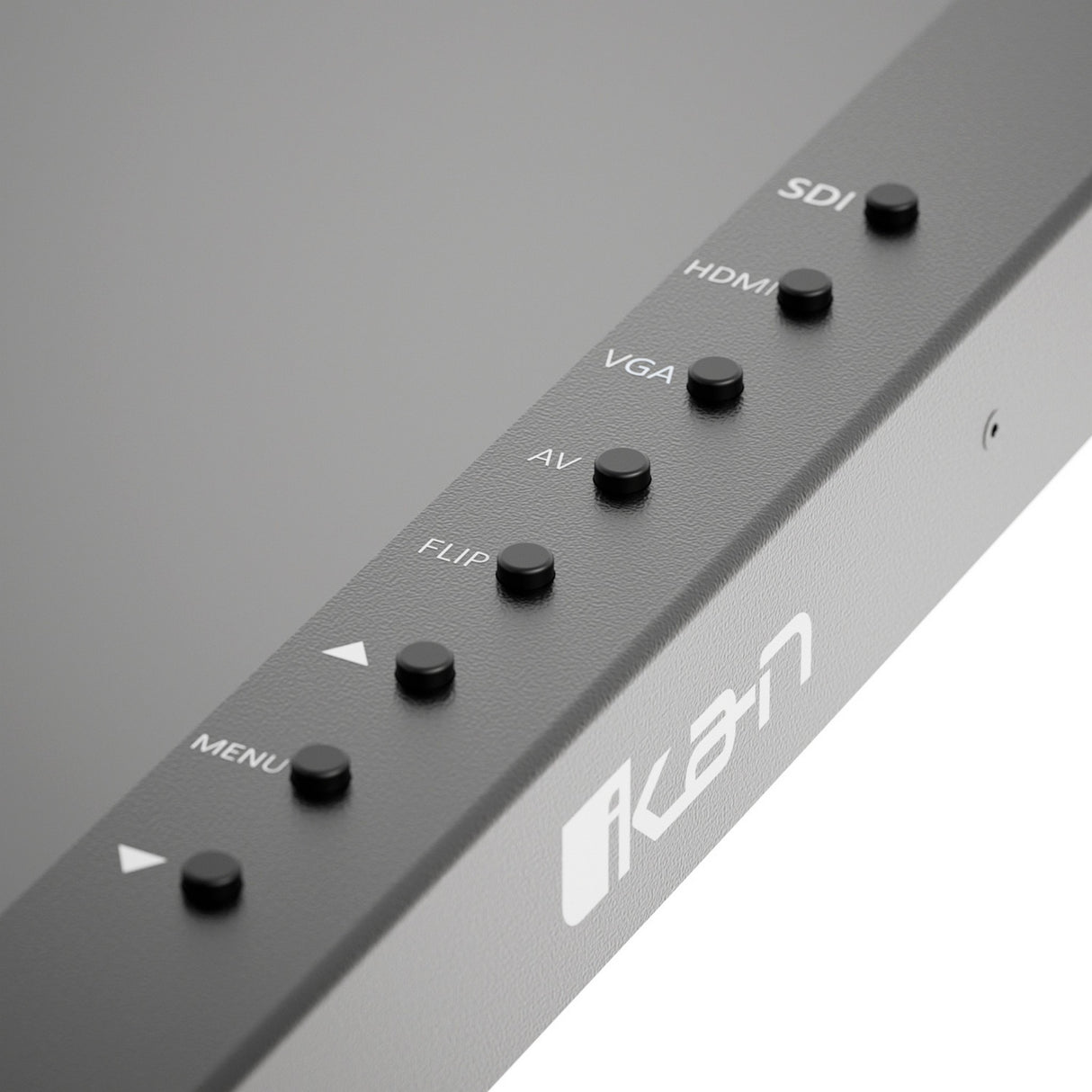

• Horizontal Image Flip: Yes
• Vertical Image Flip: Yes
• Tally: Red and green tally lights

PTZ Teleprompter Add-On

• PTZ Riser Height: Approximately 2 inches
• PTZ Riser Weight: 0.6 lb
• PTZ Hood Top Dimensions: 19.1 x 15.3 inches
• PTZ Hood Bottom Dimensions: 8.2 x 15.3 inches
• PTZ Hood Height: 12.6 inches

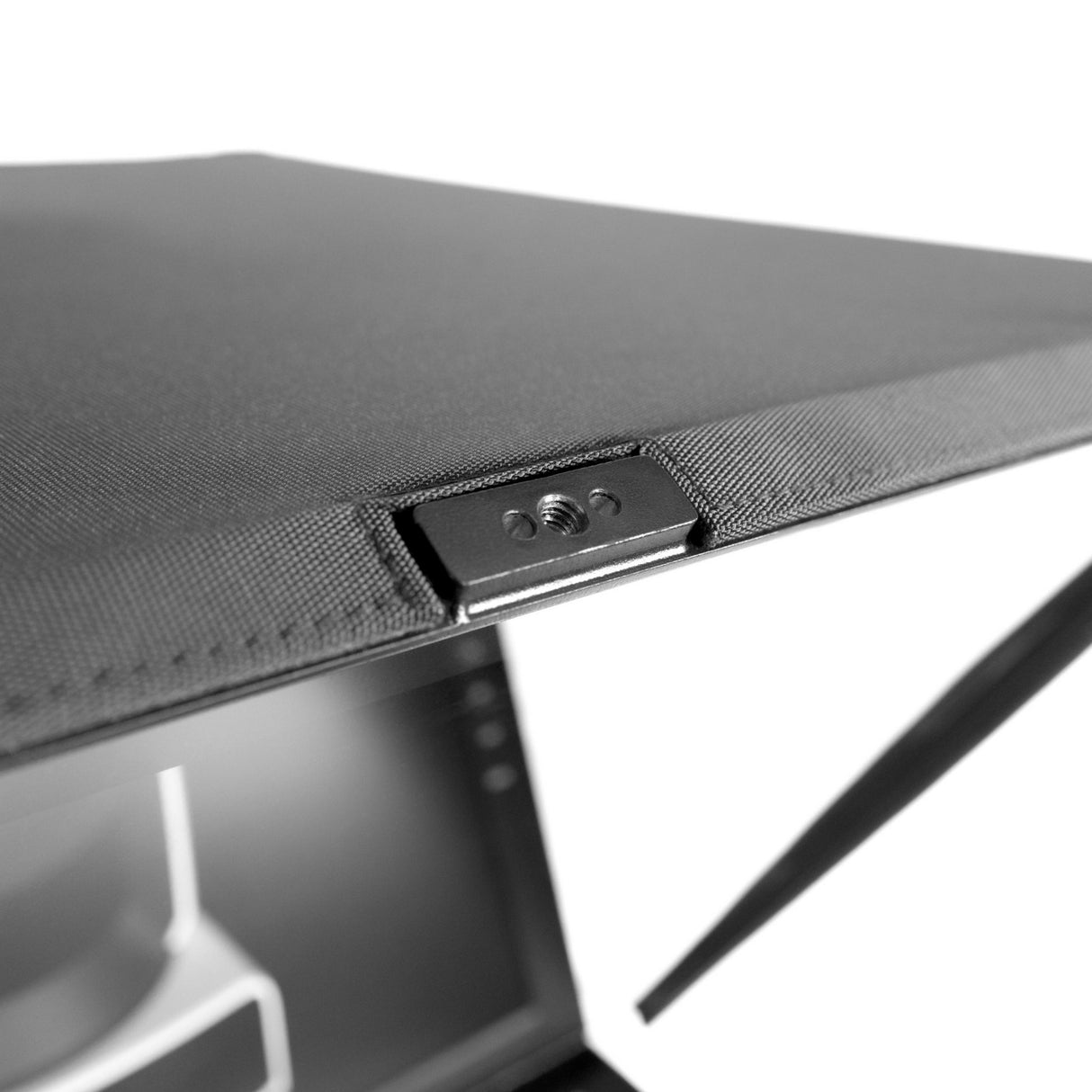

• PTZ Hood Material: Polyester canvas
• PTZ Riser Material: Aluminum
• PTZ Hood Weight: 3.3 lb
• Full PTZ Add-On Kit Weight: 3.9 lb

What's In the Box

• PT419-PTZ teleprompter base
• 19-inch SDI teleprompter monitor
• Tall riser
• Small riser
• DSLR riser
• PTZ riser
• Teleprompter hood
• Teleprompter glass
• Teleprompter power supply
• PrompterPro 4 digital download
• Warranty card
• M-PTZ-PEDESTAL motorized tripod and center column
• Quick-release plate
• EI-7004B dolly
• SC-4 tripod carrying bag
• Dolly carrying bag
• Pedestal power supply unit
• 9.8-foot power supply cable
• 8.2-foot motor cable
• 8.2-foot motor extension cable
• 6.6-foot wired remote controller
• User guide
