Ikan PT4900-PTZ-TM-V2-PEDESTAL 15-inch Dual-Monitor Teleprompter (Script & Talent)

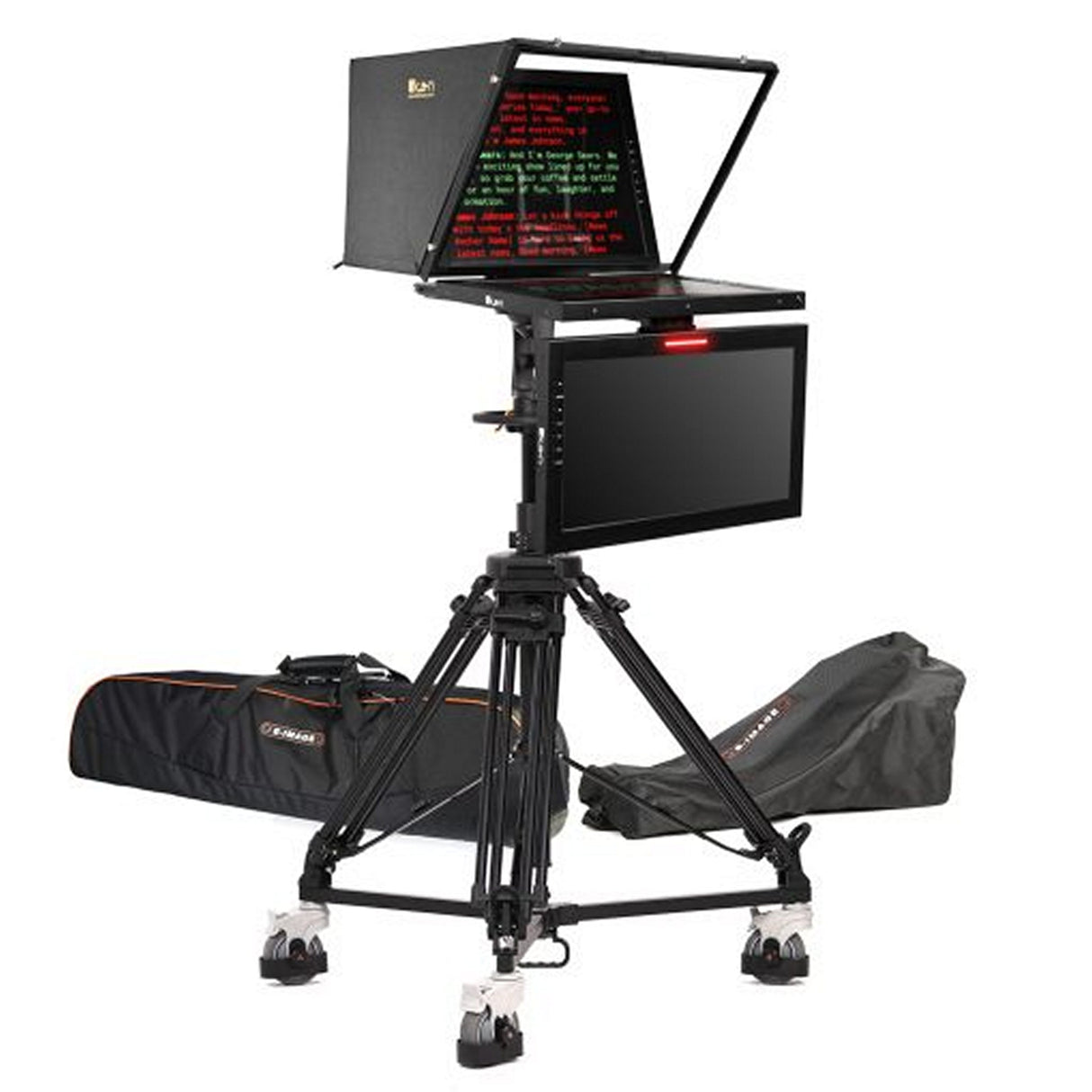

19" PTZ Teleprompter with Widescreen Talent Monitor Pedestal & Dolly Turnkey Kit

Introducing the ultimate solution for professional broadcasting and live event production: the 19" PTZ Teleprompter with Widescreen Talent Monitor Pedestal & Dolly Turnkey Kit (Model: PT4900-PTZ-TM-V2-PEDESTAL). This comprehensive kit is designed to enhance your production capabilities, whether you're in a studio, at a live event, or engaging in virtual productions. The teleprompter features a 19-inch monitor that provides crystal-clear visibility for talent, ensuring that they can deliver their lines with confidence and precision.

The PT4900-PTZ-TM-V2-PEDESTAL is engineered to accommodate camera payloads of up to 14 lbs, making it versatile enough for a variety of camera setups. The included pedestal and dolly provide smooth mobility and stability, allowing for seamless transitions during your production. With multiple video input options including HDMI, VGA, and Composite (BNC), this teleprompter kit is compatible with a wide range of equipment, making it an essential addition to any production toolkit.

Designed with user convenience in mind, the kit includes two carrying bags for easy transport of the tripod and dolly, ensuring that you can set up and break down your equipment quickly and efficiently. The dolly features cable guards to keep your workspace organized and safe, while the robust aluminum construction of the pedestal and teleprompter ensures durability and reliability in any environment.

Key Features

• 19" PTZ Teleprompter with high visibility for talent
• Includes SDI Widescreen Talent Monitor for enhanced viewing
• Pedestal dolly for smooth mobility and stability
• Accommodates camera payloads up to 14 lbs
• Multiple video inputs: HDMI, VGA, Composite (BNC)
• Two carrying bags for easy transport

Technical Specifications

Model: PT4900-PTZ-TM-V2-PEDESTAL
Available Camera & Accessory Payload: 14 lbs
Pedestal
Bowl Size: 100mm
Payload Capacity: 44 lbs / 19.95 kg
Height Range: 40.2 in. ~ 72.6 in. / 102 cm ~ 184.5 cm
Build Material: Aluminum
Net Weight: 34.8 lbs / 15.8 kg
On-Shot Stroke: 12.6 in. / 32 cm
Steering Ring Diameter: 7.67 in. / 195 mm

Dolly
Net Weight: 15 lbs / 6.8 kg
Footprint Diameter: 39.4 in. / 100 cm
Cable Guard Diameter: 4.92 in. / 12 cm
Height: 6.7 in. / 17 cm
Radius: 19.7 in. / 50 cm
Wheel Width: 3.9 in. / 100 mm
Lockable Wheels: Yes
Build Material: Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload: 132.3 lbs / 60 kg

Teleprompter Base System
Riser Plate Height: Short: 2.06 in. / 52.5mm | Tall: 5.31 in. / 135mm | DSLR: 6.29 in. / 160mm
Length of Rods: 15mm x 400mm
Build Material: Chassis: Anodized Aluminum | Rods: Carbon Fiber
Reading Range: 25 ft. / 7.62 m
Beamsplitter Ratio: 65/35
Beamsplitter Shape: Rectangular
Beamsplitter Material: Glass
Tripod Mounts: 11 x 1/4 in. -20 Female | 9 x 3/8 in. -16 Female
Weight of Teleprompter Base: 16 lbs
Weight of Low Plate: 1 lbs
Weight of High Plate: 1.38 lbs
Weight of DSLR Plate: 0.748 lbs
Height of Teleprompter: 16.1 in. / 411mm
Country of Origin: Taiwan

19 in. Teleprompter Monitor
Aspect Ratio: 4:3
Maximum Brightness: 1000 cd/m2
Screen Size (Diagonal): 19 in.
Mount: VESA 100mm
Video Inputs: AV COMPOSITE, HDMI, VGA
Input Voltage: DC 12v / 4A
Power Consumption: 21W
Product Weight: 6 lbs
Product Dimensions: 17 in. x 15 in. x 1 in.
Native Resolution: 1280 x 1024
Viewing Angle: 160° (H) / 170° (V)
Build Material: Aluminum Chassis
Image Flip: Horizontal: Yes | Vertical: Yes

19 in. Widescreen Talent Monitor
Aspect Ratio: 16:9
Maximum Brightness: 1000 cd/m2
Screen Size (Diagonal): 18.5 in.
Mount: VESA 100mm
Video Inputs: SDI, HDMI, VGA
Input Voltage: DC 12v / 5A
Power Consumption: 36W
Weight of Monitor: 5.73 lbs
Product Dimensions: 18.3" x 12.3 x 1.2"
Native Resolution: 1920 x 1080
Viewing Angle: 178° (H) / 178° (V)
Build Material: Aluminum Chassis
Image Flip: Horizontal: Yes | Vertical: Yes
Tally Interface: RJ45

PTZ Teleprompter Add-on Kit
Height of PTZ Riser: 51 mm
Weight of PTZ Riser: .58 lbs
Dimensions of PTZ Hood: Top: 19.06 x 15.31 in. Bottom 8.16 x 15.31 in. Height: 12.56 in.
Material of Hood: Polyester Canvas
Material of PTZ Riser: Aluminum
Weight of PTZ Hood: 3.3 lbs
Net Weight of Full PTZ Add-on Kit: 3.88 lbs

Package Contents

• 1x Teleprompter Base
• 1x 19 in. Teleprompter Monitor
• 1x 19 in. SDI Widescreen Talent Monitor
• 1x Tall Riser
• 1x Small Riser
• 1x DSLR Riser
• 1x PTZ Riser
• 1x Teleprompter Hood
• 1x Teleprompter Glass
• 1x Warranty Card
• 1x Power Supply
• 1x Prompter Pro 4 Digital Download
• 1x AT7903 Pedestal
• 1x EI-7004B Dolly w/ Cable Guards
• 1x T30 Tripod Carrying Bag
• 1x 100BF Flat Base
• 1x DB-01 Dolly Carrying Bag
