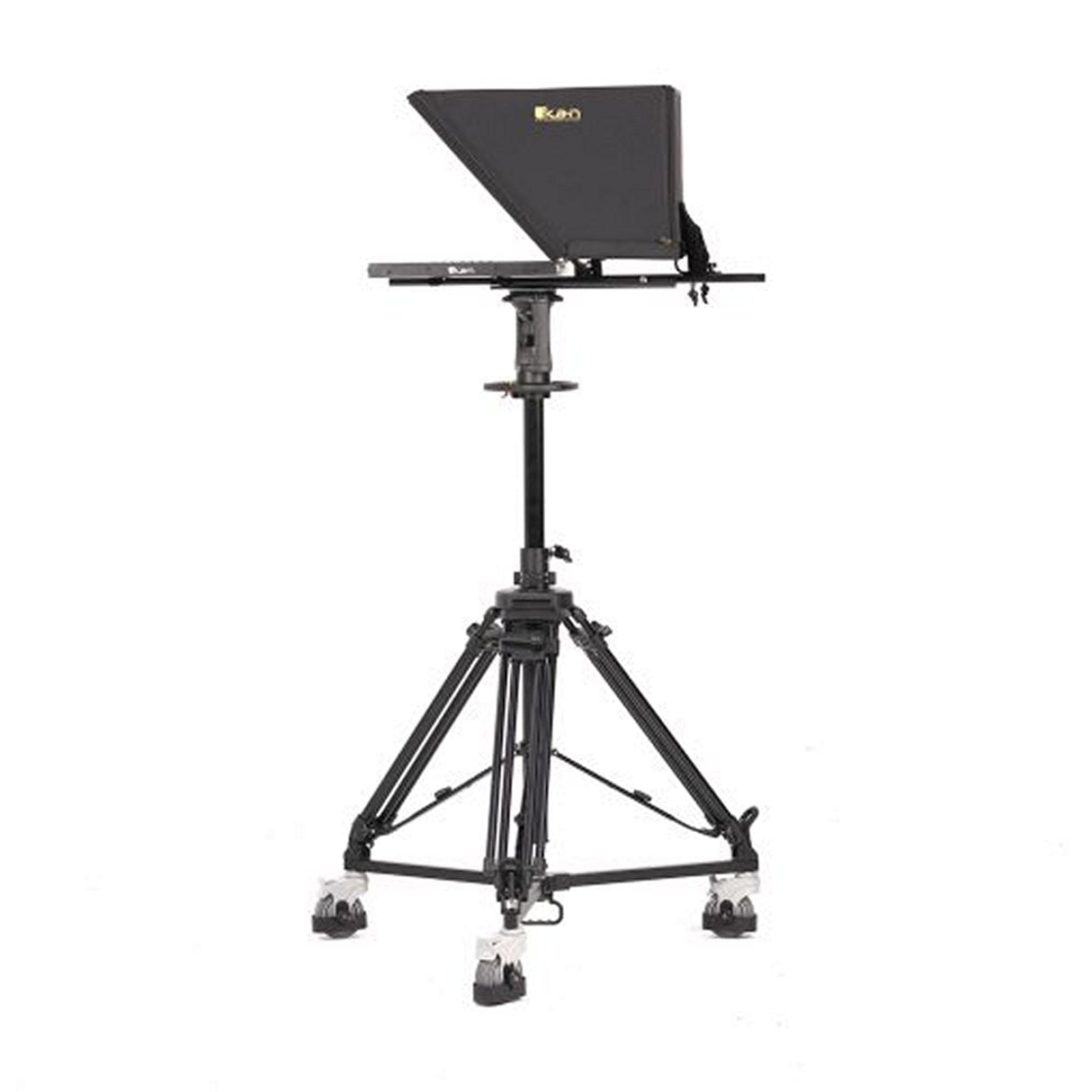

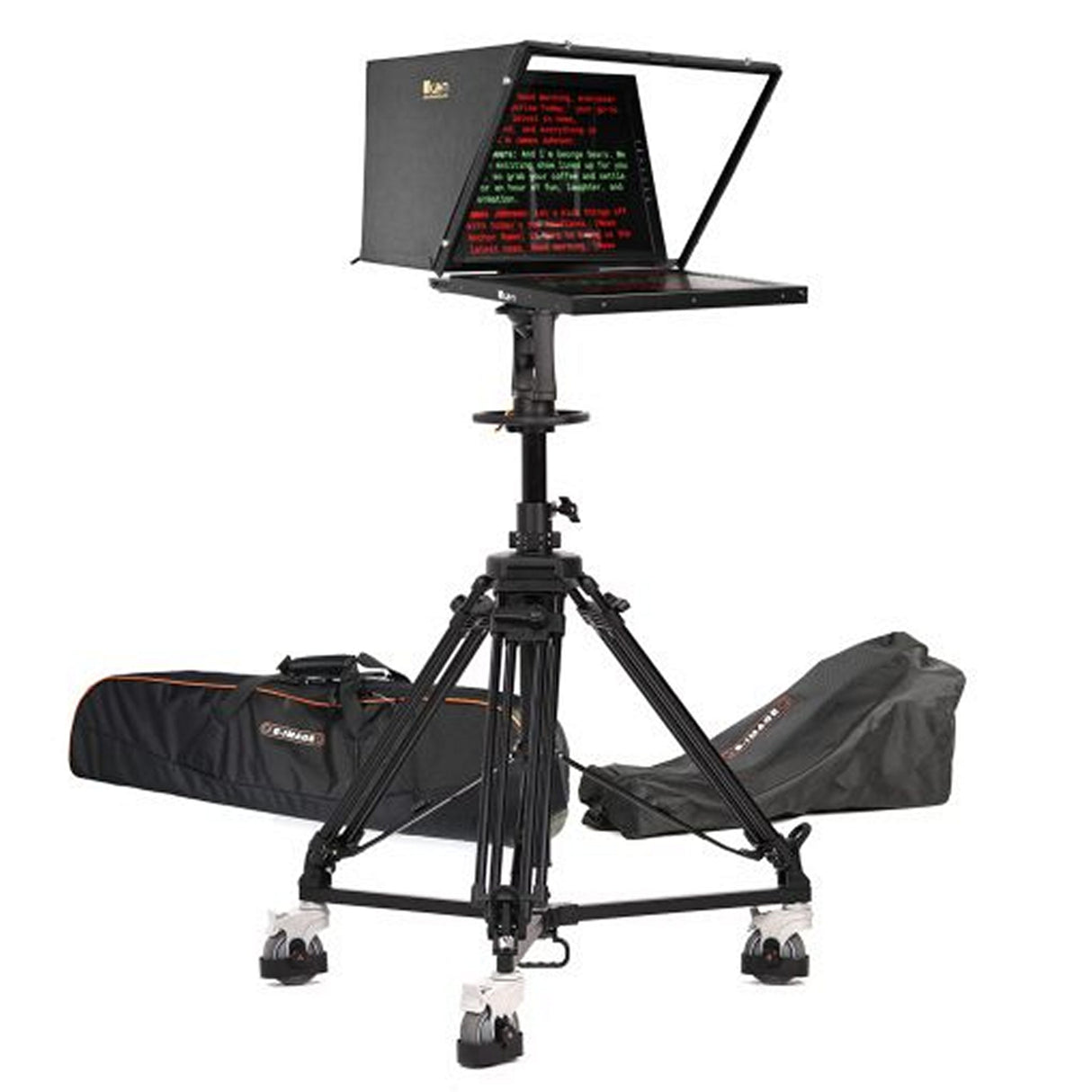

PT4900S-PTZ-V2-PEDESTAL: The Ultimate Teleprompter Solution for Professionals
Introducing the PT4900S-PTZ-V2-Pedestal, a comprehensive teleprompter kit designed for professional use in studios, live events, and virtual productions. This all-in-one solution includes a 19" SDI PTZ teleprompter, a sturdy pedestal, and a dolly, making it the perfect choice for broadcasters and content creators who demand high-quality performance and reliability. With the ability to accommodate camera payloads of up to 20.3 lbs, this teleprompter is versatile enough to support a wide range of cameras and accessories.
The PT4900S-PTZ-V2-Pedestal is engineered for ease of use and mobility. The dolly features cable guards to keep your setup organized and safe during transport. The included carrying bags for the tripod and dolly ensure that you can easily take your teleprompter kit wherever you need it. Whether you're shooting in a studio or on location, this teleprompter kit provides the flexibility and functionality you need to deliver professional results.
Equipped with multiple video inputs including HDMI, VGA, and 3G-SDI, the PT4900S-PTZ-V2-Pedestal is compatible with a variety of video sources, making it an ideal choice for any production environment. The high-quality 19" SDI teleprompter monitor features a maximum brightness of 1000 cd/mĀ² and a native resolution of 1280 x 1024, ensuring that your script is always clear and easy to read, even in bright lighting conditions.
Key Features
- Includes 19" SDI PTZ Teleprompter, Pedestal, & Dolly
- Accommodates camera payloads up to 20.3 lbs
- Ideal for studios, live events, and virtual productions
- Multiple video inputs: HDMI, VGA, 3G-SDI
- Dolly with cable guards for safe transport
- Includes carrying bags for tripod and dolly

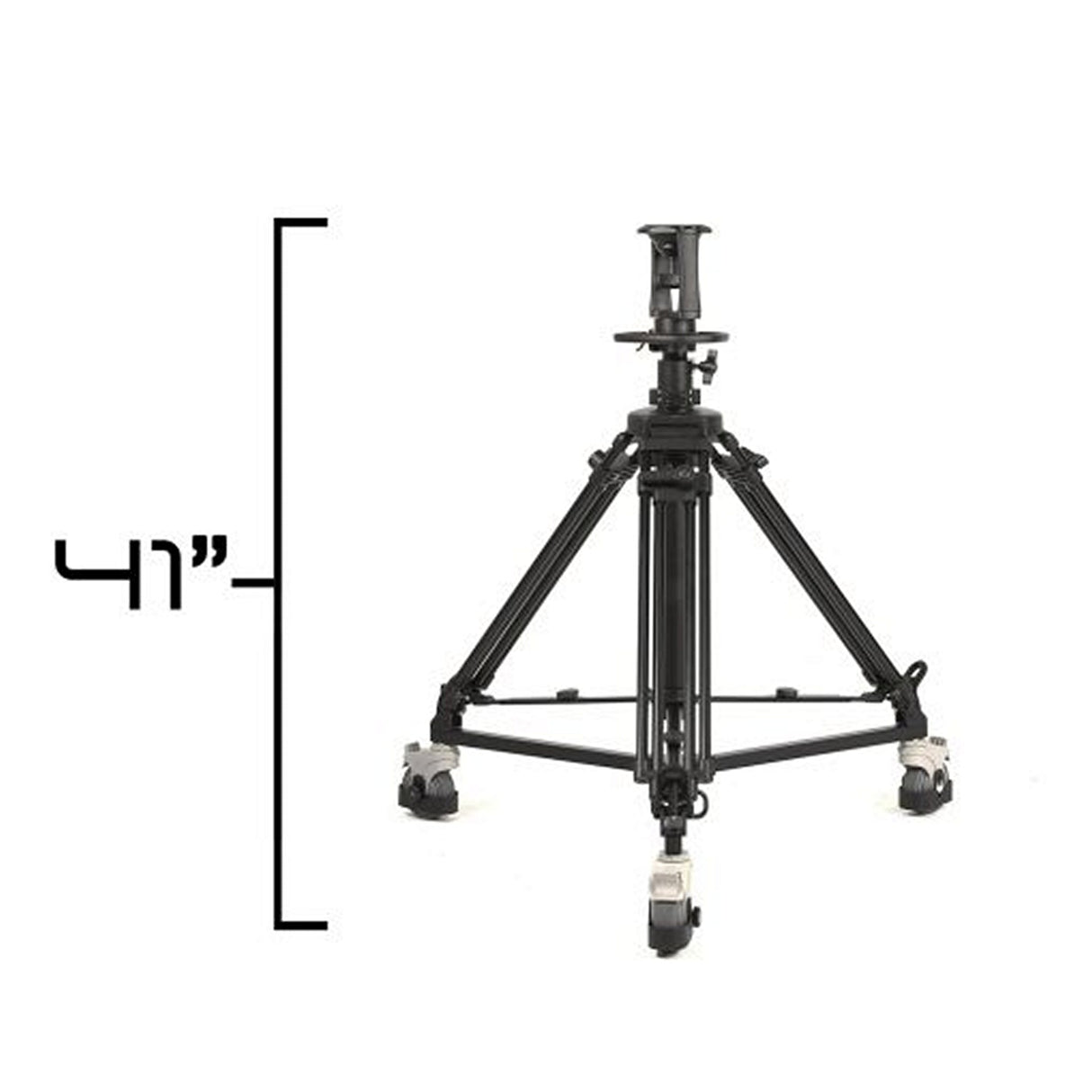

Technical Specifications
Model: PT4900S-PTZ-V2-PEDESTAL
Available Camera & Accessory Payload: 20.3 lbs
Pedestal Bowl Size: 100mm
Payload Capacity: 44 lbs / 19.95 kg
Height Range: 40.2 in. ~ 72.6 in. / 102 cm ~ 184.5 cm
Build Material: Aluminum
Net Weight: 34.8 lbs / 15.8 kg
On-Shot Stroke: 12.6 in. / 32 cm
Steering Ring Diameter: 7.67 in. / 195 mm
Dolly Net Weight: 15 lbs / 6.8 kg
Footprint Diameter: 39.4 in. / 100 cm
Cable Guard Diameter: 4.92 in. / 12 cm
Height: 6.7 in. / 17 cm
Radius: 19.7 in. / 50 cm
Wheel Width: 3.9 in. / 100 mm
Lockable Wheels: Yes
Build Material: Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload: 132.3 lbs / 60 kg

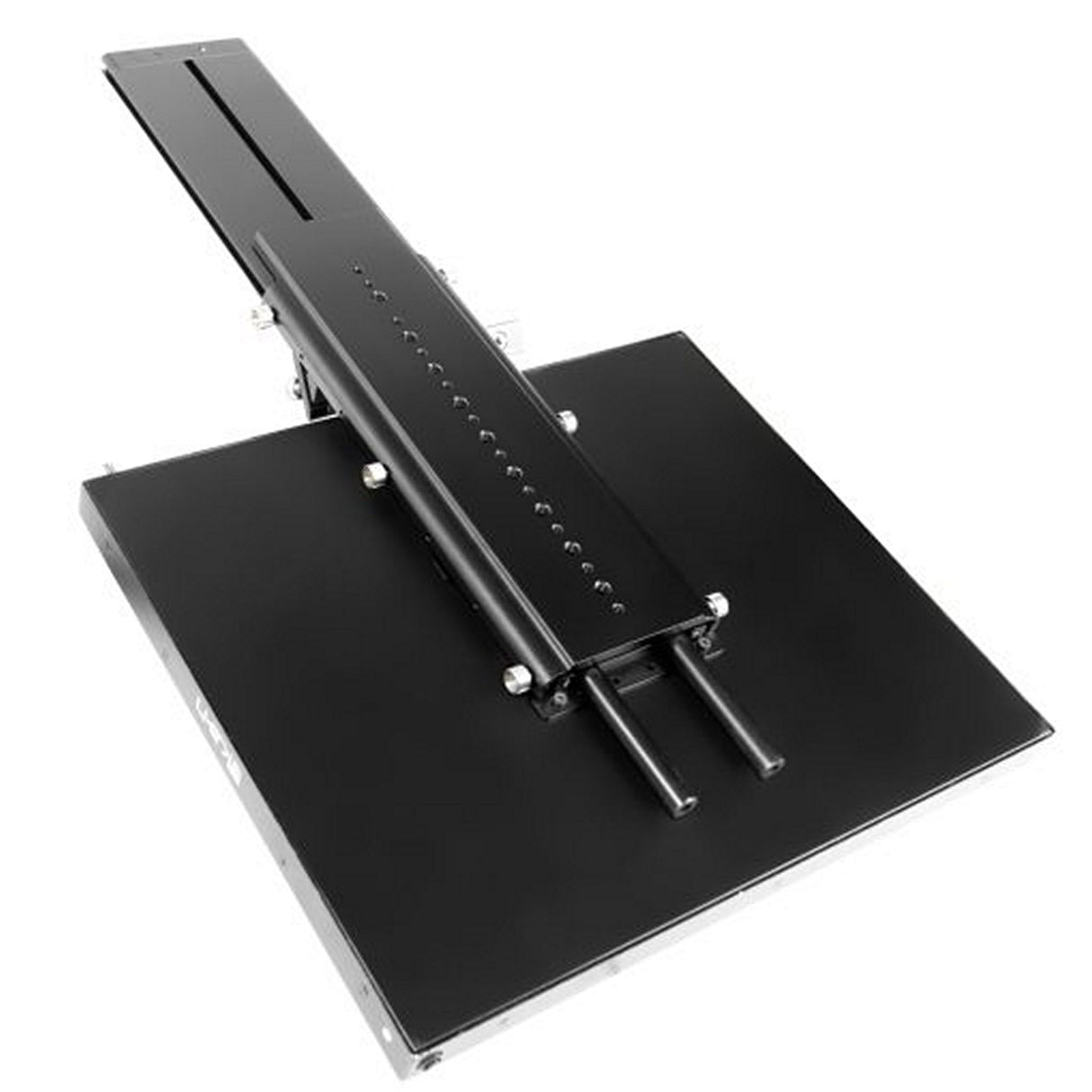

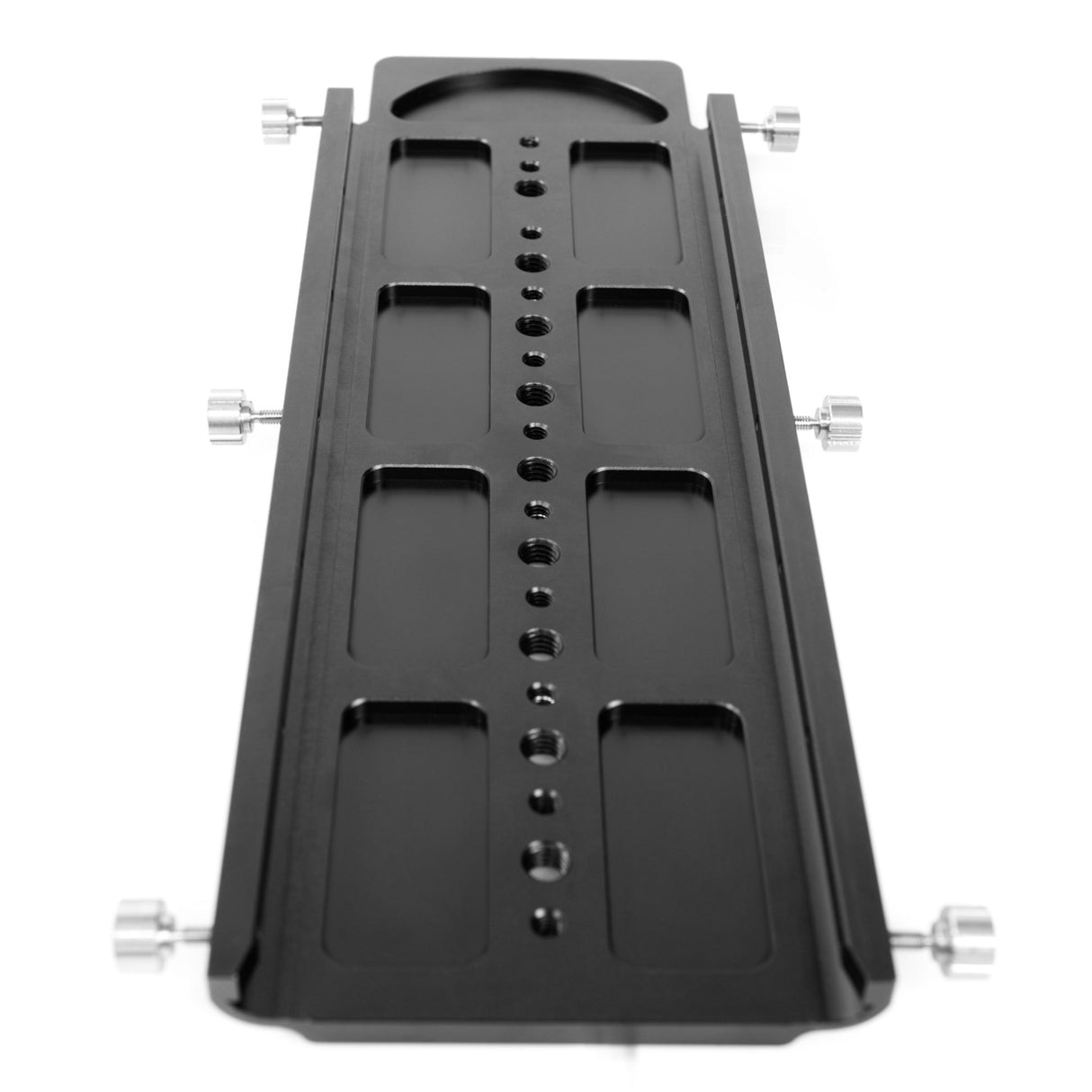

Teleprompter Base System

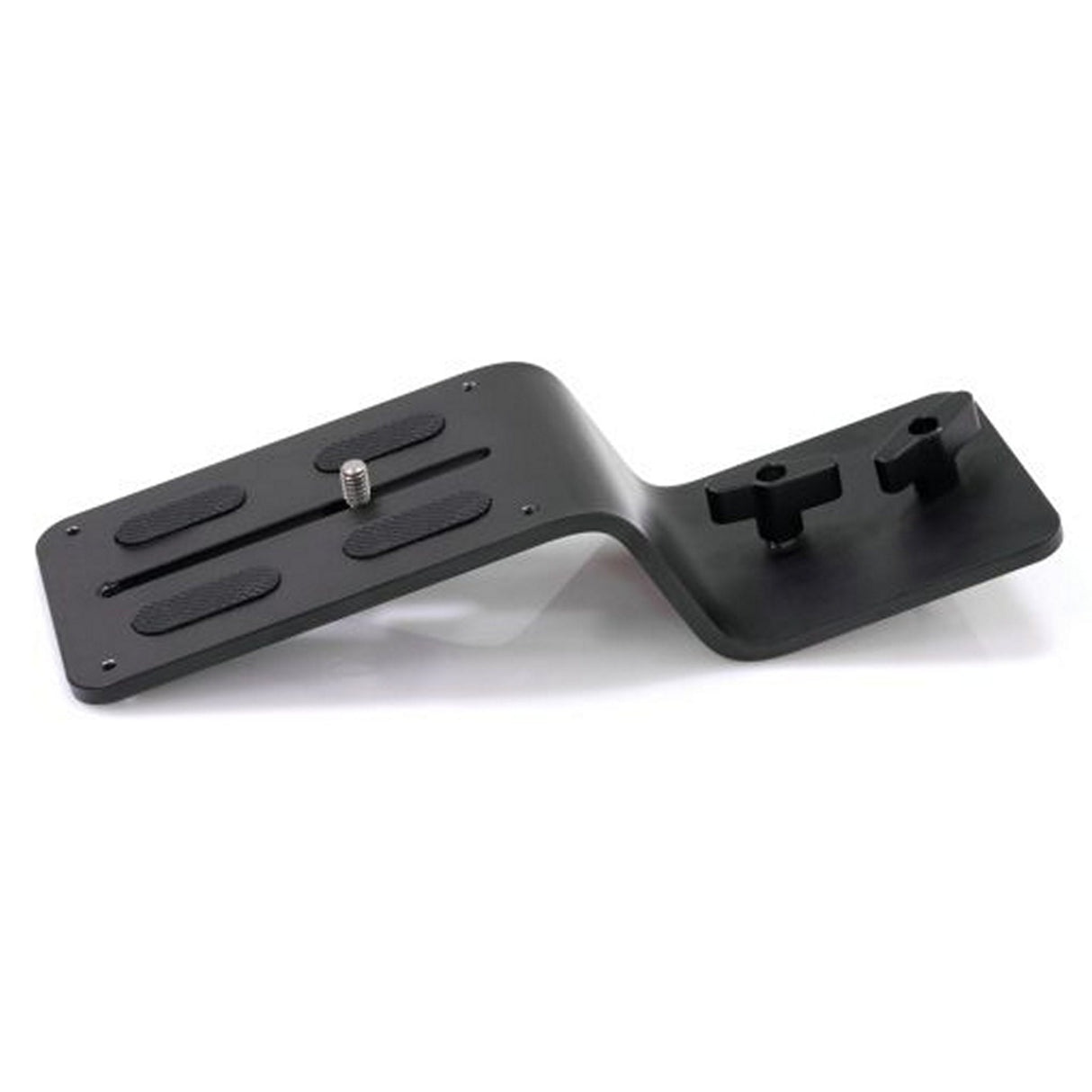

Riser Plate Height: Short: 2.06 in. / 52.5mm | Tall: 5.31 in. / 135mm | DSLR: 6.29 in. / 160mm
Length of Rods: 15mm x 400mm
Build Material: Chassis: Anodized Aluminum | Rods: Carbon Fiber
Reading Range: 25 ft. / 7.62 m
Beamsplitter Ratio: 65/35
Beamsplitter Shape: Rectangular
Beamsplitter Material: Glass
Tripod Mounts: 11 x 1/4 in. -20 Female | 9 x 3/8 in. -16 Female
Weight of Teleprompter Base: 16 lbs
Weight of Low Plate: 1 lbs
Weight of High Plate: 1.38 lbs
Weight of DSLR Plate: 0.748 lbs
Height of Teleprompter: 16.1 in. / 411mm
Country of Origin: Taiwan

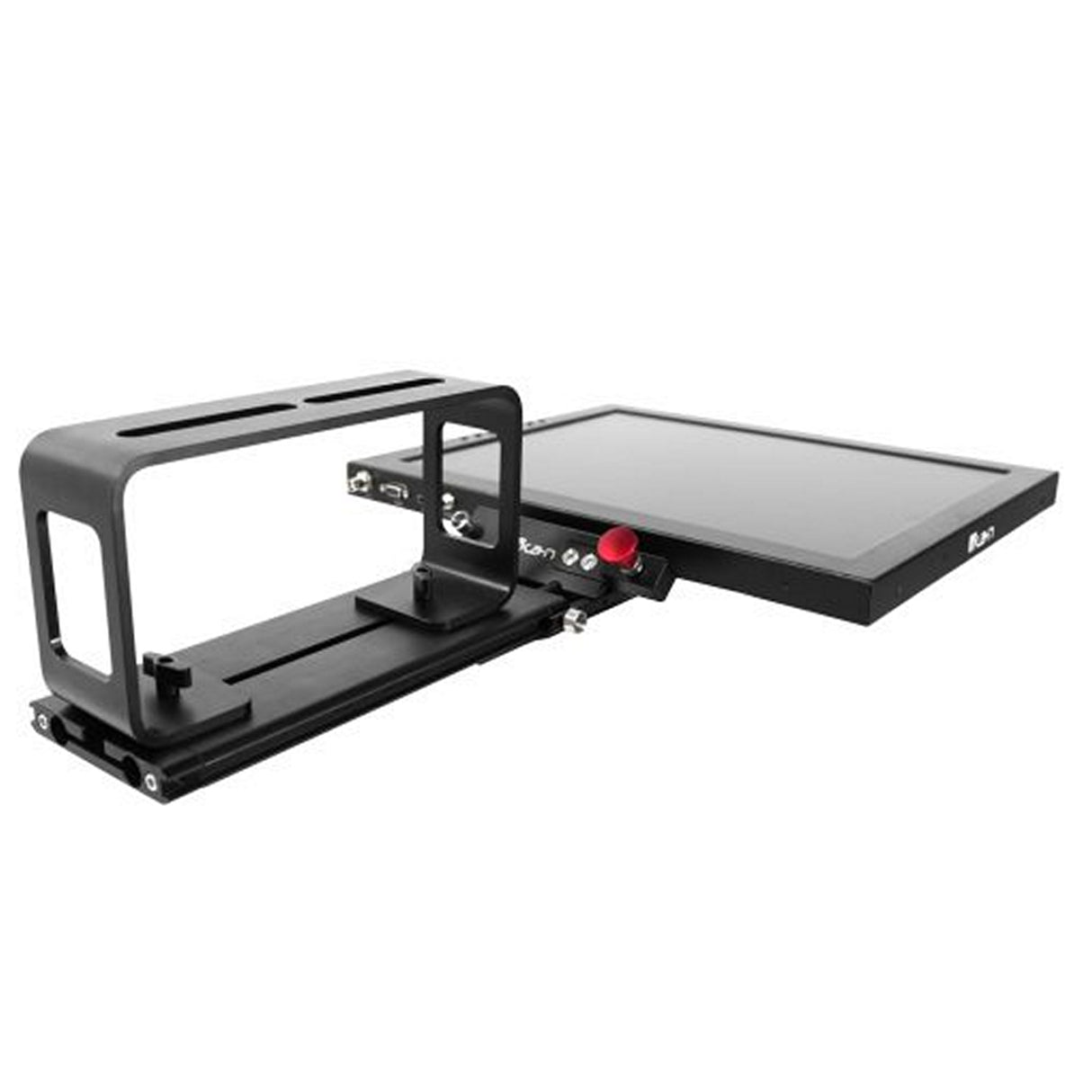

19 in. SDI Teleprompter Monitor
Aspect Ratio: 4:3
Maximum Brightness: 1000 cd/mĀ²
Screen Size (Diagonal): 19 in.
Mount: VESA 100mm
Video Inputs: SDI, HDMI, VGA
Input Voltage: DC 12v / 4A
Power Consumption: 30W
Product Weight: 6 lbs
Product Dimensions: 17 in. x 15 in. x 1 in.
Native Resolution: 1280 x 1024
Viewing Angle: 160Ā° (H) / 170Ā° (V)
Build Material: Aluminum Chassis
Image Flip: Horizontal: Yes | Vertical: Yes

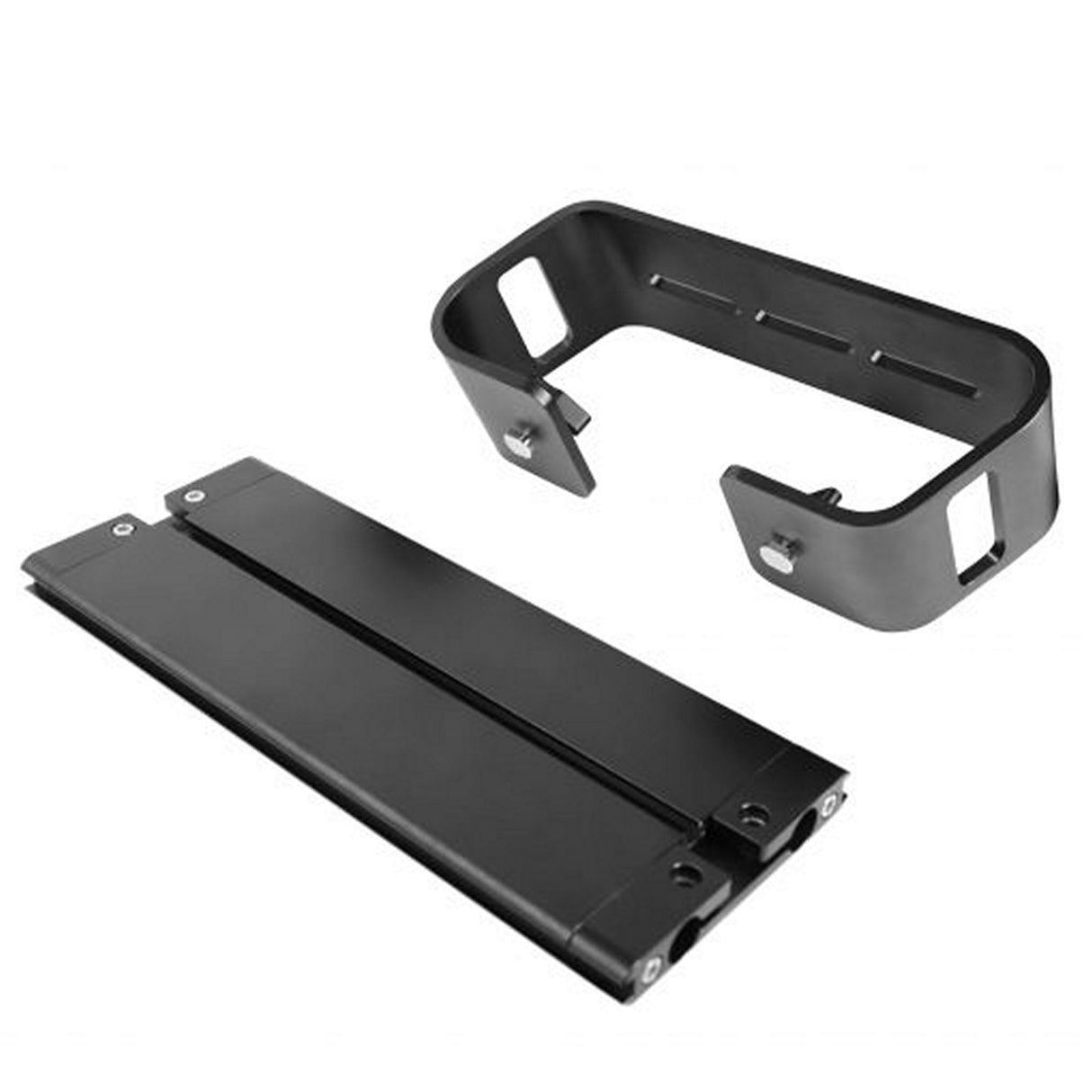

PTZ Teleprompter Add-on Kit
Height of PTZ Riser: 51 mm
Weight of PTZ Riser: .58 lbs
Dimensions of PTZ Hood: Top: 19.06 x 15.31 in. Bottom 8.16 x 15.31 in. Height: 12.56 in.
Material of Hood: Polyester Canvas
Material of PTZ Riser: Aluminum
Weight of PTZ Hood: 3.3 lbs
Net Weight of Full PTZ Add-on Kit: 3.88 lbs
Package Contents
- 1x Teleprompter Base
- 1x 19 in. SDI Teleprompter Monitor
- 1x Tall Riser
- 1x Small Riser
- 1x DSLR Riser
- 1x PTZ Riser
- 1x Teleprompter Hood
- 1x Teleprompter Glass
- 1x Warranty Card
- 1x Power Supply
- 1x Prompter Pro 4 Digital Download
- 1x AT7903 Pedestal
- 1x EI-7004B Dolly with Cable Guards
- 1x T30 Tripod Carrying Bag
- 1x 100BF Flat Base
- 1x DB-01 Dolly Carrying Bag
