Ikan STR-DT12 Stratus ARRI Standard 12-Inch Dovetail

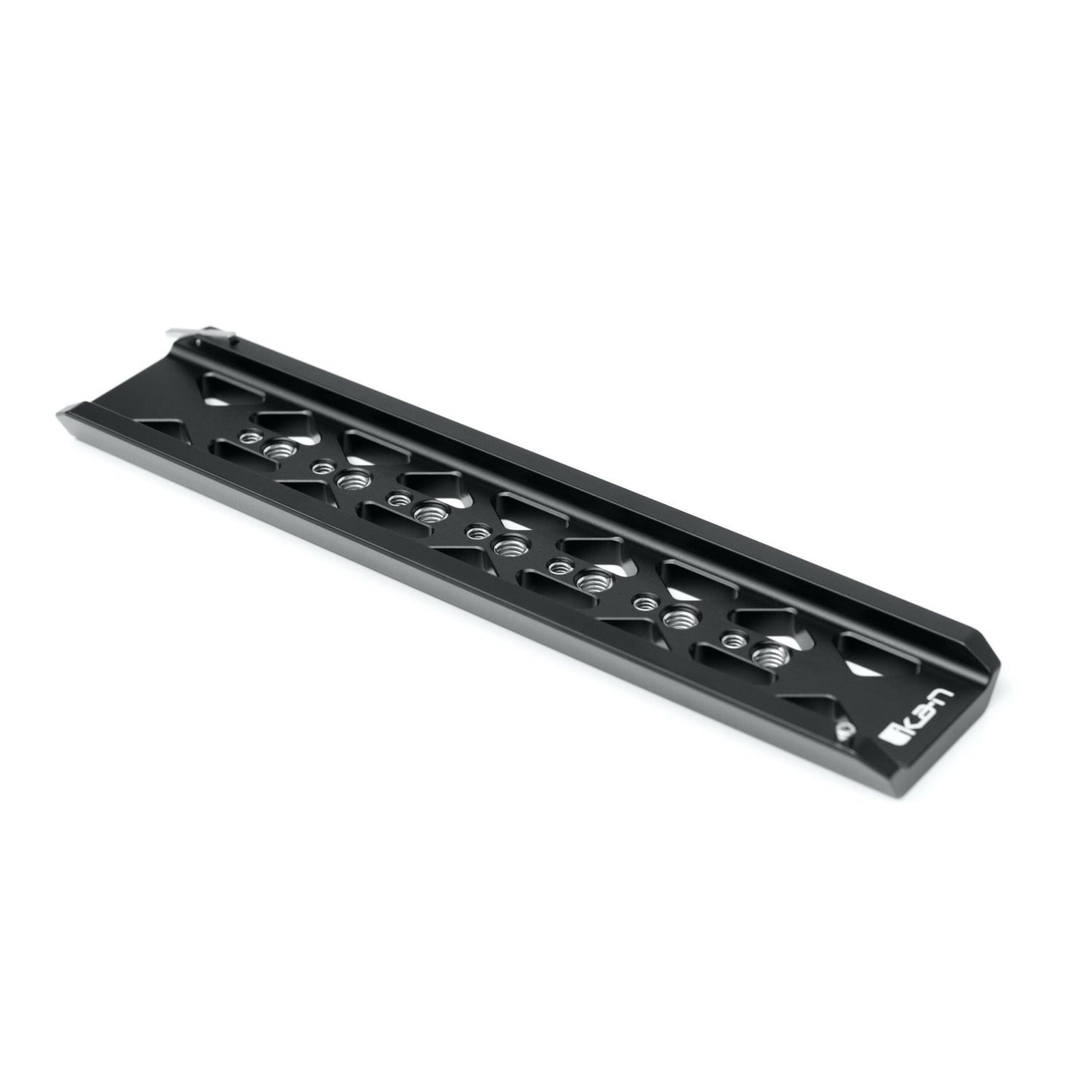

Use the 12” ARRI-Standard Lightweight Dovetail Plate with a separately available sliding bridge plate to balance your camera rig and to support accessories. The Dovetail Plate features safety catches on each end to prevent the bridge plate from sliding off, and both 3/8”-16 and 1/4”-20 threads for mounting on a tripod quick release plate or other support.
ARRI STANDARD DOVETAIL
The Stratus Lightweight Dovetail is compatible with any ARRI Standard Baseplate.
SAFETY STOPPERS
A base plate safety stopper is included on both ends of the dovetail. This will keep your base plate from accidentally sliding off of the dovetail. To mount the dovetail, you can simply push the safety stopper down as you mount the baseplate. The spring-loaded stopper will move back into its original position after the baseplate has been mounted.
TRIPOD PLATE MOUNTING POINTS
Any tripod plate with a 1/4-20 or 3/8-16 screw can mount directly to the bottom of the dovetail. The dovetail features 7 1/4-20 screw threads and 7 3/8-16 screw threads. This allows your tripod plate to be mounted in various areas of the dovetail such as the back, center, or front.
Key Features
Use with ARRI-Standard Bridge Plate
12” Lightweight Cutout Design
Stopper Screw & Safety Button in Each End
Multiple 1/4-20 and 3/8-16 Screw Threads
Technical Specifications
What's Included
1x 12" ARRI Standard Dovetail
Build Material
Anodized Aluminum
Max. Range
12 inch Dovetail
Mounting Points
7x 1/4-20 Screw Threads, 7x 3/8-16 Screw Threads
Mounting System
ARRI Standard Dovetail
Safety Function
Safety pins and screws on both ends of dovetail
