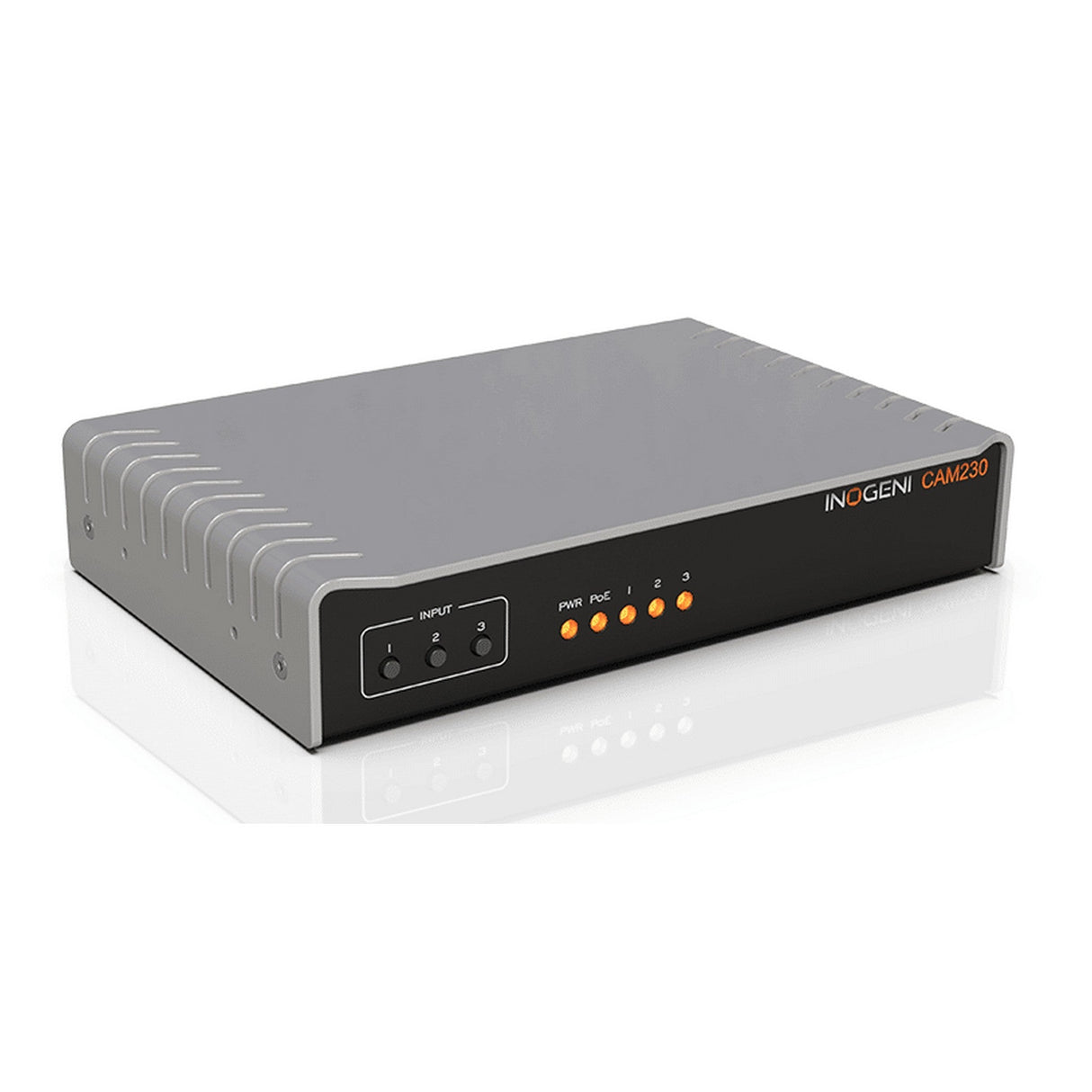

INOGENI CAM230 USB and HDMI Multi-Camera Switcher

The INOGENI CAM230 is a USB and HDMI multi-camera switcher that helps improve meeting equity in virtual meetings. With its easy-to-use camera switching capabilities and support for bidirectional audio with videobars, facilitators can ensure that all participants have equal opportunities to speak and contribute.

The CAM230 also supports whiteboard and document cameras for added collaboration and productivity.

3 video sources (2x USB 3.0/2.0 and 1x HDMI) clean switcher into a single video flow

Video output for CODECs, matrixes, monitors or laptops for BYOM settings
-HDMI 2.0
-USB 2.0 MJPEG - 1080p30

Instantly change camera and video configurations without interrupting the presentation

Ideal for remote education, collaborative meetings, webinars, and live-streaming

Controllable by RS-232 and IP
-Switch the camera via your videoconferencing pad or with the push button

Audio I/O via the INOGENI Control App

Cost-effective, reliable, and easy to install and connect (no drivers required)

Compact and robust design with an aluminum enclosure

Designed and manufactured in Canada

TAA-compliant

How it works
The INOGENI CAM230 is a multi-camera switcher that allows users to easily switch between up to three video cameras during a virtual meeting or presentation. The CAM230 connects to 2x USB 3.0/2.0 cameras and 1x HDMI camera and outputs a single video stream on USB 2.0 MJPEG and HDMI 2.0. With its easy-to-use push-button or via control pad switching, facilitators can ensure all participants are given equal opportunities to speak and contribute to the conversation while supporting whiteboard and document cameras for added collaboration and productivity.

Connects to 2x USB 3.0/2.0 and 1x HDMI cameras

Video output on USB 2.0 and HDMI 2.0

Easy push-button switching or via control pad for seamless camera transitions

Supports whiteboard and document cameras for more efficient collaboration

Cost-effective, versatile, and easy to use for improved meeting equity in virtual settings

Plug & Go with the INOGENI CAM230
This easy-to-use multi-camera switcher requires no drivers for seamless and effortless switching between 2x USB and 1x HDMI cameras. Capture, mix, and switch with INOGENI’s professional camera selectors for a dynamic and engaging presentation experience.

Compatible with all USB &HDMI cameras

FOR MAXIMUM VERSATILITY
This pro AV camera switcher is fully compatible with all USB and HDMI cameras, including professional-caliber equipment, such as Vaddio, Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Key Features

Change camera and video configurations without interrupting the presentation

Ideal for remote education, collaborative meetings, webinars, and live-streaming

Cost-effective, reliable, and easy to install and connect (no drivers required)

3 video sources clean switcher into a single video flow
-2x USBs (3.0/2.0 or MJPEG)
-1x HDMI (1080p60)

OUTPUT switch into a single interface:
-HDMI 2.0 output with audio for CODECs, matrixes or monitors
-USB 2.0 MJPEG - 1080p30 for laptops or PC rooms or CODECs

SWITCHING CONTROL:
-RS-232 and IP control
-Easy push button

SUPPORT:
-Bidirectional audio for videobars, such as Cisco, Poly, Logitech and Bose
-PoE LAN
-Multiple mounting options
-Visual LED status

Controllable by RS-232 and IP
-Switch cameras via your videoconferencing pad or with the push button

Audio I/O via the INOGENI Control App
-Embedded audio in USB and HDMI

Advanced video quality
-Hardware-based color space and sampling conversion
-Automatic scaling and frame rate conversion
-Customizable video processing functions
-Supports multiple devices on the same host
-Device configuration via the INOGENI Control App

Firmware upgrade available via the INOGENI Control App

Compact and robust design with an aluminum enclosure

Designed and manufactured in Canada

TAA-compliant

Technical Specifications

<3:1 Camera selector>
3:1 Camera selector
(Smooth video switching)

3 inputs: 2x USB 3.0/2.0 & 1x HDMI
2 outputs: HDMI 2.0 & USB 2.0

Control options
Front buttons
RS-232
LAN
USB
IP interface
100 Mbps
RS-232 interface
Baud rate: 9600
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None

Operating systems
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38)
Minimum host requirements
USB 2.0 port
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Supported cameras
Cameras with an HDMI, DVI or USB 3.0/2.0 output
Software Compatibility
UVC-compliant. Runs with all software compatible with DirectShow, AVFoundation and V4L2.
Compatible with: Teams, Zoom, Webex, Google Meet, etc.

Dimensions (W x L x H)
17.33 cm x 11.57 cm x 3.26 cm
6.82” x 4.55” x 1.28”
Power supply
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
- or -
PoE source compliant with IEEE 802.3af (802.3at Type 1)
Weight
606g (1.32 lb)
Package content
1x 1 m/3.3 ft USB 2.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating temperature
0° to 45° C
32° to 113° F
Storage temperature
-40° to 105° C
-40° to 221° F
Relative humidity
0% to 90% non-condensing
Origin
Canada
Warranty
2 years
HDCP-compliant
The INOGENI device does not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, IEC62368, SoV
TAA-compliant
Yes
What’s in the box
1x 1 m/3.3 ft USB 2.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
