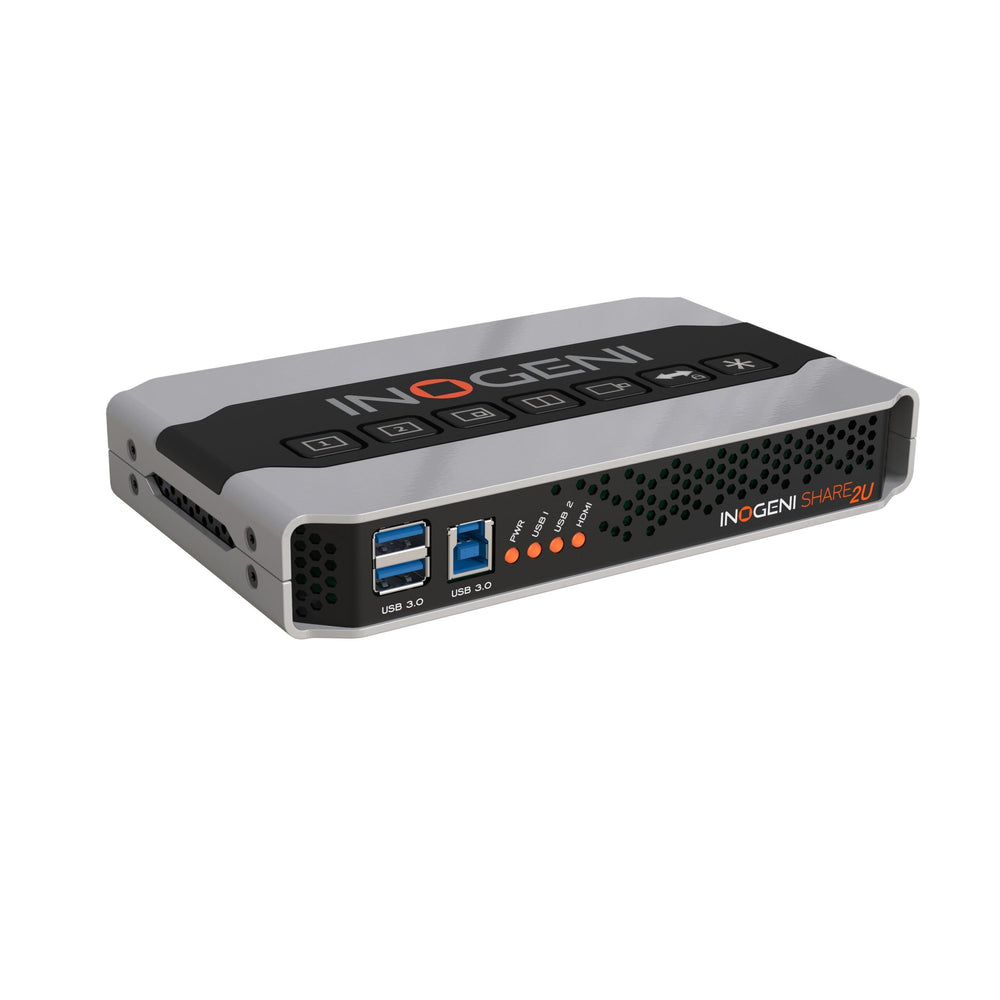

INOGENI SHARE2U Mix 2 USB/HDMI Cameras to USB 3.0
This easy Plug-And-Go mixer capturing 2 Picture-In-Picture or side-by-side video sources in one video flow is equally perfect to enhance the experience of your HyFlex classes and collaborative meetings.
The SHARE2U Dual USB Camera to USB 3.0 Pro AV camera mixer can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on the top of the device to control it manually.
Key Features
- Mix 2 cameras from 3 sources (2 USB 2.0 and 1 HDMI)
- Engage a dynamic presentation and easily switch up to 14 mix setup videos
- Change camera and video configuration without cutting the flow of your presentation
- Ideal for remote education, collaborative meetings, webinars or live streaming
- Output: Uncompressed video on USB 3.0 or MJPEG on USB 2.0
- Audio I/O and mixer via the INOGENI Control App
- Controllable by LAN & RS-232
- Cost-effective solution that is reliable and simple to install and connect (no driver required)
- Compact and robust design with its aluminum enclosure
- Designed and manufactured in Canada
- TAA-compliant
Technical Specifications
2:1 Camera mixer
(1x USB and 1x USB or HDMI cameras mixer into a single USB 3.0 interface)
Simultaneous capture and mix of 2x USB 2.0 signals + Audio into one 1080p60 USB 3.0 signal.
14 mix setup videos
Picture-in-picture, side-by-side
Video input
#1 Connector & video resolutions
1x USB camera 2.0
MJPEG or H264 (*)
Depends on the camera specifications
Compatible USB cameras
#2 Connector & video resolutions
1x USB camera 2.0
MJPEG or H264 (*)
Depends on the camera specifications
Compatible USB cameras
- OR -
1x HDMI
1080p60, 1080p30, 720p60 and 480p60
(1080p60 supported for S/N greater than SU2111xxx and SUM111xxx)
Notes for MJPEG and H264
* USB 2.0 or USB 3.0 cameras that only support uncompressed video will not work properly. For better performance, use USB 3.0 or 2.0 cameras that support MJPEG or H264 CODECs.
Color space
HDMI: RGB, YCbCr 4:4:4 and 4:2:2
Video output
HDMI
1x HDMI up to 1080p60
(One mixed video stream)
USB
1x USB 3.0 uncompressed up to 1080p60
(One mixed video stream)
USB - Color Space ou CODEC
USB 3.0: YCbCr (YUY2) 4:2:2 8-bit.
USB 2.0: MJPEG
USB - Video scaler
Automatic hardware-based
USB - Color space conversion
Automatic hardware-based
USB - Sampling conversion
Automatic hardware-based
USB - Frame rate conversion
Automatic hardware-based
Audio
Analog audio connections
Unbalanced analog stereo, line level, 3.5 mm jack
Analog audio I/O
2-channel LPCM 48kHz audio from line input
Digital audio I/O
Embedded in HDMI or USB
Audio routing
Control
Control options
RS-232 on terminal block
Mixer control
Integrated keypad, LAN, USB-HID, INOGENI REMOTE, RS-232
IP interface
10 Mbps
Static address configuration through our Control App
DHCP not supported
USB Port
USB expansion port
Two (2) extra USB 3.0 ports for expansion purposes. The devices connected will appear to the host.
Compatibility
Operating systems
NO driver installation necessary!
Windows 7 and above (32/64-bit)
macOS 10.10 and above
Linux (kernel v2.6.38)
Minimum host requirements
USB 2.0 port - We recommend USB 3.0 for uncompressed video
4GB RAM
Intel Core i5 or equivalent
Graphic card with dedicated memory
Supported cameras
Depends on the camera specifications
Compatible USB cameras
Software Compatibility
UVC-compliant. Runs with all software compatible to DirectShow, AVFoundation and V4L2.
Compatible to: Teams, Zoom, Webex, Google Meet, etc.
Physical details
Dimensions (W x L x H)
18.5cm x 11.0cm x 3.0cm
7.25ā x 4.25ā x 1.25ā
Power supply
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight
540g (1.19 lb)
Package content
1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating temperature
0 Degrees to 45 Degrees C
32 Degrees to 113 Degrees F
Storage temperature
-40 Degrees to 105 Degrees C
-40 Degrees to 221 Degrees F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
40232633843
Origin
Canada
Warranty
2 years
Certifications
HDCP-compliant
The device is HDCP-compliant. It will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources.
Certifications
FCC, CE, RoHS, SoV, RCM
TAA-compliant
Yes
Whatās in the box
1x 1m/3.3ft USB 3.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
