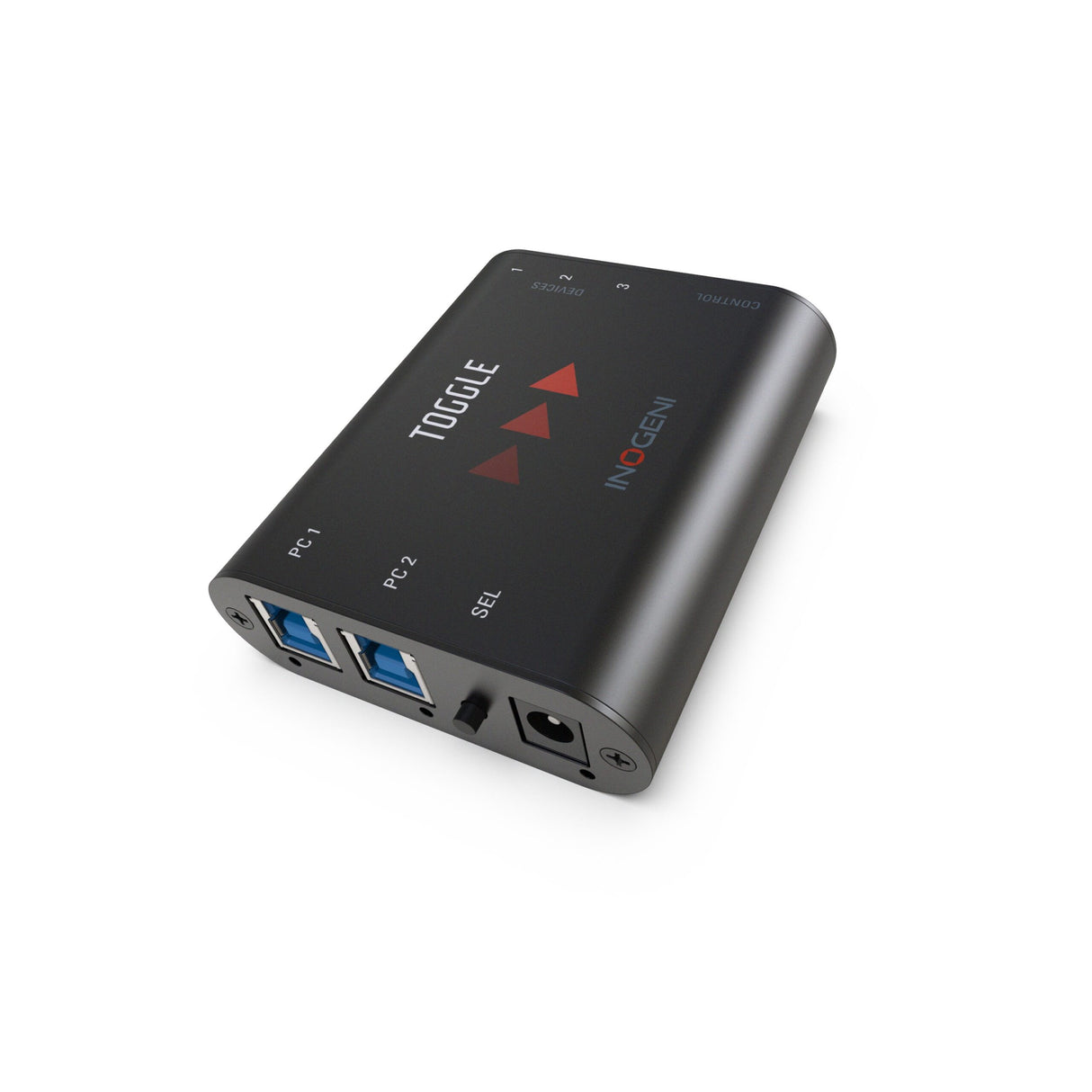

INOGENI TOGGLE USB 3.0 Devices to 2 PC Switcher

The TOGGLE USB 3.0 professional switcher can connect to three USB 3.0 devices and switch them between two hosts. It will automatically switch to a laptop when it is connected, and revert back to the conference room’s computer when disconnected. It can also be controlled remotely by RS-232 or GPI.

Plug & Go
INOGENI has developed numerous custom applications with our global partners. Capture, mix and switch without drivers. INOGENI makes everything work together thanks to our professional switchers.

Key Features

• Three USB 3.0 device ports
• Automatically switch between two USB 3.0 hosts
• Compatible with USB 2.0
• Automatic, manual or remote control
• RS-232 control
• GPI control
• Rugged full-metal enclosure
• External power supply can provide power to USB 3.0 devices
• Two USB 3.0 cables included
• Device configuration via the INOGENI Control App
• Firmware upgrade available via the INOGENI Control App
• Compatible with Barco ClickShare Conference

Technical Specifications

Description
BYOD/BYOM Solution
TOGGLE USB Switcher connect to three USB 3.0 devices and can switch them between two hosts. It will switch automatically to a laptop when it is connected, and revert back to the room pc when disconnected. It can also be controlled remotely by RS-232 or GPI.
Video input
USB device ports Connector & Video Resolutions
3 x Type-A USB 3.0/2.0 compatible
USB host ports Connector & Video Resolutions
2 x Type-B USB 3.0/2.0 compatible
Control
Software
Automatic, manual or remote control. Current configuration is saved onboard.
Device control
RS-232 control
GPI control
Compatibility
Serial interface
Baud rate: 9600 bps for control purpose. See Serial communication protocol section for more details.
Push-button
Physical switch to select host.
GPIN
Contact-closure control. Controlled by open-drain IO (short to ground) or driven IO. Supported voltage range: 0V to +12V max. Voltage threshold is 2.3V.
Device current limit
1.8A shared current limit for all 3 x USB device ports. You can monitor current consumption through RS-232 and our Control App.
Software
Upgrade
Field upgradable through our INOGENI Control App.
Physical details
Dimensions (W x L x H)
7.0cm x 8.3cm x 2.3cm
2.75” x 3.25” x 0.9”
Power supply
12V (100-240 VAC 50/60Hz to 12V/1.2A DC)
Weight
113g (0.25 lb)
Package content
2x 3 ft USB 3.0 cables (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
Operating temperature
0 Degrees to 45 Degrees C
32 Degrees to 113 Degrees F
Storage temperature
-40 Degrees to 105 Degrees C
-40 Degrees to 221 Degrees F
Relative humidity
0% to 90% non-condensing
Informations
UPC code
40232609022
Origin
Canada
Warranty
2 years
Certifications
FCC, CE, RoHS, SoV, RCM
TAA-compliant
Yes
What’s in the box
2x 3 ft USB 3.0 cables (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)
