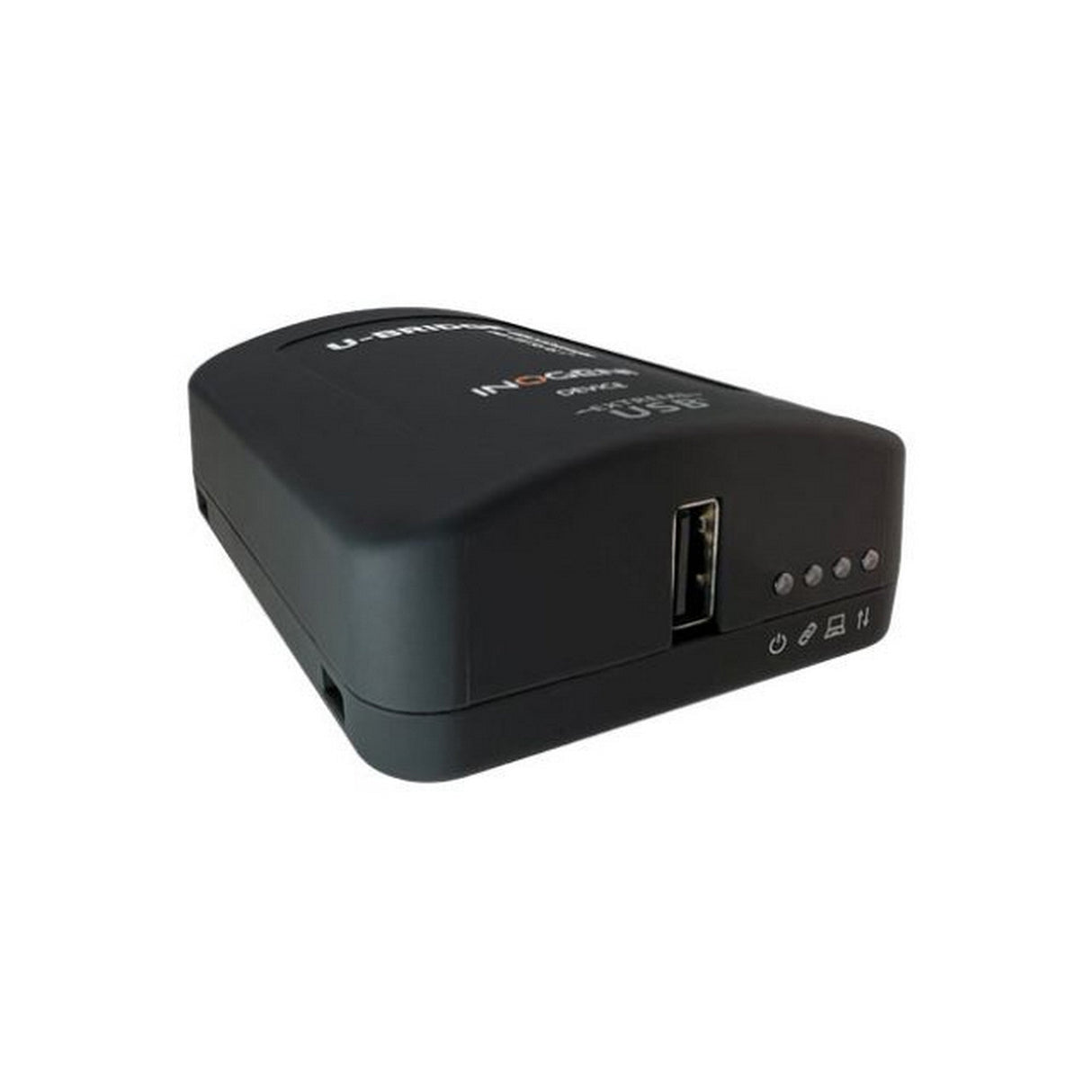

INOGENI U-Bridge USB 2.0 Camera and Device Extender
INOGENI U-Bridge USB 2.0 Camera and Device Extender
Free Shipping
INOGENI U-Bridge USB 2.0 Camera and Device Extender
The INOGENI U-BRIDGE USB 2.0 video camera and audio extender enables high-speed USB 2.0 connections up to 100 m /330 ft. over a single CAT 5e/6/7 cable.
The U-BRIDGE is the problem to interoperability challenges faced by AV installers looking for a reliable long-distance USB camera extension to maintain high-quality video.
The U-BRIDGE is fully compatible with all USB cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.
The U-BRIDGE is fully compatible with all USB cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.
Key Features
- Flexible option to power either the PC HOST or DEVICE modules.
- It provides plug-and-play convenience with no software drivers required.
- It works with all major operating systems, including Windows, macOS, and Linux.
- It comes with a two-year warranty for added peace of mind.
- It enables access and control of USB devices.
Technical Specifications
Range
Direct connect up to 100 m/330 ft. over CAT 5e/6/7
USB
Speeds
USB 2.0: up to 480 Mbps
USB 1.1: up to 12 Mbps
PC Host extender
USB connector
1 x USB Type B receptacle
Link connector
1 x RJ45
Dimensions (W x L x H)
65.0 mm x 87.5 mm x 30.0 mm
2.6” x 3.4” x 1.2”
Weight
81 g (0.18 lb)
Mounting
Slots for cable ties
Enclosure material
Black ABS with rubberized coating
Device extender
USB connector
1 x USB Type A receptacle
Link connector
1 x RJ45
Available current
Up to 1A to USB port
Dimensions (W x L x H)
65.0 mm x 87.5 mm x 30.0 mm
2.6” x 3.4” x 1.2”
Weight
89 g (0.20 lb)
Mounting
Slots for cable ties
Enclosure material
Black ABS with rubberized coating
Physical details
Package dimensions (W x L x H)
24.5 cm x 19.7 cm x 7.9 cm
9.7” x 7.5” x 2.8”
Power supply
100-240V AC input, 24V 1A DC output
Apply at either PC Host or Device modules.
Package weight
1087 g (2.4 lb)
Package content
1x PC Host extender module
1x Device extender module
1x USB 2.0 cable
1x Quick Start Guide
1x power supply 100-240V AC input, 24V 1A DC output
International power adapter with country-specific cord (North America, EU, UK, Australia/NZ, or Japan)
Operating temperature
0 Degrees to 50 Degrees C
32 Degrees to 122 Degrees F
Storage temperature
-20 Degrees to 70 Degrees C
-4 Degrees to 158 Degrees F
Operating humidity
20% to 80% relative humidity, non-condensing
Storage humidity
10% to 90% relative humidity, non-condensing
UPC
051497302832
Origin
Designed in Canada and made in China
Warranty
2 years
Certifications
EMC
FCC (Class A), CE (Class A)
Environmental
RoHS2, REACH, Conflict Minerals
Safety
Flammability V-0
IEC62368-1
RCM
What’s in the box
1x PC Host extender module
1x Device extender module
1x USB 2.0 cable
1x Quick Start Guide
1x power supply 100-240V AC input, 24V 1A DC output
