AtlasIED 100W Decora-Style Stereo Volume Control, 8 Ohms
The AtlasIED MUSICAVC‑100Z is a high-quality, low-profile, 8‑ohm stereo volume control designed for one or multiple speaker pairs powered by a single amplifier. It delivers distortion-free audio performance across the full 20 Hz–20 kHz frequency range, making it ideal for background music systems in both residential and commercial spaces.

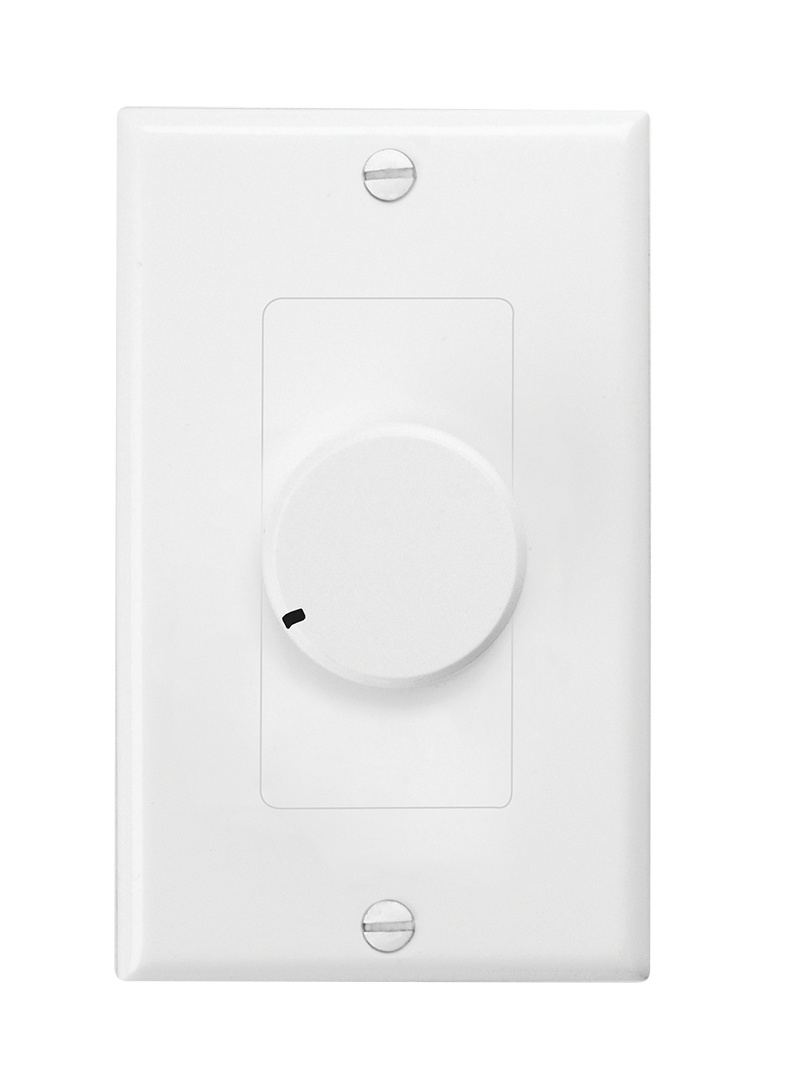

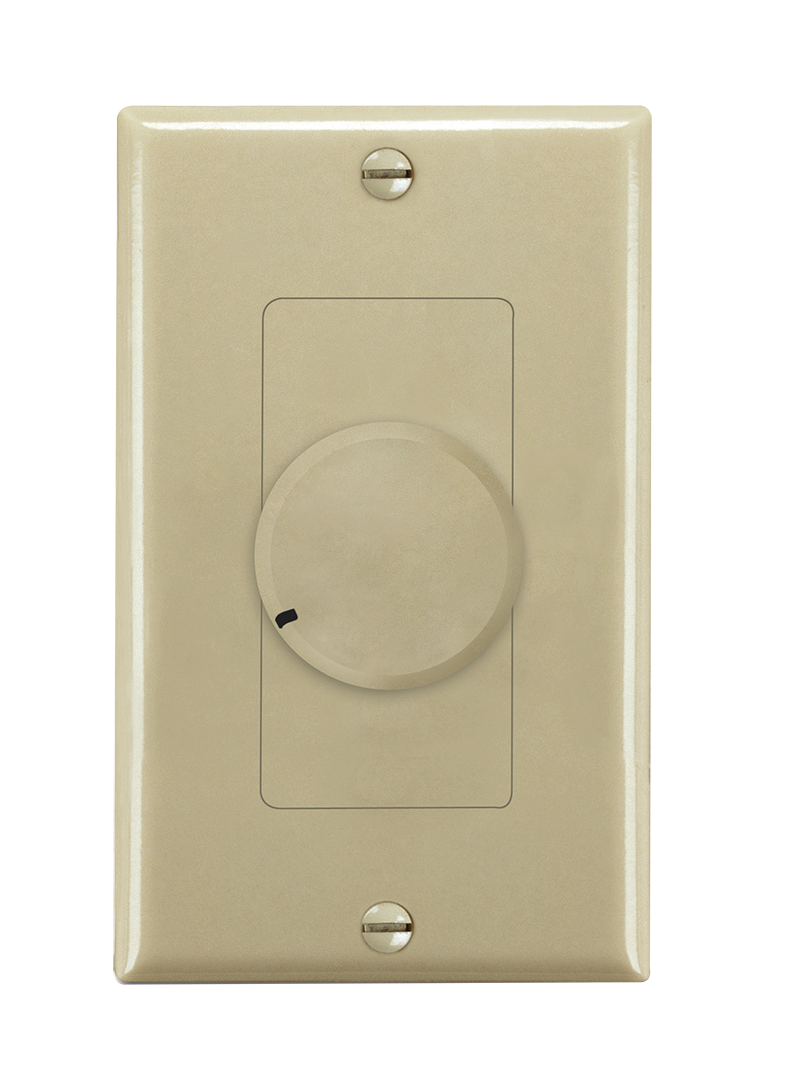

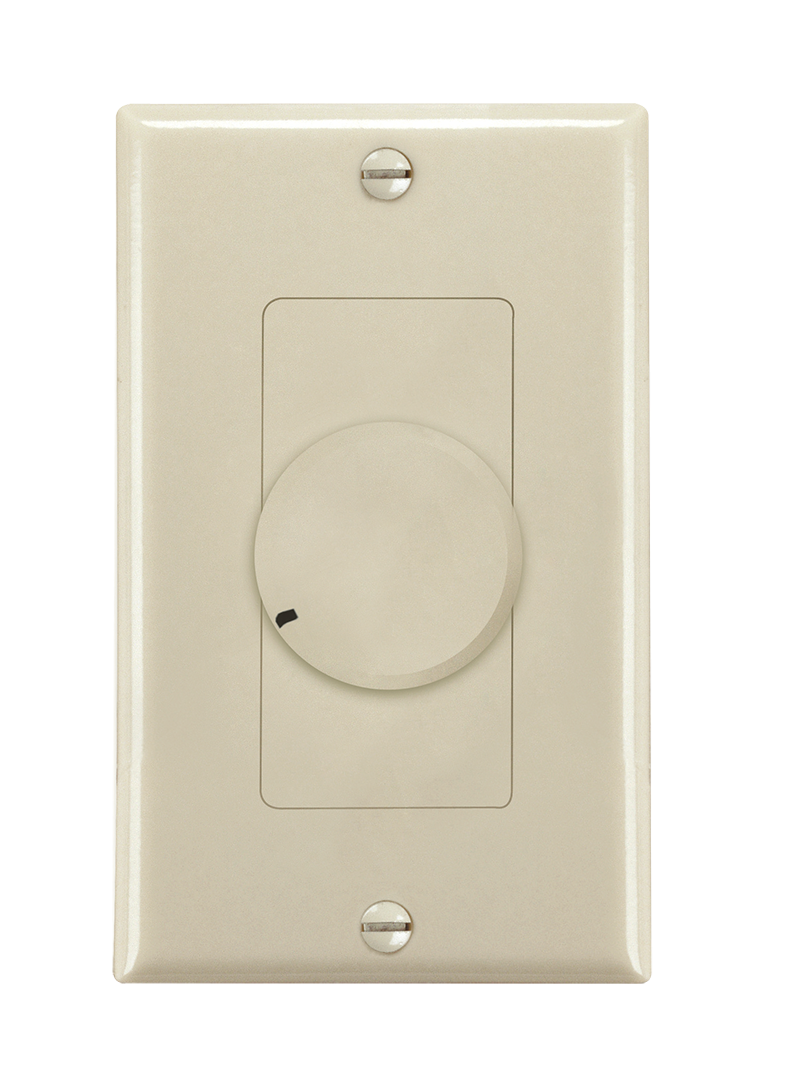

This user-friendly control features a Decora-style wall plate available in white, ivory, or almond, with a compact knob (1¼″ diameter, projects 11⁄16″) for precise adjustment. With multiple impedance switch settings (1×, 2×, 4×, 8×), it accommodates a variety of system configurations.
Key Features
- Power Handling: 100 W RMS
- Frequency Response: 20 Hz – 20 kHz (–3 dB, –0)
- Attenuation Steps: 11 steps (six 3 dB, three 6 dB, one 9 dB, one 28 dB + off)
- Impedance Matching: 1×, 2×, 4×, 8× switchable
- Low-Profile Design: Fits standard 20 cu. in. electrical box
- Finish Options: Includes swappable white, ivory, and almond plates and knobs
Technical Specifications
- Power Handling: 100 W RMS
- Frequency Response: 20 Hz – 20 kHz
- Attenuation: Total 30 dB (11‑step rotary)
- Impedance Settings: 1×, 2×, 4×, 8×
- Dimensions: 4 ½″ × 2 ¾″ × 2 11⁄16″ (11.43 × 6.99 × 6.83 cm)
- Knob: 1¼″ diameter, 11⁄16″ projection
- Warranty: 24 months from purchase
What’s Included
- One MUSICAVC‑100Z stereo volume control with knob
- Three Decora-style plates and knobs (white, ivory, almond)
