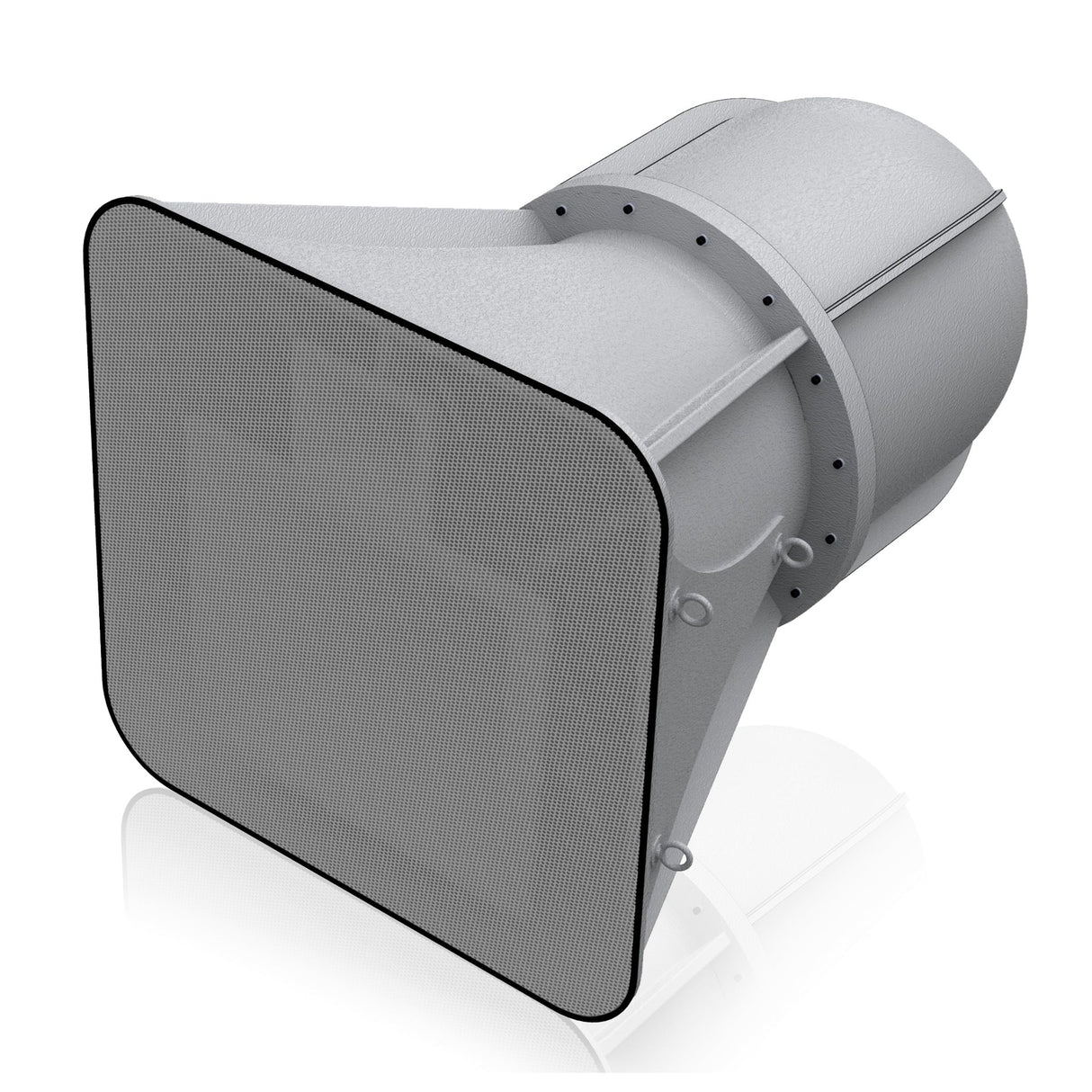

AtlasIED AH94-212-BSG 3-Way Stadium Horn Speaker, 90-Degree Horizontal by 40-Degree Vertical Sound Dispersion
Authorized Dealer
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
AtlasIED AH94-212-BSG 3-Way Stadium Horn Speaker, 90-Degree Horizontal by 40-Degree Vertical Sound Dispersion
The AtlasIED AH94-212-BSG is a high-performance, three-way stadium horn speaker designed to deliver exceptional sound clarity and high sound pressure levels across expansive areas. Featuring dual 12" cast-frame woofers, a 1.5" exit compression midrange driver, and a 1" exit high-frequency compression driver, this speaker system provides 750 watts RMS power handling in full-range mode. Its 90° horizontal by 40° vertical dispersion pattern ensures broad and consistent coverage, making it ideal for large venues such as stadiums, arenas, and outdoor event spaces.
Constructed with a UV-resistant fiberglass enclosure and a three-stage, corrosion-resistant steel mesh filtering system, the AH94-212-BSG is highly weather and pest-resistant, ensuring reliable performance in various environmental conditions. The speaker is designed for 8Ω nominal impedance and can be easily bi-amped (LF/MF+HF) by removing the exterior jumper, allowing for greater system control and protection when used with high-powered systems. Suspension mounting is facilitated via seven 10mm internally reinforced forged eyebolts, ensuring secure and flexible installation options.
Key Features
- Three-way design with dual 12" cast-frame woofers, a 1.5" exit midrange driver, and a 1" exit high-frequency driver
- 750 watts RMS power handling in full-range mode
- 90° horizontal by 40° vertical dispersion pattern for wide and consistent coverage
- UV-resistant fiberglass enclosure with a three-stage, corrosion-resistant steel mesh filtering system
- 8Ω nominal impedance; bi-ampable for enhanced system control
- Includes seven 10mm internally reinforced forged eyebolts for secure suspension mounting
Technical Specifications
- Woofer Configuration: Dual 12" cast-frame woofers
- Midrange Driver: 1.5" exit compression driver
- High-Frequency Driver: 1" exit compression driver
- Power Handling: 750 watts RMS (full-range mode)
- Dispersion Pattern: 90° horizontal x 40° vertical
- Impedance: 8Ω nominal
- Enclosure: UV-resistant fiberglass with corrosion-resistant steel mesh filtering system
- Mounting: Seven 10mm internally reinforced forged eyebolts
- Warranty: 60 months (5 years)
What’s Included in the Box
- AtlasIED AH94-212-BSG 3-Way Stadium Horn Speaker
- Seven 10mm internally reinforced forged eyebolts for suspension mounting
- Recessed weather-resistant terminal block for secure connections
- Product documentation and warranty information
