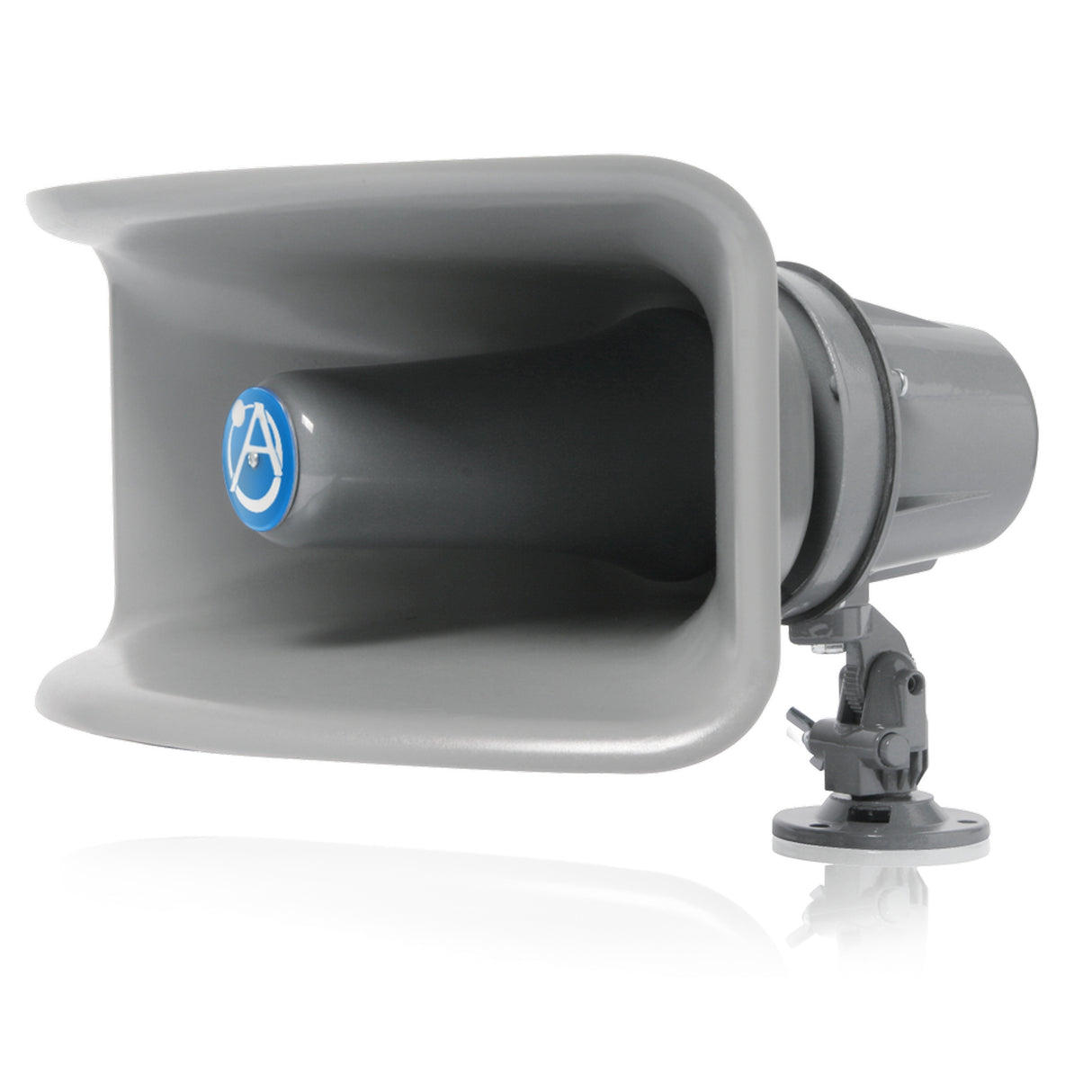

AtlasIED APC-30T Wide-Angle Horn Speaker with 30W Transformer
The AtlasIED APC-30T is a robust 30-watt horn speaker featuring an extended low-frequency response and a wide-angle molded bell for exceptional sound directivity. Designed for both indoor and outdoor paging, tone signaling, and public address applications, this speaker is built to withstand harsh environments while delivering clear, intelligible audio across large areas.
Equipped with a screwdriver-adjustable 25/70.7/10 V Vari-Tap® transformer and a selectable 45‑Ohm tap for intercom use, the APC-30T provides flexible power and impedance options. The Omni-Purpose® mounting bracket allows single-adjustment rotation in both horizontal and vertical planes with secure surface, pillar, or I-beam installation. Its durable polycarbonate and aluminum construction is finished in grey baked epoxy for long-lasting reliability.
Key Features
- 30‑Watt compression driver for high-power voice and tone signaling
- Wide-angle bell with 70° x 95° horizontal dispersion
- Built-in Vari-Tap® transformer with 2–30 W tap selections and 45‑Ohm intercom option
- Omni-Purpose® bracket for easy 360° horizontal & 130° vertical adjustment
- Weather-resistant polycarbonate/aluminum body with grey baked epoxy finish
Technical Specifications
- Frequency Response: 300 Hz–12 kHz
- Sensitivity: 109 dB @ 1 W/1 m
- Power Rating: 30 Watts
- Power Taps: 2, 3.8, 7.5, 15, 30 W @ 70.7 V
- Dispersion: 70° × 95° (@ ‑6 dB, 2 kHz)
- Mounting Bracket: Omni-Purpose® adjustable
- Operating Temperature: ‑40 °C to 70 °C
- Finish: Grey baked epoxy
- Warranty Period: 60 months from date of purchase
