AtlasIED APF-15TU-USA Flanged Emergency Horn Speakerr with 15W Transformer
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

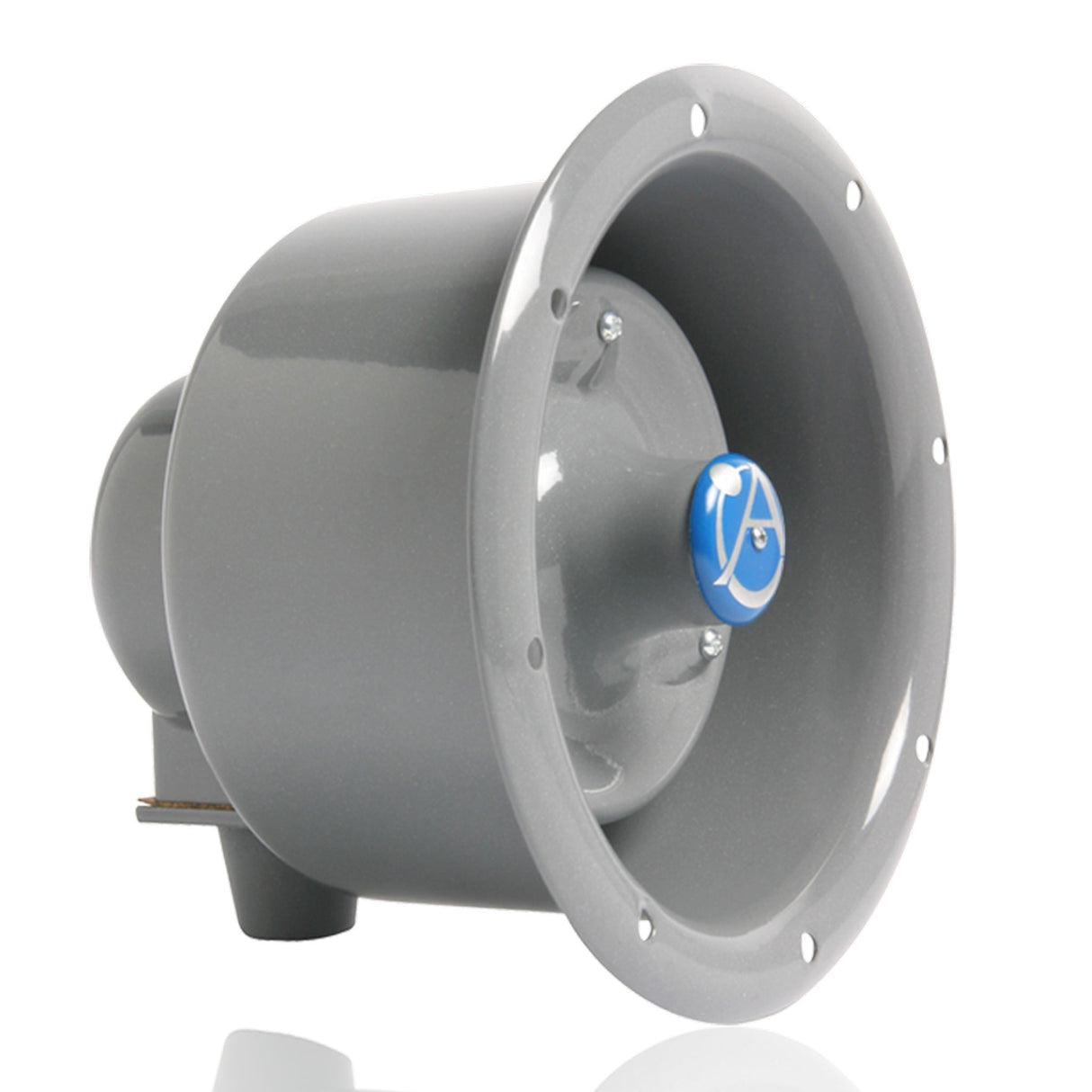

AtlasIED APF-15TU-USA Flanged Emergency Horn Speaker with 15W Transformer
The AtlasIED APF-15TU-USA is a high-performance flanged emergency horn speaker designed to deliver clear and powerful audio signals in both indoor and outdoor environments. Equipped with a 15-watt compression driver, this speaker ensures superior intelligibility and audio conversion efficiency, making it ideal for paging and emergency signaling applications. Its rugged, weather-resistant metal construction and re-entrant acoustic path provide protection against water, humidity, vermin, and corrosion, ensuring reliable operation in various conditions.
This speaker offers versatile mounting options, including flush or recessed installation into interior or exterior walls and ceilings. Recessed installation can be accomplished by mounting the speaker into a 5Ā½" deep opening or recessed enclosure. The APF-15TU-USA is compatible with AtlasIED L20 Series grilles, enclosures, and mounting rings, providing flexibility in installation. Additionally, it complies with the Buy American Act (BAA) requirements, making it suitable for government and federally funded projects.
For optimal performance, the APF-15TU-USA features a frequency response range of 600Hz to 14kHz and a dispersion angle of 95Ā° at 2kHz. Its sensitivity is 104dB at 1 watt/1 meter, ensuring clear audio delivery even in challenging environments. The speaker operates within a temperature range of -40Ā°C to 70Ā°C, making it suitable for a wide range of climates. It is UL 1480 listed, ensuring compliance with safety standards for fire protective signaling systems.
Key Features
- 15-watt compression driver for clear, powerful sound
- Rugged, weather-resistant metal construction
- Flush or recessed mounting for flexible installation
- Compatible with AtlasIED L20 Series grilles and enclosures
- Meets Buy American Act (BAA) requirements
- UL 1480 listed for fire protective signaling systems
Technical Specifications
- Frequency Response: 600 Hz ā 14 kHz
- Dispersion Angle: 95Ā° at 2 kHz
- Sensitivity: 104 dB at 1 watt/1 meter
- Power Rating: 15 watts
- Operating Temperature: -40Ā°C to 70Ā°C (-40Ā°F to 158Ā°F)
- Diameter: 5 5/8 inches (142.88 mm)
- Depth: 5 3/16 inches (131.78 mm)
- Flange Diameter: 6 15/16 inches (176.21 mm)
- Weight: 2.5 lbs (1.1 kg)
Whatās in the Box
- AtlasIED APF-15TU-USA Flanged Emergency Horn Speaker
- Installation instructions
