AtlasIED APT-34AT Dual Direction Twin Horn Speaker with 30-Watt 25V/70V/100V Transformer

AtlasIED APT-34AT Dual Direction Twin Horn Speaker with 30-Watt 25V/70V/100V Transformer

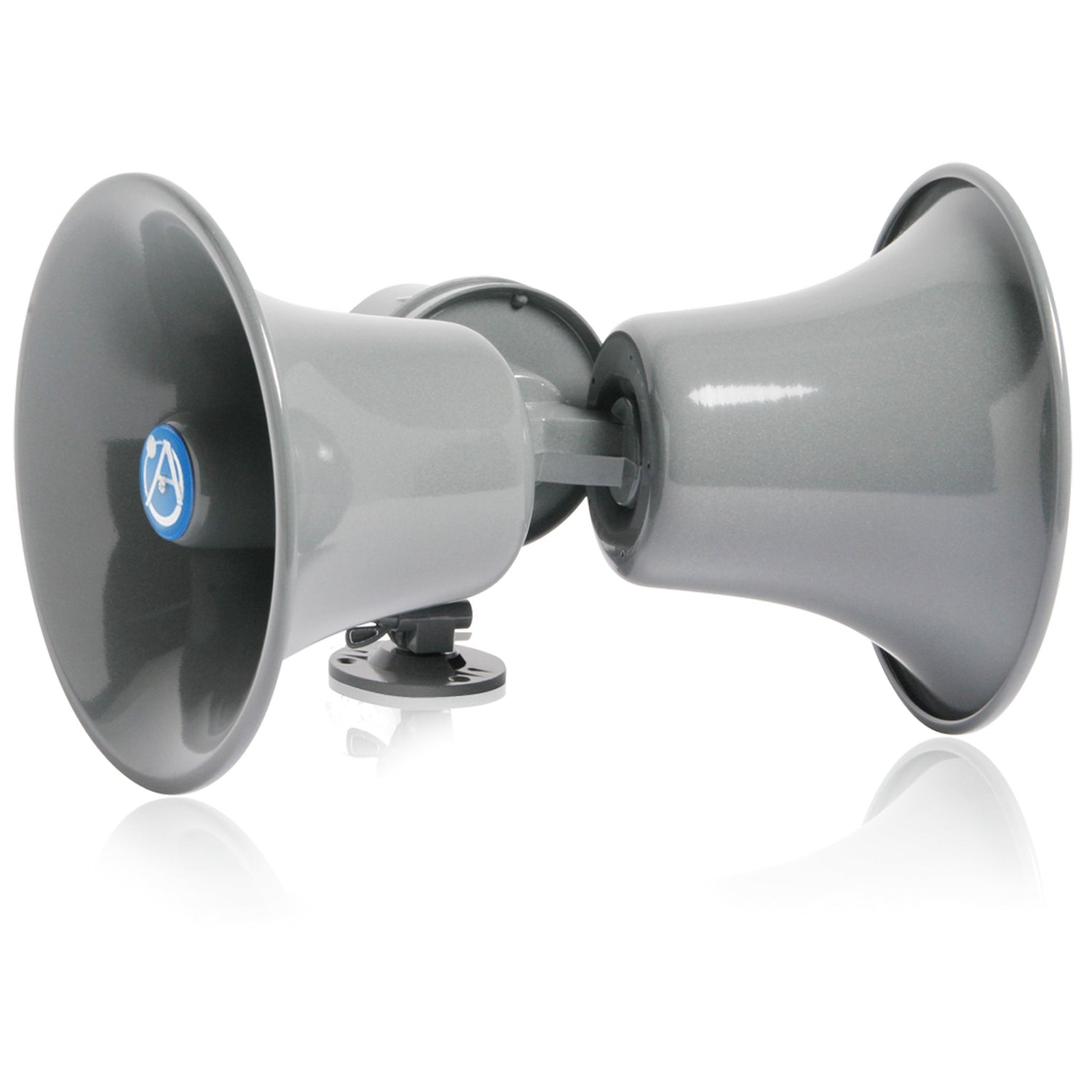

The AtlasIED APT-34AT is a rugged, weather-resistant twin horn speaker system engineered for high-efficiency bi-directional sound dispersion. Designed specifically for paging and emergency communication in corridors, stairwells, and walkways, this surface-mount speaker provides clear voice projection in challenging acoustic environments. Its durable construction and wide operating temperature range make it suitable for both indoor and outdoor applications.

Equipped with a single high-efficiency 30-Watt compression driver, the APT-34AT delivers powerful audio through two reflex projector horns, each providing 100-Degree dispersion for maximum area coverage. It includes an Omni-Purpose mounting bracket to ensure flexible installation on both vertical and horizontal surfaces. Finished in a protective grey baked epoxy, this speaker is ideal for demanding commercial and institutional settings.

Key Features

• Includes 30-Watt high-efficiency compression driver
• Twin horn design for bi-directional sound dispersion
• Omni-Purpose bracket allows flexible mounting options
• Weather-resistant construction for indoor or outdoor use
• Ideal for corridors, stairwells, and walkways
• Surface or strap mounting compatible

Technical Specifications

• Frequency Response: 400 Hz – 12.5 kHz
• Sensitivity: 101 dB
• Power Taps: 2, 3.8, 7.5, 15, 30 Watts @ 70.7V
• Transformer Voltage Options: 25V/70V/100V
• Dispersion: 175-Degree
• Operating Temperature Range: -40C to 70C
• Dimensions (Diameter x Depth): 9.25-Inch x 16.5-Inch
• Weight: 9.0 lbs
