Description

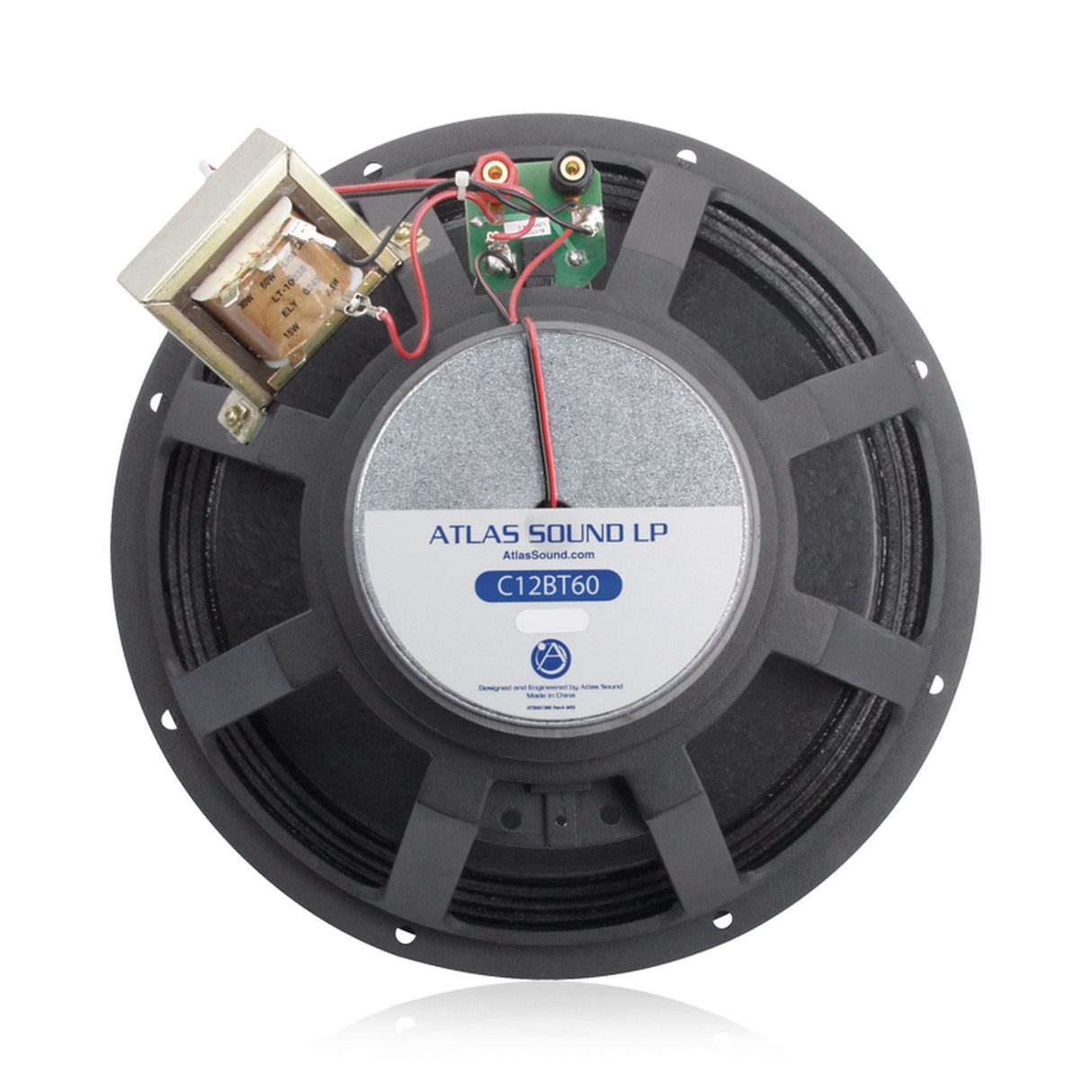

AtlasIED C12BT60 12-Inch 2-Way Coaxial Speaker with 70V/100V Transformer
The AtlasIED C12BT60 is a high-performance 12-Inch coaxial speaker designed for installations requiring full-range music and voice reproduction. This model integrates a 12-Inch low-frequency driver and a 1-Inch post-mounted high-frequency driver, delivering wide frequency response and excellent sound clarity. The treated paper cone minimizes harmonic distortion, and the built-in crossover ensures smooth transition between the drivers. A factory-installed 60-Watt 70V/100V line-matching transformer is included, offering flexibility for commercial audio systems, but it can be bypassed for 8-Ohm applications.
Ideal for auditoriums, houses of worship, and other large venues, the C12BT60 provides professional-grade audio quality at a competitive price. It is compatible with various AtlasIED enclosures, including the Q4412 and Q4612, for optimal acoustic performance. Whether you're upgrading an existing system or designing a new installation, the C12BT60 delivers reliable performance and broad dispersion with its 90-Degree coverage pattern.
Key Features
- 12-Inch low-frequency driver with 1-Inch post-mounted high-frequency driver
- Factory-installed 60-Watt 70V/100V transformer (bypassable for 8-Ohm systems)
- Curvilinear treated paper cone for reduced distortion
- Built-in crossover network for accurate frequency separation
- Compatible with AtlasIED Q Series enclosures
- High sensitivity and wide frequency response for full-range sound
Technical Specifications
- Frequency Response: 33Hz – 21kHz
- Sensitivity: 95dB (at 1W/1m)
- Power Taps: 7.5, 15, 30, 60 Watts
- Speaker Type: Full Range Coaxial
- Dispersion: 90-Degree
- Depth: 4 3/16-Inch
