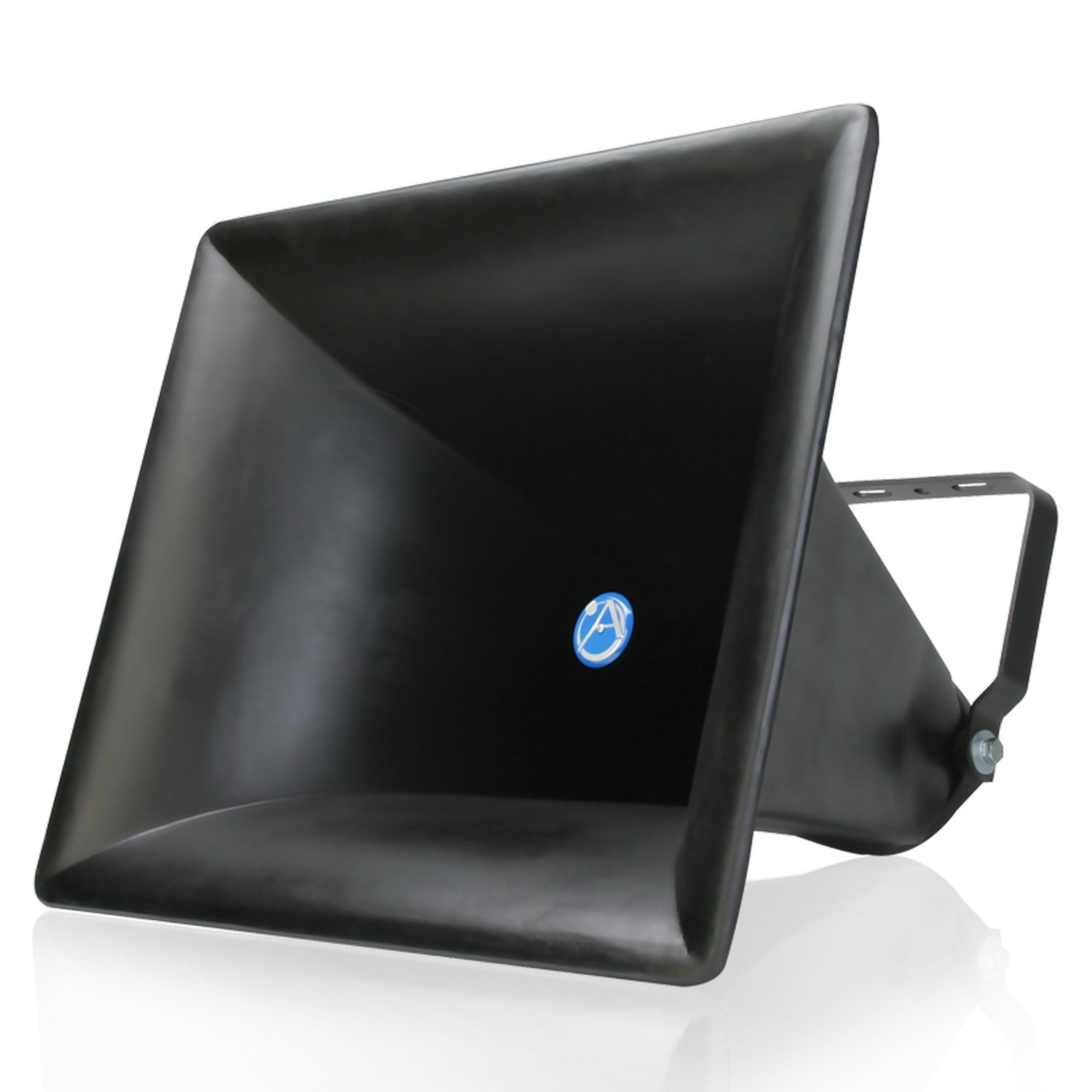

AtlasIED CD42 Constant Directivity Re-Entrant Paging Horn with 40‑Degree Horizontal and 20‑Degree Vertical Coverage
The AtlasIED CD42 is the industry’s only constant directivity re-entrant horn designed to deliver greatly improved uniform sound coverage compared to traditional conical horn designs. With a precisely controlled horizontal coverage pattern of 40° x 20° across a wide frequency range, the CD42 ensures predictable beamwidth control, making it ideal for high-intelligibility voice and signaling applications both indoors and outdoors.
Constructed from durable polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section, the CD42 is built for rugged environments. It features the proven CJ46 style heavy-duty steel mounting bracket with a patented 180° gimbal mount, offering flexible horizontal and vertical positioning for single or stacked multi-unit clusters. The horn accepts all Atlas Sound and 1 3/8" - 18 thread compression drivers with 0.7-Inch diameter throat openings, with recommended drivers including the PD30, PD-5, and PD60 series.
Key Features
- Coverage of 40° x 20° across a wide frequency range for predictable beamwidth control
- Nominal frequency response of 800Hz - 10kHz for high-intelligibility voice and signaling
- Environment-resistant construction suitable for outdoor and indoor applications
- Accepts all Atlas Sound and 1 3/8" - 18 thread compression drivers with 0.7-Inch throat openings
- Patented 180° gimbal-mount for flexible installation
- Heavy-duty CJ46 style steel mounting bracket with positive lock
Technical Specifications
- SPL (1W/1M) with PD60 Driver: 113dB
- Dispersion: Horizontal 40°, ±10°, 800Hz - 10kHz; Vertical 20°, ±10°, 2kHz - 10kHz
- Low Frequency Cut Off: 300Hz
- Air Column Length: 5 feet
- Height: 21 1/4-Inch
- Width: 25 1/2-Inch
- Depth: 22-Inch
- Warranty Period: 60 months from date of purchase
