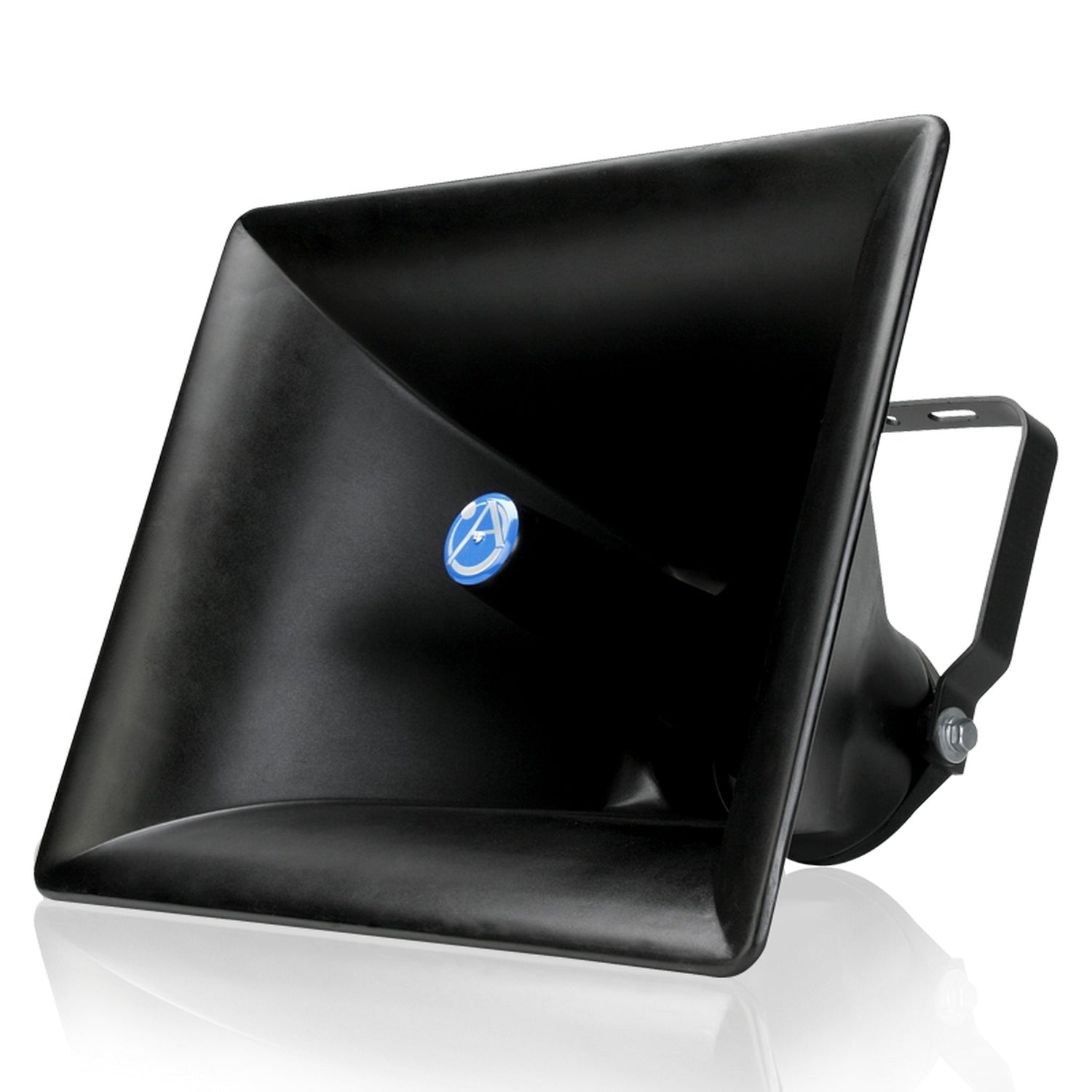

AtlasIED CD64 Constant Directivity Re-Entrant Paging Horn with 60‑Degree Horizontal and 40‑Degree Vertical Coverage
The AtlasIED CD64 is the industry’s only constant directivity re-entrant horn, delivering greatly improved uniform sound coverage compared to traditional conical horn designs. With a precisely controlled horizontal coverage pattern of 60‑Degree by 40‑Degree vertical dispersion, this horn ensures predictable beamwidth control, making it ideal for high-intelligibility voice and signaling in both indoor and outdoor environments.
Constructed from durable polyester resin and glass-fiber laminate integrally molded to a die-cast zinc throat section, the CD64 is built for rugged use and long-lasting performance. It features the proven CJ46 style heavy-duty steel mounting bracket with a positive locking mechanism for secure horizontal and vertical positioning, whether installed singly or in stacked multi-unit clusters. Compatible with all AtlasIED PD Series compression drivers via standard 1 3/8"-18 female threads, it offers flexible driver options including the PD30, PD-5, and PD60 series.
Key Features
- High-efficiency constant directivity, re-entrant horn design
- Popular coverage patterns to accommodate most applications
- Vertical beamwidth control down to 1000Hz
- Heavy-duty positive locking steel mounting bracket for secure positioning
- Environment-resistant construction suitable for indoor and outdoor use
- Equipped with standard 1 3/8"-18 female threads compatible with all PD Series drivers
Technical Specifications
- SPL (1W/1M) with PD60 Driver: 112dB
- Low Frequency Cutoff: 300Hz
- Air Column Length: 4.5 feet
- Dispersion: Horizontal 60‑Degree, ±10‑Degree (600Hz - 6kHz); Vertical 40‑Degree, ±10‑Degree (1000Hz - 7kHz)
- Height: 18 1/4‑Inch (463mm)
- Length: 15‑Inch (380mm)
- Width: 22 3/4‑Inch (578mm)
- Warranty Period: 60 months from date of purchase
