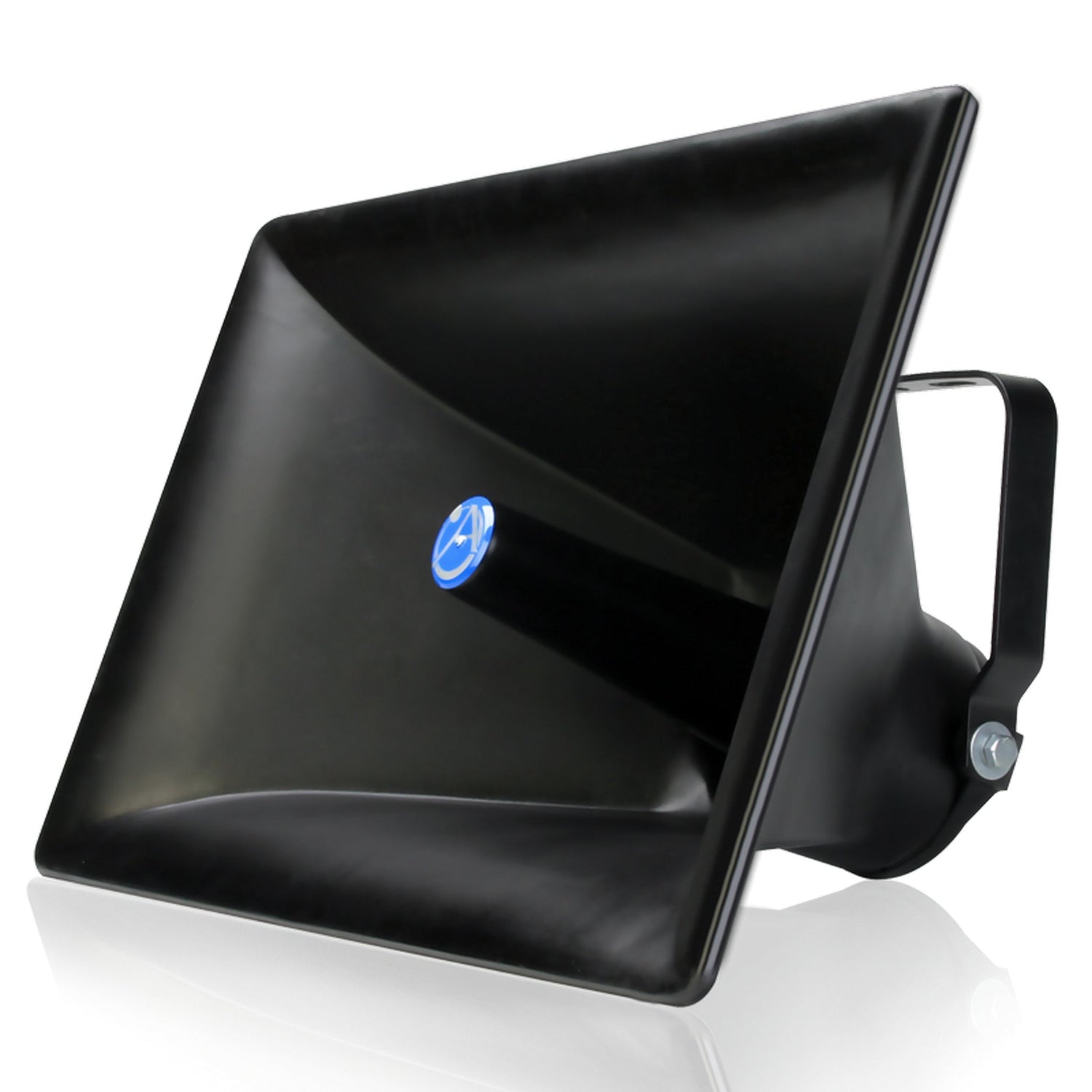

AtlasIED CD94 Constant Directivity Re-Entrant Paging Horn with 90‑Degree Horizontal and 40‑Degree Vertical Coverage
The AtlasIED CD94 Constant Directivity Re-Entrant Paging Horn delivers superior sound coverage with a 90‑Degree horizontal and 40‑Degree vertical dispersion pattern. Designed for clear and intelligible audio in environments like transportation hubs, industrial facilities, and large public spaces, it ensures predictable beamwidth control and high efficiency.
Constructed from durable polyester resin and glass-fiber laminate, the CD94 is built to withstand indoor and outdoor conditions. It features a heavy-duty positive locking steel mounting bracket for secure and flexible positioning. Compatible with all AtlasIED PD Series drivers, it offers versatile integration options for paging and public address systems.
Ideal for upgrading or designing new audio systems, the CD94 provides a reliable, high-performance solution for paging and signaling applications that require focused and consistent sound coverage.
Key Features
- High efficiency constant directivity re-entrant horn design
- 90‑Degree horizontal and 40‑Degree vertical dispersion, ±10‑Degree
- Vertical beamwidth control down to 1000Hz
- Heavy-duty positive locking steel mounting bracket for secure positioning
- Environment-resistant construction for indoor/outdoor use
- Equipped with standard 1 3/8"-18 female threads for use with all PD Series drivers
Technical Specifications
- Dispersion: Horizontal 90‑Degree, ±10‑Degree (900Hz - 6kHz); Vertical 40‑Degree, ±10‑Degree (1000Hz - 10kHz)
- Low Frequency Cutoff: 300Hz
- SPL (1W/1M) with PD60 Driver: 110dB
- Height: 18 1/4‑Inch (463mm)
- Width: 28 1/4‑Inch (718mm)
- Length: 15‑Inch (380mm)
- Weight: 16 lbs (7.26 kg)
- Warranty Period: 60 months from date of purchase
What’s in the Box
- AtlasIED CD94 Constant Directivity Re-Entrant Paging Horn
- Heavy-duty steel mounting bracket
- Installation hardware
