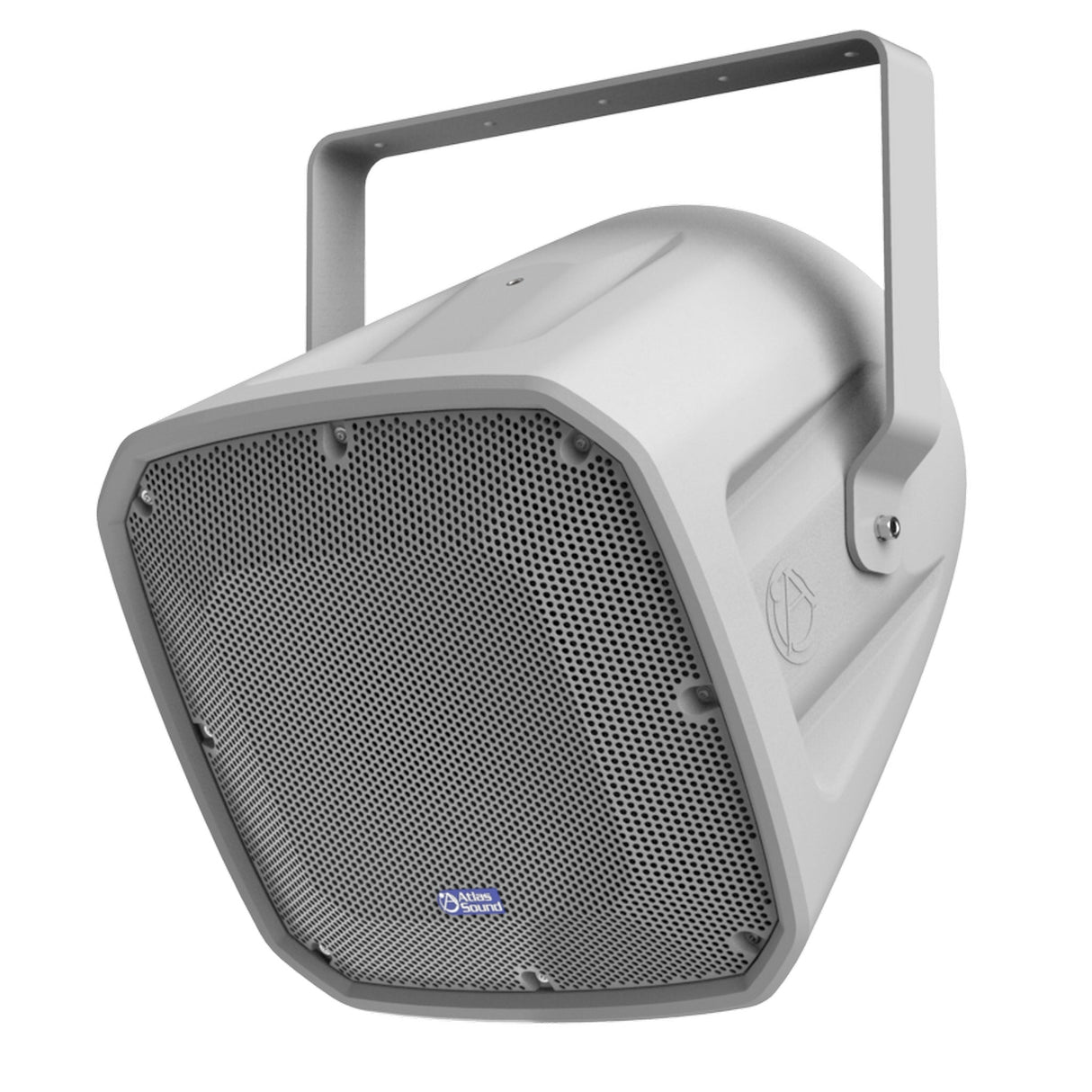

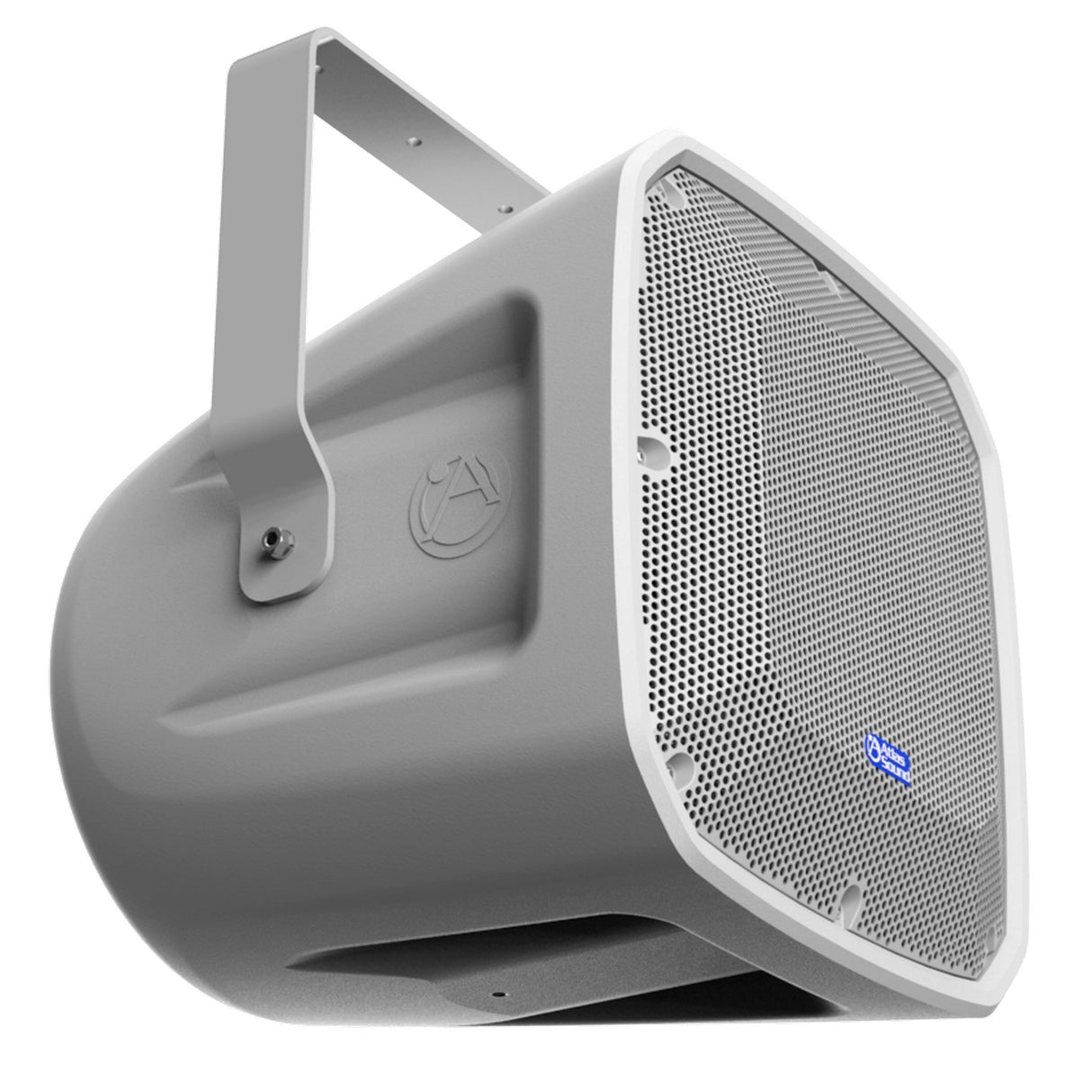

AtlasIED FS12TEN Series 12-Inch 2-Way Multipurpose Horn Speaker, EN54-24 Certified
The AtlasIED FS12TEN Series offers high-performance, all-weather loudspeakers certified to EN54-24 standards for voice evacuation and music playback in outdoor and harsh environments. Available in 60° x 60° and 90° x 90° coverage models, these two-way full-range systems feature a 12" LF driver and a 1" exit HF compression driver mounted coaxially for uniform directivity and exceptional clarity.

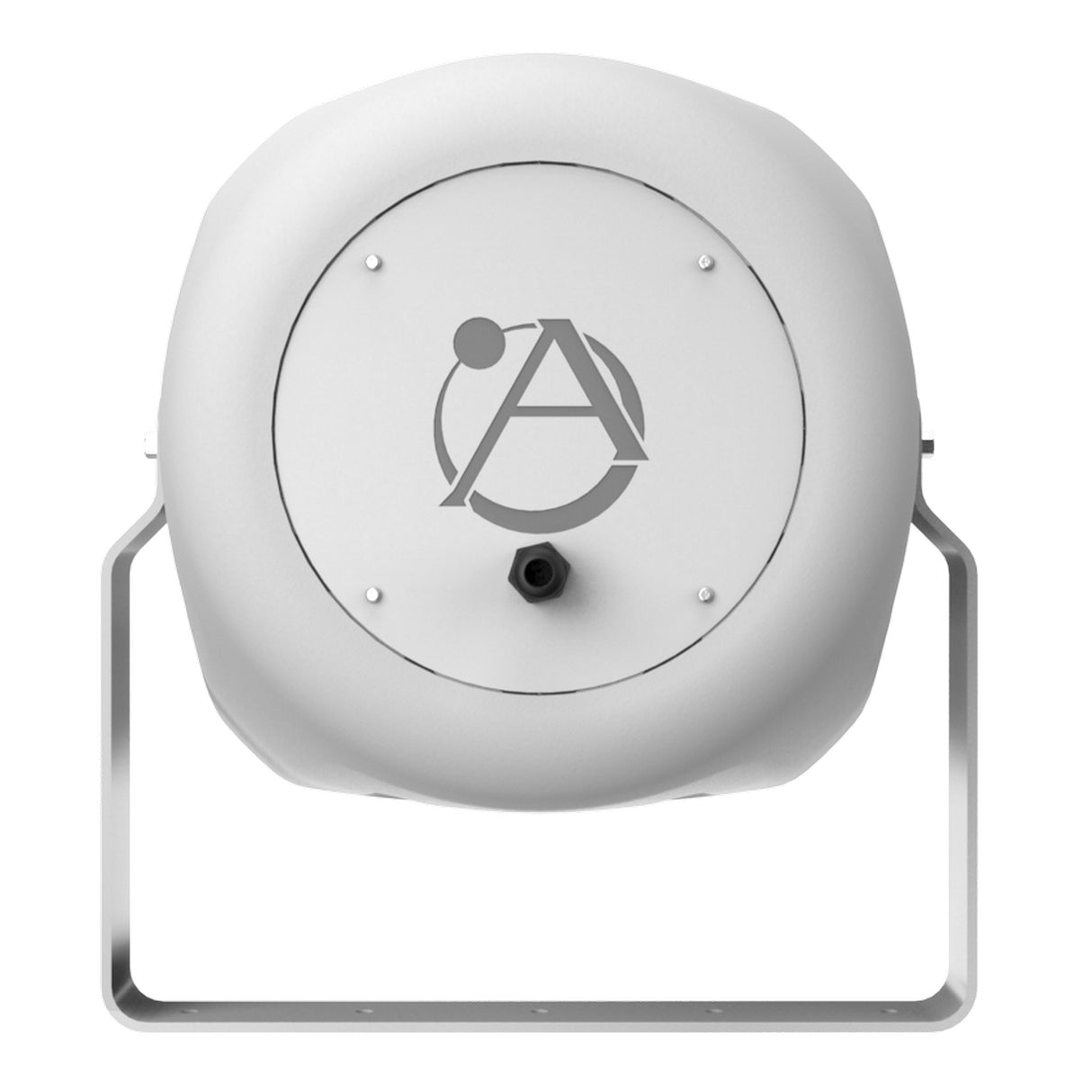

The enclosure is crafted from durable molded linear low-density polyethylene (LLDPE), offering strength without excessive weight. Each model includes a stainless steel U-bracket, four eyebolt fly points, and a built-in 400W transformer with low insertion loss and 4Ω bypass. A rear cover shields the terminal block and transformer connections for weather resistance, while the UV-resistant grey finish ensures long-term appearance and durability.
Key Features
- Weather Resistant: IP33C rated for harsh environments
- High Output: Up to 400W power taps with full frequency response
- Built-In Transformer: 70.7V/100V operation with 4Ω bypass
- Rugged Construction: Molded LLDPE enclosure with stainless steel hardware
- Field-Serviceable: Replaceable transducers without removing enclosure
- Certified: EN54-24 and ISO 7240-24 approved
Technical Specifications
- Driver Configuration: 12" LF / 1" HF coaxial
- Dimensions: 19.56 x 18.5 x 18.5 inches (497 x 470 x 470 mm)
- Weight: 48 lbs (21.77 kg)
- Power Taps: 400, 200, 100, 50W + 4Ω bypass
- Ingress Protection: IP33C (when tilted ≥ 15° downward)
- Color: Pantone 423 C (RAL 7045)
Available Variations
- FS12TEN-66: 60° x 60° dispersion, 86dB SPL sensitivity, 108.6dB max SPL
- FS12TEN-99: 90° x 90° dispersion, 84.5dB SPL sensitivity, 106.8dB max SPL
