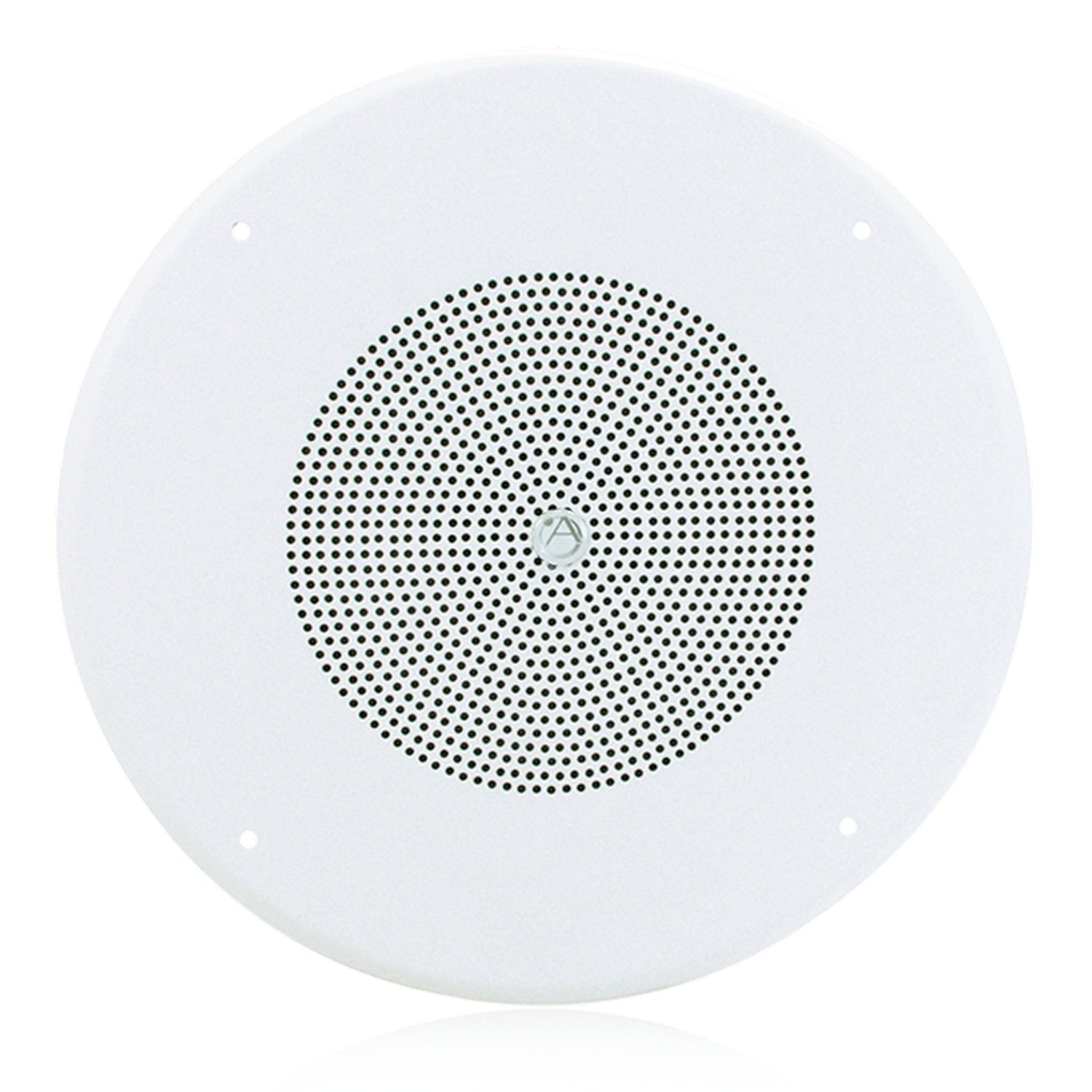

AtlasIED GD87 Series 8-Inch Coaxial In-Ceiling Speaker with Transformer, Baffle and Hardware Kit Option Available
The AtlasIED GD87 and GD87W are high-performance 8″ coaxial in-ceiling speakers engineered for professional commercial installations. These models match the sonic profile of the legacy C803A speaker, making them ideal for system expansions where uniform sound is essential.

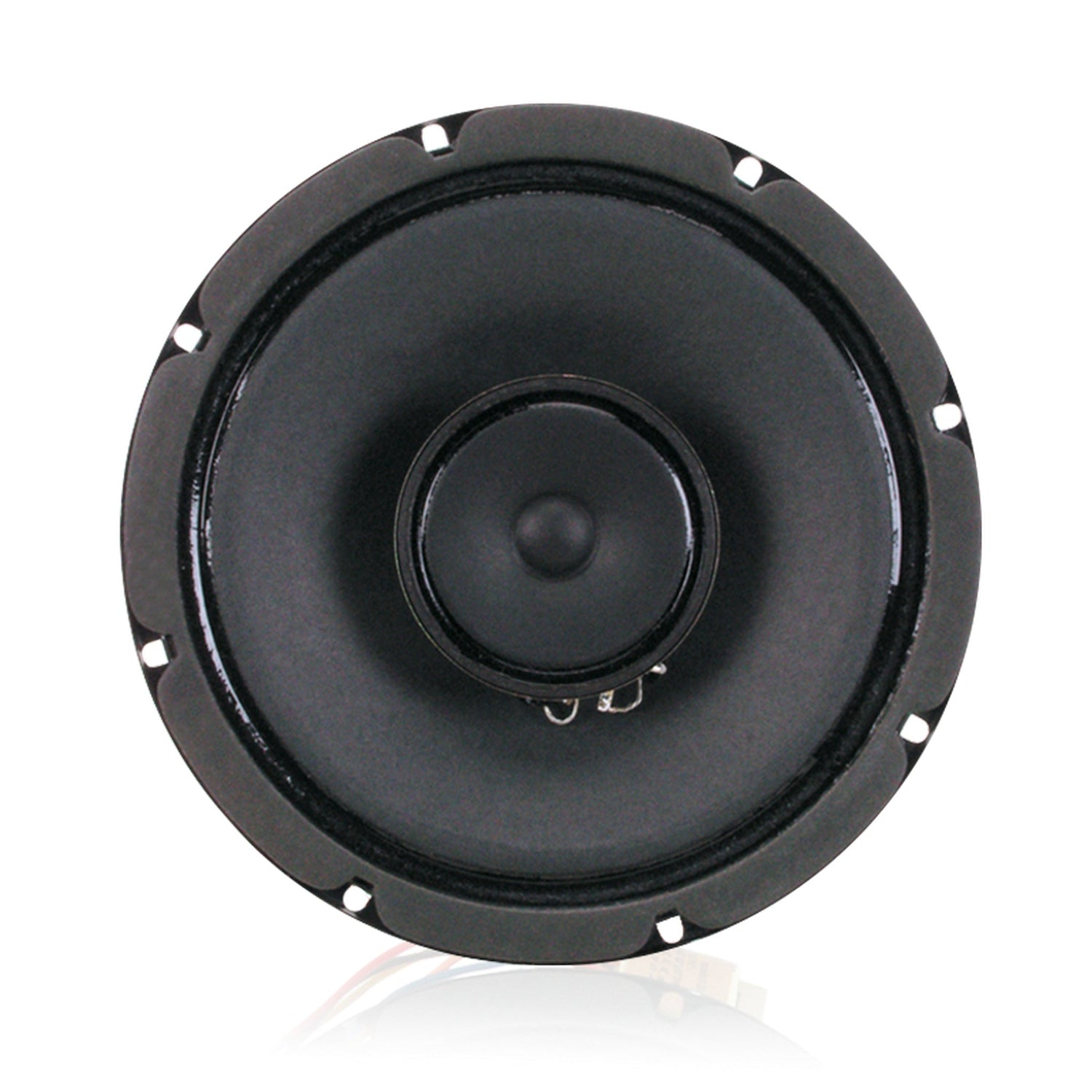

Each speaker features a durable post-mounted 3″ tweeter paired with a treated paper 8″ woofer. With wide 105° dispersion and 96 dB sensitivity, the GD87 series provides excellent clarity for paging, background music, and general-purpose applications in schools, offices, and retail spaces.
Key Features
- Coaxial driver design: Combines 8″ woofer and 3″ tweeter with crossover for smooth, full-range response

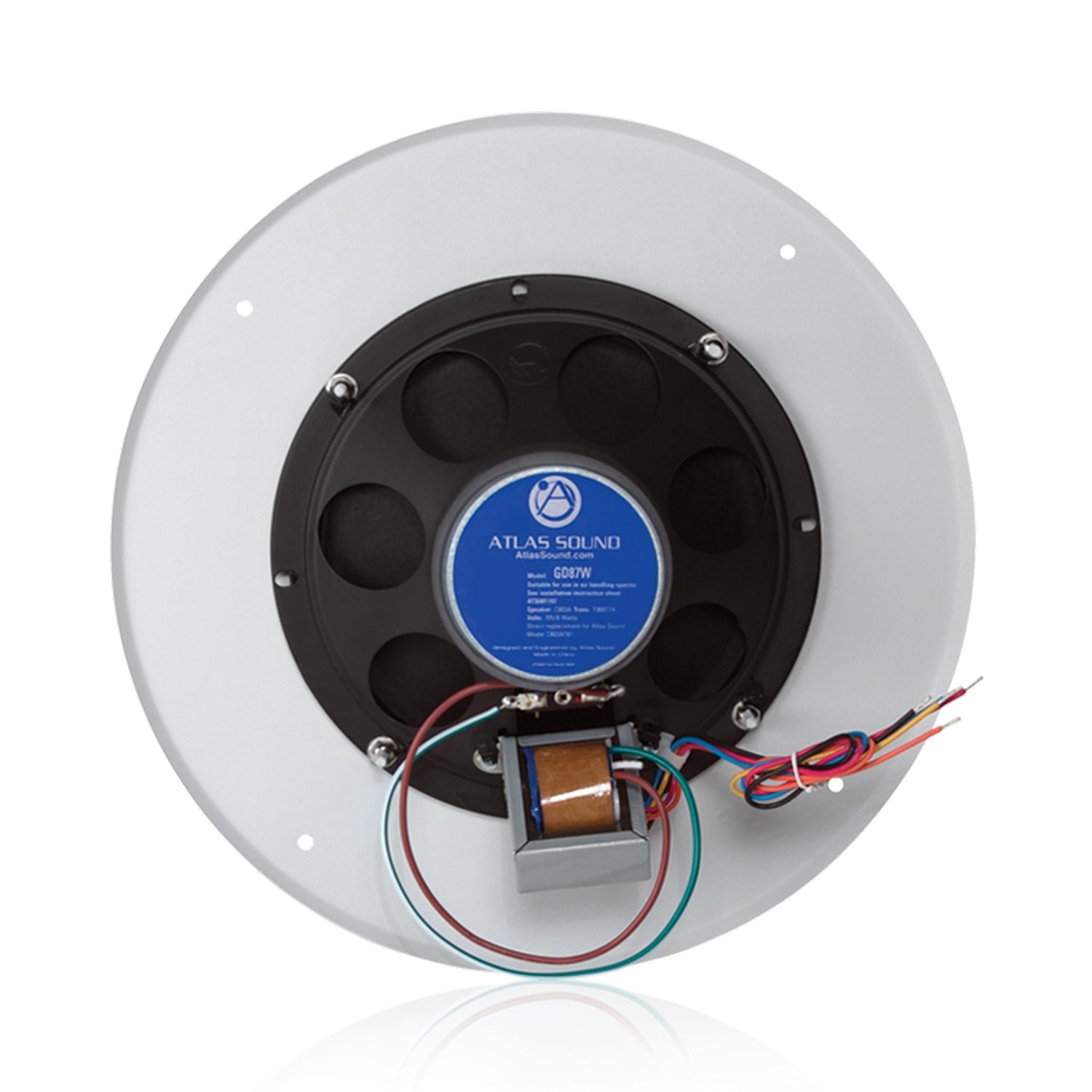

- 70.7V transformer: 8W transformer with taps at 1, 2, 4, and 8 watts for flexible audio distribution
- Wide frequency response: Covers 50 Hz – 15 kHz (GD87W) and 55 Hz – 15 kHz (GD87)
- UL safety listed: Complies with UL 1480 and UL 2043 for plenum-rated installations
Technical Specifications
- Model: GD87 / GD87W
- Dimensions: 8.1 x 8.1 x 3.5 inches (206 x 206 x 89 mm)
- Power Taps: 1, 2, 4, 8 watts @ 70.7V
- Frequency Response: 55 Hz – 15 kHz (GD87), 50 Hz – 15 kHz (GD87W)
- Sensitivity: 96 dB (1W/1m)
- Dispersion: 105° (2 kHz octave band)
What's in the Box
- GD87: 8″ coaxial speaker with transformer
- GD87W: Speaker with 62-8 white baffle and hardware kit
- Installation instructions
