Condition: New
Description

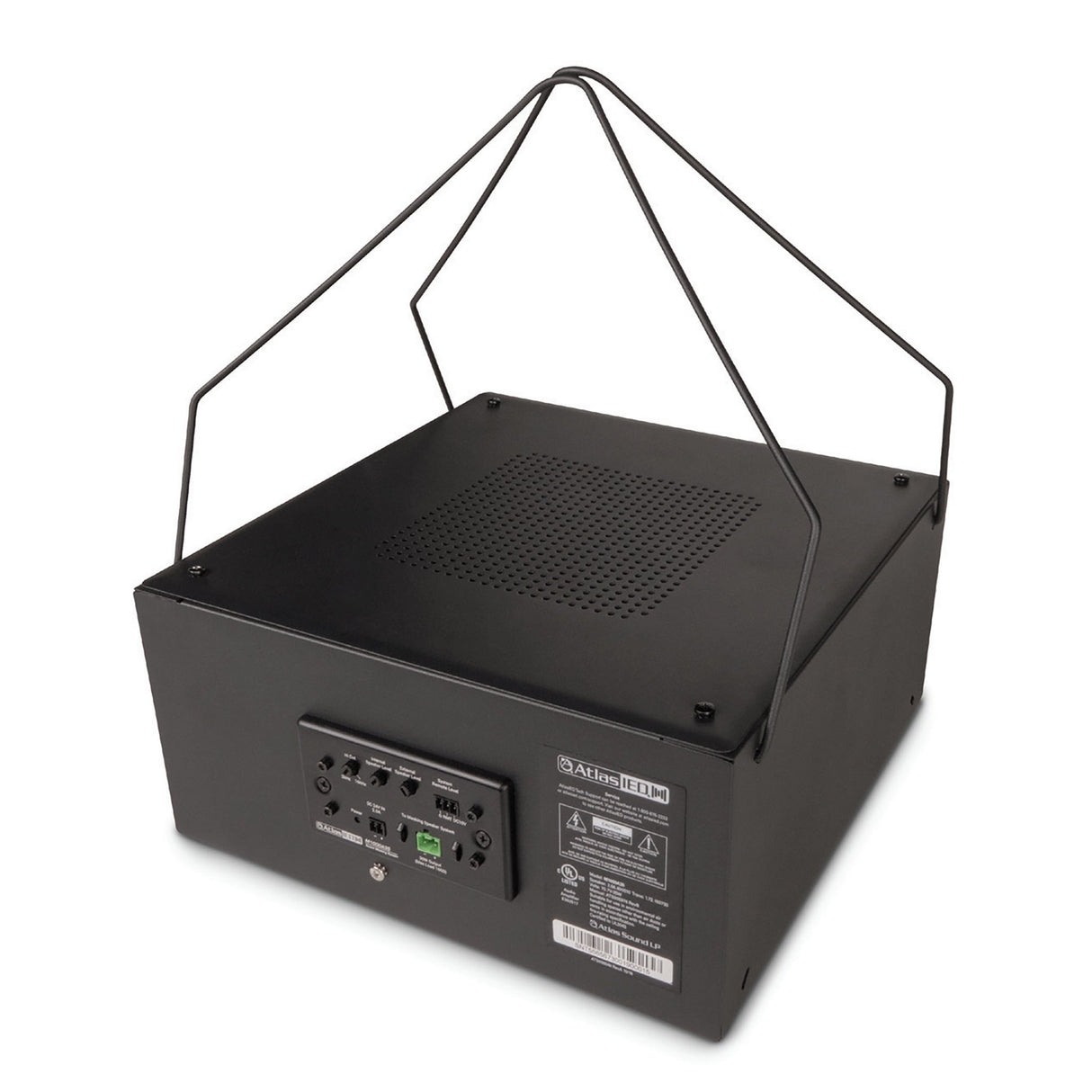

AtlasIED M1000A35 8-Inch Powered Active Sound Masking System
The AtlasIED M1000A35 is a self-contained, 8″ powered speaker specifically engineered for active sound masking—boosting speech privacy and acoustic comfort in open-plan offices and meeting spaces. Equipped with an internal 5 W Class-D amplifier and a 30 W output to drive additional passive masking speakers, it delivers tailored pink noise across wide areas.
Designed for practicality and code compliance, the unit is UL2043 plenum-rated, includes a hi‑cut filter for customizing frequency response, and features a VCA remote-level control port. Its compact 12″ × 12″ × 6″ enclosure with suspension brackets and external 24 VDC power supply simplifies installation and system tuning.
Key Features
- Speaker: 8″ wide-range driver (80 Hz–16 kHz)
- Amplifiers: 5 W internal + 30 W line output
- Sound Masking: Non‑repeatable pink-noise with adjustable hi‑cut EQ
- Remote Control: VCA port for external level adjust (e.g., ATMASKSC)
- Plenum Rated: Meets UL2043 for ceiling/air space use
- Mounting: Two removable hanger brackets; single-point suspension
- Power Supply: Included UL‑rated 24 VDC inline PSU
Technical Specifications
- Dimensions: 12″ W × 12″ D × 6″ H (30.5 × 30.5 × 15.2 cm)
- Frequency Response: 80 Hz–16 kHz
- Sensitivity: 97 dB peak / 94 dB avg
- Internal Amp Power: 5 W Class‑D
- External Amp Output: 30 W to drive passive speakers
- Coverage: Up to 225 ft² per unit; expandable to 12,000 ft² with satellites
- Tap Settings: 0.25/0.5/1/2/4 W at 70.7 V line
- Housing: Metal, plenum-rated
- Power Input: 24 VDC via included PSU
- Controls: Separate gain knobs for internal/external amps
- Warranty: 5 years

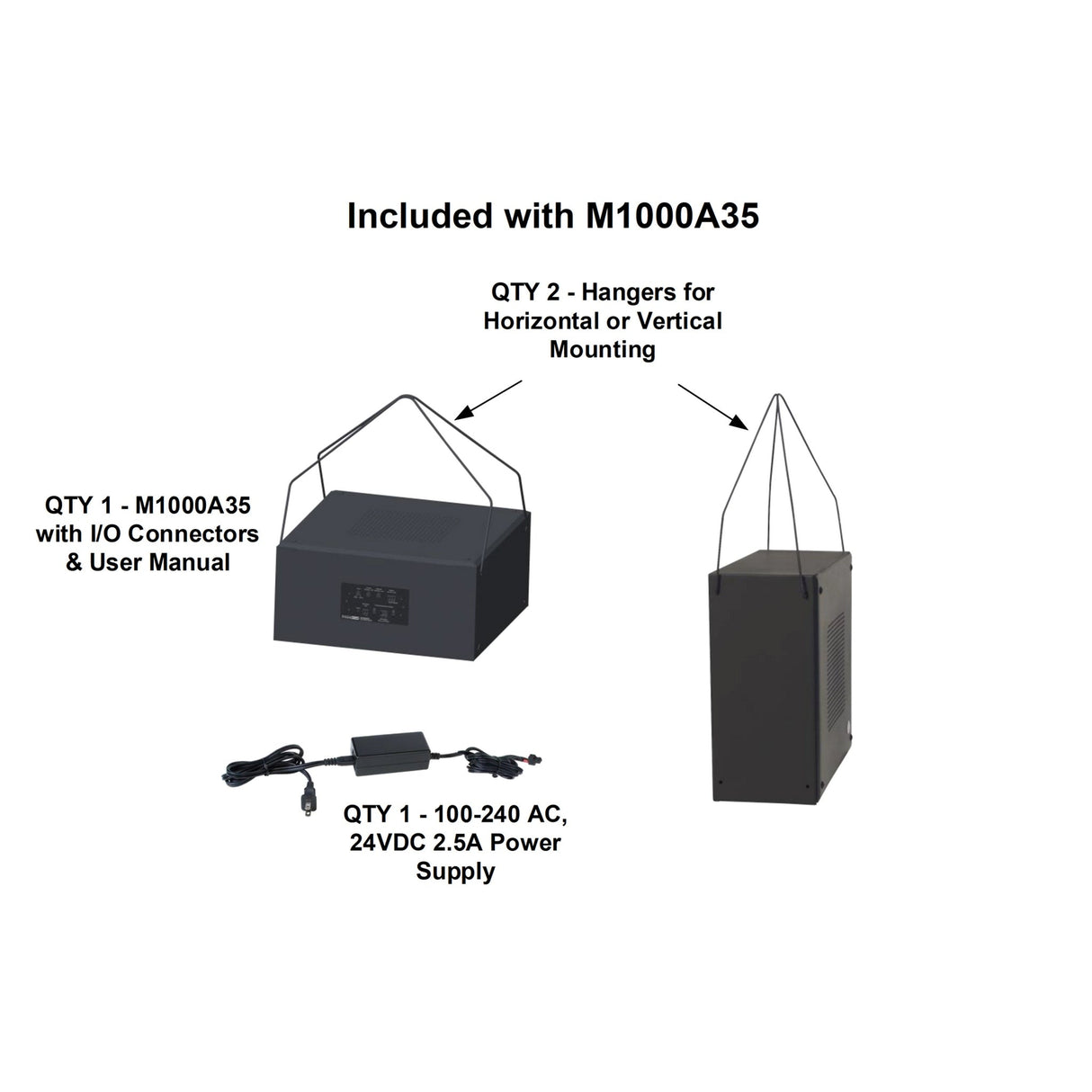

What’s Included
- AtlasIED M1000A35 unit
- 24 VDC inline UL-rated power supply
- 2 × removable suspension handles
- Removable grille
