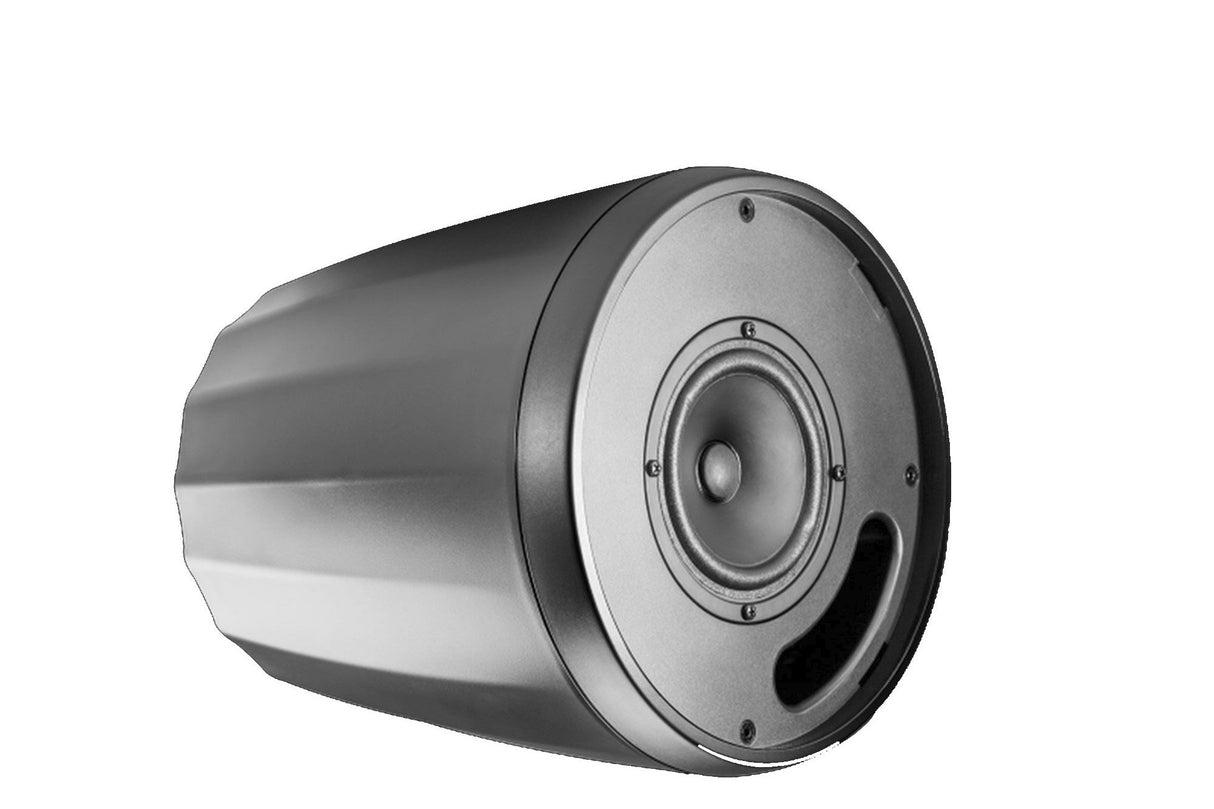

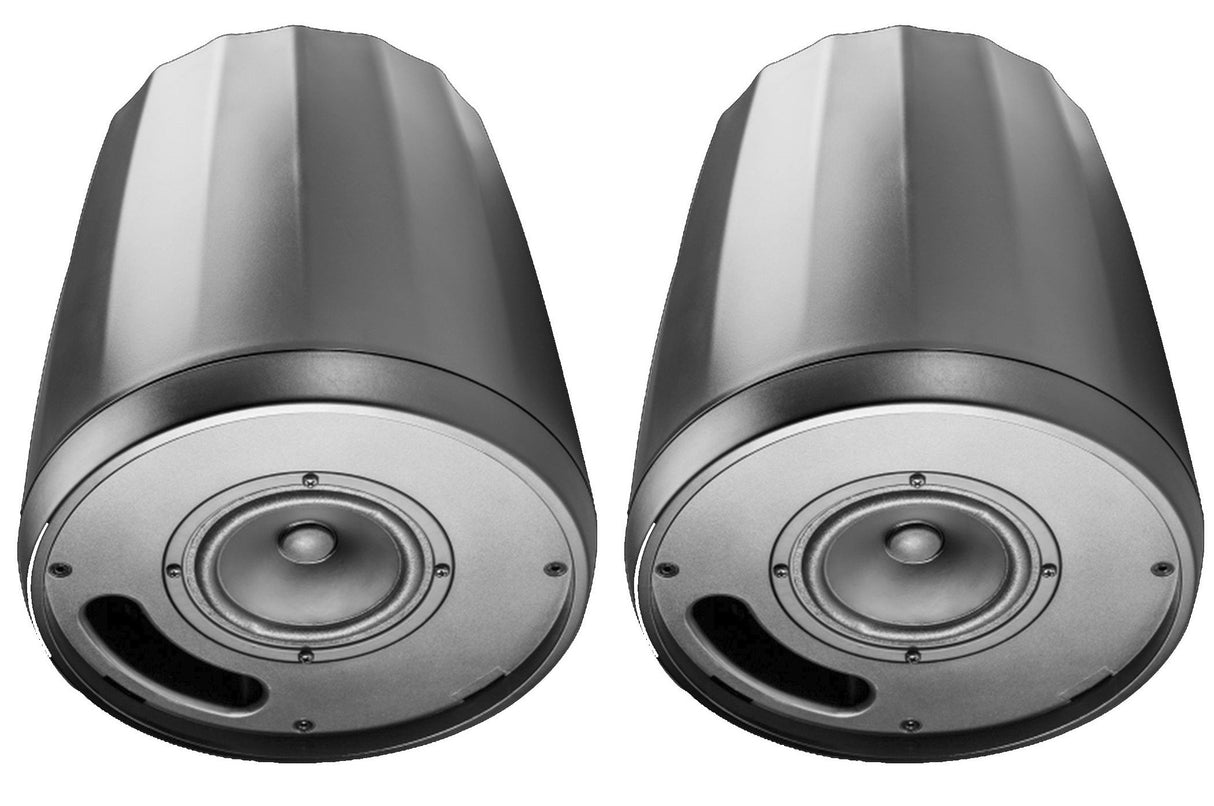

JBL C64P/T Compact Full Range Pendant Loudspeaker Black Pair

JBL C64P/T | Compact Full Range Pendant Loudspeaker Black Pair

The JBL C64P/T is a top-tier, compact full-range pendant loudspeaker designed to deliver superior audio performance in spaces with open architecture ceilings. With an elegant and unobtrusive design, these speakers seamlessly integrate into any environment while providing exceptional sound quality. Ideal for facilities that require a sleek aesthetic without sacrificing audio fidelity, the C64P/T is available in both black and white color options, ensuring a perfect match for your space.

Equipped with a 100 mm (4 in) full-range driver featuring a polypropylene-coated cone and a high-temperature voice coil, the C64P/T provides robust and dynamic sound reproduction. Users can anticipate rich audio output with frequencies ranging from 65 Hz to 15 kHz, making these speakers suitable for a range of audio applications from background music to announcements. Installation is simplified with the included 4.5-meter galvanized steel cable and an easy-to-adjust clamp, allowing for flexible placement and secure hanging.

Beyond its sound and installation ease, the JBL C64P/T stands out with its high-impact polystyrene enclosure and robust zinc-plated steel grille, ensuring durability and longevity even in challenging environments. Rated with multiple safety certifications, these speakers are reliable and safe to use in various professional settings, be it commercial spaces, auditoriums, or retail outlets.

Key Features

• 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high-temperature voice coil
• Stylish and compact pendant design, available in black or white
• Includes hanging hardware with 4.5 meter (15 foot) galvanized steel cable and adjustable clamp
• UL listed for speaker and hanging cable system
• Supports 8 Ohm and 70V/100V operation for versatile connectivity

Specifications

• Frequency Response (-10 dB): 65 Hz - 15 kHz
• Frequency Response (+/-3 dB): 85 Hz - 14 kHz
• Power Rating: 100 W Continuous Program (2 hrs), 50 W (200 W peak), Continuous Pink Noise (2 hrs), 40 W (160 W peak) Continuous Pink Noise (100 hrs)
• Maximum Input Voltage: 18.2 V RMS (2 hrs), 36.4 V peak
• Nominal Sensitivity: 88 dB
• Nominal Coverage Angle: 120 degrees (averaged 1 kHz to 4 kHz)
• Directivity (Q): 6.2
• Directivity Index (DI): 7.3 dB (averaged 1 kHz - 16 kHz)
• Rated Maximum SPL @ 1 m: 105 dB continuous pink noise, 111 dB peak
• Rated Impedance: 8 OHM
• Transformer Taps: 70V: 30W, 15W, 7.5W & 3.7W, 100V: 30W, 15W, 7.5W
• Transformer Insertion Loss: 0.94 dB @ 3.7W, 0.89 dB @ 7.5W, 0.83 dB @ 15W, 0.94 dB @ 30W
• Driver: 100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
• Enclosure Material: High impact polystyrene
• Grille: Zinc-plated steel with powder-coat finish and foam backing
• Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splash-proof rating
• Termination: Two removable locking euro-block 2-pin connectors
• Suspension: Two suspension systems with 4.5 m (15 ft) galvanized-steel wire rope suspension cable and Gripple brand adjustable-height cable fasteners
• Safety Agency Ratings: UL1480, UL1876, UL1598, UL2239, TUV, and CSA Class 3426-01 & Class 3426-81
• Dimensions (L x W x H): 234 mm (9.3 in) diameter x 259 mm (10.2 in) height to the top of the cabinet, 279 mm (11.0 in) to the top of the suspension bracket
• Net Weight (each): 2.35 kg (5.2 lbs)
• Shipping Weight (pair): 6.07 kg (13.4 lbs)

Package Contents

• Two JBL C64P/T Compact Full Range Pendant Loudspeakers
• Two suspension cable systems
• Two 2-pin removable locking euro-block connectors
• Two rubber covers for euro-block connectors
• Optional MTC-PC60 top panel / terminal cover
