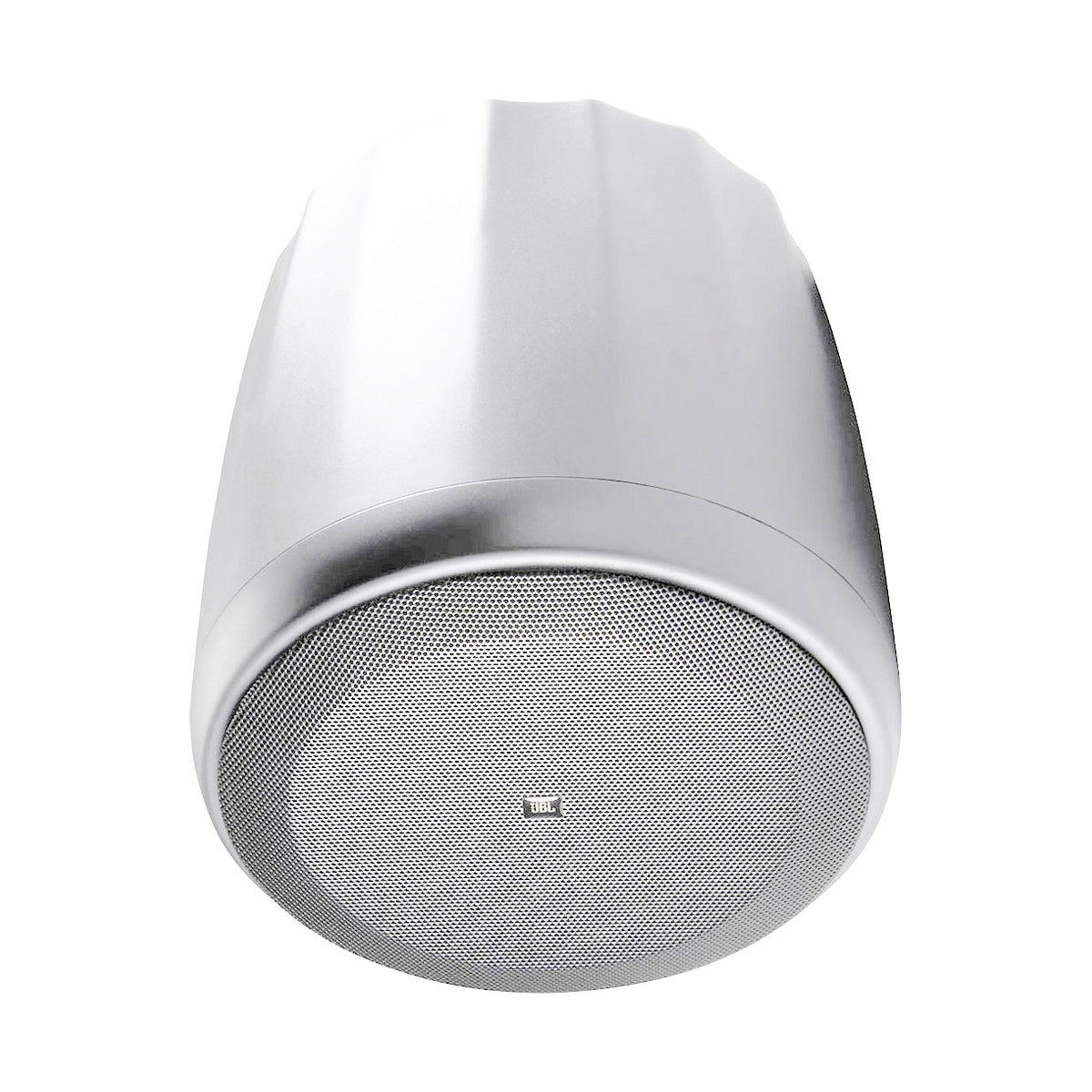

JBL C67HC/T-WH Control 67 HC/T Narrow 75 deg Coverage High Ceiling Pendant Speaker WHITE (pair)

JBL C67HC/T-WH | Control 67 HC/T Narrow 75 deg Coverage High Ceiling Pendant Speaker WHITE (pair)

The JBL C67HC/T-WH is a high-output, full-range, two-way pendant-type loudspeaker designed for optimum sound reproduction in spaces with open architecture ceilings. Ideal for high-ceiling venues and challenging acoustic environments, this speaker ensures consistent and narrow coverage, making it perfect for enhancing voice intelligibility and musical clarity. Its modern design and white finish make it a visually appealing addition to convention centers, transit hubs, exhibition venues, and hotel atriums.

Utilizing JBL's patent-pending Radiation Boundary Integrator (RBI) technology, this speaker promises uniformity in sound coverage across the listening area. The integration of an extra-large 295 mm (11.6 in) waveguide with low frequency projection apertures results in a seamless sonic experience. The coaxially-mounted drivers deliver a high-fidelity sound quality that is clear and consistent throughout the space. With a robust suspension system, installation is straightforward and secure, offering both primary and auxiliary hanging cables for added safety.

The JBL C67HC/T-WH features superior components, including a 165 mm (6-1/2 in) low-frequency driver with a polypropylene-coated cone and a 25 mm (1 in) high-frequency driver with a textile soft dome and neodymium magnet assembly. These elements work together to provide smooth extended response and powerful sound performance. Designed for versatility in various applications, it supports 70V/100V distributed loudspeaker lines and 8-ohm direct operation.

Key Features

• JBL's exclusive conical Radiation Boundary Integrator (RBI) technology for 75-degree coverage and clarity in high-ceiling and reverberant locations
• Coaxial design featuring 165 mm (6-1/2 in) woofer and 25 mm (1 in) soft-dome tweeter
• Extremely smooth frequency response and superb high-fidelity sound reproduction
• Hanging hardware with 4.5 m (15 feet) galvanized steel cable and easy to adjust clamp
• UL listed (speaker and hanging cable system)
• 8 ohm and 70V/100V operation

Specifications

• Frequency Response (-10 dB): 75 Hz - 17 kHz
• Frequency Range (±3 dB): 110 Hz - 16 kHz
• Power Capacity: 75 Watts Continuous Pink Noise Power, 150 Watts Continuous Program Power
• Nominal Sensitivity: 93 dB
• Nominal Coverage Angle: 75 degrees (+15 degrees/-20 degrees)
• Directivity (Q): 10.4
• Directivity Index (DI): 9.8 dB
• Rated Maximum SPL @ 1m: 112 dB continuous pink noise, 118 dB peak
• Rated Impedance: 8 ohms
• Transformer Taps: 70V: 60W, 30W, 15W, 7.5W; 100V: 60W, 30W, 15W
• Transformer Insertion Loss: 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
• Transducer LF Driver: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
• Transducer HF Driver: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
• Enclosure Material: High impact polystyrene
• Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV; IP44 capability per IEC 529 - splash proof rating
• Termination: Two removable locking euro-block 2-pin connectors with screw down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included
• Suspension: Two identical suspension systems (one as main suspension cable and the other as a safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb)
• Safety Agency Ratings: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV and CSA Class 3426-01 & Class 3426-81
• Color: White
• Dimensions: 333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet, 369 mm (14.5 in) to top of suspension bracket
• Weight: 5.9 kg / 13 lbs (each)

Package Contents

• 2 x JBL Control 67 HC/T Narrow 75° Coverage High Ceiling Pendant Speaker WHITE
• Hanging hardware including 4.5 m (15 feet) galvanized steel cable and easy-to-adjust clamp
• Rubber terminal covers for protected outdoor applications
• Documentation and user manual
