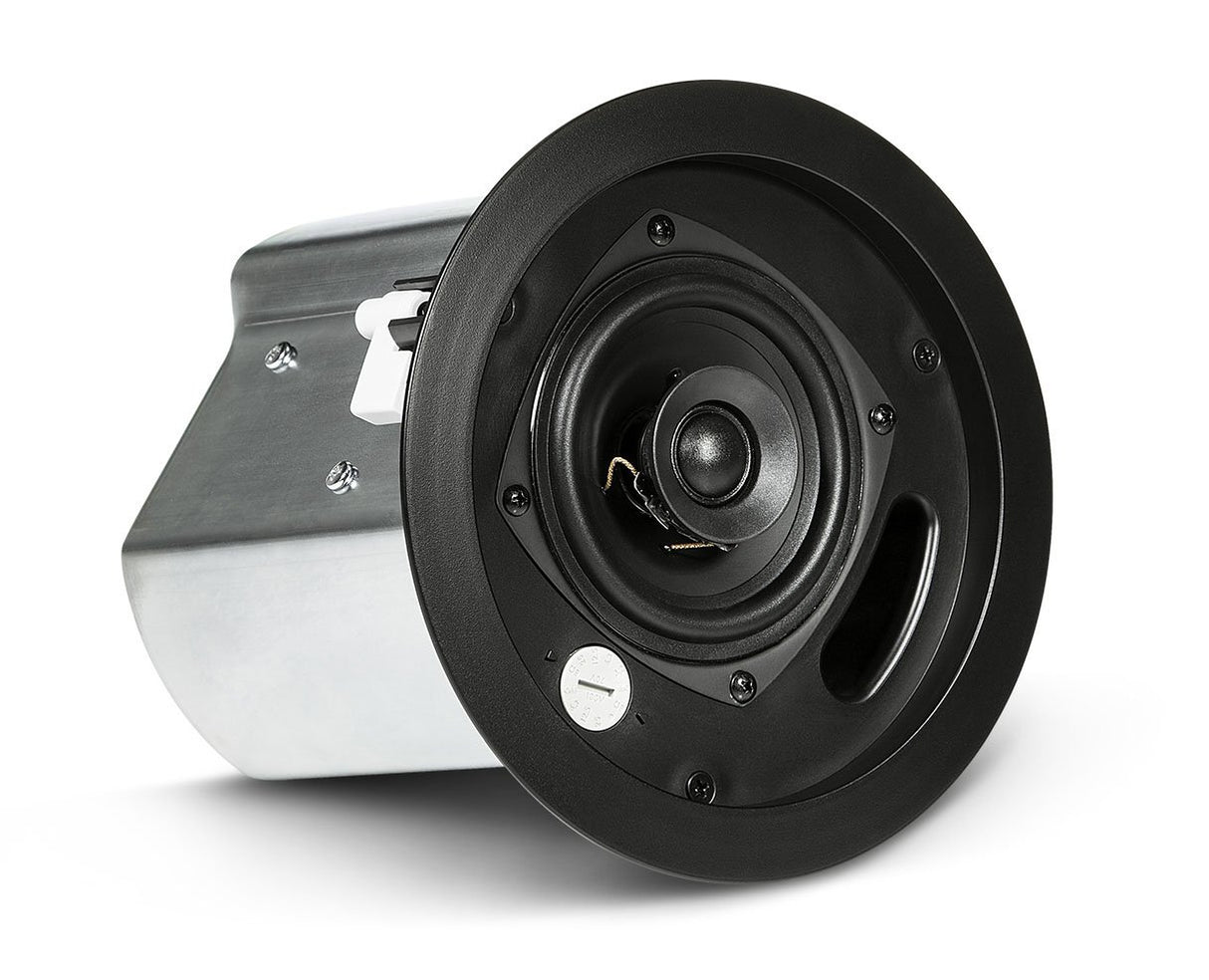

JBL CONTROL 14C/T-BK | 4 in Coaxial Ceiling Loudspeaker BLACK (pair)

The JBL CONTROL 14C/T-BK is a superior ceiling loudspeaker designed to deliver high-quality sound for both commercial and residential spaces. Equipped with a 100 mm (4 inch) high-tech cone driver and a 19 mm soft-dome liquid-cooled tweeter, this full-range speaker ensures exceptional audio fidelity and coverage. The unit is housed in a vented, paintable baffle made of UV-resistant UL94-V0 and UL94-5HB material, featuring a pre-attached blind-mount backcan for easy and efficient installation. Available in an elegant black finish, it's an ideal solution for any environment requiring top-tier sound quality.

This ceiling loudspeaker is engineered for versatility and durability. Its dual conduit/cable clamps make installation straightforward, while its adaptability for combined 70V/100V and low impedance direct operation further enhances its usability. With a sleek design that seamlessly integrates into any setting, the JBL CONTROL 14C/T-BK doesn't just provide powerful sound, but also adds a touch of sophistication to your space. Whether you are aiming for exceptional background music in a retail setting or crystal-clear sound in a conference room, this loudspeaker meets all professional requirements.

Key Features

• 100 mm (4 inch) high output driver with polypropylene cone and butyl rubber surround
• 19 mm (0.75 inch) soft-dome liquid-cooled tweeter
• Blind-mount backcan for quick and easy installation
• Dual conduit/cable clamps
• Combined 70V/100V and low impedance direct operation
• 30 Watts at 8 nominal setting, 25W multi-tap at 70V/100V
• 74 Hz - 20 kHz bandwidth with wide 120° coverage
• Available in black

Specifications

• Frequency Range (-10 dB): 74 Hz - 20 kHz
• Power Capacity (at low-Z): 60 Watts Continuous Program Power, 30 Watts Continuous Pink Noise
• Transformer Taps: 25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
• Frequency Response (±3 dB): 100 Hz - 20 kHz
• Nominal Sensitivity: 87 dB
• Nominal Coverage Angle: 120° conical coverage
• Directivity Factor (Q): 7.6
• Directivity Index (DI): 8.1 dB
• Rated Maximum SPL: 102 dB @ 1 m (3.3 ft) average, 108 dB peak
• Nominal Impedance: 8 ohms (in direct/bypass 8 setting)
• Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
• LF Driver: 100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
• HF Driver: 19 mm (3/4 inch), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide
• Input Connector: Removable locking 4-pin connector with screw-down terminals, max wire size 12 AWG (2.5 mm²)
• Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
• Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
• Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating, Zinc-plated steel backcan
• Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
• Dimensions: 196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)
• Ceiling Cutout Size: Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
• Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears, MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
• Safety Seismic Attachment: One point, top surface
• Color: Black
• Net Weight: 2.2 kg (4.8 lbs, one speaker)
• Shipping Weight: 8.2 kg (17.9 lbs, pair in master carton)

Package Contents

• C-ring support backing plate
• 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans)
• Cutout template
• Paint shield
• Removable locking multi-pin connector
• Grille
