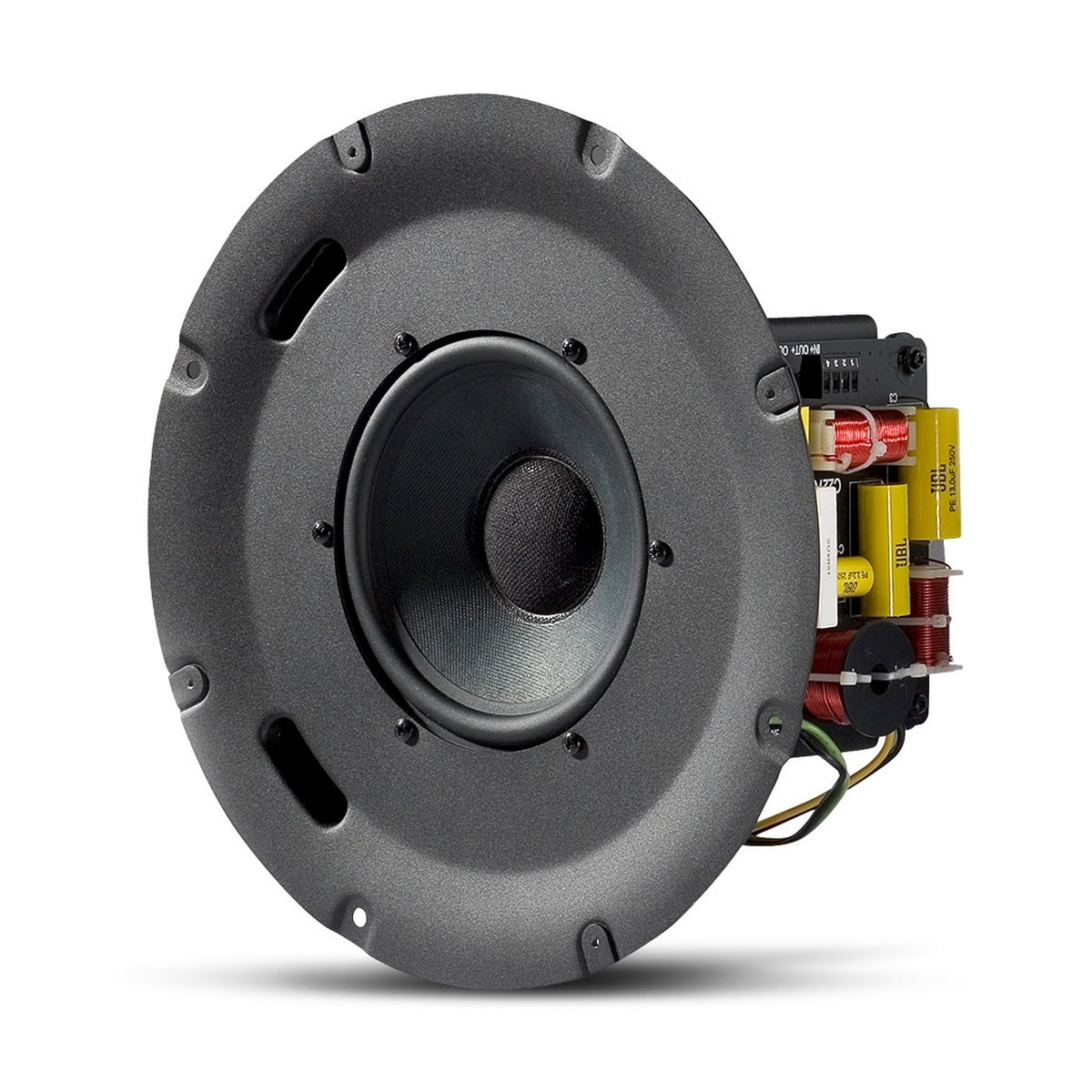

JBL CONTROL 227C 6.5inch Coaxial Ceiling Loudspeaker with HF Compression Driver Pair

JBL CONTROL 227C | 6.5inch Coaxial Ceiling Loudspeaker with HF Compression Driver Pair

The JBL Control 227C is a premium in-ceiling loudspeaker designed by JBL Professional for applications requiring superior quality sound. This state-of-the-art loudspeaker offers consistent 120° broadband pattern control to ensure exceptional coverage, making it perfect for both commercial and residential installations where uniform audio distribution is crucial. With its coaxial design featuring a Kevlar-reinforced 165 mm (6.5 in) woofer and a 25 mm (1 in) compression driver, this speaker provides extraordinary clarity for speech and vocals, and an extended frequency response that is ideal for music as well. Moreover, with a power handling capacity of 150 Watts, the JBL Control 227C is undoubtedly robust and reliable.

Further enhancing its capabilities is the advanced high-slope crossover network which ensures constant coverage and delivers a smooth, natural midrange. This level of detail and precision makes this loudspeaker stand out in its class, offering not only fantastic audio quality but also a sleek, contemporary design that is easy to install. While the separate back can and contemporary grille are sold separately, these additional accessories provide enhanced installation flexibility and aesthetic appeal.

Key Features

• Consistent 120° broadband pattern control for exceptional coverage.
• Coaxial design featuring: Kevlar-reinforced 165 mm (6.5 in) woofer and a 25 mm (1 in) compression driver.
• Extraordinary clarity for speech and vocals with extended frequency response for music.
• 150 Watts power handling capacity.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• Separate back can and contemporary grille available (sold separately).

Specifications

• Frequency Range (-10 dB): 43 Hz - 19 kHz
• Power Capacity: 150 W
• Sensitivity: 90 dB measured half-space, 95 dB computed for competitive comparison
• Coverage: 120 degrees
• Frequency Response (-3 dB): 75 Hz - 17 kHz
• Nominal Impedance: 8 ohms
• Low Frequency: 165 mm (6.5 in) Kevlar-reinforced cone
• High Frequency: 25 mm (1 in) exit compression driver
• Dimensions (H x Dia): Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
• Net Weight (each): 4.1 kg (9.0 lb)
• Shipping Weight (pair): 5.4 kg (12.0 lb)

Package Contents

• 2 x JBL Control 227C Loudspeakers
• User Manual
• Mounting Accessories
