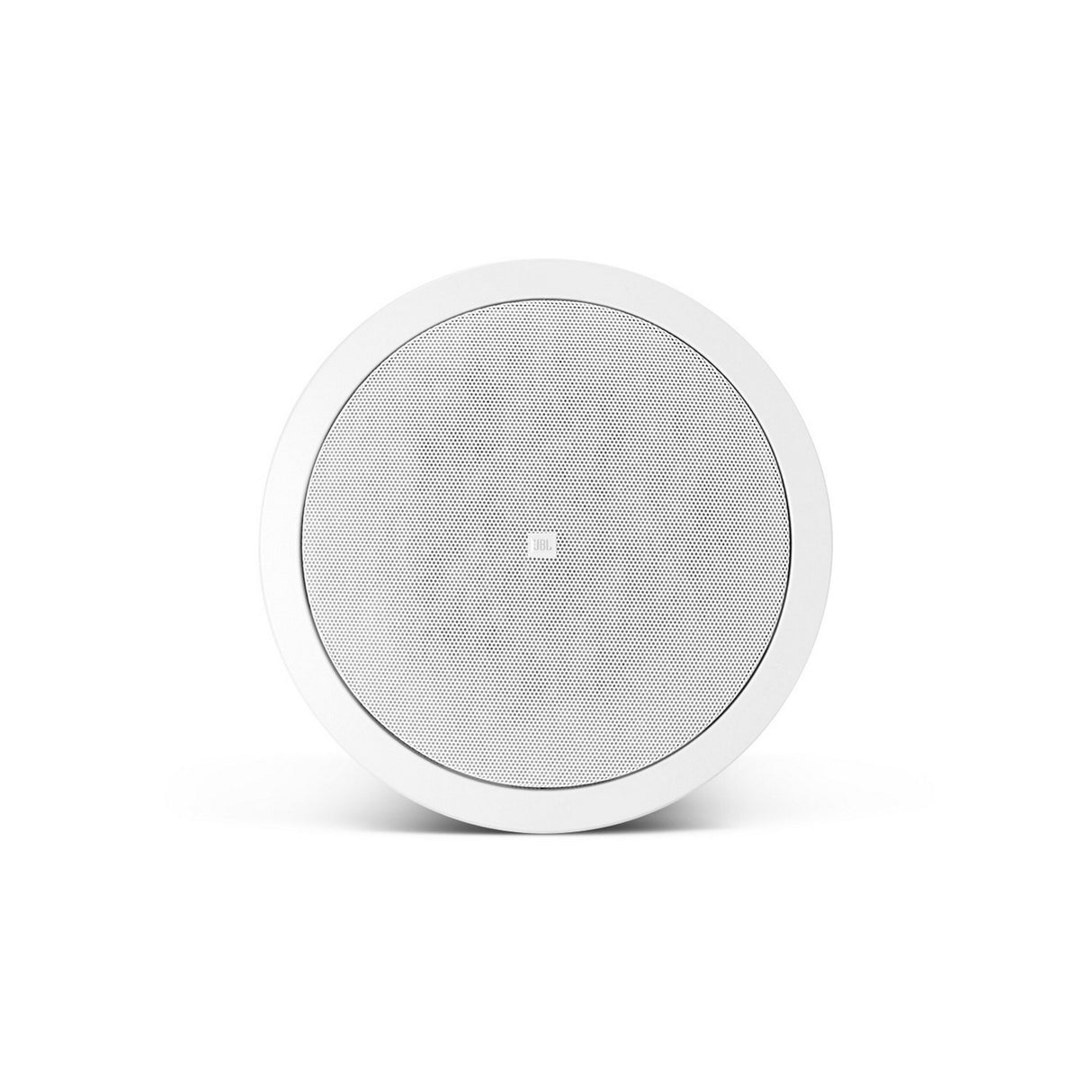

JBL Control 26C Ceiling Loudspeaker Transducer Assembly, 6.5-Inch, Pair

JBL Control 26C Ceiling Loudspeaker Transducer Assembly, 6.5-Inch, Pair

The JBL Control 26C is the definitive choice for high-performance ceiling loudspeakers, providing unparalleled audio quality for various commercial environments such as retail stores, restaurants, and conference rooms. Engineered with precision, this powerhouse ceiling speaker features a coaxially mounted 6.5-inch woofer and a 3/4-inch titanium-coated tweeter for superior sound levels and broad coverage. With JBL's exclusive SonicGuard overload protection, you'll benefit from higher operational levels and dependable system reliability, ensuring an exceptional listening experience.

Transform your space with sound by opting for the JBL Control 26C, designed for longevity and ease of installation. Packaged with a grille, backcan, and tile rails, this speaker’s setup is streamlined, making it dealer-friendly and user-friendly alike. Whether you aim to fill a room with crisp audio or need low distortion levels for high sound capabilities, the JBL Control 26C is your go-to solution for professional audio performance.

Key Features

• Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium-coated diffraction-loaded tweeter
• High power, wide frequency response, and low distortion for enhanced sound level capability
• JBL’s exclusive SonicGuard overload protection for higher operational levels and improved reliability
• Includes grille, backcan, and tile rails for swift and easy installation

Specifications

• Frequency Range: 75 Hz - 20 kHz
• Power Rating: 150 Watts Continuous Program Power, 75 Watts Continuous Pink Noise (150W peak), 100 hrs
• Nominal Sensitivity: 89 dB, 1m/1 W
• Coverage Angle: 110° conical
• Directivity Index (DI): 4.6 averaged 500 Hz to 4 KHz
• Impedance: 16 ohms
• Maximum SPL (1m): 107 dB (low-impedance, 113 dB peak)
• Drivers: LF Driver: 165 mm (6.5 in), HF Driver: 19 mm (¾ in)
• Terminations: Removable 4-pin locking connector with screw-down terminals
• Dimensions (H x Dia): 210 mm x 252 mm (8.3 in x 9.9 in)
• Net Weight (each): 2.7 kg (6 lbs)
• Shipping Weight (pair): 6.4 kg (15 lbs)
• Sensitivity: 89 dB (100 Hz - 10 kHz)
• Color: White
• Suitable for use in air handling spaces per UL1480, UL2043, NFPA90, and NFPA 70
• Backcan: Formed steel (included “blind-mount”)
• Baffle/Rim: Medium impact polystyrene, fire-rated UL94V-0
• Ceiling Cutout Size: 220 mm (8.75 in) diameter (cardboard cutout template included)
• Plenum Usage: Yes, backcan included

Package Contents

• Pair of JBL Control 26C Ceiling Loudspeakers
• Grille
• Backcan
• Tile rails
• C-shaped support backing plate
• Two tile support rails
• Cutout template
• Paint shield
• Removable locking wiring connector
