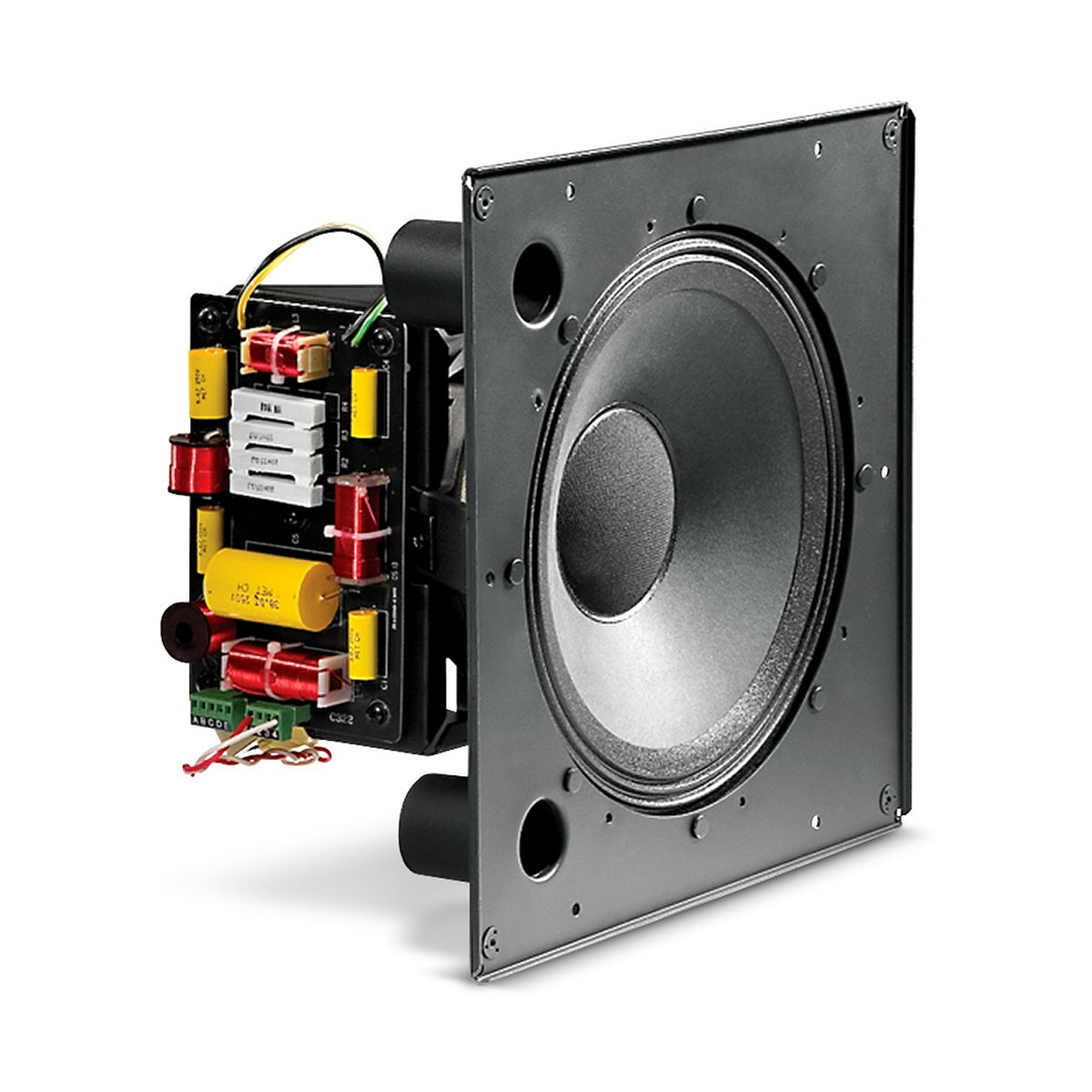

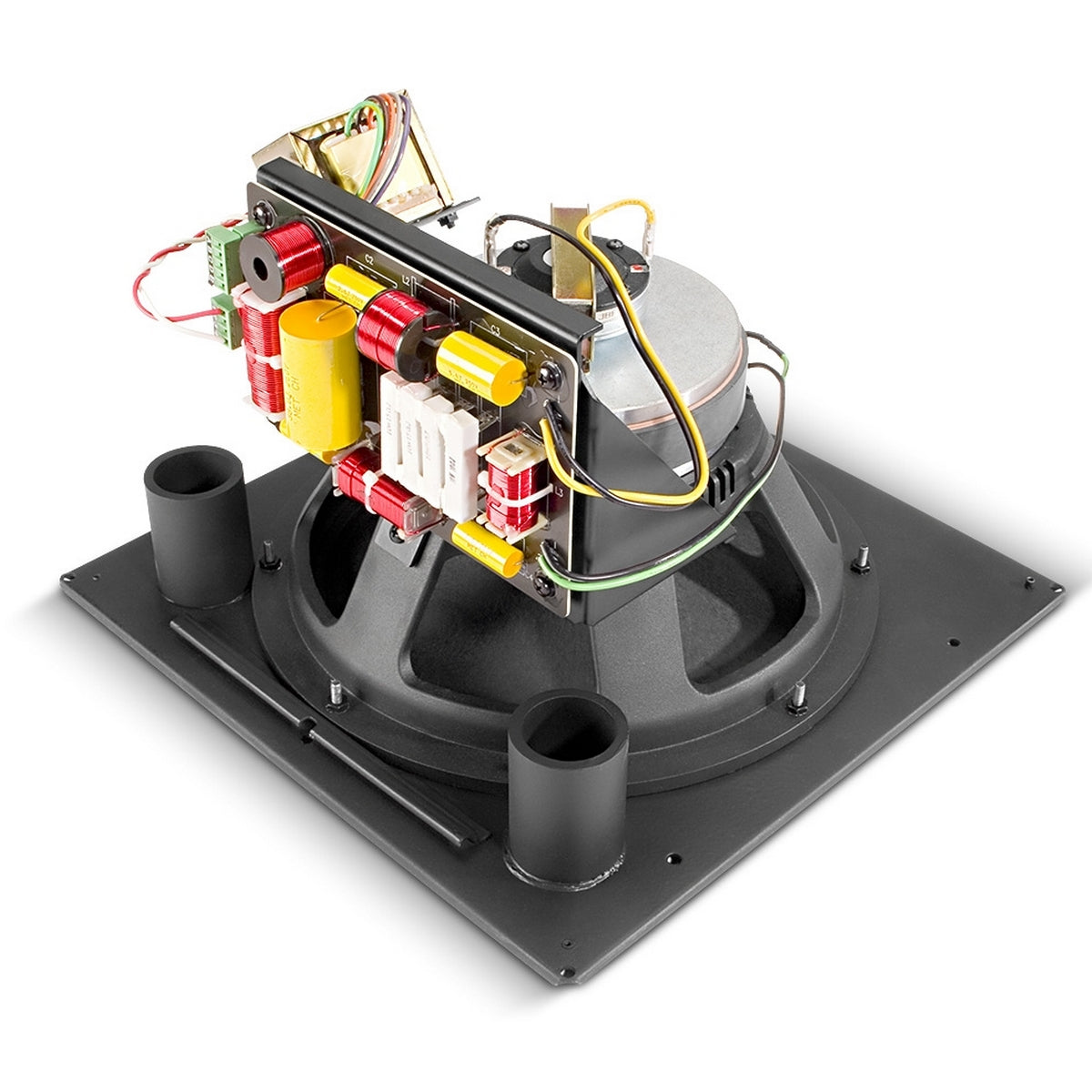

JBL CONTROL 322CT High Output 12inch Coaxial Ceiling Loudspeaker

JBL CONTROL 322CT | High Output 12inch Coaxial Ceiling Loudspeaker

The JBL Control 322CT High Output 12-inch Coaxial Ceiling Loudspeaker represents the pinnacle of audio engineering and design. Engineered for exceptional performance, this ceiling loudspeaker offers a sophisticated blend of phenomenal sound quality, versatile power handling, and modern aesthetics. Ideal for both speech and music applications, the 322CT’s extended frequency response and extraordinary clarity make it a top choice for commercial settings, schools, and large venues.

This loudspeaker features a Kevlar-reinforced 12-inch woofer coupled with a medium-format compression driver, ensuring robust and clear audio output across a wide range of frequencies. Its innovative, high-slope crossover network guarantees improved coverage and a smooth, natural midrange, enhancing the listening experience. The 322CT’s clean, contemporary design, paired with optional grille and backbox, seamlessly integrates into any ceiling, maintaining both form and function.

Designed with installers in mind, the JBL Control 322CT includes multiple tap settings for both 70V and 100V distributed systems, offering flexibility in power and sensitivity across various setups. With high SPL capabilities and consistent 90° broadband pattern control, this loudspeaker is sure to impress even the most discerning audiophiles and sound professionals.

Key Features

• Consistent 90° broadband pattern control
• 12-inch Kevlar-reinforced woofer with 3-inch voice-coil cone
• Medium-format compression driver
• Exceptional clarity for speech and vocal applications
• Extended frequency response for music
• 400 Watts power handling with high sensitivity for high SPL capability
• Advanced high-slope crossover network
• Modern, clean grille design with optional backbox

Specifications

• Frequency Range (-10 dB): 32 Hz – 20 kHz
• Long-Term System Power Rating: 400 W (1600 W peak) for 2 hours / 250 W (1000 W peak) for 100 hours
• Taps: 70V: 100W, 50W, 25W, 12.5W; 100V: 100W, 50W, 25W
• Frequency Response (±3 dB): 48 Hz – 19 kHz
• Coverage Pattern: 90° conical, broadband (Avg. 1k - 16kHz)
• Directivity Factor (Q): 9 (1k - 16kHz)
• Directivity Index (DI): 9.5 dB (1k - 16kHz)
• Sensitivity (2.83V@ 1m): 95 dB measured half-space
• Maximum SPL: 121 dB cont ave (124 dB peak)
• Dimensions (H x W x D): 366 x 366 mm (14.4 x 14.4 in) square baffle; depth from back of baffle of 240 mm (9.5 in)

Package Contents

• JBL Control 322CT Ceiling Loudspeaker
• Mounting Hardware
• User Manual
