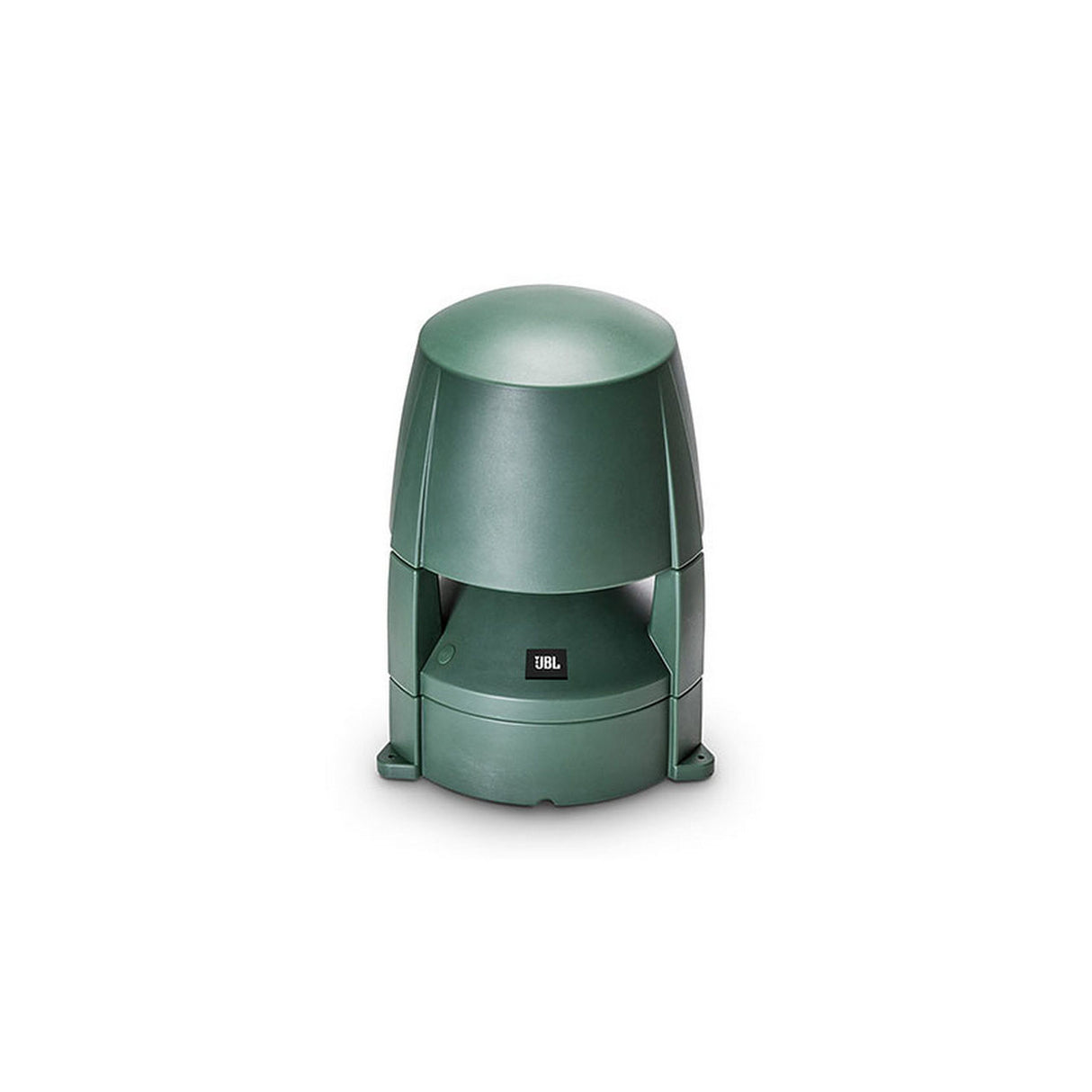

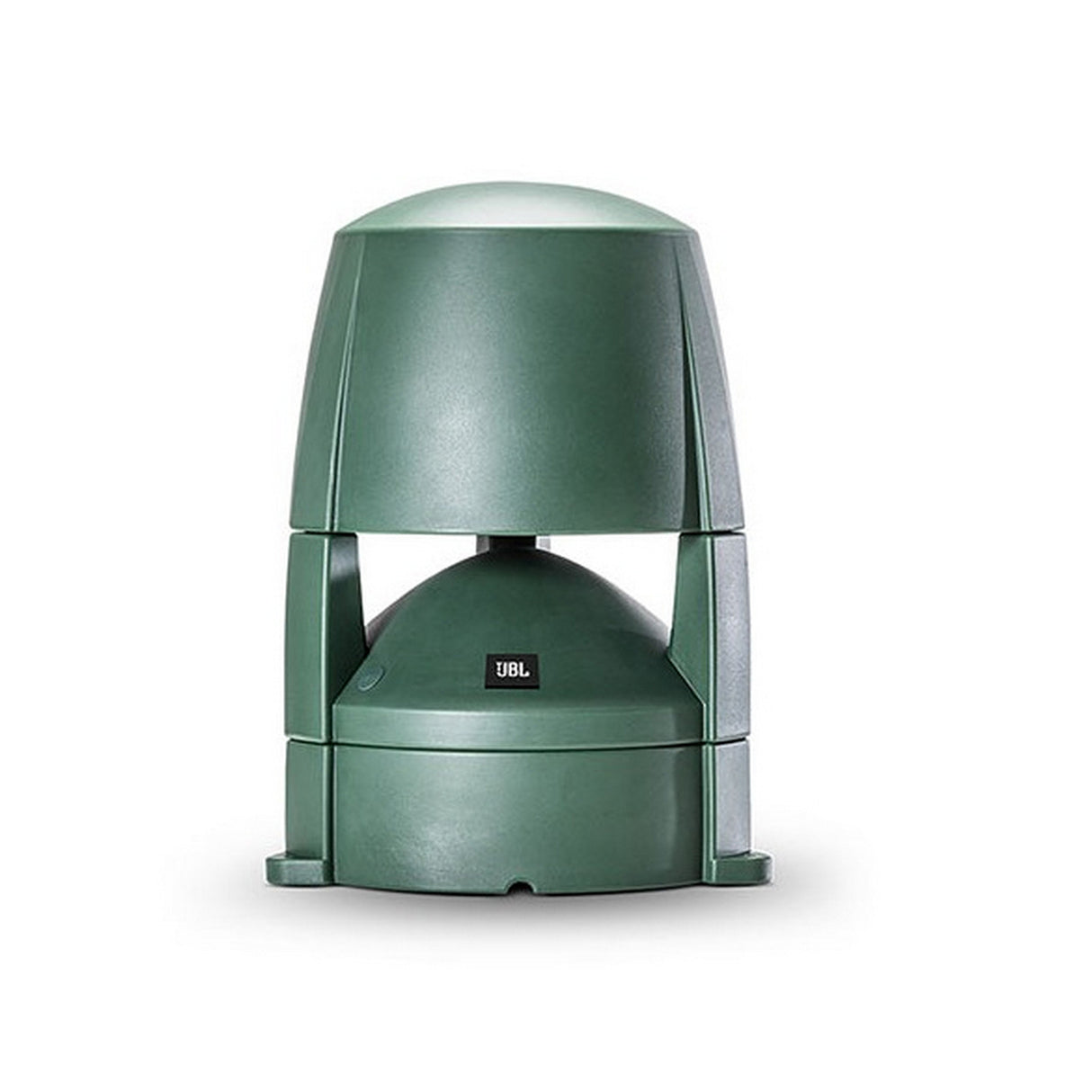

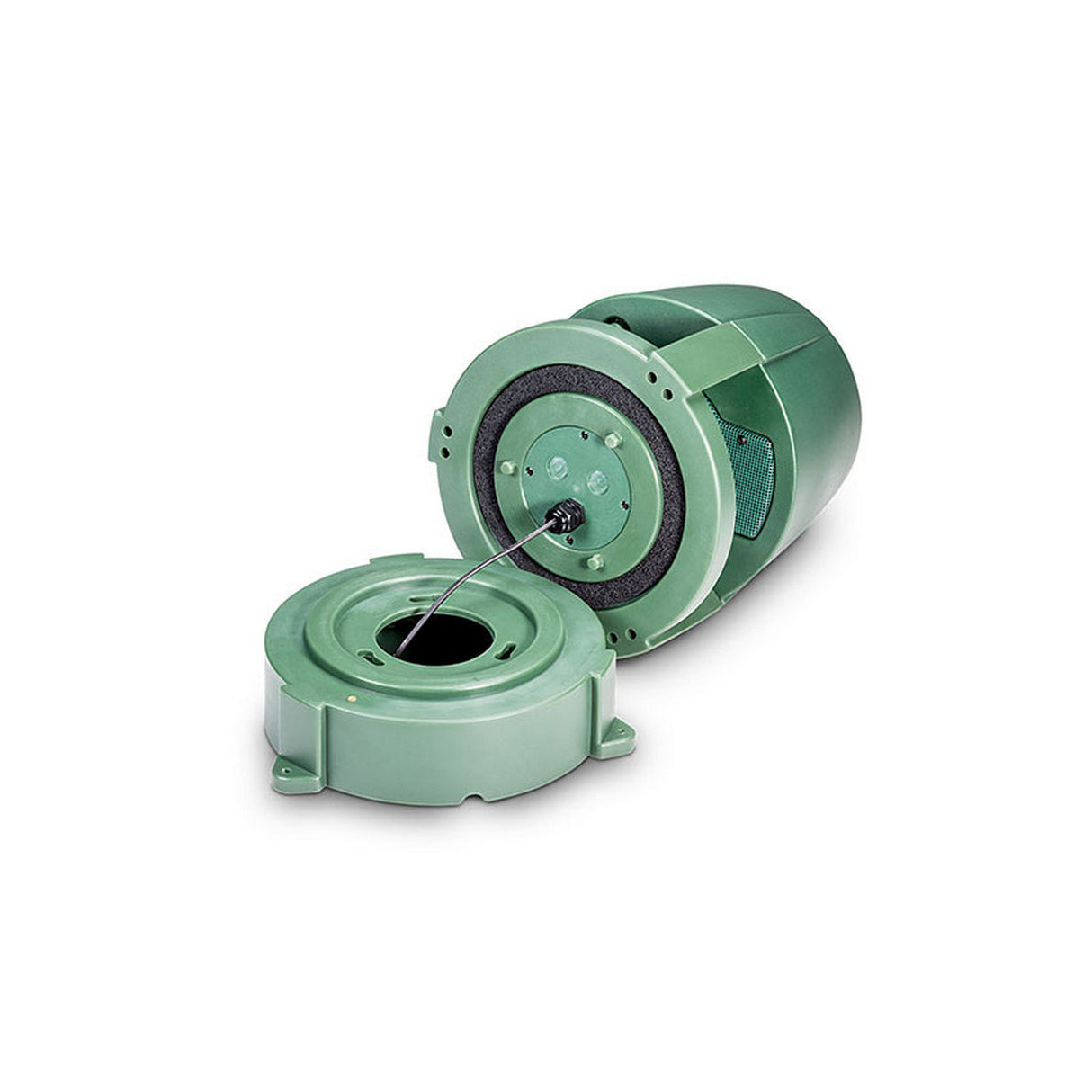

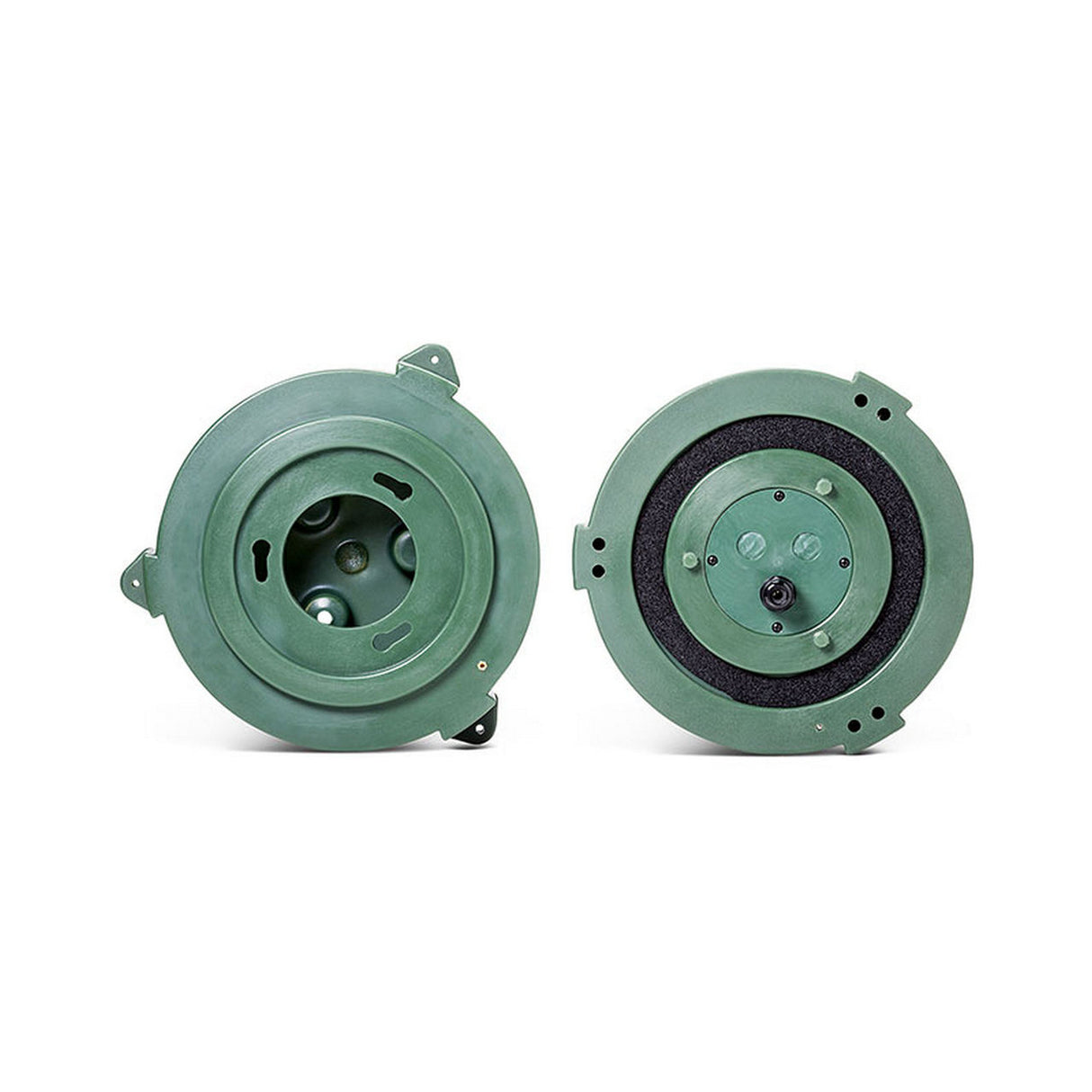

JBL CONTROL 88M Two Way 8 Inch Coaxial Mushroom Landscape Speaker Single Unit

JBL CONTROL 88M | Two Way 8 Inch Coaxial Mushroom Landscape Speaker Single Unit

The JBL CONTROL 88M is the ultimate outdoor speaker designed for various applications, providing top-notch full-range sound quality with 360-degree coverage. Engineered to be mounted either on or in the ground, these highly weather-resistant speakers blend seamlessly into any landscape, making them perfect for shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, and other hospitality and leisure environments. Their durable polyethylene enclosure withstands harsh weather conditions and potential damage from lawn care equipment, ensuring long-lasting performance without compromising on aesthetic appeal.

The JBL CONTROL 88M stands out for its powerful 120W Pink Noise Power Handling and 240W program capacity, inclusive of a built-in 60W 70V/100V multi-tap transformer. It is equipped with a fully isolated center chamber to protect internal wiring, ensuring a reliable audio experience that can be depended upon in various settings. With a broad frequency range of 47Hz to 16kHz and a high fidelity sound profile, this speaker guarantees outstanding audio quality from deep lows to sparkling highs.

Compact and unobtrusive, the JBL CONTROL 88M effortlessly integrates into its surroundings while delivering impressive sound performance. The colors extend throughout the material, maintaining the speaker's visual appeal even when exposed to wear and tear. Ideal for outdoor settings that require superior music and paging capabilities, this speaker is a reliable and stylish addition to your audio setup.

Key Features

• 120W Pink Noise Power Handling (240W program) with 60W 70V/100V multi-tap transformer
• Highly weather-resistant polyethylene enclosure
• Fully isolated center chamber for wiring protection
• High fidelity sound with a frequency range of 47Hz-16kHz
• 360-degree horizontal and 160-degree vertical coverage
• Durable and aesthetically pleasing design that blends into any landscape

Specifications

• Frequency Response (-10dB): 47 Hz - 16 kHz
• Power Rating: 240 W Continuous Program (2 hrs); 120W (480W peak) Continuous Pink Noise (2 hrs); 100W (400W peak) Continuous Pink Noise (100 hrs)
• Transformer Taps: 70V: 60W, 30W, 15W & 7.5W; 100V: 60W, 30W, 15W
• Sensitivity: 87 dB, 1W @ 1m (ave. 80Hz - 16kHz)
• Nominal Coverage Angle: 360 degrees horizontal, 160 degrees vertical (primary listening 10 degrees to 50 degrees up from ground)
• Directivity (Q): 2.1
• Directivity Index (DI): 3.2 dB
• Rated Maximum SPL: 108 dB @ 1m
• Nominal Impedance: 8 OHM (at 8 OHM setting)
• Minimum Impedance: 6.6 OHM at 9.5kHz
• Insertion Loss: Thru Setting, 8 OHM nominal
• Crossover Type: 2nd Order LPF on LF and 2nd Order HPF on HF
• Recommended Protective High-Pass: 45 Hz for 8 OHM operation, 24 dB/oct; 80 Hz for 60W tap, 24 dB/oct; 50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
• Low Frequency Driver: 200 mm (8.00 in) diameter LF driver, Kapton former, 38mm (1.5 in) voice coil, polypropylene cone and polyurethane surround
• High Frequency: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome
• Environmental: IP-55 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated
• Agency Ratings: UL1480, Transformer UL Recognized per UL1876, ROHS compliant
• Terminals: Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)
• Colors: Hunter Green, RAL6018
• Dimensions (H x W x D): 524 x 355 x 355 mm (20.7 x 14 x 14 in)
• Net Weight: 7.8 kg (17 lb)
• Shipping Weight: 10.5 kg (23 lb)

Package Contents

• (2) Wire nuts
• (2) Gland nuts
• (1) Right-angle screwdriver
