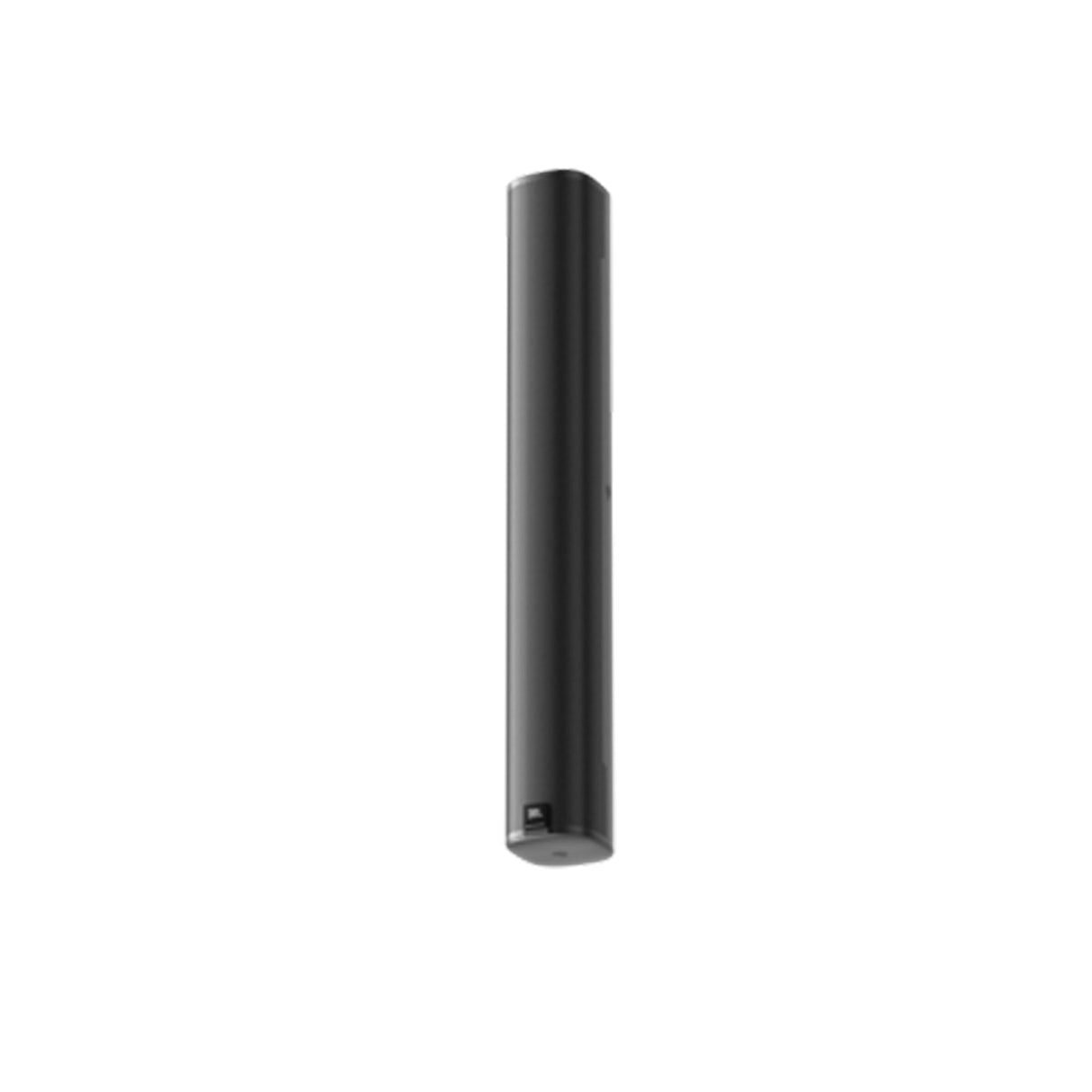

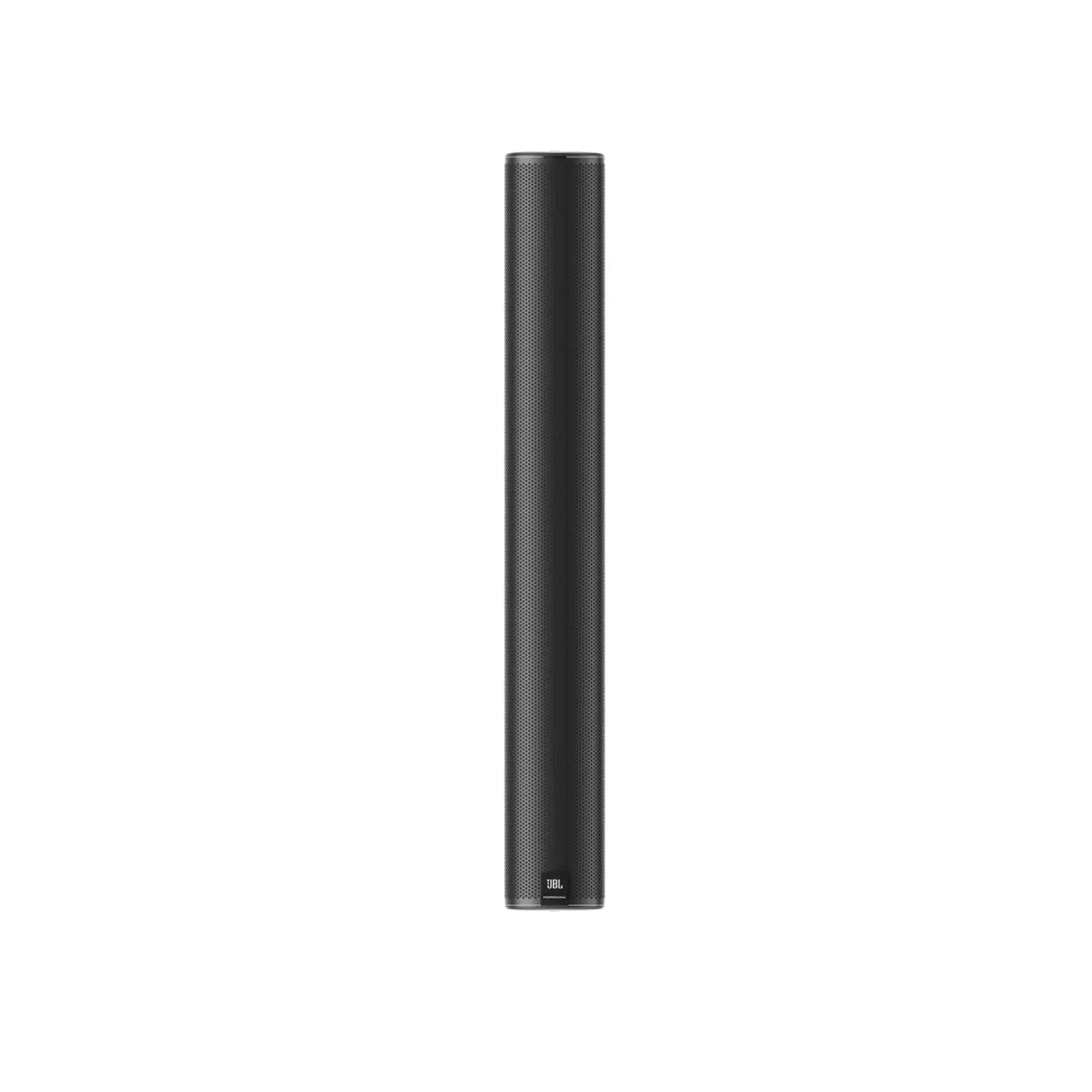

JBL Professional COL600-BK 24-Inch Slim Column Loudspeaker, Black

The JBL COL600 is an elegant 24-inch (600 mm) slim column loudspeaker that provides wide horizontal and narrow vertical coverage, with a built-in 10° down-tilt to the aim, providing optimum coverage for most listening areas while allowing the speaker to be installed flat to the wall. The slim, compact design-winner of international design awards for industrial design excellence-complements virtually any architectural décor.

A combination of stylish design and outstanding performance features makes the COL600 ideal for a wide variety of applications, such as conference/meeting rooms, lecture halls, retail stores, concourses, transit spaces, fill applications, audio for video, and other applications where slim, compact design and high performance is desired.

Two 5-inch x 2.25 inch racetrack woofers provide maximum radiating area in a column form factor. The tweeter is located at top of array for less obstructed coverage of the listening space and is aimed at a down angle, allowing down-tilted coverage aim, even with the cabinet flat to the wall. The shallow cabinet depth of 3.7 inches (93 mm) qualifies for ADA (Americans with Disabilities Act) projects when installed with the back of the cabinet flush to the wall.

A 20-watt multi-tap transformer allows for use on either 70V or 100V distributed speaker lines, while the speaker is switchable for direct 8-ohm operation with power handling of 80W continuous (320W peak, 2 hrs.) The 70 Hz to 20 kHz frequency range delivers clean, clear sound for music or speech.

Versatile installation is accommodated by two included L-brackets, which can be installed on either the top and bottom panels (for horizontal pan aiming) or on the left and right side panels. Both locations allow for close-to-the-wall installation. In addition, a low-profile swivel (pan) / tilt wall bracket is also included, for adding up to 10° down-tilt to the cabinet aiming (in addition to the built-in 10° down-tilt aim when the speaker is installed flat to the wall).

The COL600 has an IP54 rating (per IEC60529) for protection against ingress of dust or water. The drivers are water-treated, the grille has a water-backing, and a cover is included to protect the input terminals. Available in black (JBL-COL600-BK) or white (JBL-COL600-WH).

Common Applications
The JBL COL600 slim column loudspeaker is ideal for a wide variety of applications, such as conference/meeting rooms, lecture halls, retail stores, concourses, transit spaces, fill applications, audio for video, and other applications where slim, compact design and high performance is desired.

Key Features

• Two 5 x 2.25 inch racetrack woofers & one 1 inch tweeter
• 24 inch tall with shallow 3.7 inch cabinet depth
• Wide 160° horizontal and focused 110° vertical coverage
• 10° downward tilt to aim for covering most listening areas without requiring physical down- tilting of the cabinet
• 80W continuous pink noise power handling (320W peak)
• 70 Hz - 20 kHz frequency range
• Built-in 20W 70V/100V multi-tap transformer, plus 8 ohm direct input.
• 111 dB peak SPL (105 dB continuous), 2 hrs
• Tweeter near top of column for unobstructed coverage of listening space
• Versatile mounting brackets included - both

Technical Specifications

Frequency Range (-10 dB)
70 Hz - 20 kHz
Frequency Response (+/-3 dB)
105 Hz - 20 kHz
Power Rating (8 OHM setting)
160W Continuous Program (2 hrs)
80W (320W peak) Continuous Pink Noise (2 hrs)
60W (240W peak) Continuous Pink Noise (100 hrs)
Sensitivity (2.83V @ 1m)
86 dB
Coverage Pattern
Vertical 110° <1kHz-4 kHz average>;
10° down-tilt to aiming access for+25°/-45° coverage in relation to physical cabinet aim
Horizontal 160° <1kHz - 4 kHz average>
Directivity (Q)
7.8
Directivity Index (DI)
8.9 dB
Rated Maximum SPL
105 dB Continuous (111 dB peak) @ 1m
Nominal Impedance
8 OHM (in Thru/direct mode)
Minimum Impedance
7.0 Ω@ 275 Hz
Transformer Taps
20W, 10W, 5W @ both 70V & 100V (plus 2.5W @ 70V), and 8 OHM thru, selectable via switch
Transformer Insertion Loss
Less than 1 dB for all taps
Maximum Input Voltage
21 V RMS (2 hrs), 42 V peak
Recommended Protective High-Pass
70 Hz for 8 Ω operation; 60 Hz for all transformer tap settings (20W, 10W, 5W and 2.5W).
Drivers
Two 125 x 55 mm (5 x 2.25 in.) racetrack LF drivers
One 25 mm (1 in.) tweeter (tweeter located at top of array for better coverage of listening space)
Enclosure Material
PC + ABS, UL94-V0 flammability rating
Grille
Plated SPCC with polyester powder coat finish
Agency Ratings
Transformer UL recognized. RoHS, REACH compliance. LVD for CE.
Environmental Rating
IP-54 rated per IEC60529, dust and water protected when installed with included rain cover for input terminal compartment and no physical up-tilt cabinet aiming. UV resistant.
Terminals
4-pin Euroblock connection for bare wire, accepts 24 to 14 AWG gauge wire (0.25 to 2.5 sq mm). Rain cover allows for one or two 2-wire cables, with max cable jacket diameter of 8 mm (0.3 in)
Insert Points
Back Panel: 2 threaded insert points for WALL BRACKET; attaches via included M6 x 20 mm bolts, flat washers, & lock washers; plus 1 threaded insert point for secondary safety cable, M6 threaded x 20 mm deep.

Top & Bottom Caps: 1 threaded insert point on each cap (top & bottom, 2 insert points total) for L-BRACKETS; attach via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points AND remove pre-installed bolts holding end cap in place.)

Side Panels: 1 threaded insert point on each side (left and right, for 2 insert points total) for L-BRACKETS; attach via included M6 x 28 mm bolts, flat washers, and lock washers. (Remove silicon caps over insert points.)
Mounting
Multiple mounting methods (see Installation Guide for more details):
Included Swivel (Pan) / Tilt WALL BRACKET provides continuously variable ±95° degree Horizontal left-right swivel (pan) aiming (at 0° down-tilt); continuously adjustable +0°/-10° Vertical tilt (when no interference to wall); WALL and SPEAKER sections of WALL BRACKET ASSEMBLY attach together via included M6 x 12 mm bolts, flat washers, and lock washers.
Two included L-brackets that can be positioned on either top & bottom insert points or side-side insert points.
Top, bottom, and 2 side threaded insert points can be interfaced by installer for installer-supplied mounting methods. Installer responsible for safety of mounting method.
Dimensions (H x W x D)
598 x 102 x 93 mm (23.6 x 4.1 x 3.7 inches)
Net Weight
3.5 kg (7.8 lbs) each
Shipping Weight
4.5 kg (10.0 lbs) each (packed 1 speaker per carton)
Included Accessories
Low-profile Swivel (Pan) / Tilt WALL BRACKET; 2 x L-BRACKETS that can be positioned on top/bottom or side/side insert points.
