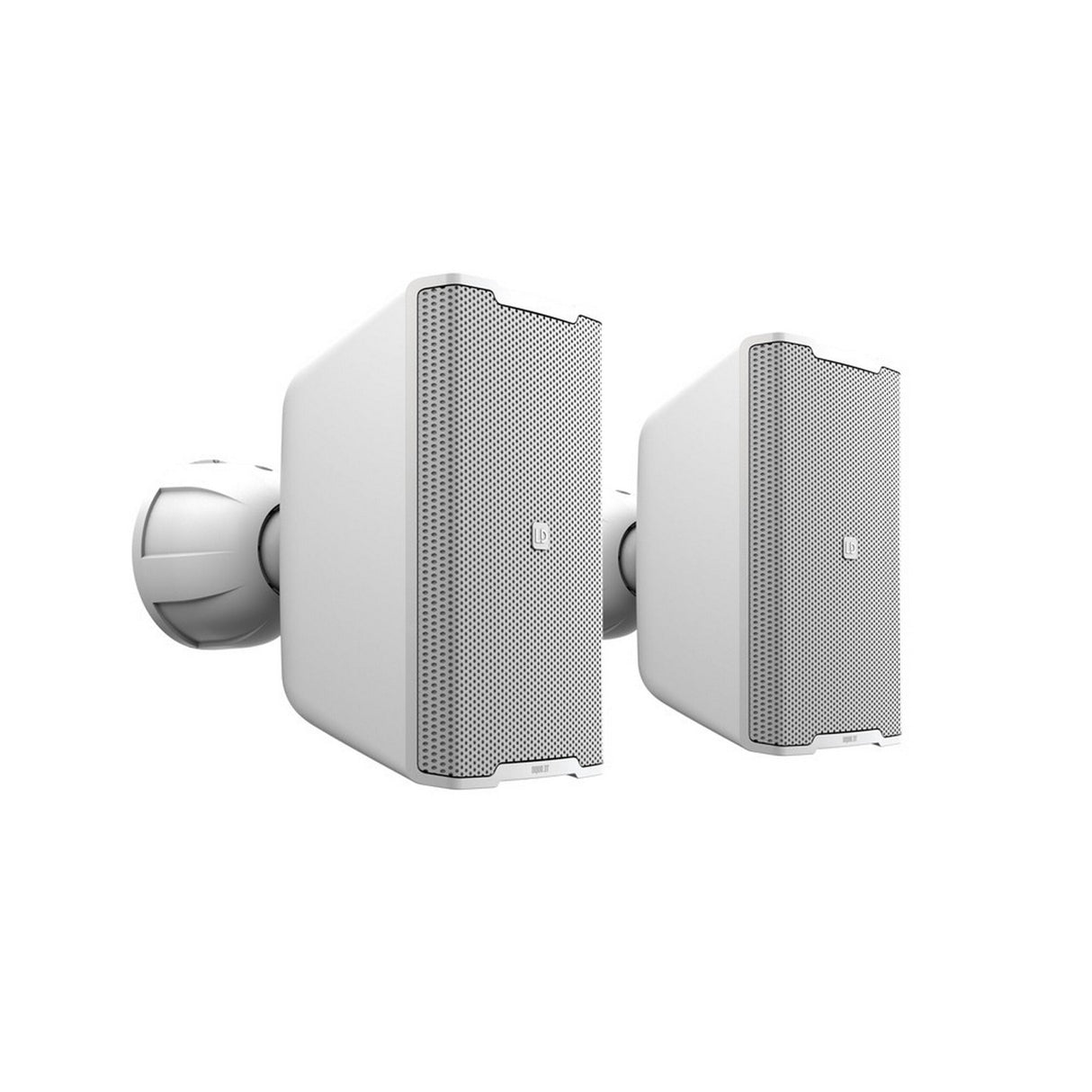

LD Systems DQOR 3 T W 3 Inch Two-way Passive Indoor/Outdoor Installation Loudspeaker, Pair, White

LD Systems DQOR 3 T W 3 Inch Two-way Passive Indoor/Outdoor Installation Loudspeaker, Pair, White

Enhance your audio environment with the LD Systems DQOR 3 T W 3 Inch Two-way Passive Indoor/Outdoor Installation Loudspeaker, Pair, White. This outstanding pair of speakers is engineered to deliver pristine sound quality for both indoor and outdoor spaces. Designed for venues ranging from restaurant patios to conference halls and even home entertainment zones, these loudspeakers bring a finished, professional touch with their wide coverage angle and sophisticated look. Their white finish seamlessly integrates into any setting, ensuring not only premium performance but also visual appeal.

Built to meet the diverse and demanding requirements of modern installations, the DQOR 3 T W loudspeakers are IP65-rated, making them highly resistant to dust and water jets. This durability makes them an excellent choice for outdoor setups exposed to changing weather conditions. The blend of a weather-treated paper cone woofer and a FerroFluid-cooled titanium high Freq. driver results in an immersive audio experience characterized by rich lows and crisp highs. Additionally, the corrosion-resistant aluminum front grille ensures long-term reliability and protection, perfect for years of performance.

The clever slide-and-lock wall mounting system makes installation quick, clean, and cable-free, preserving clean lines and the overall aesthetics of your space. With flexible mounting options including up to a 27-degree tilt and a 45-degree horizontal swivel, the DQOR 3 T W loudspeakers adapt easily to your preferred listening angles and room layouts. Whether enhancing a commercial venue or upgrading a home system, this speaker set promises balanced, powerful sound every time.

Key Features

• Suited for both indoor and outdoor use, with IP65 certification for dust and water resistance
• Elegant design in a white finish blends seamlessly into various environments
• Corrosion-resistant aluminum front grille for added durability
• Slide-and-lock wall mount with concealed integrated connections for easy, tidy installation
• Wide coverage angle of 120° horizontal and 80° vertical for maximized sound distribution
• High-quality 2-way system with balanced sound for immersive listening
• Weather-treated paper cone woofer and FerroFluid-cooled titanium high Freq. driver
• BEM-optimized waveguide for consistently excellent sound dispersion
• Flexible mounting with up to 27° tilt and 45° horizontal swivel

Specifications

• Product type: PA loudspeaker
• Type: Passive
• Low/mid driver dimensions: 3 inches (76.2 mm)
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 1 inch (25.4 mm)
• Horn: BEM optimized CD Waveguide
• HF driver dimensions: 1 inch (25.4 mm)
• HF driver magnet: Neodymium
• HF driver brand: Custom-made
• HF driver voice coil: 1 inch (25.4 mm)
• Dispersion (H x V): 120° x 80° (-6 dB)
• Load rating (RMS): 30 W
• Peak power: 60 W (>200Hz)
• Freq. response: 85 - 20000 Hz (-10dB)
• Crossover freq.: 2200 Hz
• SPL (1W/1m): 80 dB
• Max. SPL: 98 dB
• Impedance: 16 Ohms
• Input selector switch: 70 V - 100 V - 16 Ohms
• 100V transformer power taps: 30 - 6 - 3 - 1.5 W
• 70V transformer power taps: 30 - 6 - 3 - 1.5 W
• Speaker input connections: 4-pole Terminal Block, Pitch 5.08mm
• Cabinet material: ABS plastic
• Protection class: IP65
• Cabinet color: White (RAL9010)
• Width: 114.6 mm
• Height: 180 mm
• Depth: 180.8 mm
• Weight: 2.1 kg

Package Contents

• LD Systems DQOR 3 T W 3 Inch Two-way Passive Indoor/Outdoor Installation Loudspeaker, Pair, White
