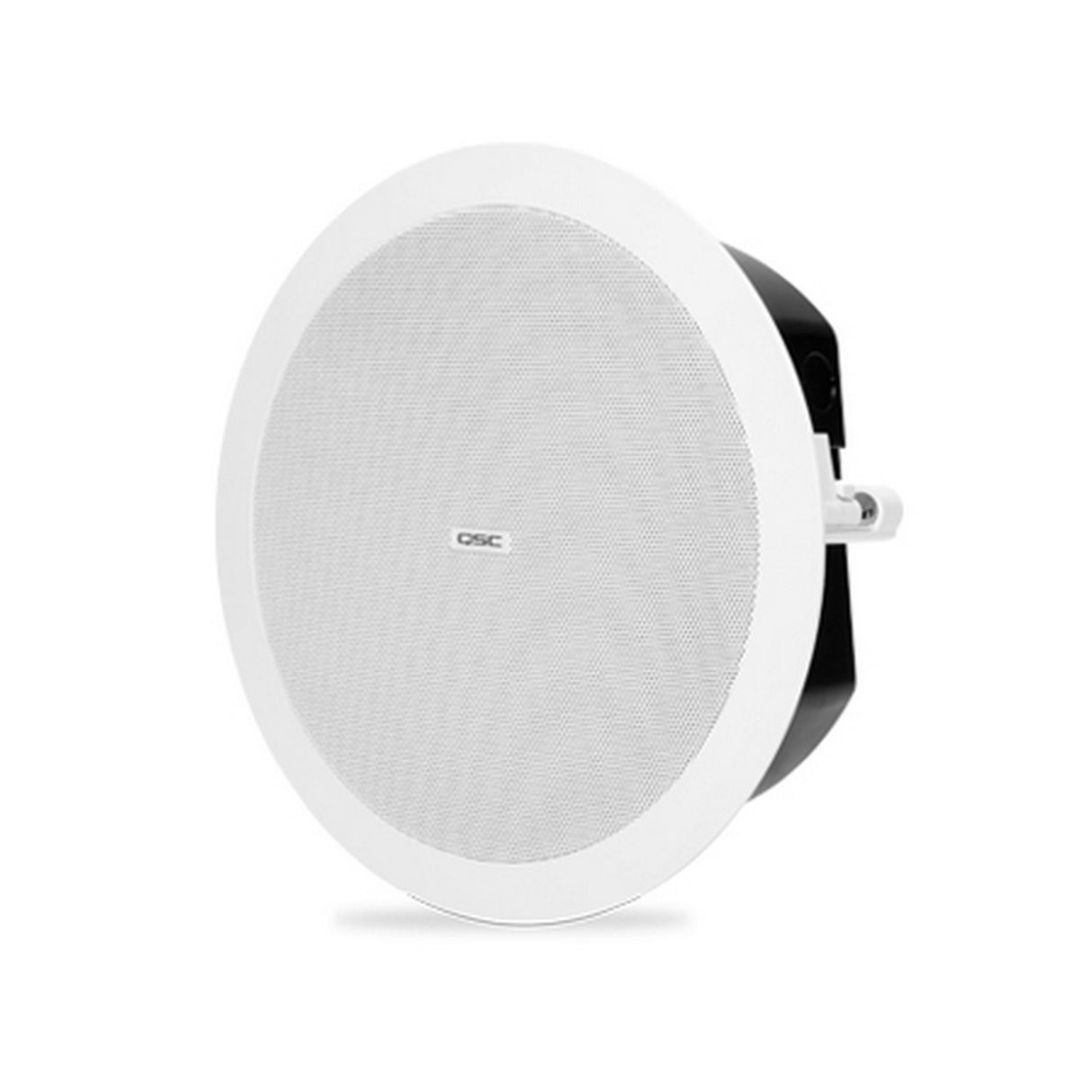

QSC AD-C4T-LP 4.5-Inch 2-Way Low-Profile Ceiling Speaker, White, Pair
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
QSC AD-C4T-LP 4.5-Inch 2-Way Low-Profile Ceiling Speaker, White, Pair
4.5 in, 2-way, low profile, 150° conical DMT
Key Features
- Consistent tonal characteristics across the entire AcousticDesign family in both surface or ceiling applications
- DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area
- Snap-fit magnetic grille
- 3x double stepped, long travel dog-ear blind mount system
- Advanced Intrinsic Correction voicings available via Q-SYS Ecosystem and CXD processing amplifiers
- Low-saturation and low-loss 70/100V transformers with 16OHM bypass
- Blemish-free removable logo
- Removable conduit cover plate, also available as accessory for pre-install wiring
- UL1480 and UL2043 certified
- Available in white (RAL 9010)
Technical Specifications
Effective frequency range
70 Hz - 20 kHz
Rated noise power / voltage
30 watts / 22 volts (rms)
Sensitivity
87
Rated coverage (-6 dB)
150° conical DMT
Directivity factor (Q)
4.5
Directivity index (DI)
6.5
Maximum continuous SPL
102
Maximum peak SPL
108
Nominal impedance
16
Recommended amplifier
60 watts
Transformer taps / impedance
16OHM (in bypass setting)
3.75W (70V); 7.5W (100V) Tap: 1333OHM
7.5W (70V); 15W (100V) Tap: 667OHM
15W (70V); 30W (100V) Tap: 333OHM
30W (70V); N/A (100V) Tap: 167OHM
LF transducer
114 mm <4.5-inch> weather resistant paper cone woofer
HF transducer
19 mm <0.75-inch> aluminum dome tweeter
Input connector type
Euroblock connector with parallel output
Enclosure material
ABS baffle on powder coated steel back can
Grille material
Powder coated steel
Ingress protection
IP-34
Operating environment
Designed for indoor use
Operating temperature range
-20 to 50° C <-4 to 122° F>
Cutout dimension
245 mm <9.65-inch>
Net weight
3 kg <6.6 lb>
Product dimensions (Diameter x Height)
280 x 100 mm <11.02 x 3.93-inch>
Shipping weight
10.2 kg <22.5 lb> (pair packed)
Shipping dimensions (H x W x D)
183 x 699 x 394mm <7.2 x 27.5 x 15.5-inch>(pair packed)
Included accessories
C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille
Optional accessories
AD-MR6 (pre-install mud ring)
AD-CC6 (pre-install conduit cover)
Safety Agency
UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / EN60849 systems.
