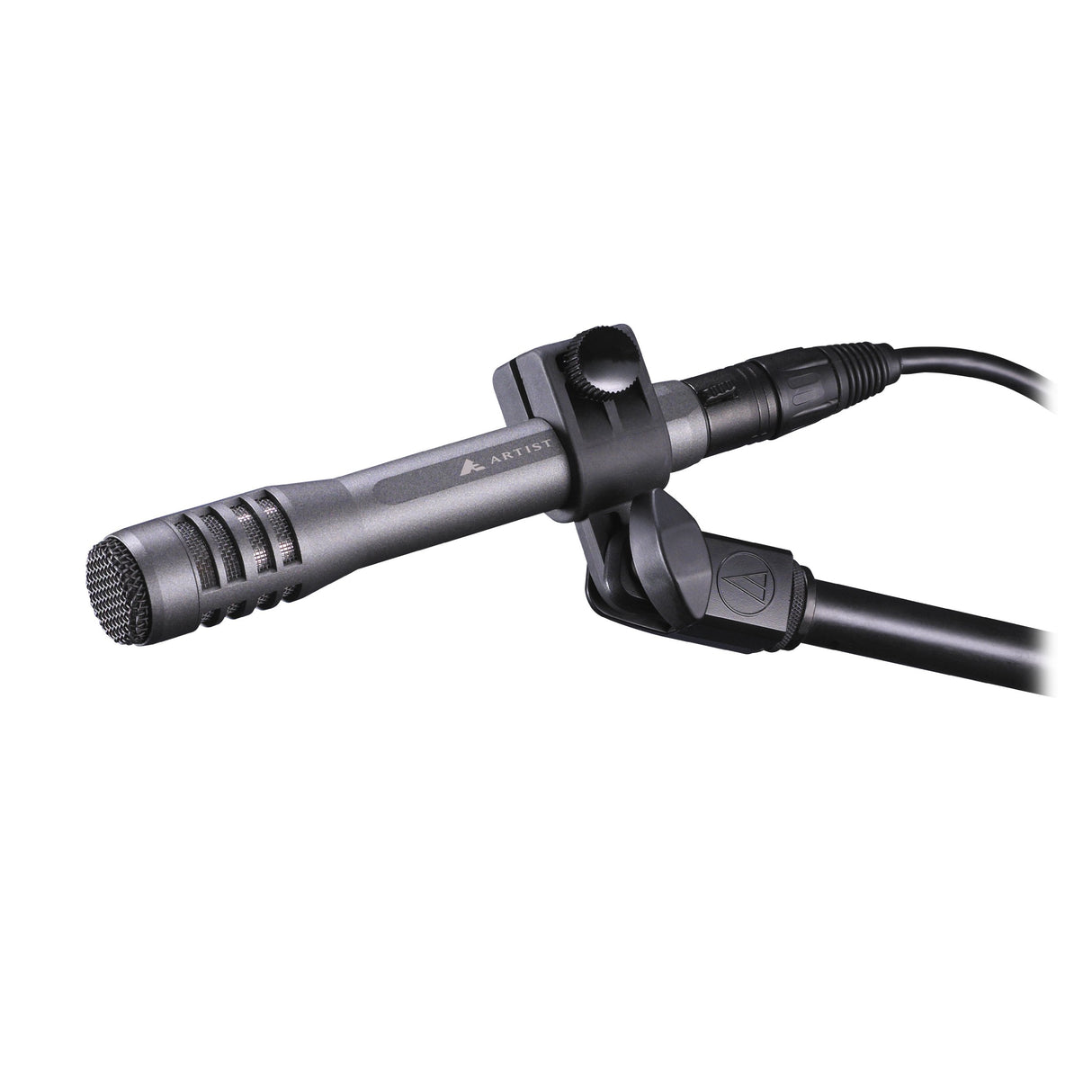

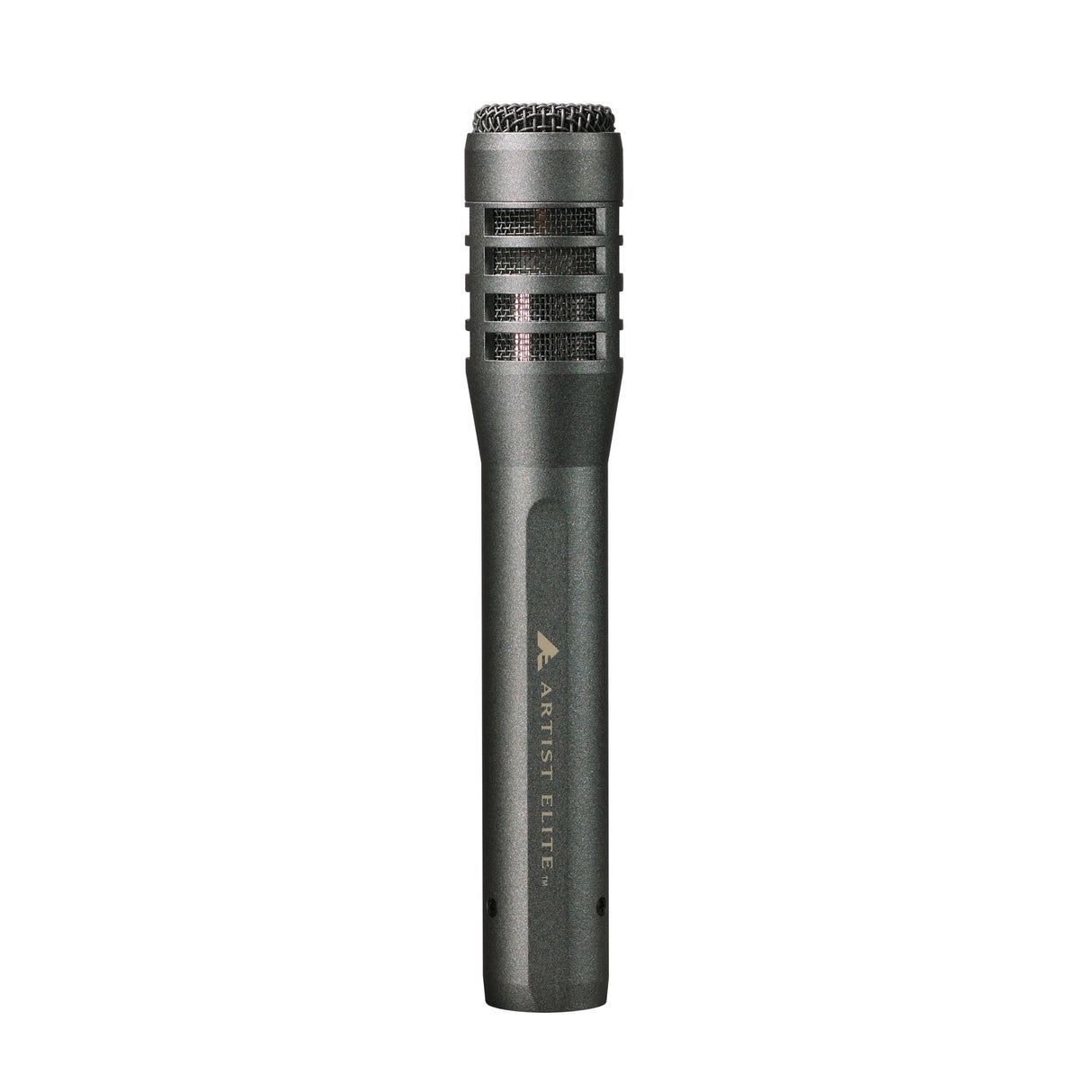

Audio-Technica AE5100 Cardioid Condenser Instrument Microphone
The Audio-Technica AE5100 Cardioid Condenser Instrument Microphone is a top-of-the-line choice for musicians and sound professionals seeking uncompromising sound quality. Ideal for capturing the essence of acoustic instruments, overheads, percussion, and strings, this versatile microphone delivers a rich, warm, and accurate sound. It excels in live sound settings, particularly for choir microphones, thanks to its large-diaphragm capsule which provides a natural response and its low-profile design that allows for innovative placement options.
The AE5100's robust construction ensures dependable performance on the road, while its low noise and smooth response make it suitable for studio recording as well. With a performance-to-size ratio that sets it apart from larger studio microphones, the AE5100 offers a practical and high-quality solution for a variety of applications.
Key Features
- Large-diaphragm capsule delivers accurate and natural response
- Low-profile design permits innovative placement options previously unattainable with a large-diaphragm condenser
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Robust design for enduring dependability on the road
- Includes isolation clamp for shock protection, secure mounting, and easy positioning
- Integral 80 Hz HPF switch and 10 dB pad
Specifications
- Element: Fixed-charge back plate, permanently polarized condenser
- Polar Pattern: Cardioid
- Freq. Response: 20-20,000 Hz
- Low Freq. Roll-Off: 80 Hz, 12 dB/octave
- Open Circuit Sensitivity: -36 dB (15.8 mV) re 1V at 1 Pa
- Impedance: 150 ohms
- Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1% T.H.D.; 158 dB SPL with 10 dB pad (nominal)
- Noise: 11 dB SPL
- Dynamic Range: 137 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio: 83 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 11-52V DC, 3.2 mA typical
- Switches: High-pass filter; 10 dB pad (nominal)
- Weight: 5.0 oz (143 g)
- Dimensions: 5.85" (148.5 mm) long, 1.02" (26.0 mm) maximum diameter
- Output Connector: Integral 3-pin XLRM-type
Package Contents
- AT8471 isolation clamp for 5/8"-27 threaded stands
- 5/8"-27 to 3/8"-16 threaded adapter
- AT8136 windscreen
- Soft protective pouch
