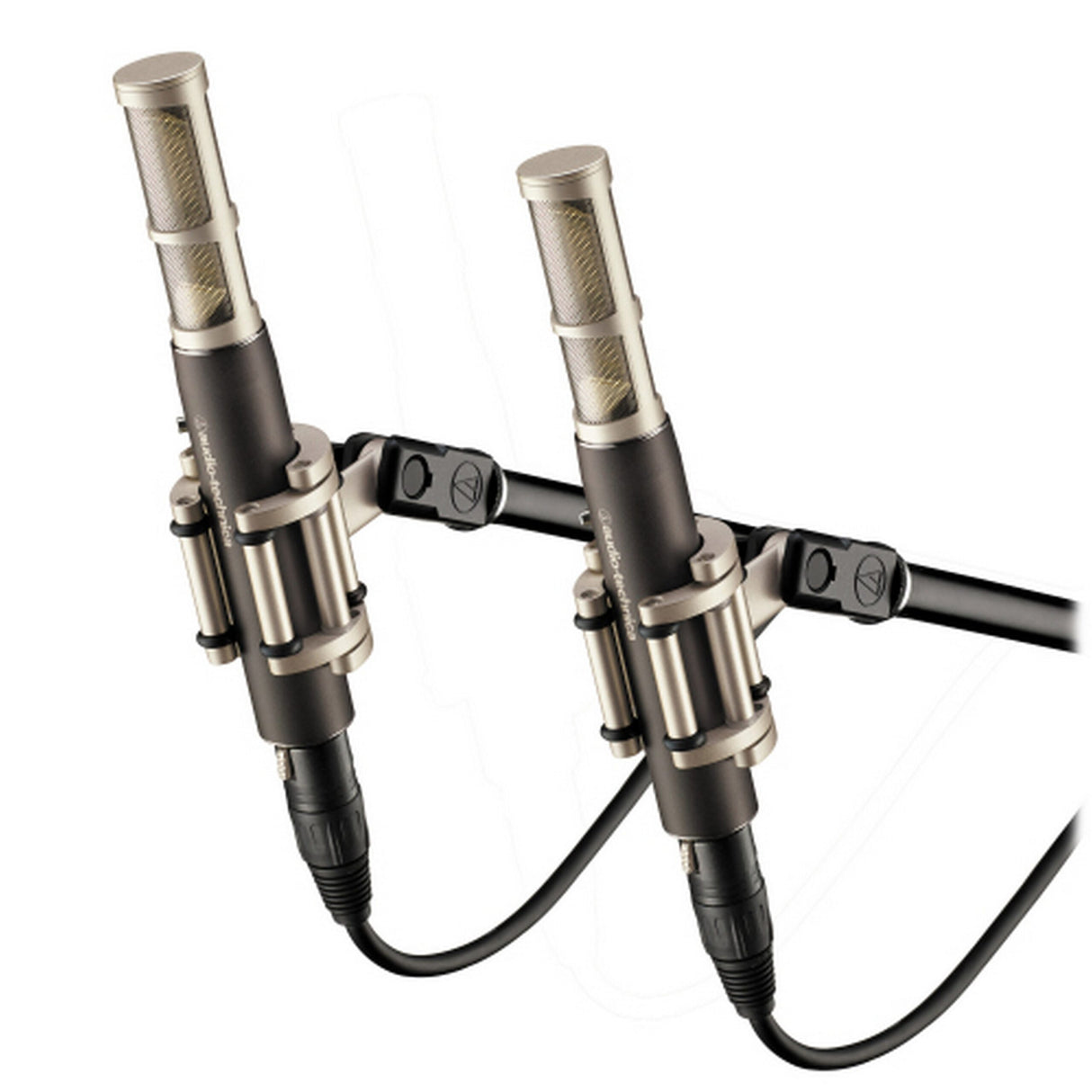

Audio-Technica AT5045P Cardioid Condenser Instrument Microphones

Audio-Technica AT5045P Cardioid Condenser Instrument Microphones

The Audio-Technica AT5045P Cardioid Condenser Instrument Microphones are a pair of top-tier studio microphones that come as a stereo pair pack. Designed to deliver the performance of a large-diaphragm side-address condenser within a sleek stick-type body, these mics offer unparalleled audio quality. Despite the compact design, the AT5045 boasts Audio-Technica’s largest single diaphragm, ensuring impressive sound capture. The circuitry is streamlined to focus on essential components, allowing the microphones to achieve one of the widest dynamic ranges available today.

Ideal for recording overheads, percussion, acoustic guitar, strings, and other acoustic instruments, the AT5045P offers pure and realistic sound. The side-address design provides more diaphragm surface area than most traditional large-diaphragm microphones, ensuring a robust audio capture. Hand-built and inspected to ensure 100% quality control, the AT5045P is built for durability with an aluminum and brass housing. Additionally, it features advanced internal shock mounting to decouple the capsule from the mic body, reducing unwanted mechanical noise.

Key Features

• Premier studio condenser instrument microphone
• Pure, realistic sound quality for a variety of acoustic instruments
• Side-address, stick-design with a large diaphragm surface area
• Discrete components selected for optimized performance
• Transformer-coupled output for smooth sonic character
• Exceptionally low noise with high-SPL capability
• Hand-built and inspected to ensure top quality
• Advanced internal shock mounting to reduce mechanical noise
• Durable aluminum and brass housing
• Includes innovative isolation clamp for secure mounting
• Comes with a custom hard-shell carrying case for protection

Specifications

• Element: Fixed-charge back plate, permanently polarized condenser
• Polar Pattern: Cardioid
• Frequency Response: 20 - 20,000 Hz
• Open Circuit Sensitivity: -35 dB (17.7 mV) re 1V at 1 Pa
• Impedance: 100 ohms
• Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.
• Noise: 8 dB SPL
• Dynamic Range (typical): 141 dB, 1 kHz at Max SPL
• Signal-to-Noise Ratio: 86 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 1.4 mA typical
• Weight: 197 g (7.0 oz)
• Dimensions: 177.0 mm (6.97'') long, 25.0 mm (0.98'') maximum body diameter
• Output Connector: Integral 3-pin XLRM-type
• Accessories Furnished: Two AT8481 isolation clamp for 5/8"-27 threaded stands; two AT8165 windscreen; protective carrying case
• Case Style: R11

Package Contents

• Two Audio-Technica AT5045 microphones
• Two AT8481 isolation clamps
• Two AT8165 windscreens
• Protective carrying case
