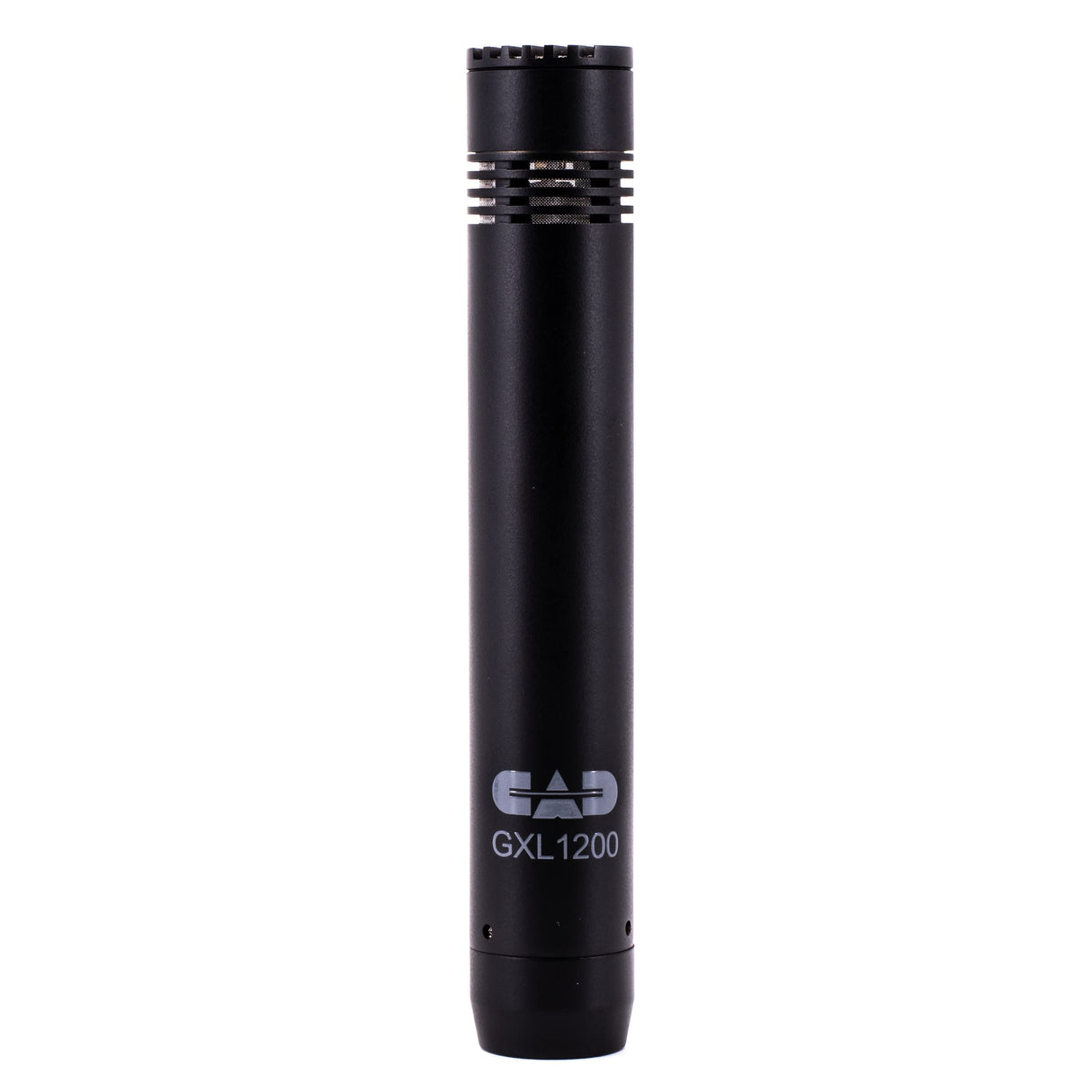

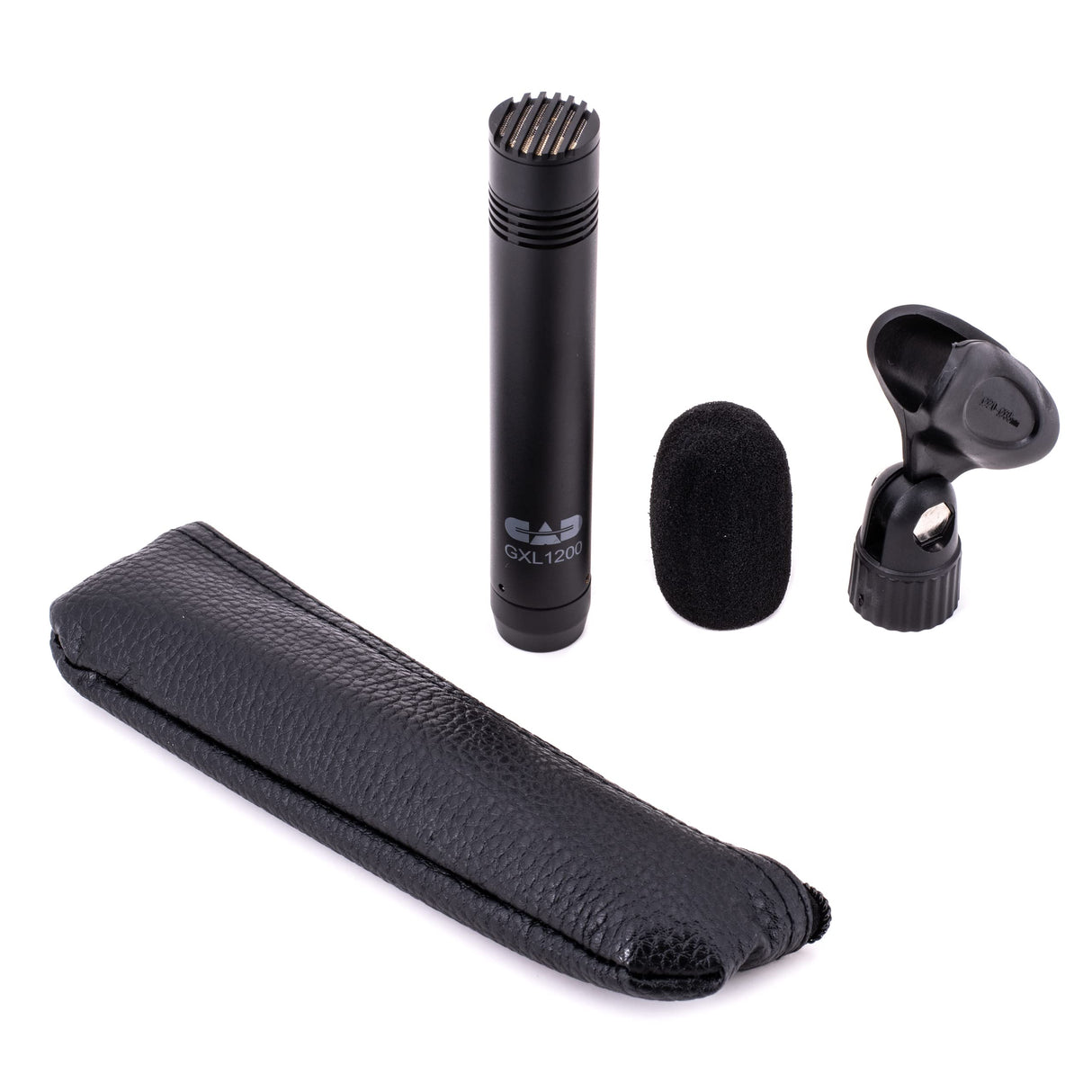

CAD Audio GXL1200 Undirectional Cardioid Condenser Instrument Microphone Silver
CAD Audio GXL1200 Undirectional Cardioid Condenser Instrument Micro...
CAD Audio GXL1200 Undirectional Cardioid Condenser Instrument Microphone Silver
Packaged in a small, rugged, all metal housing, the GXL1200 Condenser microphone provides a transparent sound reproduction. The transformerless design of this instrument microphone allows it to have low distortion and optimum low end frequency response. The GXL1200's size, accurate sound reproduction, and high SPL capability, make this a great choice for miking overheads, high hats, cymbals, woodwinds and stringed instruments.
Key Features
- Small Diaphragm Unidirectional Cardioid Condenser
- Frequency Response: 30 Hz - 20 kHz
- Connector: 3 pin XLR
- Phasing: Positive pressure on diaphragm generates a positive voltage on pin
- Power: P24V or P48V Phantom Power
Technical Specifications
Generating Element
Externally Biased Condenser
Polar Pattern
Unidirectional (Cardioid)
Frequency Response
30 Hz - 20 kHz
Sensitivity
-56dB 0dB=1V/uBar @ 1kHz
Impedance
Low (Less than 200 Ohms)
Equivalent Noise Level
+14dB (A-weighted)
Power
P24V or P48V Phantom Power
Connector
3 pin XLR
Phasing
Positive pressure on diaphragm generates a positive voltage on pin
#2 relative to pin #3
Dimensions
0.880 x 0.880 x 5.325 Inches
Weight
126 Grams
