DPA VO4099P Clip Microphones for Piano with XLR Adapter

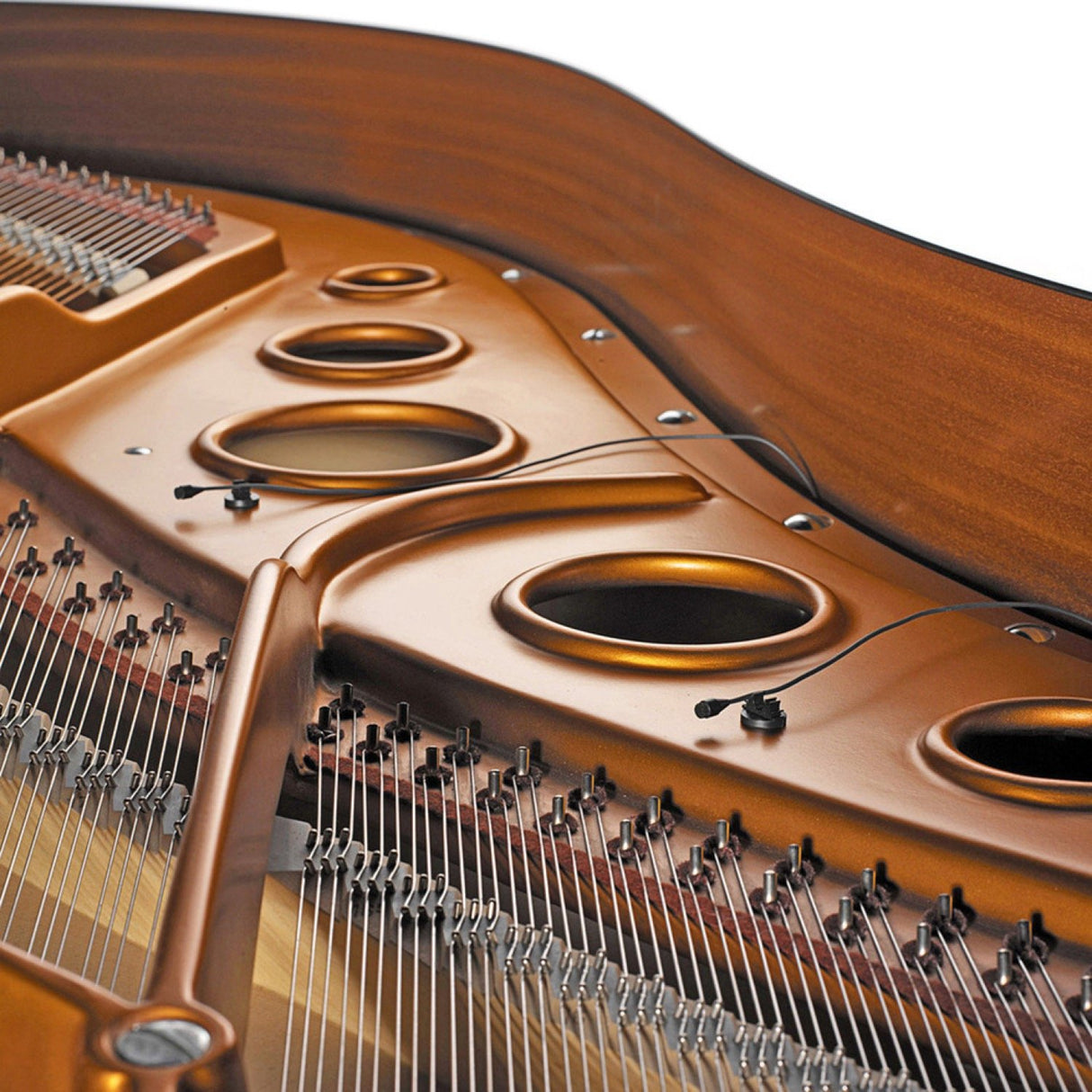

The DPA VO4099P Clip Microphones for Piano with XLR Adapter is a piano miking solution that makes it easy to achieve a high level of isolation on stage while providing clean and transparent stereo sound quality with realistic dynamics. The 4099P is a complete system which includes a pair of sensitivity selected 4099 microphones on goosenecks with magnetic mounts to allow the most realistic capture of a piano. With its low profile and unobtrusive design it is perfect in closed lid scenarios for capturing true acoustic piano sound in a live setting. The versatile magnet mount/gooseneck system provides stable and repeatable positioning. The mics can easily be positioned at different angles via the flexible gooseneck to provide a variety of sound nuances. The system includes two 3-pin XLR adapters. The mounts can also be used with various instruments with magnetic surfaces.
Optional gooseneck extension
Standard gooseneck length is 140 mm (5.5 in), which can be altered with the optional gooseneck extension unit, adding another 50% to the length, helping to achieve exactly the sweet spot for the instrument.
Detachable cables
The updated 4099 range features detachable cable from gooseneck, so it’s more convenient to mount the mic on an instrument before connecting it. Furthermore, the choice of different cable qualities makes it possible to tailor your mic to the specific task, such as choosing the heavy duty 2.2 mm cable for PA/Live gigs or the easier-to-hide, thinner miniature cable for personal mounting on instruments where you don’t want the cable weight to interfere with your performance. In case of cable break, service is easy and fast.
Key Features
- High Gain-Before-Feedback
- Flat Frequency Response
- Compact, Discrete Size
- Excellent Phase Characteristic
- Detachable Cable and Versatile Gooseneck Extender

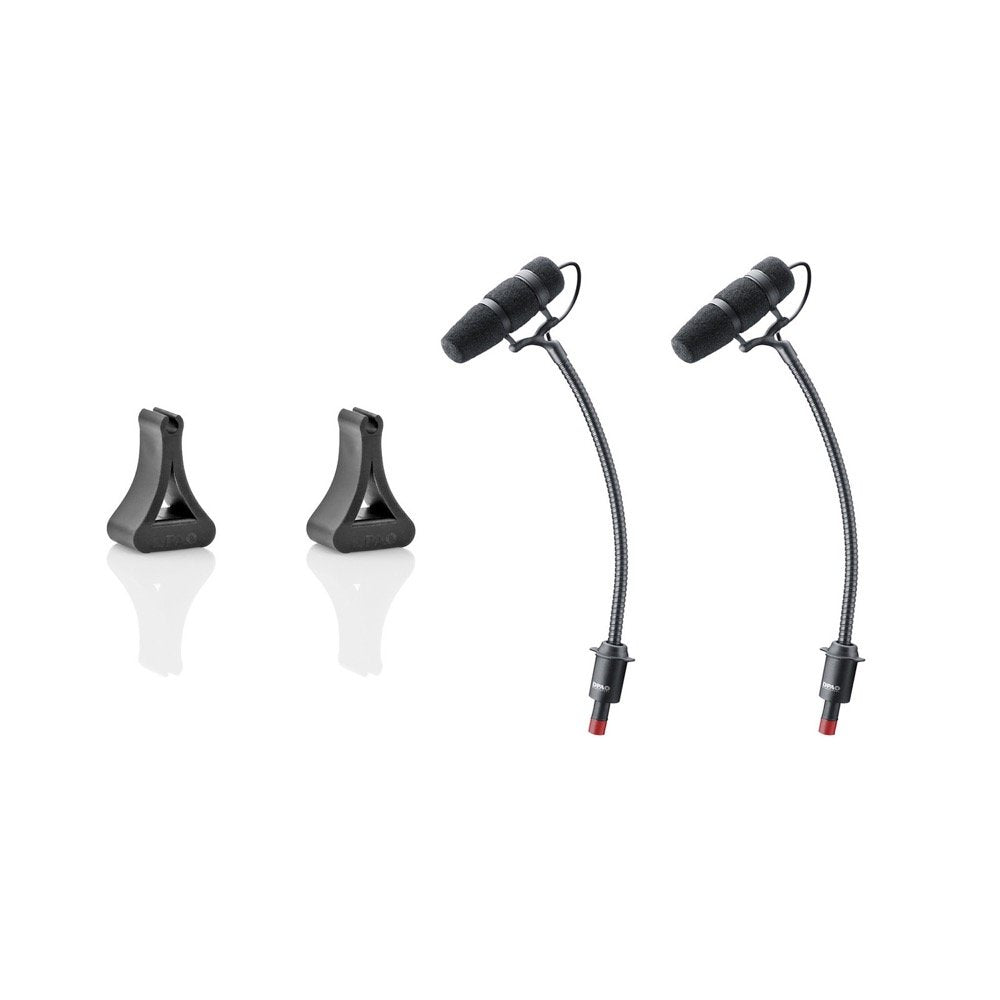

- Two sensitivity selected supercardioid 4099 gooseneck mics
- Integrated windscreen and shock mount system
- Magnet mounts to place on piano frame
- Two DAD6001 3-pin XLR adapters
Technical Specs
Directional characteristics
Supercardioid
Principle of operation
Pressuregradient
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz to 20 kHz
Frequency range, ± 2 dB, 20 cm (7.9 in) distance
80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz
Sensitivity, nominal ± 3 dB at 1 kHz
6 mV/Pa; -44,5 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
71dB
Dynamic range
100 dB
Max. SPL, peak before clipping
142 dB
Output impedance
From MicroDot: 30 to 40 ohm; from DAD6001: 100 ohm
Cable drive capability
Up to 300 m (984 ft) with DAD6001 XLR adapter
Output balance principle
Signal balanced with DAD6001 XLR adapter
Common Mode Rejection Ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD6001 XLR adapter
Power supply (for full performance)
Min. 5 V to max. 50 V through DPA adapter for wireless systems, 48 V phantom power +/- 4 V with DAD6001 XLR adapter
Current consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001 XLR adapter
Connector
MicroDot
Color
Black
Microphone weight
46 g (1.62 oz)
Capsule diameter
5.4 mm (0.2 in)
Microphone length
45 mm (1.8 in)
Cable length
1.8 (6 ft)
Polarity
Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
Temperature range
-40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH)
Up to 90%
Gooseneck length
140 mm (5.5 in)
Sensitivity selection tolerance (at 1 kHz)
± 1 dB
