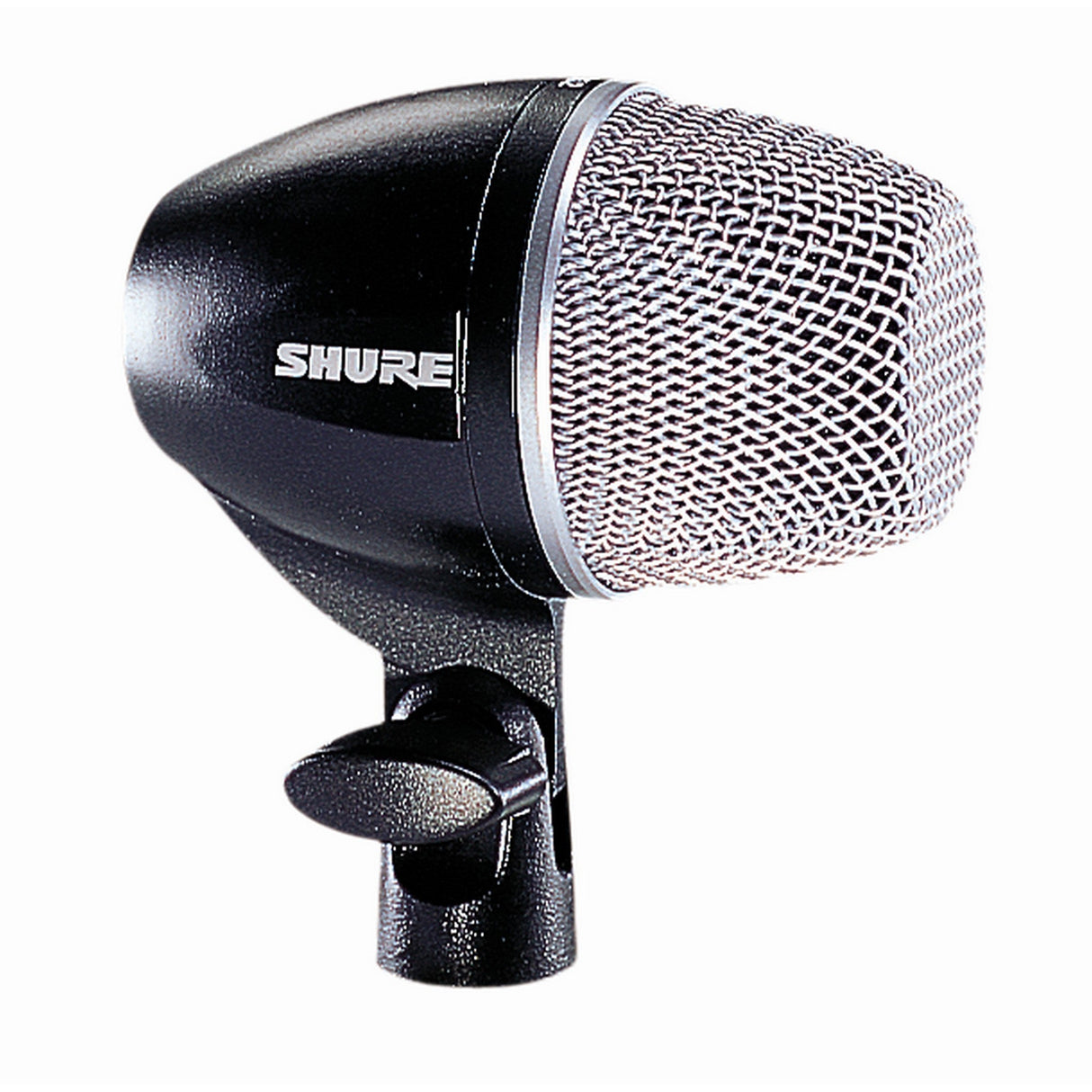

Shure PG52-XLR Cardioid Dynamic Kick Drum Microphone, XLR to XLR

Shure PG52-XLR Cardioid Dynamic Kick Drum Microphone, XLR to XLR

The PG52 Cardioid Dynamic Kick Drum Microphone is a professional quality microphone designed to be used in kick drum and other low frequency applications. With rugged durability and excellent sound, the PG52 features a swivel joint for ease of placement, carrying pouch and choice of with XLR cable, or without.

Key Features

• Tailored frequency response is smooth and extended. Tuned specifically for kick drum applications.
• Cardioid polar pattern picks up the most sound from in front of the microphone and some sound from the sides. Less susceptible to feedback in high volume settings.
• Dynamic cartridge has a simple, rugged coil. Handles extreme volume levels without distortion.
• Cartridge includes a neodymium magnet for high output level.
• Internal shock mount for reduced handling noise.
• Durable metal construction.
• Integral stand mount.
• Hardened steel mesh tapered grille that resists wear and abuse.
• Includes 15ft (4.57m) cable and storage bag.

Technical Specifications

Microphone Type
Dynamic (moving coil)
Polar Pattern
Cardioid (unidirectional)
Frequency Response
30 to 13,000 Hz
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of microphone output connector
Output Impedance (at 1000 Hz)
300 ohms
Sensitivity (at 1000 Hz)
-55 dBV/Pa, (1.8 mV), 1 Pascal=94 dB SPL
Electromagnetic Hum Sensitivity
25 dB equivalent SPL in a 1 millioersted field (60 Hz)
Connector
Three-pin professional audio connector (male XLR type)
Case
Die cast metal housing, black matte finish; hardened silver colored, tapered steel mesh grille; built-in locking stand adapter
Environmental Conditions
This microphone operates over a temperature range of -29 to 57 degrees Celsius (-20 to 135 degrees Fahrenheit), and at a relative humidity of 0 to 95%.
Weight Net
470 g (16.8 oz)
Packaged
1053 g (2 lbs 5 oz)
