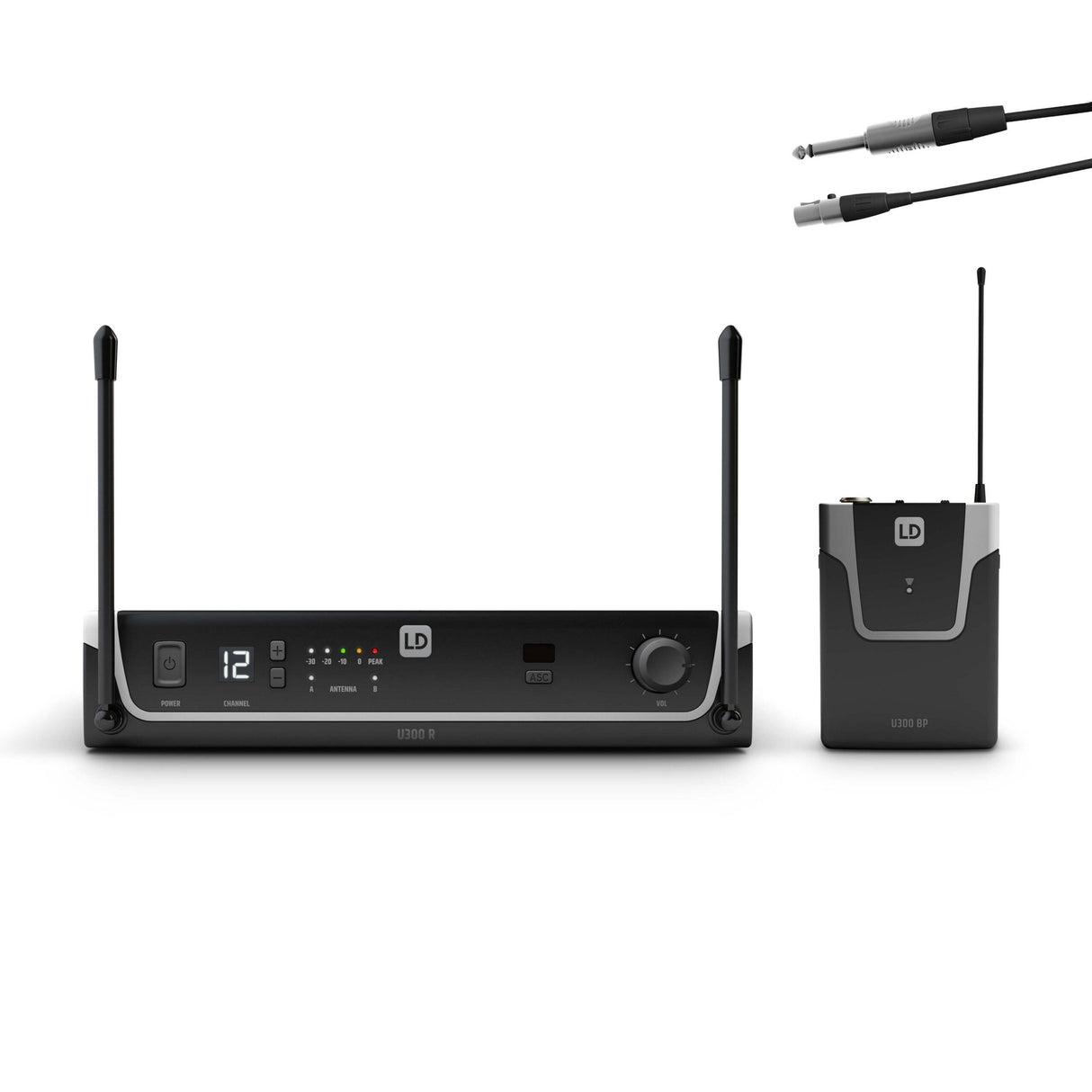

LD Systems U304.7 BPG Wireless Microphone System with Bodypack and Guitar Cable, 470-490 MHz

Developed in Germany, the UHF diversity wireless systems from the U300 series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584-608 MHz, 655-679 MHz, 823-832 MHz + 863-865 MHz, 470-490 MHz or 514-542 MHz. Up to six U300 systems can be used simultaneously in each frequency band. Convenient one-touch synchronization via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation. U300 transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300 receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

Key Features

• UHF diversity wireless system with FM technology
• 12 selectable channels
• 100 meter range under ideal conditions
• Up to 6 systems can be used simultaneously
• ASC infrared synchronization between transmitter and receiver
• Squelch with pilot tone
• 10-hour transmitter operating time with two AA batteries
• Receiver in sturdy metal housing

Technical Specifications

LDU3047R
Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Groups
1
Antenna inputs
2 x fixed
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls
volume
Indicators
LC display
Operating voltage
12 V DC - 18 V DC (500 mA), external power supply
Width
211 mm
Height
43 mm
Depth
120 mm
Weight
0,7 kg
Accessories (included)
Power supply
LDU500GC
Connector 1
Mini-XLR (3-pin, female)
Type
Guitar Cables
Connector 2
6.3 mm jack
Cable Length
0.8 m
Weight
0,045 kg
LDU3047BP
Type
Bodypack
Transmission frequency range
470 - 490 MHz
Channels
12
Inputs
Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response
25 - 16000 Hz
Signal-to-noise ratio
104 dB
Rated HF output power
10 mW
Operating time
>10 h
Controls
Power On/Off
Other features
Pilot tone
Indicators
Power LED (Power ON: green)
Operating voltage
2 x AA battery
Width
65 mm
Height
91 mm
Depth
25 mm
Weight
0,085 kg
