Shure BLX14/B98 Wireless Instrument System with Clip-On Gooseneck Microphone

Shure BLX14/B98 Wireless Instrument System with Clip-On Gooseneck Microphone

Introducing the Shure BLX14/B98 Wireless Instrument System – Your Ultimate Audio Solution

Are you looking for a professional-quality sound system that's easy to set up and offers exceptional audio performance right out of the box? Look no further than the Shure BLX14/B98 Wireless Instrument System.

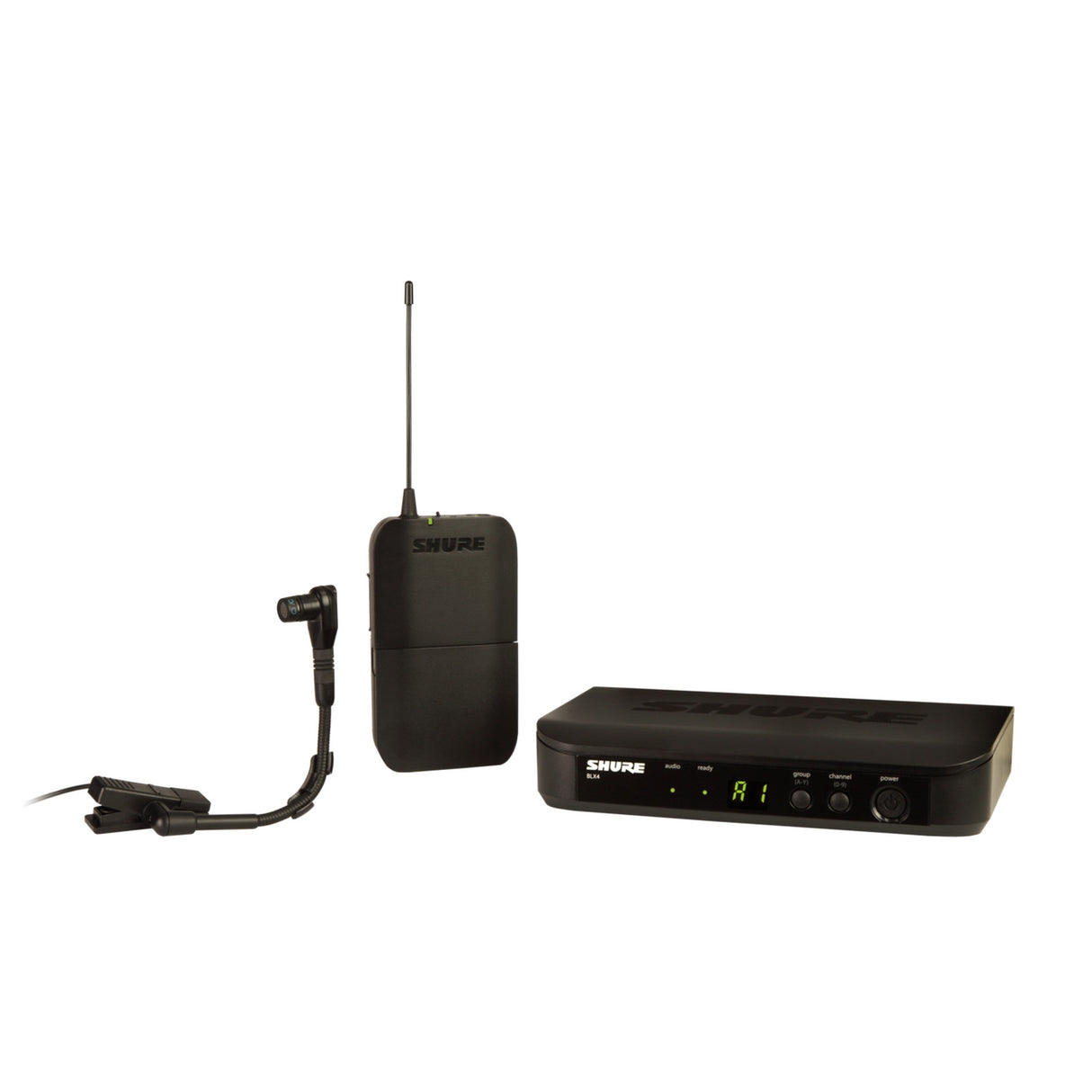

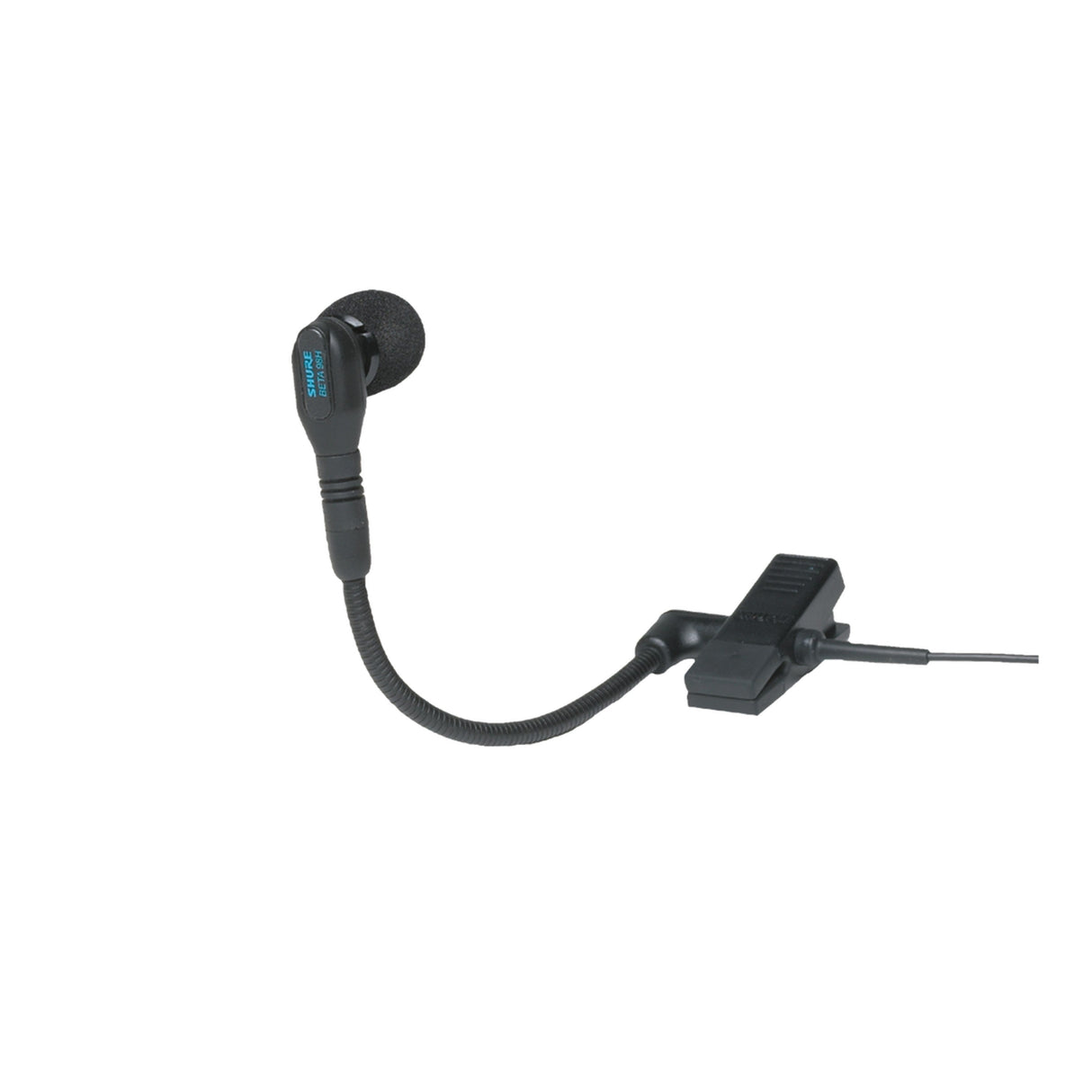

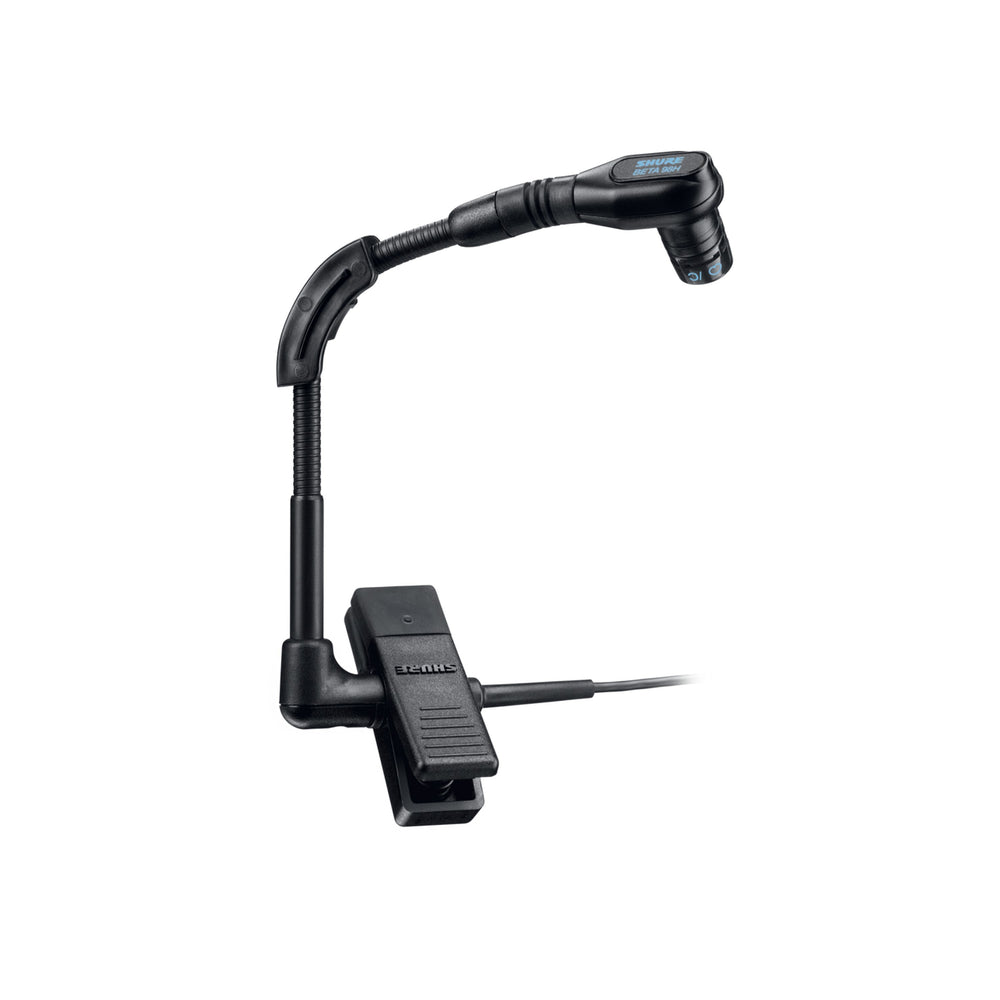

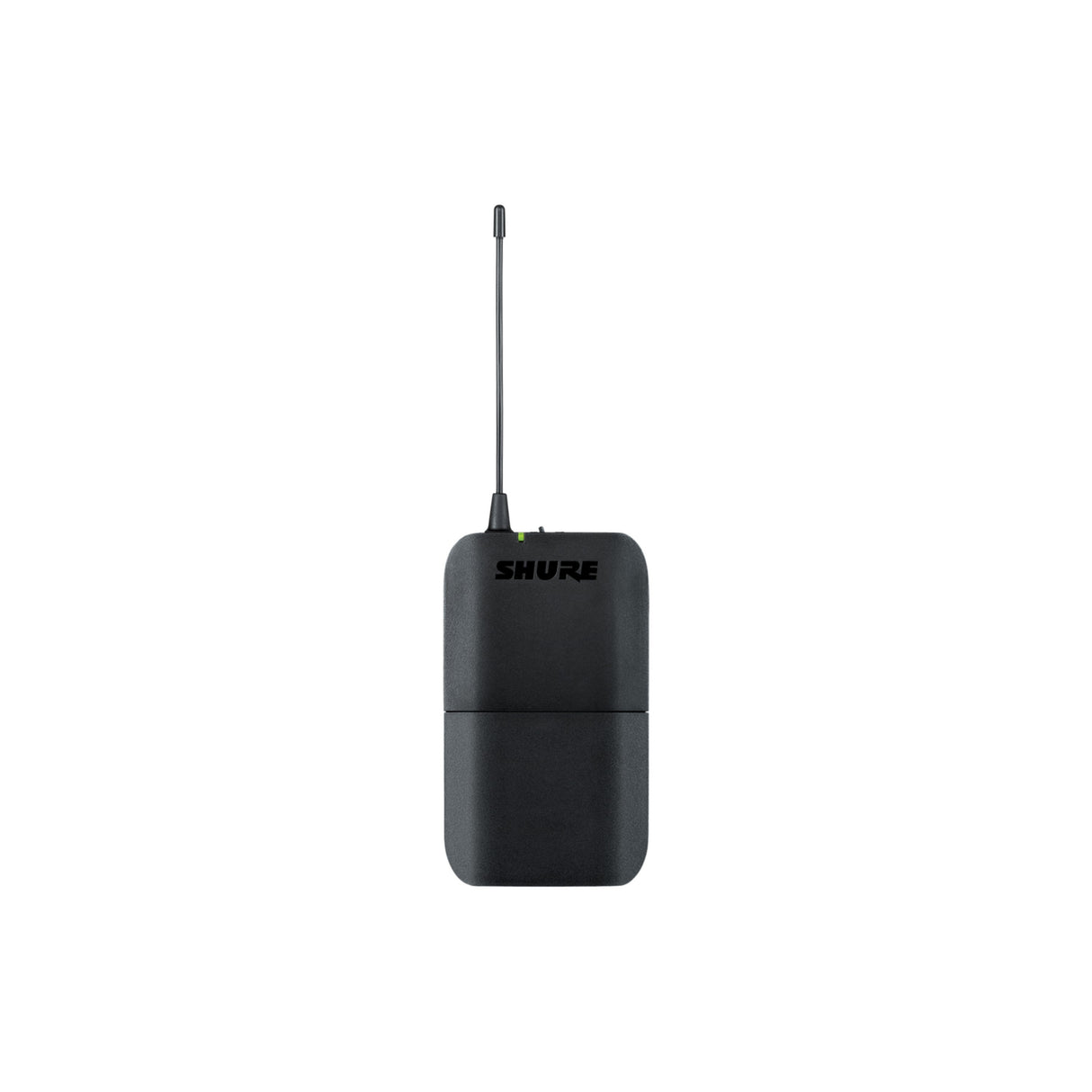

The BLX14/B98 system includes a BLX4 tabletop single-channel receiver, BETA98H/C gooseneck instrument microphone with BLX1 bodypack transmitter, clip-on clamp, power supply, 2 AA batteries, and user guide to get you started.

Key Features

• SUPERIOR AUDIO: With professional Shure sound, this system is perfect for every band and any vocal need, allowing you to perform with confidence.
• RELIABLE SIGNAL: With a range of up to 300 feet (100m), you can take your performance into the crowd without any interruption.
• EASY SETUP: The BLX system is designed to have you up and running in no time with one-touch scan and selection.
• BATTERY LIFE: The BLX transmitter offers up to 14 hours of power from a single pair of AA batteries, so you can keep the show going without any interruption.
• SYSTEMS EXPANSIONS: You can run up to 12 channels per frequency band*, giving you the flexibility to grow your system as needed.
• VERSATILITY INCLUDED: The BLX system offers an impressive variety of Shure microphones to choose from, so you can find what works best for your needs.
  Note: the number of channels may vary depending on the region and environment.

Technical Specifications

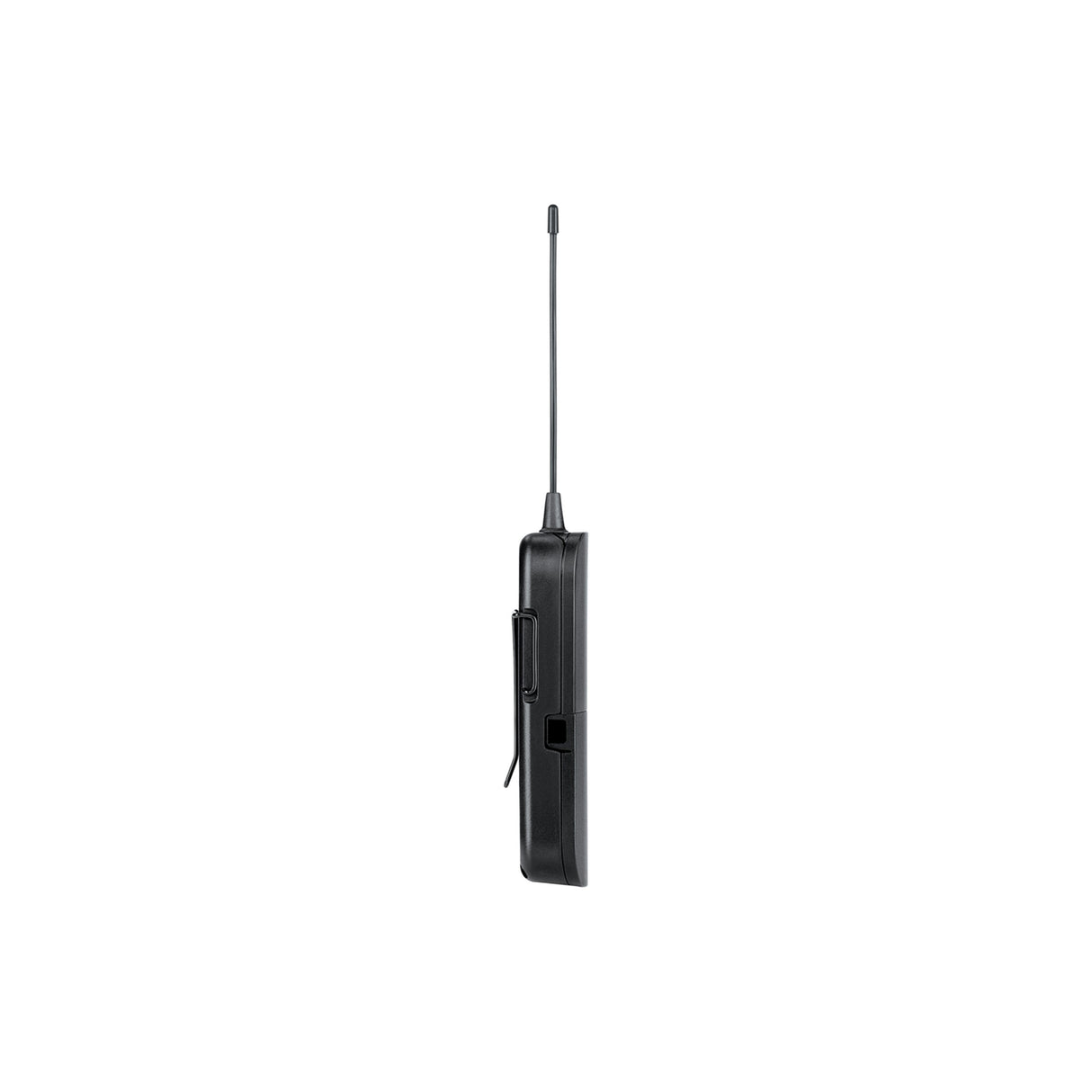

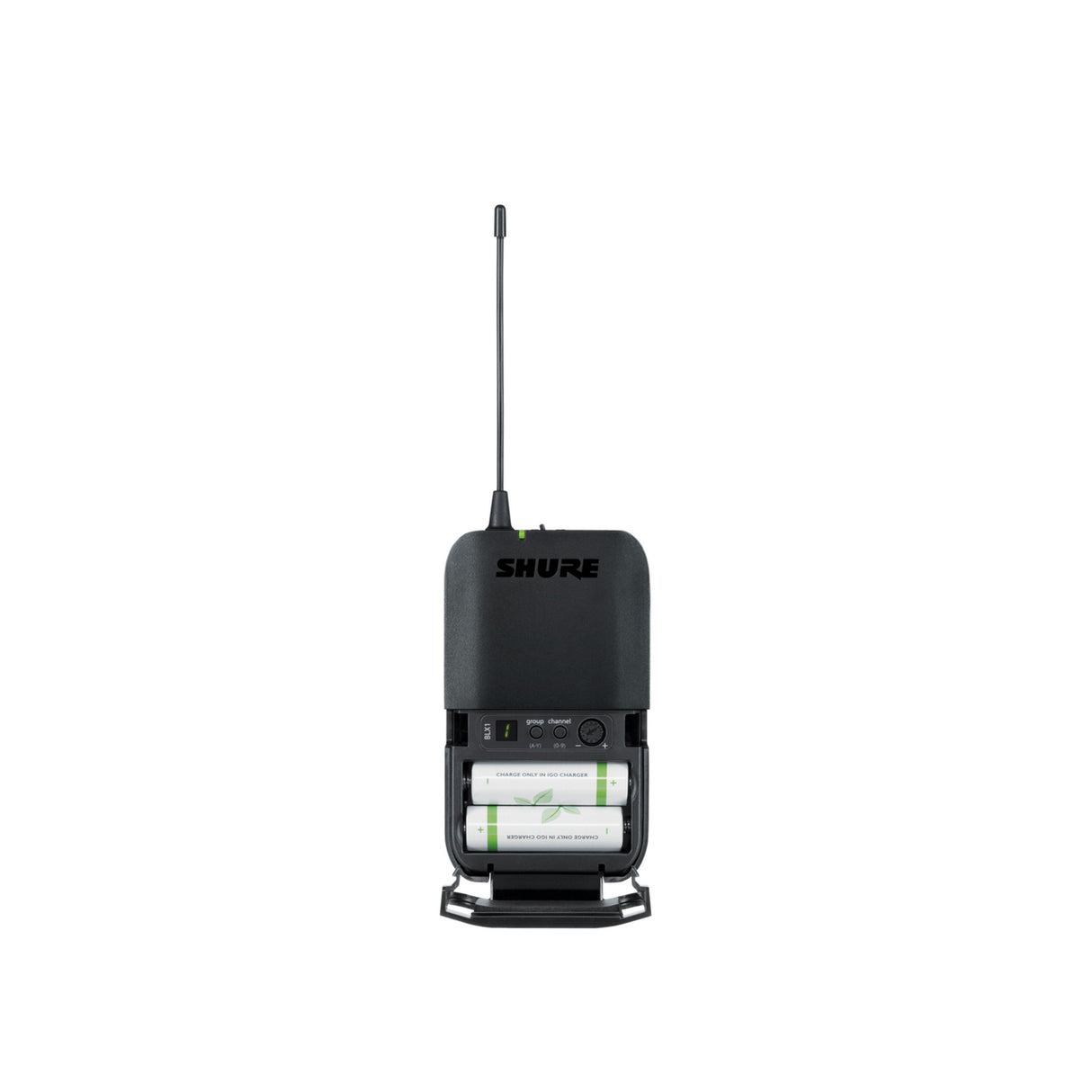

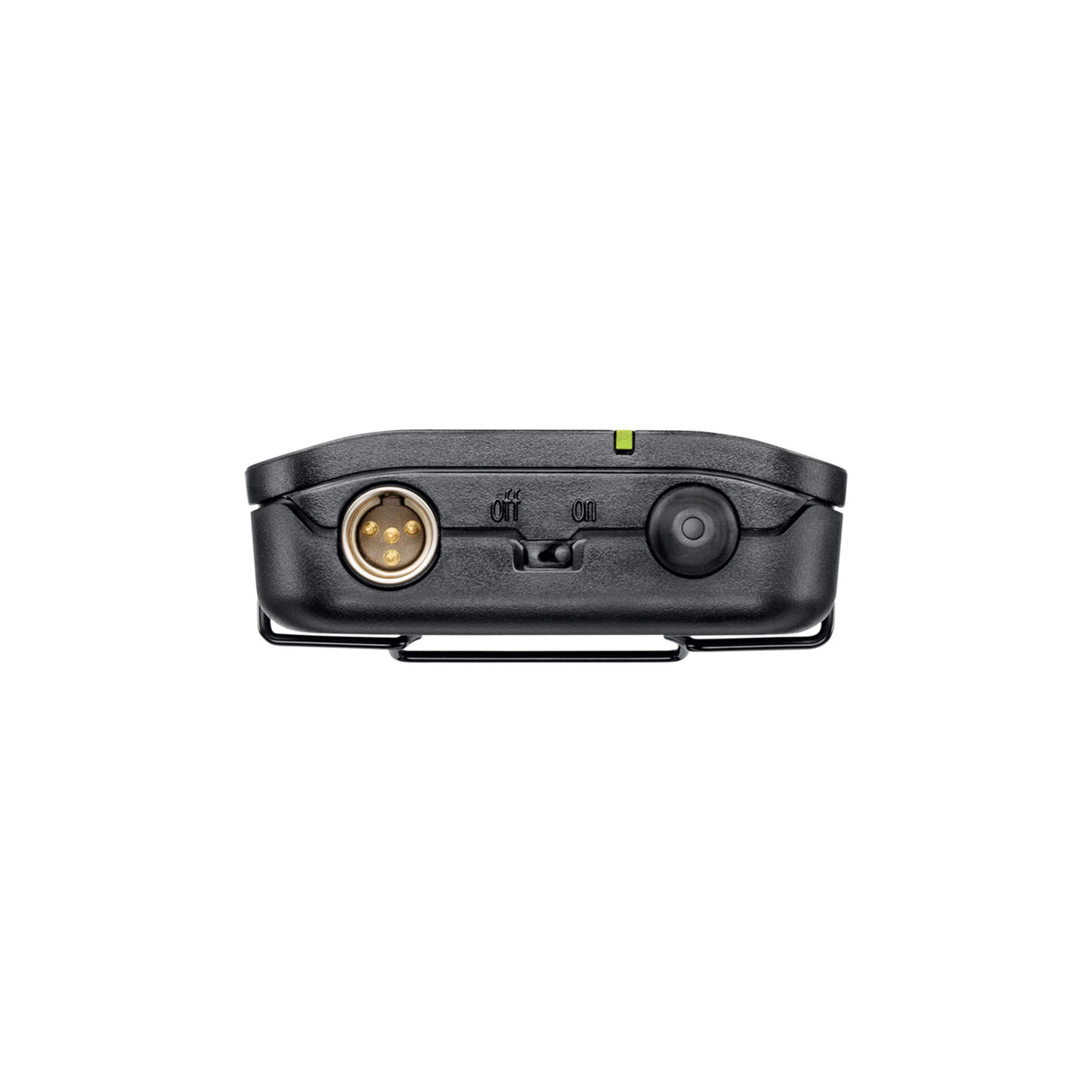

BLX1
Audio Input Level
Max: -16 dBV maximum
Min (0 dB): +10 dBV maximum
Gain Adjustment Range
26 dB
Input Impedance
1 MΩ
RF Transmitter Output
10 mW, typical
varies by region
Dimensions
4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight
2.6 oz. (75 g), without batteries
Housing
Molded ABS
Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline
Battery Life
up to 14 hours (alkaline)

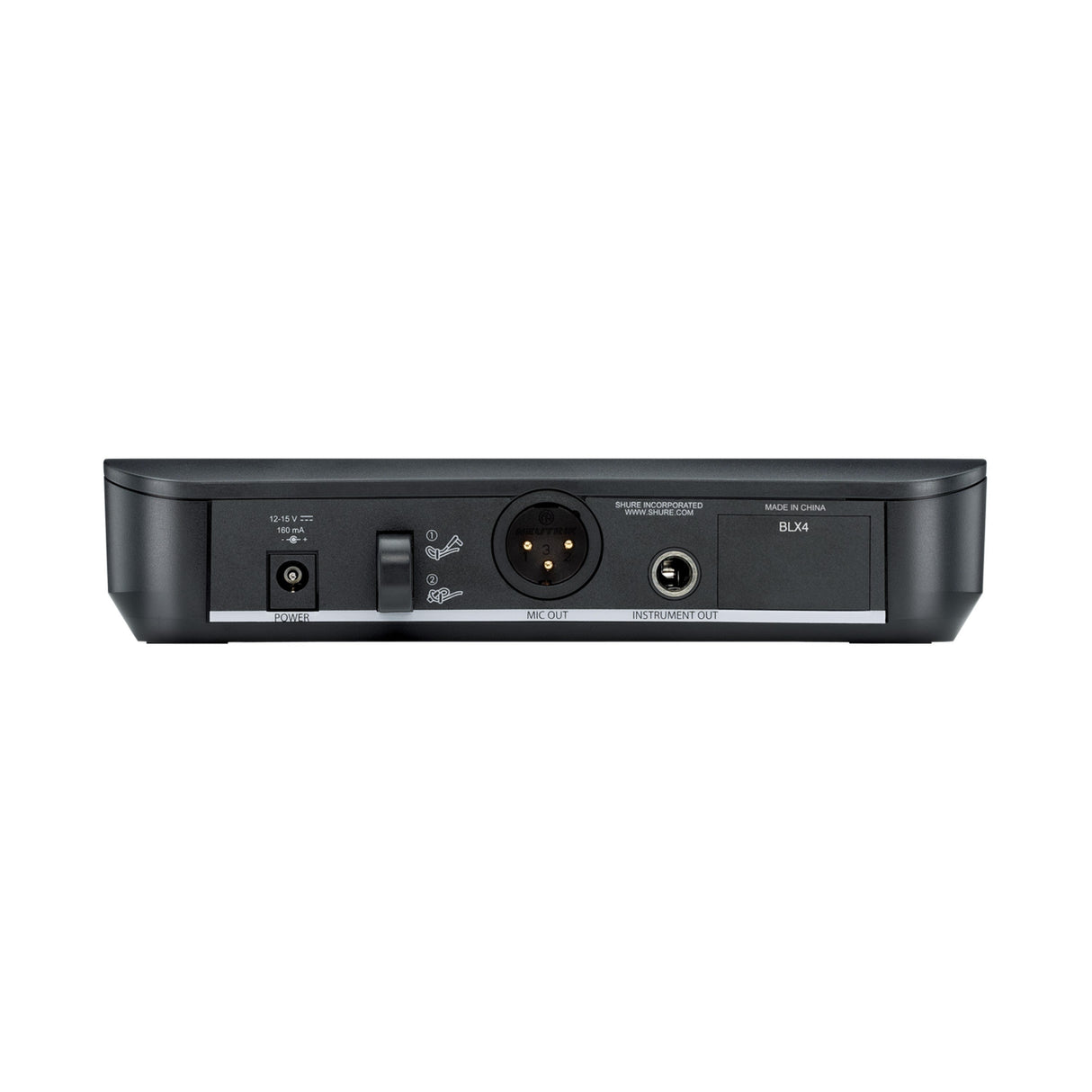

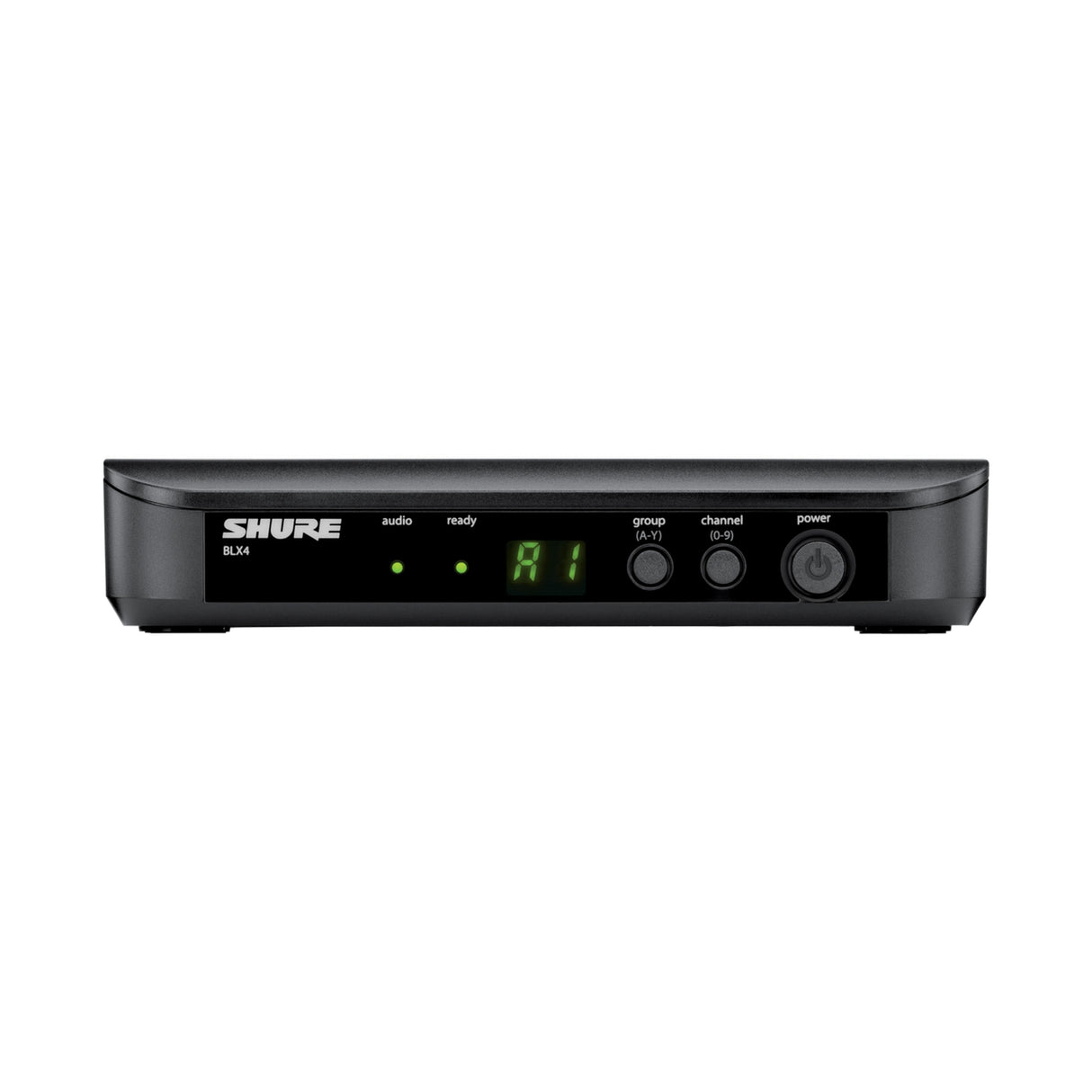

BLX4
Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: -27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load)
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>50 dB, typical
Dimensions
1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight
8.5 oz. (241 g)
Housing
Molded ABS
Power Requirements
12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

Included Accessories
1 PS24 Power Supply
1 95E16526 Carrying Case
