Shure  |  SKU: SHU-BLX14RH11

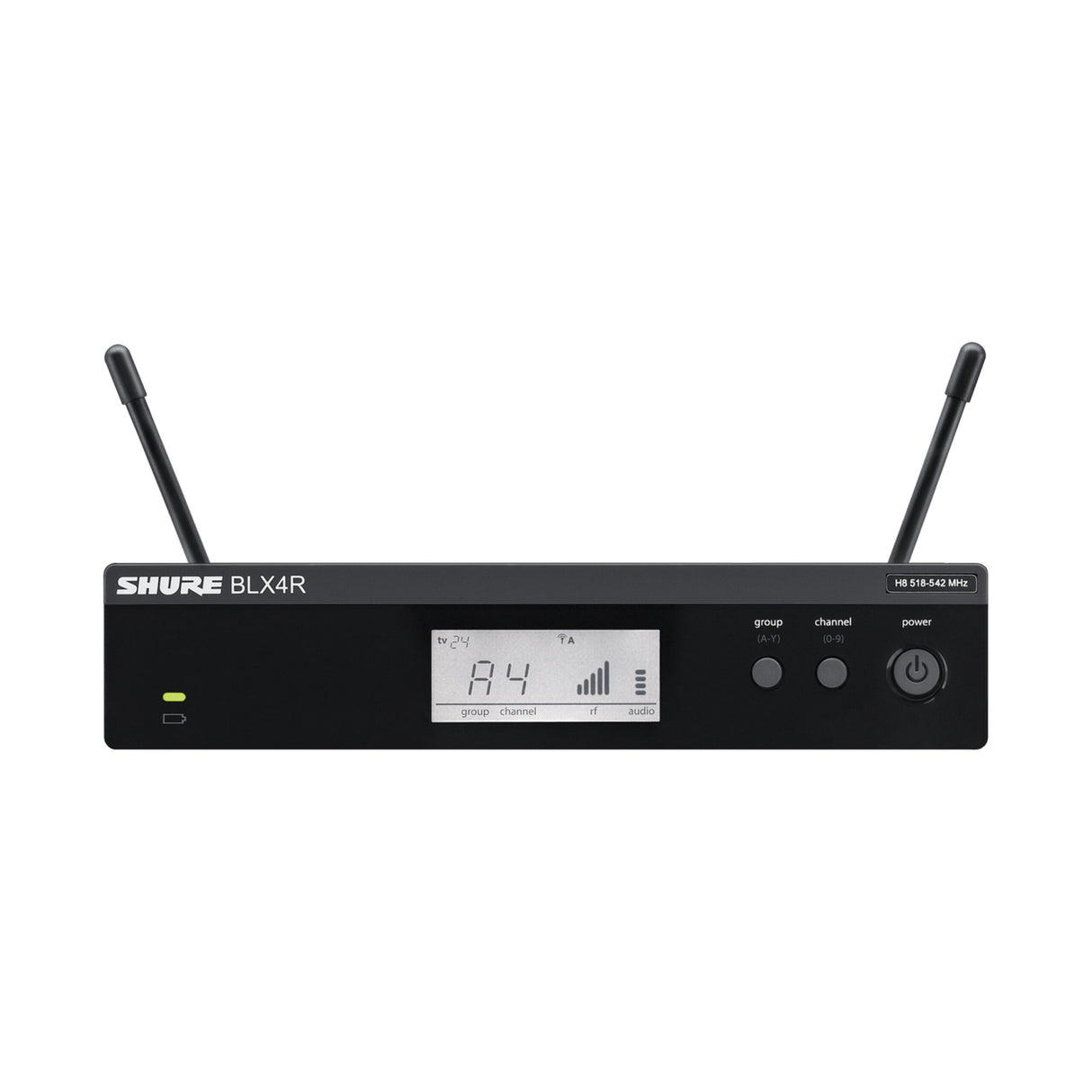

Shure BLX14R Wireless Rackmount Guitar System

$37900

Condition: New



Description

Shure BLX14R Wireless Rackmount Guitar System

Introducing the Shure BLX14R Wireless Rack-Mount Guitar System
Experience top-notch sound quality and hassle-free setup with the Shure BLX14R Wireless Rack-Mount Guitar System. Enjoy up to 14 hours of battery life and professional-grade audio performance straight out of the box. The system comes equipped with the BLX4R half-rack single-channel receiver, BLX1 bodypack transmitter with WA302 instrument cable, power supply, two AA batteries, windscreens, rackmount kit, two 1/4 wave antennas, zipper bag, and user guide.

SUPERIOR AUDIO - Take the Stage with Confidence
Eliminate the need for wires and enjoy the professional-grade Shure sound for every band and vocal need.

RELIABLE SIGNAL - Expand Your Range
Experience a range of up to 300 feet (100m) and take the show into the crowd without interruption.

EASY SETUP - Own the Stage
BLX ensures a quick setup with its one-touch scan and selection feature.

BATTERY LIFE - Power to Perform
BLX transmitters can last up to 14 hours on a single pair of AA batteries, so the show can go on and on.

SYSTEMS EXPANSIONS - Endless Possibilities
With the ability to run up to 12 channels per frequency band*(subject to regional and environmental restrictions), the possibilities are limitless.

VERSATILITY INCLUDED - Options for Every Need
Choose from an impressive range of Shure microphones in BLX systems and find the perfect match for your needs.

Technical Specifications

BLX1
Audio Input Level
Max: -16 dBV maximum
Min (0 dB): +10 dBV maximum
Gain Adjustment Range
26 dB
Input Impedance
1 MΩ
RF Transmitter Output
10 mW, typical
varies by region
Dimensions
4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight
2.6 oz. (75 g), without batteries
Housing
Molded ABS
Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline
Battery Life
up to 14 hours (alkaline)

BLX4
Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: -27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load)
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>50 dB, typical
Dimensions
1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight
8.5 oz. (241 g)
Housing
Molded ABS
Power Requirements
12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

Included Accessories
1 WA302 Instrument cable
1 PS24 Power Supply

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Shure

Shure BLX14R Wireless Rackmount Guitar System

$37900

Shure BLX14R Wireless Rackmount Guitar System

Introducing the Shure BLX14R Wireless Rack-Mount Guitar System
Experience top-notch sound quality and hassle-free setup with the Shure BLX14R Wireless Rack-Mount Guitar System. Enjoy up to 14 hours of battery life and professional-grade audio performance straight out of the box. The system comes equipped with the BLX4R half-rack single-channel receiver, BLX1 bodypack transmitter with WA302 instrument cable, power supply, two AA batteries, windscreens, rackmount kit, two 1/4 wave antennas, zipper bag, and user guide.

SUPERIOR AUDIO - Take the Stage with Confidence
Eliminate the need for wires and enjoy the professional-grade Shure sound for every band and vocal need.

RELIABLE SIGNAL - Expand Your Range
Experience a range of up to 300 feet (100m) and take the show into the crowd without interruption.

EASY SETUP - Own the Stage
BLX ensures a quick setup with its one-touch scan and selection feature.

BATTERY LIFE - Power to Perform
BLX transmitters can last up to 14 hours on a single pair of AA batteries, so the show can go on and on.

SYSTEMS EXPANSIONS - Endless Possibilities
With the ability to run up to 12 channels per frequency band*(subject to regional and environmental restrictions), the possibilities are limitless.

VERSATILITY INCLUDED - Options for Every Need
Choose from an impressive range of Shure microphones in BLX systems and find the perfect match for your needs.

Technical Specifications

BLX1
Audio Input Level
Max: -16 dBV maximum
Min (0 dB): +10 dBV maximum
Gain Adjustment Range
26 dB
Input Impedance
1 MΩ
RF Transmitter Output
10 mW, typical
varies by region
Dimensions
4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight
2.6 oz. (75 g), without batteries
Housing
Molded ABS
Power Requirements
2 LR6 AA batteries, 1.5 V, alkaline
Battery Life
up to 14 hours (alkaline)

BLX4
Output Impedance
XLR connector: 200 Ω
6.35 mm (1/4") connector: 50 Ω
Audio Output Level
Ref. ±33 kHz deviation with 1 kHz tone
XLR connector: -27 dBV (into 100 kΩ load)
6.35 mm (1/4") connector: -13 dBV (into 100 kΩ load)
RF Sensitivity
-105 dBm for 12 dB SINAD, typical
Image Rejection
>50 dB, typical
Dimensions
1.57 in. X 7.40 in. X 4.06in. (40 mm X 188 mm X 103 mm) H x W x D
Weight
8.5 oz. (241 g)
Housing
Molded ABS
Power Requirements
12-15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

Included Accessories
1 WA302 Instrument cable
1 PS24 Power Supply

Frequency Options

  • H11: 572-596 MHz
  • H9: 512-542 MHz
  • J11: 596-616 / 614-616 MHz
  • H8: 518-542 MHz
